HTC-CE-8201 Clamp on Ground Resistance Tester with Current
Click To Zoom
HTC-CE-8201 Clamp on Ground Resistance Tester with Current
HTC-CE-8201 Clamp on Ground Resistance Tester with Current

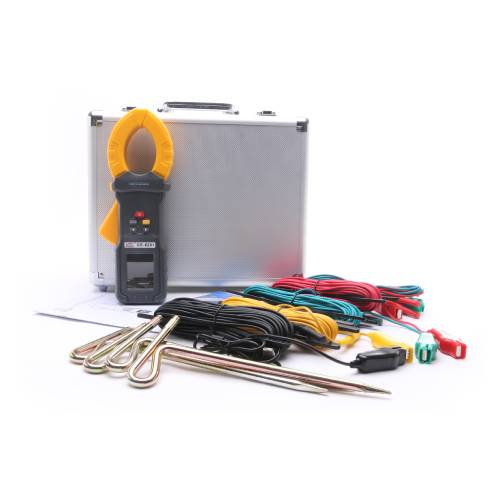

The HTC-CE-8201 is a clamp-on tester that measures grounding resistance, leakage current, and AC voltage. It's useful for electricians and inspectors to ensure electrical system safety.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 43,635
(GST inclusive price) i-
Base Value: ₹ 36978.8
-
GST: (18) % ₹ 6656.2
-
Total Value ₹ 43635
₹50,050.00
( - 13% OFF )
Description
Key Features
- Ground resistance test, loop resistance test, AC current test, AC voltage test
- Clamp Size 68mm
- Display 2.4 inches color LCD screen
- Measure Time 1 time/sec
- Data Storage Maximum 500 groups of data, display “FULL” symbol to indicate that the storage is full
- Auto Power Off (APO)
- Spare 1 & 10 Test Ring to detect Self Protection
What's in the box?
|
Rating & Reviews
Rating
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 0.02Ω~9.99Ω | 0.01Ω | ±2% of rdg + 0.1Ω digits |
| 10.0Ω~99.9Ω | 0.5Ω | ±3% of rdg + 0.5Ω digits |
| 100Ω~199Ω | 1Ω | ±5% of rdg + 1Ω digits |
| 200Ω~299Ω | 5Ω | ±10% of rdg + 5Ω digits |
| 300Ω~699Ω | 10Ω | ±15% of rdg + 10Ω digits |
| 700Ω~999Ω | 20Ω | ±20% of rdg + 20Ω digits |
| 1.00KΩ~1.19KΩ | 30Ω | ±25% of rdg + 30Ω digits |
| 1.20KΩ~2.00KΩ | 50Ω | ±35% of rdg + 50Ω digits |
| CURRENT | ||
| Range | Resolution | Accuracy |
| 0.100mA~0.999mA | 0.001mA | ±2.5% of rdg + 0.1mA digits |
| 1.00mA~9.99mA | 0.01mA | ±2.5% of rdg + 0.5mA digits |
| 10.0A~99.9A | 0.1mA | ±2.5% of rdg + 1mA digits |
| 0.100A~0.999A | 0.001A | ±2.5% of rdg + 0.1A digits |
| 1.00A~9.99A | 0.01A | ±2.5% of rdg + 0.5A digits |
| 10.0A~60.0A | 0.1A | ±2.5% of rdg + 1A digits |
| GROUND VOLTAGE | ||
| Range | Resolution | Accuracy |
| 1.00V~9.99V | 0.01V | ±2.5% of rdg + 0.1V digits |
| 10.0V~99.9V | 0.1V | ±2.5% of rdg + 1V digits |
| 100V~600V | 1V | ±2.5% of rdg + 5V digits |
| SOIL RESISTIVITY | ||
| Range | Resolution | Accuracy |
| 0.00Ωm~99.99Ωm | 0.01Ωm | p=2naR (note1) |
| 100.0Ωm~999.9Ωm | 0.1Ωm | |
| 1000Ωm~9999Ωm | 1Ωm | |
| 10.00kΩm~99.99kΩm | 10Ωm | |
| 100.0kΩm~999.9kΩm | 100Ωm | |
| 1000kΩm~9999kΩm | 1kΩm | |
| POWER | Dimension | |
| 3.7V Lithium X 1 | 273(H) x 106(W) x 53(D)mm | |
