Metravi CET-02 Clamp On Ground Resistance Tester

Click To Zoom

Metravi CET-02 Clamp On Ground Resistance Tester

Metravi CET-02 Clamp On Ground Resistance Tester

(Based On 10 Reviews)

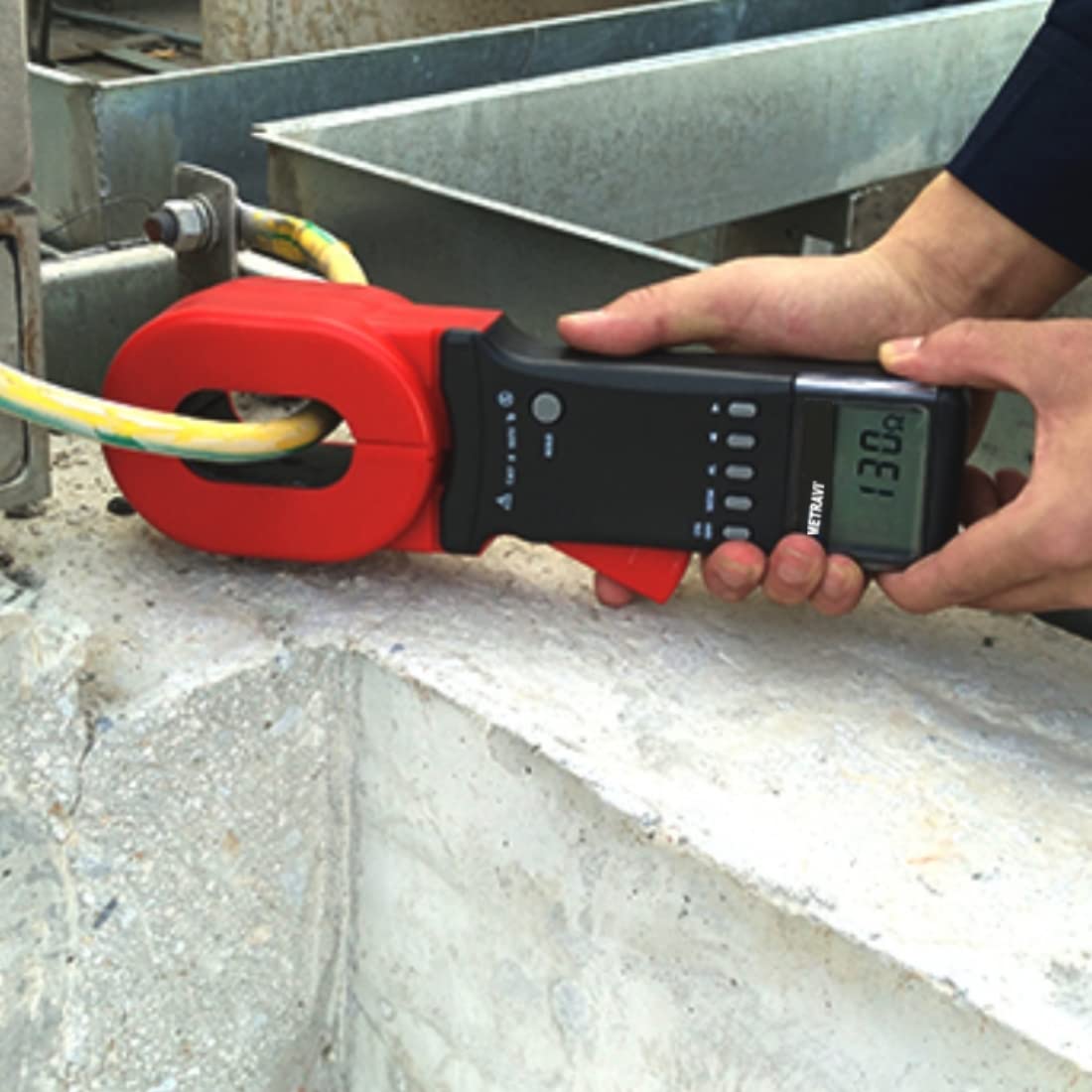

The CET-02 Clamp On Ground Resistance Tester is a sophisticated, user-friendly instrument designed for measuring ground resistance and leakage current in various electrical systems without the need for disconnecting the grounding system. Ideal for both residential and industrial applications, this device offers precise measurements with minimal setup time, enhancing safety and efficiency.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 21,890.00

(GST inclusive price) i
  • Base Value: ₹ 18550.8
  • GST: (18) % ₹ 3339.2
  • Total Value ₹ 21890

₹29,464.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • Display: 4 digit Backlit LCD
  • Resistance Range: 0.01Ω to 1500Ω
  • Resolution: 0.01 Ohms
  • Auto Ranging
  • Storage of Measured Data: 99 Data
  • Setting of Resistance Alarm Critical Value: 1 – 199 Ohms
  • Data Hold, Auto Power Off
  • Instrument safety: IEC/EN61010-1, IEC/EN6010-2-032
  • Double insulation, pollution degree: class II
  • Over-voltage category: CATIII 150V to ground, Max 20A Degrees of protection.
  • Over-voltage category: CATIII 150V to ground, Max 20A Degrees of protection.
  • Span of Jaw : 32mm
  • Battery type: 4 ×1.5V alkaline LR6 AA battery (not included)
  • Low battery indicationInternal consumption: <50mA
  • Auto Power Off: after 5 minutes of being idle
  • Display: 4 digits 9999 counts Backlit LCD with annunciators
  • Memory size: 99 Units of Reading
  • Data upload interface: RS232 (Optional)



What's in the box?

  • Metravi CET-02 Clamp On Ground Resistance Tester

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
Instrument safetyIEC/EN61010-1, IEC/EN6010-2-032
Insulationdouble insulation, pollution degree: class II Over
Round jaw260mm×90mm×66mm (10×4×3 inches)
Dimensions(L×W×H): Long elliptical jaw285mm×90mm×66mm (11×4×3 inches)
Span of JawLong elliptical jaw 35mm; round jaw 32mm
Weight (including batteries)Long elliptical jaw - 1160g, Round jaw-1120g
Battery type4 ×1.5V alkaline LR6 AA battery (not included)
Internal consumption<50mA
Auto Power Offafter 5 minutes of being idle
Memory size99 Units of Reading Environment
Working-10°C~55°C, 10%RH-90%RH
Storage-20°C~60°C, below 70%RH Range shift: Full range
electric field<1V/m
Data upload interfaceRS232 (Optional)
ModeJaw specificationRange of measurementRange of current Storage functionAlarm function
CET-0265mm×32mm0.01Ω - 1500Ω----99 Units√
Earth / Ground Resistance
RangeResolutionAccuracy
0.010Ω - 0.099Ω0.001Ω±(1%+0.01Ω)
0.10Ω - 0.99Ω0.01Ω±(1%+0.01Ω)
1.0Ω-49.9Ω0.1Ω±(1%+0.01Ω)
50.0Ω-99.5Ω0.5Ω±(1.5%+0.5Ω)
100Ω-199Ω±(2%+1Ω)
200Ω-395Ω±(5%+5Ω)
400-590Ω10Ω±(10%+10Ω)
600Ω-880Ω20Ω±(20%+20Ω)
900Ω-1500Ω30Ω ±(25%+30Ω)
Current (True-RMS)
RangeResolutionAccuracy
0.00mA -9.00mA0.05mA±(2.5%+2mA)
10.0mA -99.0mA0.1mA±(2.5%+10mA)
100mA -300mA1mA±(2.5%+20mA)
0.30A-2.99A 0.01A±(2.5%+0.1A)
3.0A-9.9A0.1A±(2.5%+0.5A)
10.0A-30.0A0.1 A±(2.5%+1 A)
