Metravi CET-01B Clamp-on Earth and Ground Resistance Tester with Bluetooth
Metravi CET-01B Clamp-on Earth and Ground Resistance Tester with Bluetooth
The Metravi CET series Clamp-on Earth Resistance Testers are widely used in earth resistance measurement and loop resistance measurement in electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 22,200
(GST inclusive price) i-
Base Value: ₹ 18813.6
-
GST: (18) % ₹ 3386.4
-
Total Value ₹ 22200
₹31,725.00
( - 30% OFF )
Description
Key Features
- Avoids long self-test waiting after power-on, and enters the test interface immediately after power-on.
- No relay self-test and adopts advanced algorithms and digital integrated processing technology.
- No bulky problem of old products and is portable & handheld.
- New housing & design, six operation keys on the panel, easy to operate.
- Added sound and light alarm function, will have ""beep--beep-- beep--"" alarm sound.
- Added interference signal identification and indication function, will have ""beep--beep--beep--"" prompt sound.
- Measurement range 0.01Ω-1500Ω.
- Stores 99 groups of data, has lower power consumption, maximum startup and operating current less than 50mA.
- Bluetooth enabled and Free App for data storage and analysis.

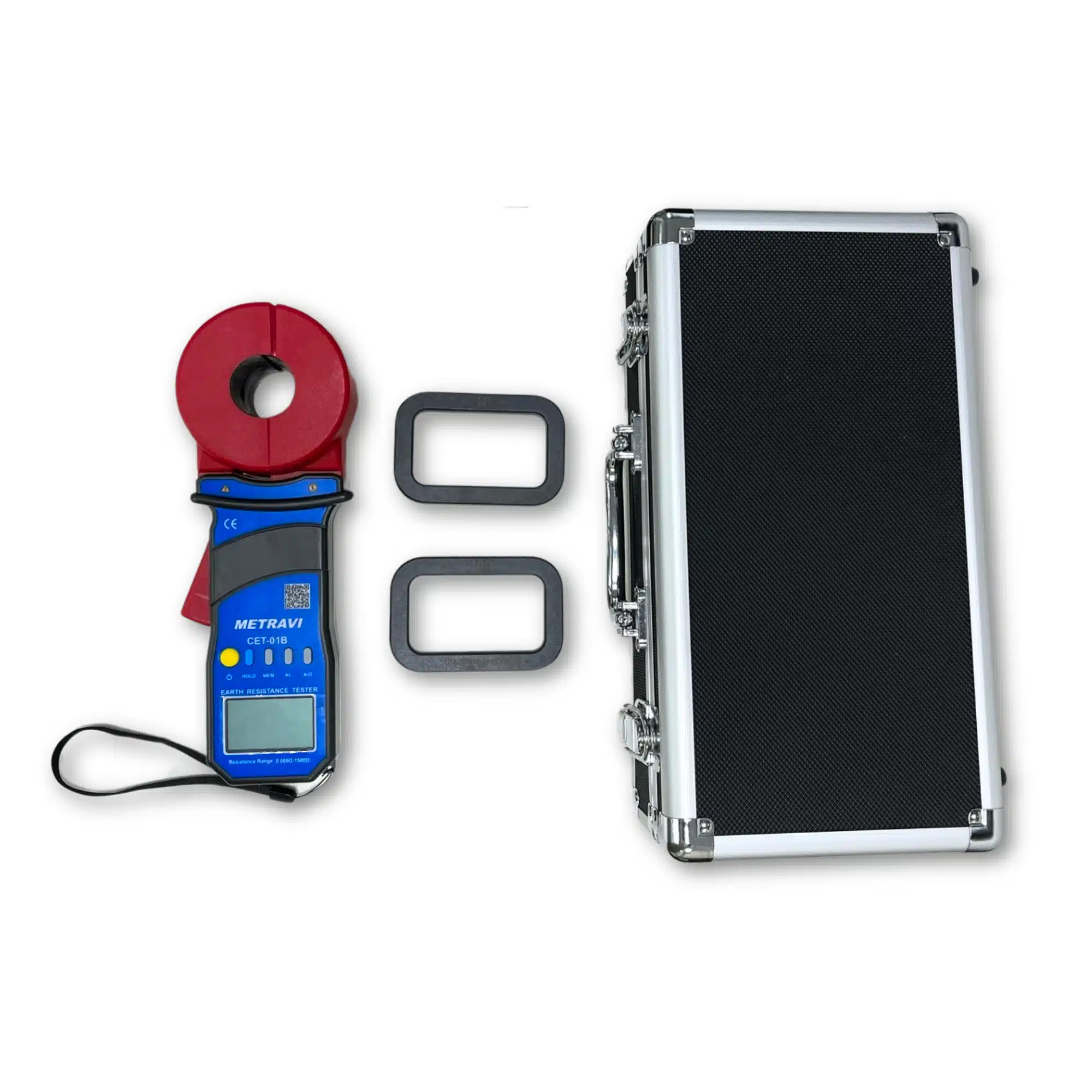

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Clamp jaw size | Long clamp jaw 65mmX32mm Round clamp jaw: $32mm |
| Open Clamp Jaw Size | Long clamp 65X32mm Round clamp 32mm |
| Resistance Range | 0.01Ω-1500Ω |
| Resistance Resolution | 0.001Ω |
| Current Range | 0.00mA-35.0A |
| Current Resolution" | 0.05mA |
| Data Storage | 99 groups |
| Interface | Bluetooth |
| Free Smartphone App | For data storage and analysis |
| Alarm | "beep--beep--beep" alarm sound. Press "AL" key to turn on/off |
| Alarm Critical Value Setting Range | Resistance: 1-1990; Current:1-499mA |
| Protection | Double insulation |
| Sampling Time | 0.5 s |
| Resistance Measurement Frequency | >1kHz |
| Measured Current Frequency" | 50/60Hz automatically |
| Power Supply | 6VDC (4 PCS alkaline dry battery - not included) |
| Display | 4-bit LCD digital display, 47mm(L) x 28.5mm(W) |
| Weight | Long clamp jaw type: 1160g Round clamp jaw 1090g |
| Tester Dimensions | Long clamp jaw type:279mm(L)x100mm(W)x56 mm(H) Round clamp jaw type:260mm(L)x100mm(W)x66 mm(H) |
| Structure | Clamp CT |
| Shift | Automatic Shift |
| External Magnetic Electric field | <40A/m: <1V/m |
| Working Temperature & Humidity | -20°C~55°C; 10%RH~90%RH |
| Model | Jaw specification | Range of measurement | Range of Current | Storage | Bluetooth | Alarm |
| CET-01B | φ32mm | 0.01Ω - 1500Ω | ---- | 99 Units | √ | √ |
| Earth / Ground Resistance | ||
| Range | Resolution | Accuracy |
| 0.010Ω - 0.099Ω | 0.001Ω | ±(1%+0.01Ω) |
| 0.10Ω - 0.99Ω | 0.01Ω | ±(1%+0.01Ω) |
| 1.0Ω-49.9Ω | 0.1Ω | ±(1%+0.1Ω) |
| 50.0Ω-99.5Ω | 0.5Ω | ±(1.5%+0.5Ω) |
| 100Ω-199Ω | 1Ω | ±(2%+1Ω) |
| 200Ω-395Ω | 5Ω | ±(5%+5Ω) |
| 400-590Ω | 10Ω | ±(10%+10Ω) |
| 600Ω-880Ω | 20Ω | ±(20%+20Ω) |
| 900Ω-1500Ω | 30Ω | ±(25%+30Ω) |
| Current (True-RMS) | ||
| Range | Resolution | Accuracy |
| 0.00mA -9.00mA | 0.05mA | ±(2.5%+2mA) |
| 10.0mA -99.0mA | 0.1mA | ±(2.5%+10mA) |
| 100mA -300mA | 1mA | ±(2.5%+20mA) |
| 0.30A-2.99A | 0.01A | ±(2.5%+0.1A) |
| 3.0A-9.9A | 0.1A | ±(2.5%+0.5A) |
| 10.0A-35.0A | 0.1 A | ±(2.5%+1 A) |
