Metravi UNIKS RAPID PRO Multifunctional Installation Tester
.v3.jpg)
Click To Zoom
Metravi UNIKS RAPID PRO Multifunctional Installation Tester
Metravi UNIKS RAPID PRO Multifunctional Installation Tester

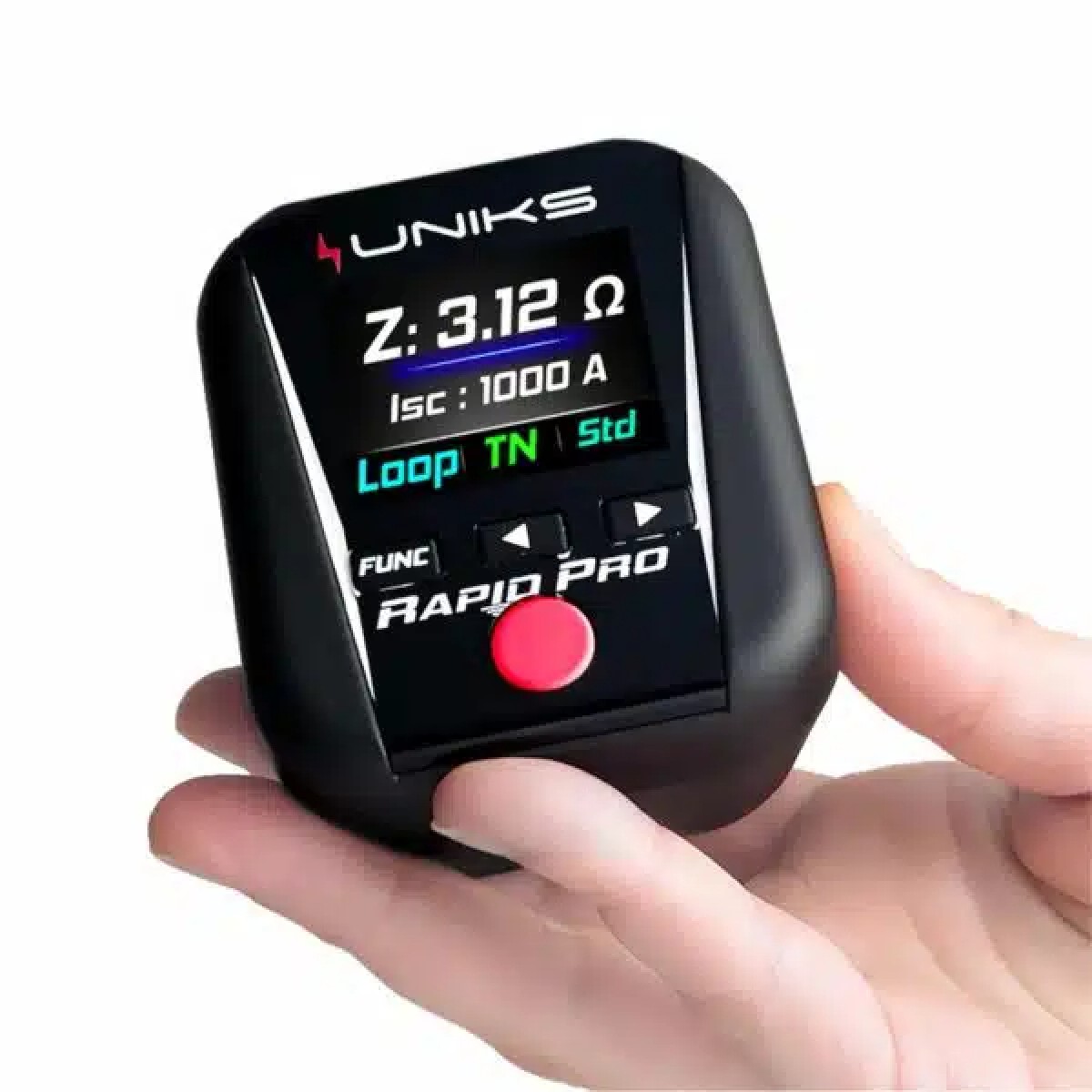

The Metravi UNIKS Rapid PRO Multifunction Installation Tester, is compact and socket sized and performs tests and measurements related to verification of an electrical installation. It can be used as a TRMS Multimeter, a SOCKET TESTER and more, for electrical installations.
Request Callback
Order In Bulk
Generate Quote
₹ 26,933.00
(GST inclusive price) i₹26,933.00
( - 0% OFF )
Description
Socket size, Pocket size, Innovative Meter
Display: TFT 1.77” Full Colour
Data Logging: 62 sets (automatic)
Certification: CAT III 300V, IEC/EN61557-3, IEC/EN61557-6, IEC/EN61010-1, IEC/EN61010-2-030, IEC/EN61326-1

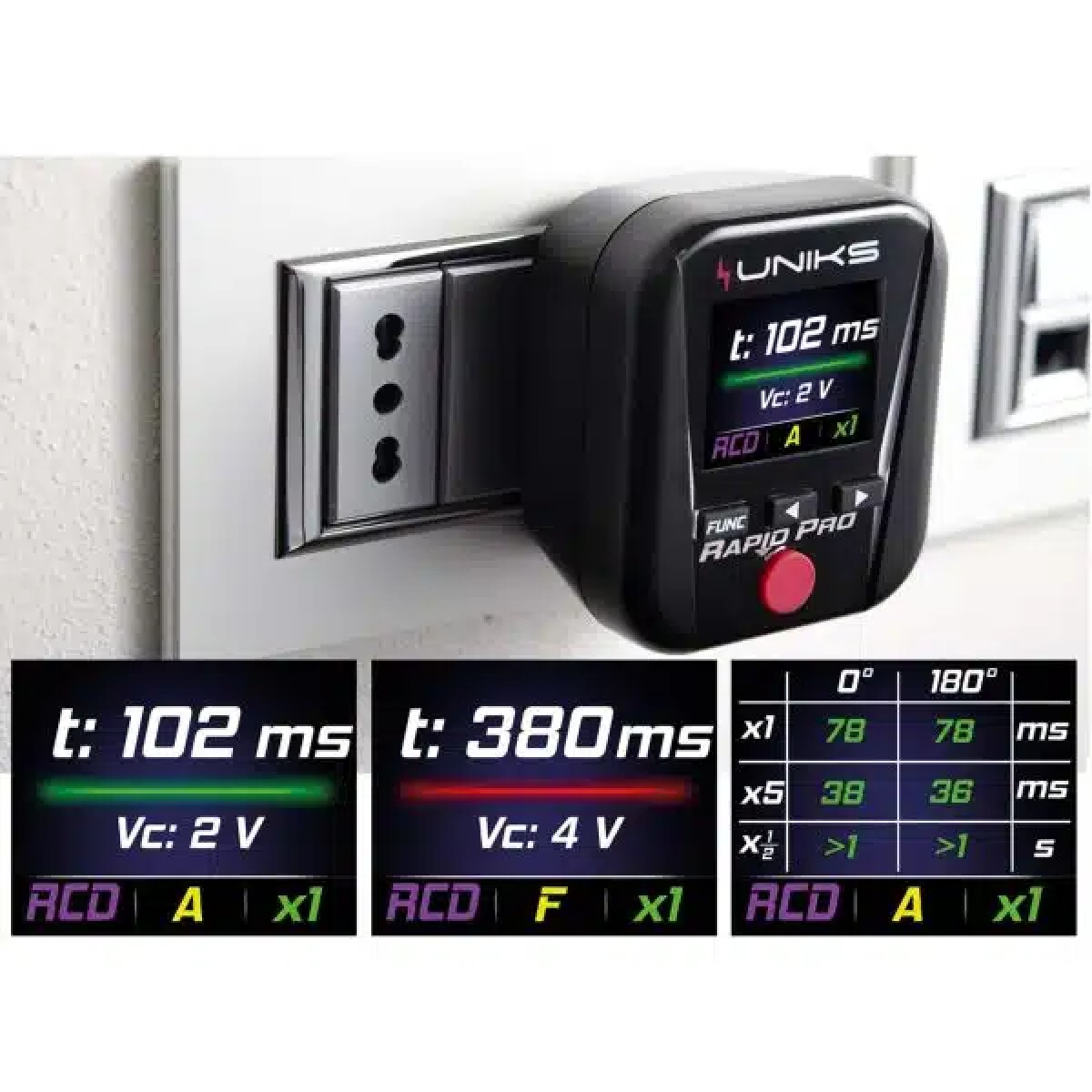

RCD Test: AC , A , F
Accuracy: ±(0.0% + 5%IΔn)
Earth Loop Resistance: 0.01Ω – 9.99Ω / 10Ω – 99.9Ω / 100Ω – 999Ω
Accuracy: ±(5.0% + 8 dgt), ±(5.0% + 8 dgt), ±(5.0% + 8 dgt)
AC TRMS Voltage: 120V – 265V
Accuracy: ±(1.0% + 3 dgt)
Frequency: 42Hz – 69Hz
Accuracy: ±(2.0% + 1 dgt)
Voltage Harmonics: 0.8V – 256V
Accuracy: ±(3.0% + 5 dgt)
Socket Polarity: Open Ground or Neutral,Phase/Neutral Phase/Ground reverse

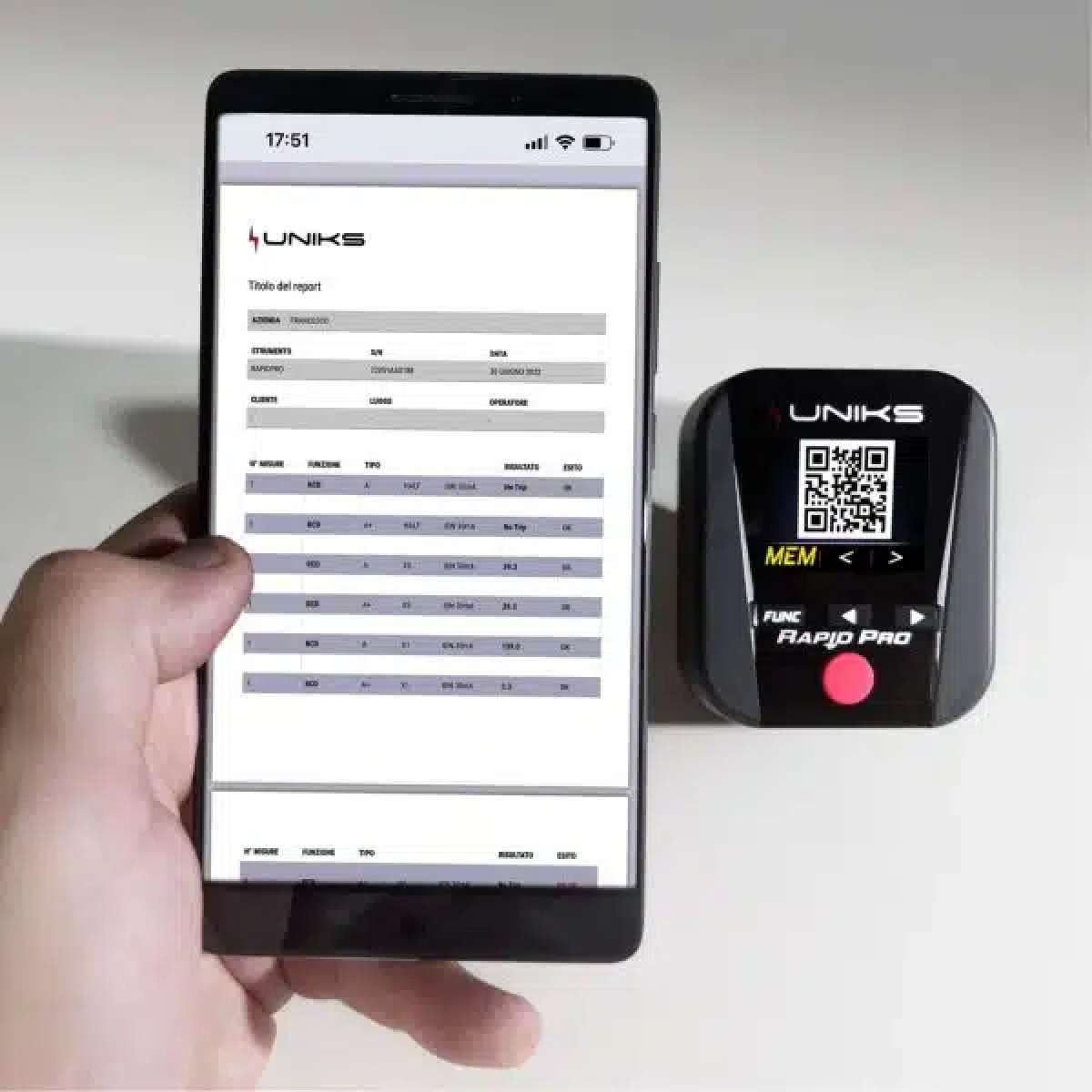

Reporting: Built-in, transfer to Smartphone via QR Code Scan
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| INPUT | |
| Overvoltage Category | CAT III 300V |
| Max Voltage input | 265V AC |
| INPUT | |
| Measures Guidelines | IEC/EN61557-3 IEC/EN61557-6 |
| Safety Guidelines | IEC/EN61010-1 IEC/EN61010-2-030 |
| EMC | IEC/EN61326-1 |
| Display and Memory | |
| Display | TFT 1.77” Full Colour |
| Memory Slot | 62 |
| Environmental Specification | |
| Reference Temperature | 23°C ±5°C |
| Operat onal Temperature | 5°C to 40°C |
| Maximum Humidity | <80%RH |
| Storage Temperature | 20°C to 60°C |
| Storage Humidity | <80%RH |
| Mechanical Characteristics | |
| Size | 81.5 x 70 x 83 mm |
| Weight | 110gms |
| Technical Specification | |
| RCD | IEC/EN61557-6 |
| LOOP (Fault Loop Impedance) | IEC/EN61557-3 |
| Voltage AC TRMS (Phase-Neutral) | Crest Factor 1,5 ; Frequency 42 ÷ 69.0 Hz 5% |
| Voltage Harmonics | 1 ÷ 50th Harmonics <0.8V will not be shown |
| Socket Test | Open Ground or Neutral,Phase/Neutral Phase/Ground reverse - Vc>50V |
