Metravi Pro MFT-9101 Multifunction Tester
Click To Zoom

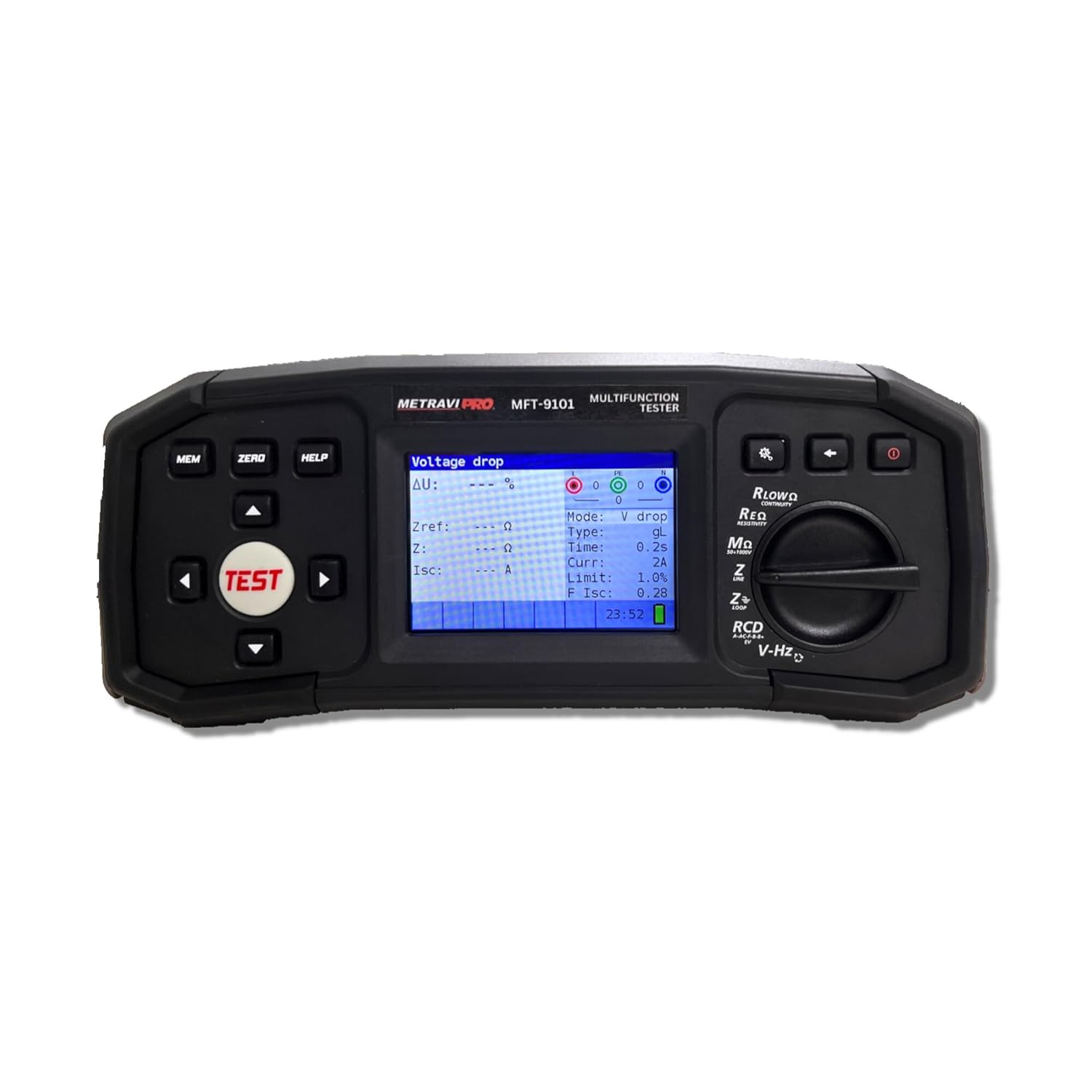

Metravi Pro MFT-9101 Multifunction Tester
Metravi Pro MFT-9101 Multifunction Tester
Multifunction Tester for measurement of T-RMS Insulation Resistance, Continuity, Low Resistance, RCD types A, AC, B, B+, F , Loop Impedance, Line Impedance, Voltage, Frequency, Earth Resistance, Phase Rotation, RCD/FI for Electric Vehicles Charging Stations (6 mA DC), RCD/FI for Electric Vehicles Charging Stations (6 mA DC). With TFT Colour LCD, Data Logging for 1000 readings and Rechargeable Battery, USB Interface. CAT III 600V, CAT IV 300V, Double Insulation, IP42. MADE IN GERMANY.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 87,749
(GST inclusive price) i-
Base Value: ₹ 74363.6
-
GST: (18) % ₹ 13385.4
-
Total Value ₹ 87749
₹1,18,125.00
( - 26% OFF )
Description
Key Features
- Loop Resistance.
- Internal Network Resistance.
- Short Circuit Current.
- Low Resistance and Continuity.
- Insulation.
- RCD/FI for types A, AC, B, B +, F (refer to model overview).
- RCD/FI for Electric Vehicles Charging Stations (6 mA DC).
- T-RMS Voltage, Rotary Field and Frequency.
- Earth Resistance.
- Memory for 1000 measurement readings.
- PC software to create a test certificate.
- Charging of batteries inside tester *Images and Specifications are subject to change without prior notice.
- Efficiency: Combines multiple tests in one device, saving time and effort.
- Compliance: Ensures adherence to safety standards and regulatory requirements.
- Safety: Identifies potential electrical hazards before they lead to accidents.
- Portability: Easy to carry and use in various environments.
Applications
- New Installations: Verify that new electrical installations comply with safety regulations.
- Periodic Testing: Ensure existing installations remain safe and operational over time.
- Troubleshooting: Diagnose issues in circuits, such as high impedance, poor insulation, or faulty RCDs.
- Industrial and Commercial Use: Test complex systems like three-phase circuits or high-voltage networks.

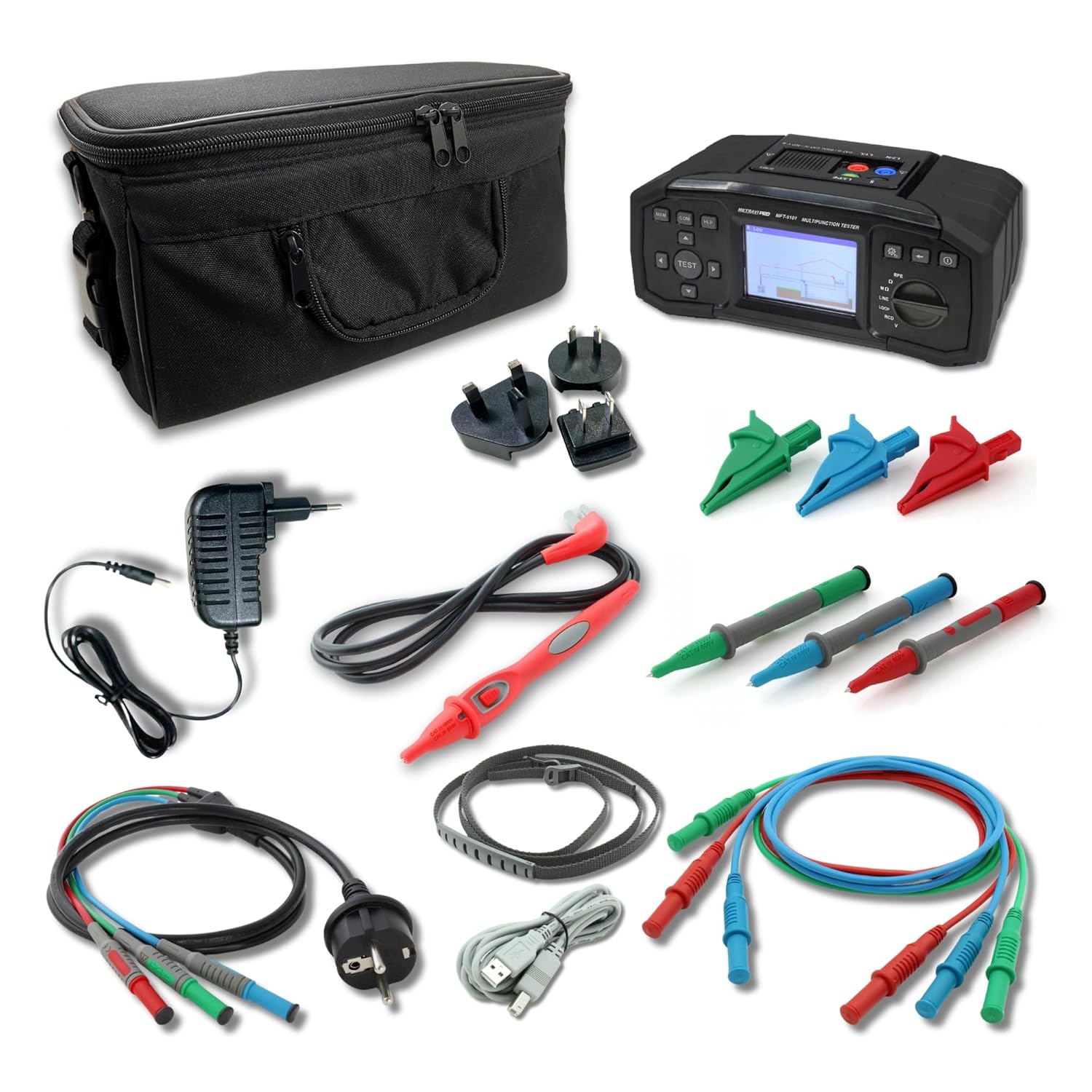

What's in the box?
|
Rating & Reviews
Rating
| GENERAL | |
| Power Supply | 9 VDC (6x1.5 V battery cells, size AA) / 12V DC Mains Adaptor |
| Battery Charging Current | < 600 mA (internally regulated) |
| Charging Duration | 6h typically |
| Operation | 15h typically |
| Safety | CAT III / 600 V; CAT IV / 300 V, Double Insulation, IP42, Pollution Degree 2 |
| Display | 480X320 TFT Colour LCD |

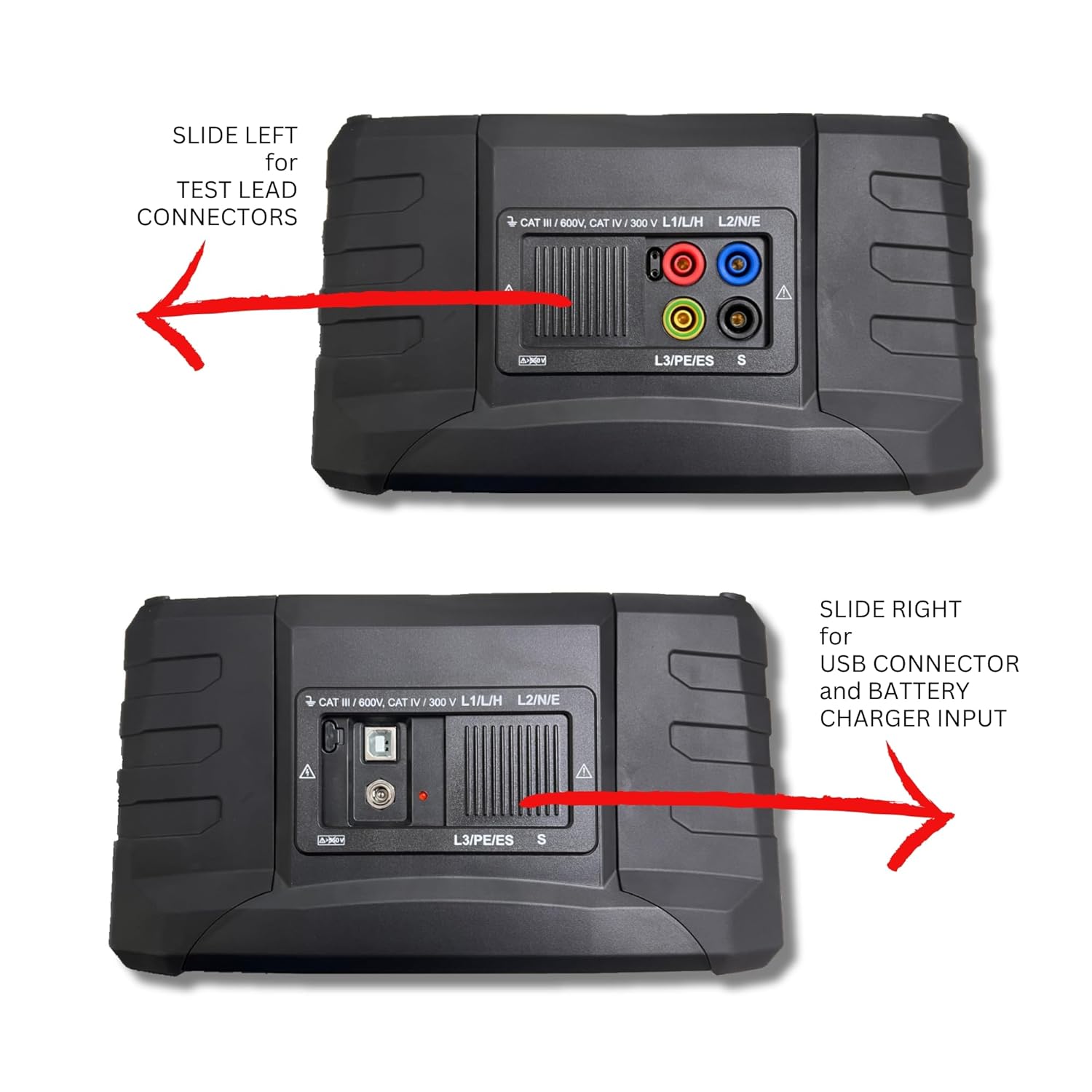

| Communications Interface | USB |
| Dimensions | 25 cm x 10.7 cm x 13.5 cm |
| Weight | 1.30 kg |
| Operations Environment | 0° to 40°C, ≤95% RH Non-condensing |
| Storage Environment | 10° to 70°C, ≤90%RH (10-40°C), ≤80%RH (40-60°C) |
| TECHNICAL | ||
| Specification | Measurements | Testing Range |
| Insulation Resistance | Nominal voltages | 50/100/250/500/1000V DC |
| Continuity Resistance | Low R (200mA) | |
| Continuity (low current) | ||
| RCD Testing | Nominal residual currents (mA) | 6/10/30/100/300/ 500/650/1000 |
| Test current shape | A, AC, B, B+, F | |
| RCD Type | G, S | |
| Contact voltage Trip-out current | ||
| Trip-out time | ||
| Trip-out current | ||
| Fault Loop Impedance and Prospective Fault Current | Zloop L-PE, Ipfc | |
| Zloop L-PE RCD, Ipfc, non trip subfunction | ||
| Loop-Rs | ||
| Line Impedance and Prospective Short-circuit Current | Line Impedance | |
| Prospective Short Circuit Current | ||
| Voltage drop detection | ||
| Voltage | 0-500V | |
| Frequency | 10-499Hz | |
| Earth Resistance | Re (3-wire and 4-wire) | |
| Memory and Reporting (Excel-Export) | Available | |
| Rechargable batteries & charging "on-board" | Available | |
| Special Functions | Automatic Polarity Change | |
| Calibration Date Reminder | (hidden function CAL-LAB) | |
| FW update per USB | ||
| API enabled | (extra configuration service required) | |
| Networks | TT, TN, IT, LV (2 x 55 V) | |
| External probe with button | Ready | |
| Optional Accessories | External Probe with Button 40m Extension Test Lead US-plug Test Cable, UK-plug Test Cable Earth Kit (3 x Cables 20m/20m/5m + 2 x Earth Stakes) EVSE Adapter | |
| Continuity | Test current 7 mA (2-wire) | 0.0 Ω - 1999 Ω |
| Test current 200 mA (2-wire) | 0.00 Ω - 1999 Ω | |
| Insulation resistance (RISO) | Test voltage 50/100/250 V 0.000 MΩ - 999 MΩ | 0.000 MΩ - 199.9 MΩ |
| Test voltage 500/1000 V | 0.000 MΩ - 999 MΩ | |
| RCD | I (Ramp) | 0.2xIΔN - 1.1xIΔN (AC) |
| 0.2xIΔN - 1.5xIΔN (A) (IΔN ≥30 mA) | ||
| 0.2xIΔN - 2.2xIΔN (A) (IΔN <30 mA) | ||
| 0.2xIΔN - 2.xIΔN (B) | ||
| Impedance (ZL) | Z line L-L, L-N, Ipsc | 0.00 Ω - 9999 Ω |
| Z loop L-PE, Ipfc | ||
| Z loop L-PE, Ipfc, non trip | ||
| Voltage (V) | T-RMS | 0 - 550V |
| Frequency | 10.0 Hz - 499.9 Hz | |
| Phase Rotation | T-RMS | 50 - 550V AC |
| 45 Hz - 400 Hz | ||
| Earth Resistance (RE) | 3-wire | 0.00 Ω - 9999 Ω |
| 4-wire | ||
| Specific Earth Resistance | 0.0 Ω - 9999 kΩ | |
| Power Supply | 9 V DC (6 x 1.5 V battery or NiMH batteries, size AA) | |
| Over Voltage Category | 600V CAT III, 300V CAT IV | |
| COM - port | USB | |
