Fluke 1664 FC Installation Multifunction Testers
Click To Zoom

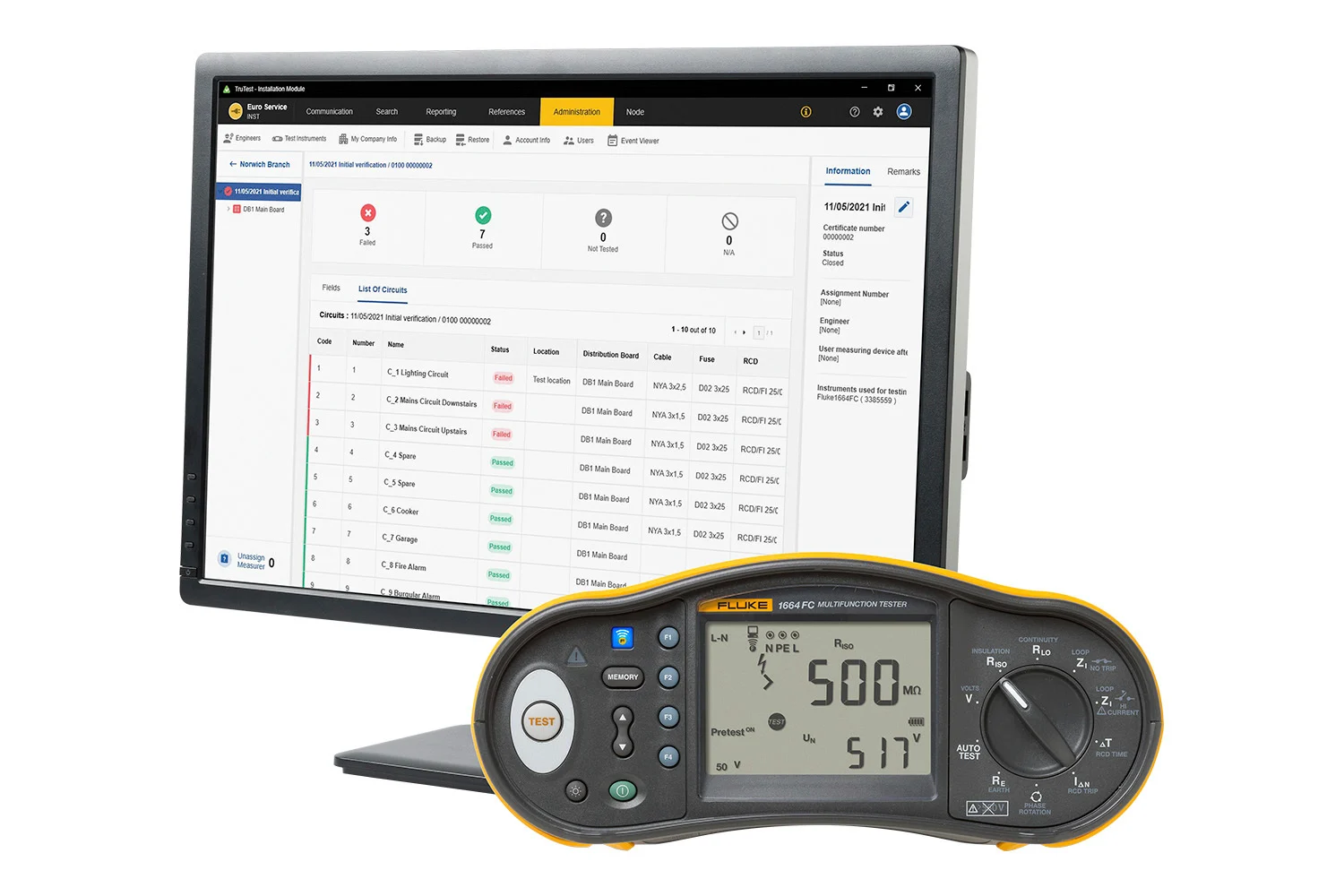

Fluke 1664 FC Installation Multifunction Testers
Fluke 1664 FC Installation Multifunction Testers
The Fluke 1664 FC is a multifunction installation tester designed for professional electricians to quickly and efficiently verify the safety of electrical installations in various settings (domestic, commercial, industrial).
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,57,569
(GST inclusive price) i-
Base Value: ₹ 303024.6
-
GST: (18) % ₹ 54544.4
-
Total Value ₹ 357569
₹4,81,275.00
( - 26% OFF )
Description
Key Features
- Includes "Insulation Pre-test" that detects when appliances are connected to the system and stops the test
- Runs seven installation tests automatically in one sequence with a single connection through Auto Test
- Allows you to share test results in real time over your smartphone via Fluke Connect Measurements
- 6 mA RDC-DD testing for EV charging stations
What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Size (L x W x H) | 10 x 25 x 12.5 cm |
| Weight (incl. baeries) | 1.3 Kg |
| Baery size, quantity | Type AA, 6 ea. |
| Sealing | IP-40 |
| Safety | Complies with EN/IEC 61010-1 and EN/IEC 61010-2-034 |
| Overvoltage | CAT III / 500V; CAT IV 300V |
| Performance | EN61557-1 to EN61557-7 and EN61557-1 |
TECHNICAL
| AC voltage measurement | ||
| Range | 500 V | |
| Resolution | 0.1 V | |
| Accuracy 45 Hz – 66 Hz | 0.8% + 3 | |
| Input impedance | 360 kΩ | |
| Overload protection | 660 V rms | |
| Continuity testing (RLO) | ||
| Range (autoranging) | 20 Ω / 200 Ω / 2000 Ω | |
| Resolution | 0.01 Ω / 0.1 Ω / 1 Ω | |
| Open Circuit Voltage | >4 V | |
| Insulation resistance measurement (RISO) | ||
| Test voltages | 50-100-250-500-1000 V | |
| Accuracy of test voltage (at rated test current) | +10%, -0% | |
| Test voltage | 50 V 100 V 250 V 500 V 1000 V | |
| Insulation resistance range | 20 MΩ / 50 MΩ 20 MΩ / 100 MΩ 20 MΩ / 200 MΩ 20 MΩ / 200 MΩ / 500 MΩ 20 MΩ / 200 MΩ / 1000 MΩ | |
| Resolution | 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ | |
| Test current | 1 mA @ 50 kΩ 1 mA @ 100 kΩ 1 mA @ 250 kΩ 1 mA @ 500 kΩ 1 mA @ 1 MΩ | |
| Loop and line impedance (ZI) | ||
| Range | 10 Ω (Hi current mΩ mode)/20 Ω/200 Ω/2000 Ω | |
| Resolution | 0.001 Ω/ 0.01 Ω/ 0.1 Ω/1 Ω | |
| Prospective earth fault current, PSC test | ||
| Range | 1000 A / 10 kA (50 kA) | |
| Resolution | 1 A / 0.1 kA | |
| Computation | Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (LPE) resistance or line (L-N) resistance, respectively. | |
| RCD testing, RCD types tested | ||
| RCD Type | AC¹ | |
| Model 1664 FC | A, AC, B5, S | |
| Notes | ¹Responds to AC ²General, no delay ³Time delay ⁴Responds to pulsed signal ⁵Responds to smooth DC signal | |
| Tripping speed test (ΔT) | ||
| Current seings¹ | 10-30-100-300-500-1000 mA – VAR 10-30-100 mA | |
| Multiplier | x ½, x 1 x 5 VAR Mode Type B - 6, 60, 200 mA | |
| Measurement range | RCD Type G | 310 ms 50 ms |
| RCD Type S | 510 ms 160 ms | |
| EV / RDC-DD | 6 mA - 10s 60 mA - 0.3s 200 mA - 0.1s | |
| Notes | ¹1000 mA type AC only 700 mA maximum type A in VAR mode The VAR Mode at RCD type B (smooth DC currents) generates the test currents acc. to IEC 62955 for RCD type A-EV or RDC-DD (6/60/200 mA and ramp <2 to 6 mA). | |
| RCD/FI-Tripping Current Measurement/Ramp Test (IΔN) | ||
| Current range | 30% to 110% of RCD rated current¹ <2 mA to 6 mA smooth DC³ | |
| Step size | 10% of IΔN² Linear rising within 30 s | |
| Dwell time | RCD Type G | 300 ms/step |
| RCD Type S | 500 ms/step | |
| Measurement accuracy | ±5% | |
| Specified trip current ranges (EN 61008-1) | 50% to 100% for Type AC 35% to 140% for Type A (>10 mA) 35% to 200% for Type A (10 mA) 50% to 200% for Type B | |
| Note | ¹30% to 150% for Type A IΔN > 10 mA 30% to 210% for Type A IΔN = 10 mA .20% to 210% for Type B ²5% for Type B ³For RCD type A-EV/RDC-DD acc. to IEC 6295 | |
| Earth Resistance Test (RE) | ||
| Range | 200 Ω / 2000 Ω | |
| Resolution | 0.1 Ω / 1Ω | |
| Frequency | 128 Hz | |
| Output Voltage | 25 V | |
