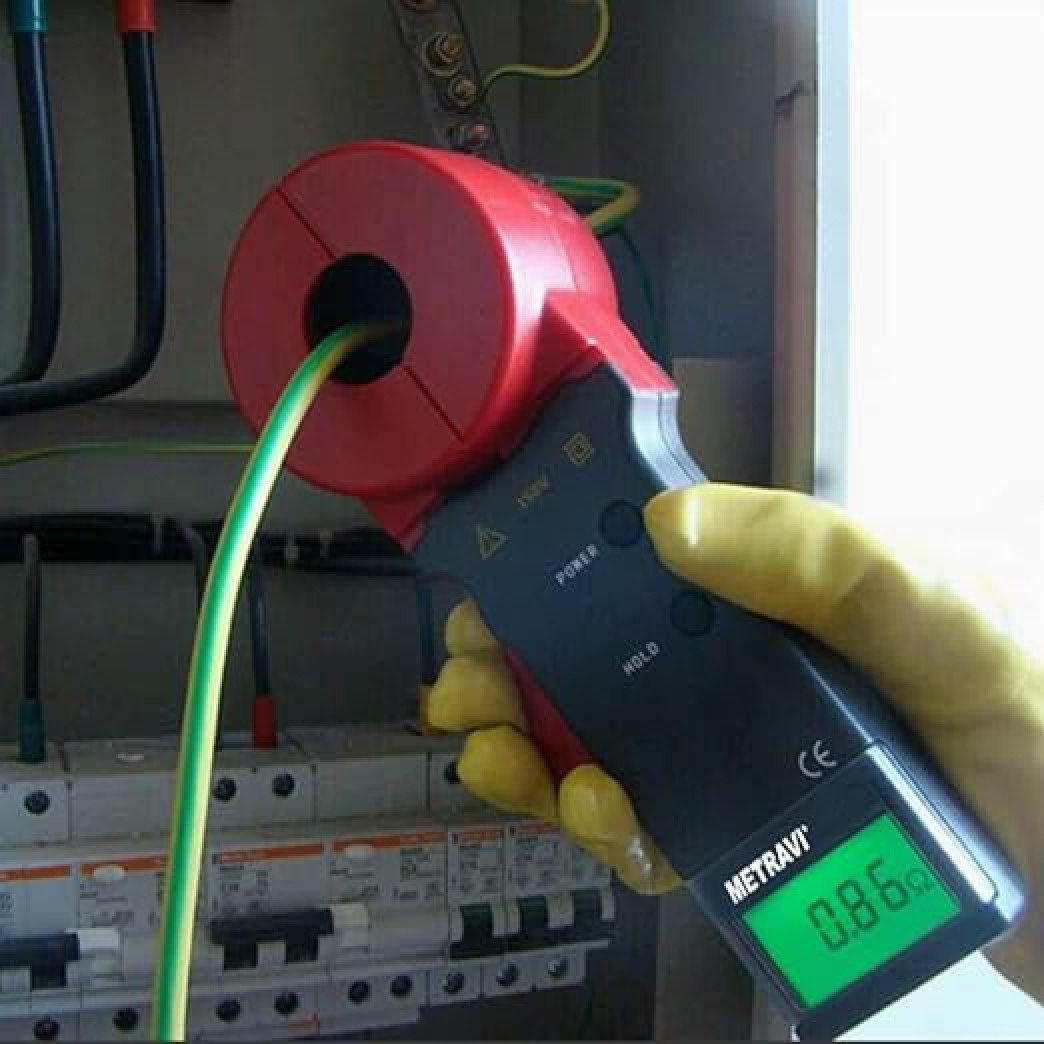

Metravi CET-03 Clamp On Ground Resistance Tester
Click To Zoom
Metravi CET-03 Clamp On Ground Resistance Tester
Metravi CET-03 Clamp On Ground Resistance Tester
Self-test facility. No need to wait a long time to boot. Ready to use immediately after being switched on. Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, fully intelligent.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 26,450
(GST inclusive price) i-
Base Value: ₹ 22415.3
-
GST: (18) % ₹ 4034.7
-
Total Value ₹ 26450
₹37,800.00
( - 30% OFF )
Description
Key Features
- Display: 4 digit Backlit LCD
- Resistance Range: 0.01Ω to 1500Ω
- Resolution: 0.01 Ohms
- Auto Ranging
- Storage of Measured Data: 99 Data
- Setting of Resistance Alarm Critical Value: 1 – 199 Ohms
- Data Hold, Auto Power Off
- Instrument safety: IEC/EN61010-1, IEC/EN6010-2-032
- Double insulation, pollution degree: class II
- Over-voltage category: CATIII 150V to ground, Max 20A Degrees of protection.
- Over-voltage category: CATIII 150V to ground, Max 20A Degrees of protection.
- Span of Jaw : 32mm
- Battery type: 4 ×1.5V alkaline LR6 AA battery (not included)
- Low battery indicationInternal consumption: <50mA
- Auto Power Off: after 5 minutes of being idle
- Display: 4 digits 9999 counts Backlit LCD with annunciators
- Memory size: 99 Units of Reading
- Data upload interface: RS232 (Optional)
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Instrument safety | IEC/EN61010-1, IEC/EN6010-2-032 |
| Insulation | double insulation, pollution degree: class II Over |
| Round jaw | 260mm×90mm×66mm (10×4×3 inches) |
| Dimensions(L×W×H): Long elliptical jaw | 285mm×90mm×66mm (11×4×3 inches) |
| Span of Jaw | Long elliptical jaw 35mm; round jaw 32mm |
| Weight (including batteries | Long elliptical jaw - 1160g, Round jaw-1120g |
| Battery type | 4 ×1.5V alkaline LR6 AA battery (not included) |
| Internal consumption | <50mA |
| Auto Power Off | after 5 minutes of being idle |
| Memory size | 99 Units of Reading Environment |
| Working | -10°C~55°C, 10%RH-90%RH |
| Storage | -20°C~60°C, below 70%RH Range shift: Full range |
| electric field | <1V/m |
| Data upload interface | RS232 (Optional) |
| Mode | Jaw specification | Range of measurement | Range of current | Storage function | Alarm function |
| CET-03 | 65mm×32mm | 0.01Ω - 1500Ω | 0.0mA - 30.0A | 99 Units | √ |
| Earth / Ground Resistance | ||
| Range | Resolution | Accuracy |
| 0.010Ω - 0.099Ω | 0.001Ω | ±(1%+0.01Ω) |
| 0.10Ω - 0.99Ω | 0.01Ω | ±(1%+0.01Ω) |
| 1.0Ω-49.9Ω | 0.1Ω | ±(1%+0.01Ω) |
| 50.0Ω-99.5Ω | 0.5Ω | ±(1.5%+0.5Ω) |
| 100Ω-199Ω | 1Ω | ±(2%+1Ω) |
| 200Ω-395Ω | 5Ω | ±(5%+5Ω) |
| 400-590Ω | 10Ω | ±(10%+10Ω) |
| 600Ω-880Ω | 20Ω | ±(20%+20Ω) |
| 900Ω-1500Ω | 30Ω | ±(25%+30Ω) |
| Current (True-RMS) | ||
| Range | Resolution | Accuracy |
| 0.00mA -9.00mA | 0.05mA | ±(2.5%+2mA) |
| 10.0mA -99.0mA | 0.1mA | ±(2.5%+10mA) |
| 100mA -300mA | 1mA | ±(2.5%+20mA) |
| 0.30A-2.99A | 0.01A | ±(2.5%+0.1A) |
| 3.0A-9.9A | 0.1A | ±(2.5%+0.5A) |
| 10.0A-30.0A | 0.1 A | ±(2.5%+1 A) |
