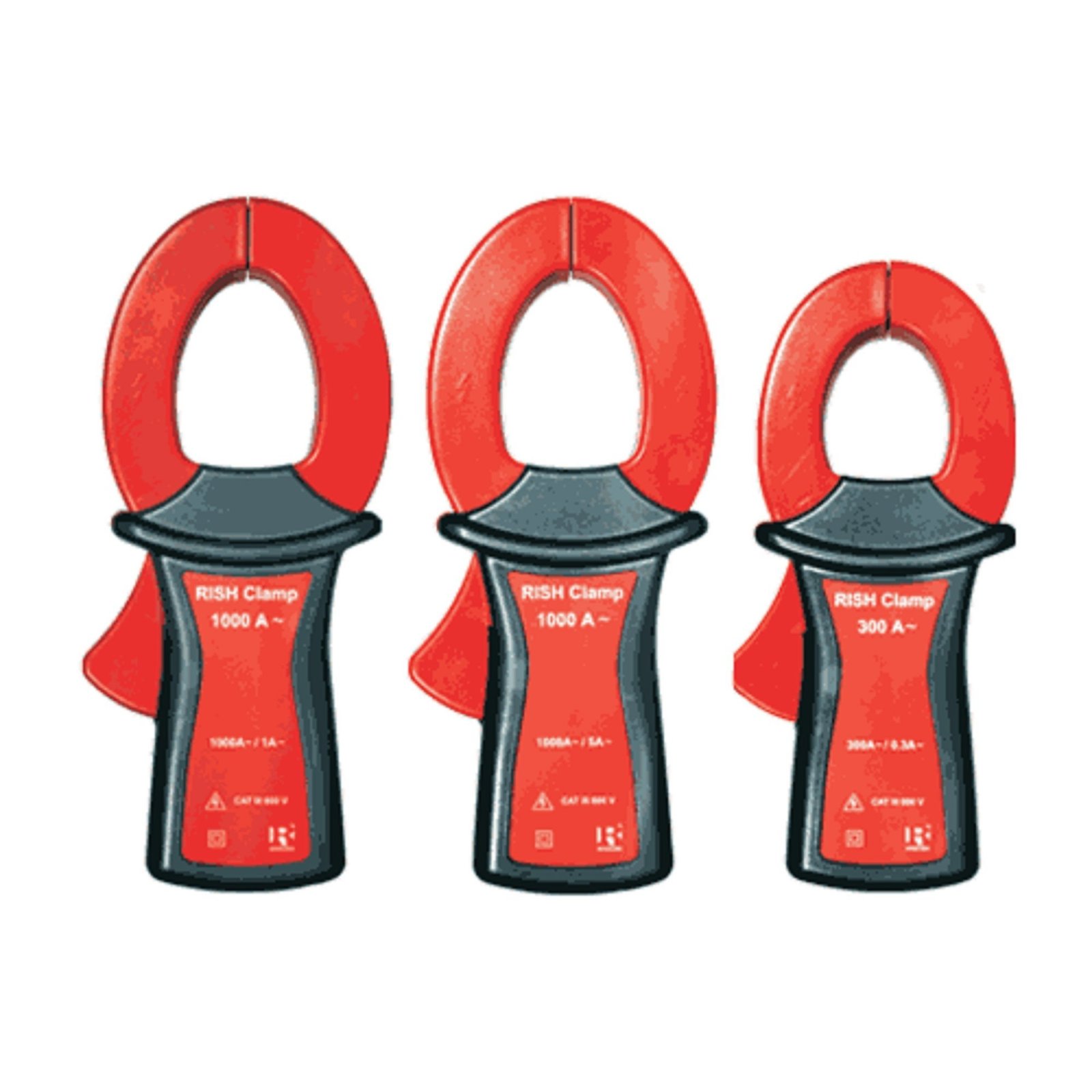

RISH Clamp-on CT 300A / CT 1000A Clamp-on CT for AC current measurement
Click To Zoom
RISH Clamp-on CT 300A / CT 1000A Clamp-on CT for AC current measurement
RISH Clamp-on CT 300A / CT 1000A Clamp-on CT for AC current measurement
Rish Clamp-on CT 300A / 1000 A measures current without interrupting the conducting line. They are used for electrically isolated measurement of alternating current within a broad range ,without interrupting the current conducting cable and bus bars
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 2,650
(GST inclusive price) i-
Base Value: ₹ 2245.8
-
GST: (18) % ₹ 404.2
-
Total Value ₹ 2650
₹4,150.00
( - 36% OFF )
Description
Key Features
- Safety in accordance with IEC 61010-1.
- Minimum transformation ratio error.
- Compact, handy design
- Permanently connected safety cables
Rating & Reviews
Rating
| Clamp on current transformer | ||
| Type | CT 1000A | CT 300A |
| Descrition/ Appllication | The current transformers are used for electrically isolated measurement of alternating current within broad range.It is possible to measure AC current without interrupting the current conducting cable and bus bars via hard wired leads with contact protected plugs | |
| Nominal Primary Current | 1-1000 AAC | 4-300 AAC |
| Output signal | 1mA AC / A AC | 0.3 mA AC / AAC |
| Used with | Rish multi series | Rish multi 12s |
| Transmission ratio Input:Output | 1000:1 | 1000:1 |
| Accuracy/ max.error | Class 1 (2.5 VA) (for current range from 1A to 1000A, 50Hz) | Class 1 ( 1.25 VA) (for current range from 4A to 300A, 50Hz) |
| Max. operating Voltage | CAT III 600V as per IEC-61010 | CAT III 600V as per IEC-61010 |
| Frequency range | 40Hz....1kHz | 40Hz....1kHz |
| Jaw opening/ Conductor Diameter | 43mm/ Diameter 43mm | 35mm/ Diameter 35mm |
| Dimensions (W X H X D) | ( 92 X 39 X 220) mm | (84 X 39X 202) mm |
| Weight | Approx 650 gms | Approx 500 gms |
| Cable length | 1.5 meter | 1.5 meter |
