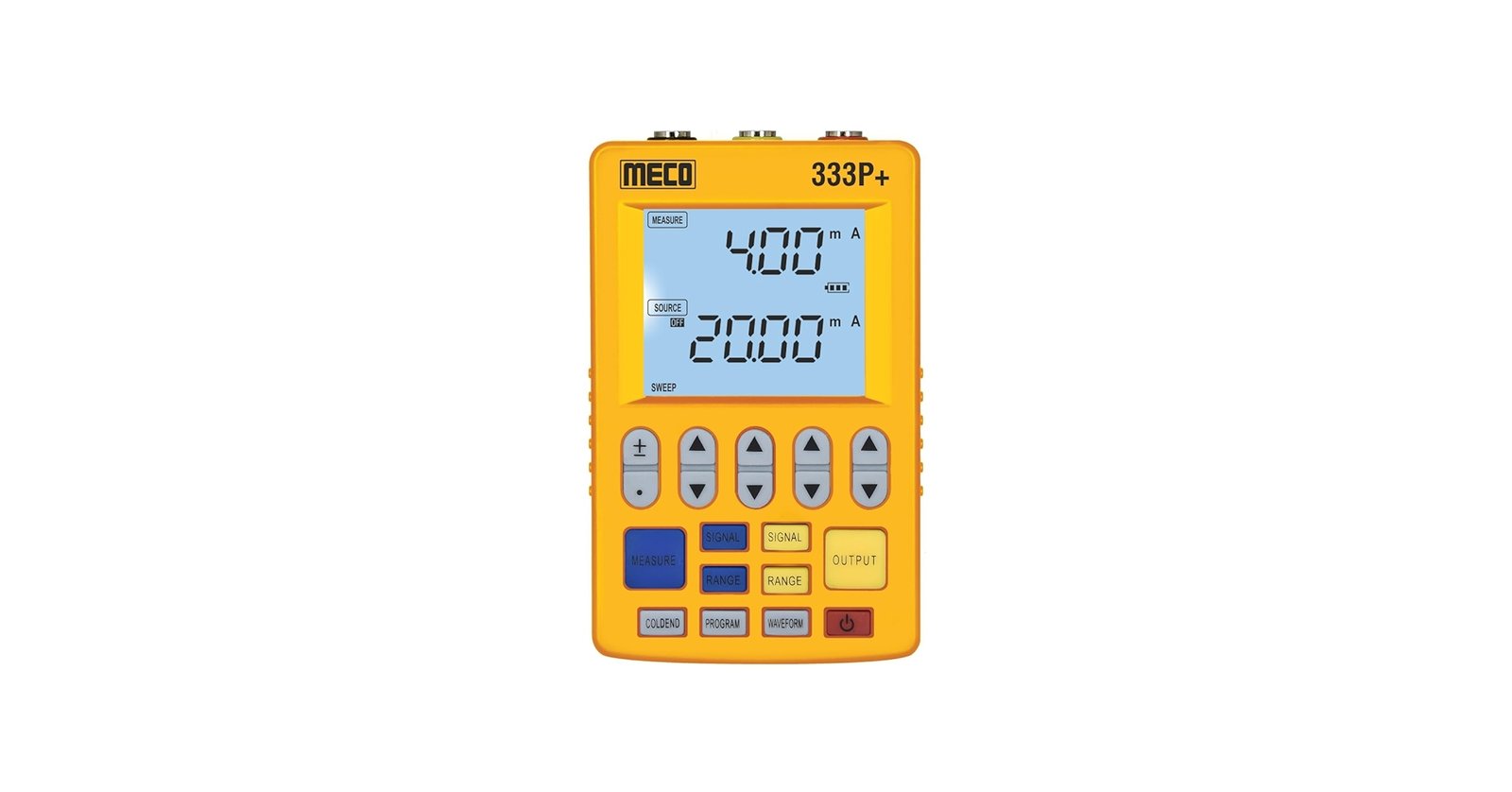

Meco 333P+ Multifunction Process Calibrator
Meco 333P+ Multifunction Process Calibrator
Model 333P+ Multifunction Process Calibrator has Multiple Signal Measurement and Output Functions, including Voltage, Current, Thermocouple, Resistance. It is with Large LCD Screen and Key Pad for Easy Operation. Key features are long standby time, high accuracy and Programmable Output function.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 13,126
(GST inclusive price) i-
Base Value: ₹ 11123.7
-
GST: (18) % ₹ 2002.3
-
Total Value ₹ 13126
₹18,081.00
( - 27% OFF )
Description
Key Features
- Voltage Signal : 0 - 30V, 0 - 25mV, 0 - 100mV DC
- Current Signal : 0 - 25mA, 4 - 20mA DC
- K, E, J, T, R, B, S, N Thermocouples
- Reverse Connection and Process Protection: 30V
- Cold End and Programming Function
- Auto Power OFF
- Range Conversion Function
- Numeric Modier Keys
- Drive Current 24mA
- Range Conversion Function
- PT100 Thermistor
What's in the box?
|
Rating & Reviews
Rating
General Specifications
| Unit | mA/mV/V/°C/Ω |
| Operating Environment | -10°C to 55°C |
| Storage Environment | -20°C to 70°C |
| Humidity | 20 to 80% RH |
| Dimensions | 115 x 70 x 26mm (approx.) |
Electrical Specifications
Signal | Type | Range | Accuracy | Resolution Ratio |
DC | 20mv | 0.00 to 24.00mV | ±0.1% | 0.01mV |
100mv | 0.0 to 100.0mV | ±0.1% | 0.1mV | |
v | Output : 0.00 to 15.00V | ±0.1% | 0.01mV | |
DC | mA | Measure : 0.00 to 30.00V | ±0.1% | 0.01mV |
4 - 20mA | 0.00 to 24.00mA | ±0.1% | 0.01mA | |
Passive Current | mA | 4/8/12/16/20mA | ±0.1% | 0.01mA |
0.00 to 24.00mA | ±0.1% | 0.01mA | ||
Power Distribution | 24V LOOP | 24V / 16V | 10% | 0.1V |
TC | K | -270 to 1372°C | ±1% | 1°C |
E | -270 to 1000°C | ±1% | 1°C | |
J | -210 to 1200°C | ±1% | 1°C | |
T | -270 to 400°C | ±1% | 1°C | |
R | -50 to 1768°C | ±1% | 1°C | |
B | 250 to 1820°C | ±1% | 1°C | |
S | -50 to 1768°C | ±1% | 1°C | |
N | -270 to 1300°C | ±1% | 1°C | |
RTD | PT100 | -200 to 850°C | ±0.5% | 0.1°C |
Resistance | Ω | 20 to 400Ω | ±0.5% | 0.1Ω |
