METRAVI DSO-6100AWG Digital Storage Oscilloscope with Arbitrary Waveform Generator
Click To Zoom

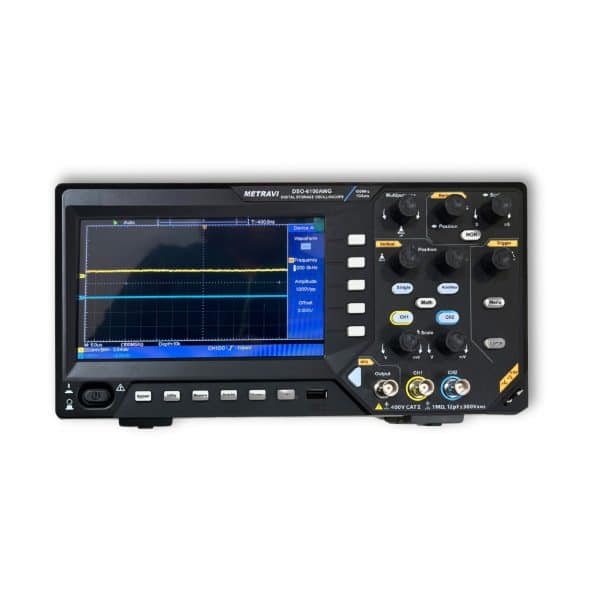

METRAVI DSO-6100AWG Digital Storage Oscilloscope with Arbitrary Waveform Generator
METRAVI DSO-6100AWG Digital Storage Oscilloscope with Arbitrary Waveform Generator
100MHz dual channel DSO with built-in 25MHz Arbitrary Function Generator. Features 7″ TFT colour display, 1GSa/Sec sampling rate, USB PC Interface and software. Supports 30 Automatic Waveform measurements, has a 6-digit high-precision Frequency Counter and FFT Spectrum Analysis. Supports SCPI and LabVIEW functions.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 27,380
(GST inclusive price) i-
Base Value: ₹ 23203.4
-
GST: (18) % ₹ 4176.6
-
Total Value ₹ 27380
₹39,150.00
( - 30% OFF )
Description
Key Features
- Dual-channel Oscilloscope
- Built-in 25MHz Signal Generator (DSO-6100AWG)
- 100MHz bandwidth
- Dual-channel independent 1GS/s real-time sampling rate
- 20M memory depth
- Support 30 Automatic Waveform Measurements
- 6-digit High-precision Frequency Counter
- FFT Spectrum Analysis

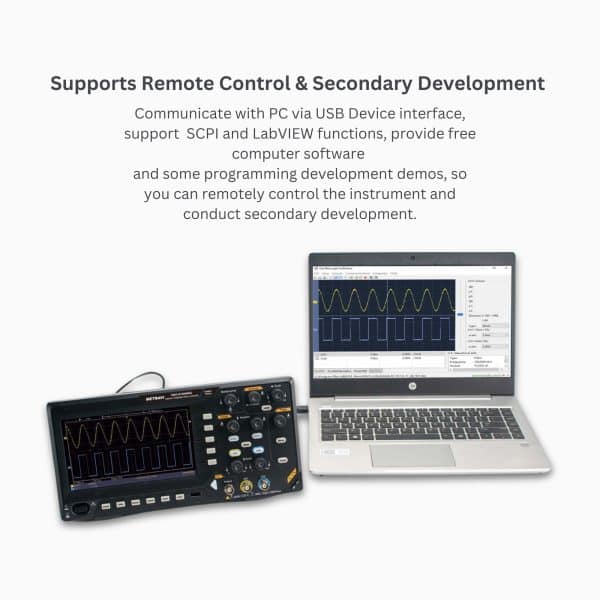

- Communicate with PC via USB Device interface
- Supports SCPI and LabVIEW functions
- Free computer software & some programming development demos
- Remotely control instrument & conduct secondary development
- 7-inch TFT LCD display
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Bandwidth | 100MHz |
| Channels | Dual Channel (2) |
Acquisition | |
| Mode | Normal, Peak detect, Averaging |
| Sample Rate (realtime) | 1 GS/s |
Input | |
| Input coupling | DC, AC , Ground |
| Input impedance | 1 MΩ±2%, in parallel with12 pF±5 pF |
Probe Attenuation Factor | 1X，10X，100X，1000X |
| Max. input voltage | 400V (DC+AC, PK - PK) |
| Channel –channelIsolation | 50Hz: 100 : 1 |
10MHz: 40 : 1 | |
| Time delay between channel (typical) | 150ps |
| Bandwidth limit | 20 MHz, full bandwidth |
| Measurement |
|
| Cursor | △V, △T, △T&△V betweencursors, auto cursor |
Automatic | Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle,-Duty Cycle, Delay A→B , Delay A→B , CycleRMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area,and Cycle Area. |
| Waveform Math | ＋, －, *, / ,FFT |
| Waveform Storage | 16 waveforms |
Communication | |
| Port | USB 2.0 |
Waveform Generator (only for DSO-6100AWG) | |
| Standard Waveforms | Sinewave, square wave,ramp wave, pulsewave, arbitrary wave |
| Arbitrary Waveforms | Sinc,exponential rise, exponential decline, Gaussian more than 160 kinds |
| Sine Wave | 0.1Hz～25MHz |
| Square Wave | 0.1Hz～5MHz |
| Ramp Wave | 0.1Hz～1MHz |
| Pulse Wave | 0.1Hz～5MHz |
| Arbitrary Wave | 0.1Hz～5MHz |
| Bandwidth | 25MHz |
| Real-time Sampling Rate | 125MSa/s |
| Amplitude (50Ω) | 0.005Vpp ～ 3Vpp |
| Dc Offset Range(High Z) | ±(3V – amplitude Vpp/2) |
| Frequency Resolution | 0.01% |
| Channel | 1 |
| Length | 8k |
| Vertical Resolution | 14 bit |
| Output Impedance | 50Ω (typical) |
Display | |
| Type | 7" Colour LCD |
| Resolution | 800 (Horizontal) × 480 (Vertical) pixels |
| Colours | 65536 colors, TFTscreen |
Output of the ProbeCompensator | |
| Output Voltage (typical) | About 5 V, with the Peak-to-Peak voltage≥1 MΩ |
| Frequency (typical) | Square wave of 1 KHz |
Power | |
| Mains Voltage | 100 - 240VACRMS, 50/60 Hz, CAT II |
| Power Consumption | < 16W |
| Fuse | 2A, T class, 250V |
Environment | |
| Temperature | Operating temperature 0° to 40°C Storage Temperature -20°to 60°C |
| Humidity | ≤ 90%RH |
| Altitude | Operating 3000m Non-operating 15000m |
| Cooling Method | Natural cooling |
Mechanical | |
| Dimensions | 301 mm× 152 mm×70 mm (LxHxW) |
| Weight | About 1.1 kg |
Calibration | |
| Interval Period of Adjustment | One year is recommended for the calibration interval period |
