Kusam Meco KM 2102CEX+ Digital Storage Oscilloscopes
Click To Zoom
Kusam Meco KM 2102CEX+ Digital Storage Oscilloscopes
Kusam Meco KM 2102CEX+ Digital Storage Oscilloscopes

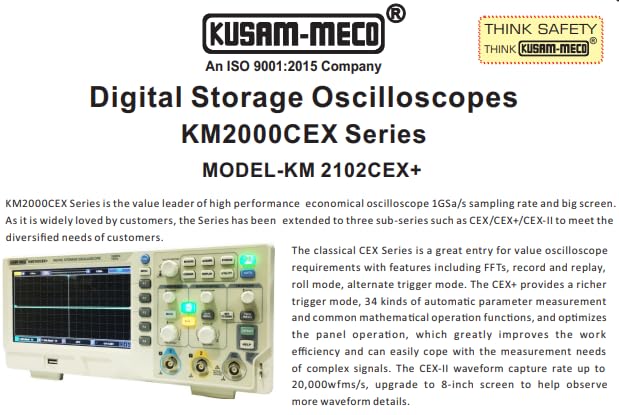

The Kusam Meco KM 2102CEX+ is a 100MHz Digital Storage Oscilloscope, part of the enhanced CEX+ series. It boasts a high 1GSa/s sampling rate and a 7-inch TFT LCD display.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 33,050
(GST inclusive price) i-
Base Value: ₹ 28008.5
-
GST: (18) % ₹ 5041.5
-
Total Value ₹ 33050
₹54,450.00
( - 23% OFF )
Description
Key Features
- 100 MHz Bandwidth: Capable of analyzing a wide range of signals.
- 1 GSa/s Sampling Rate: High real-time sampling for detailed waveform capture.
- Dual Channels: Allows for simultaneous observation of two signals.
- 7-inch TFT LCD Display: Provides a clear and spacious viewing area for waveforms.
- Richer Trigger Modes: Offers advanced triggering options to isolate specific events in complex signals.

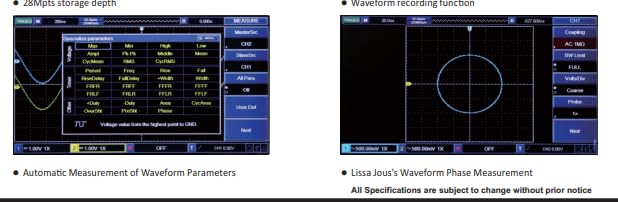

- 34 Automatic Parameter Measurements: Quickly calculates and displays various waveform parameters like Vpp, Vrms, frequency, rise time, etc.
- Mathematical Operations: Includes functions like addition, subtraction, multiplication, and division for waveform analysis.
- FFT Functionality: Enables frequency domain analysis of signals.
- Record and Replay: Allows for capturing and reviewing waveforms for later examination.
- USB OTG Interface: Facilitates data storage on USB devices and communication with a PC for remote control and data transfer.
What's in the box?
|
Rating & Reviews
Rating

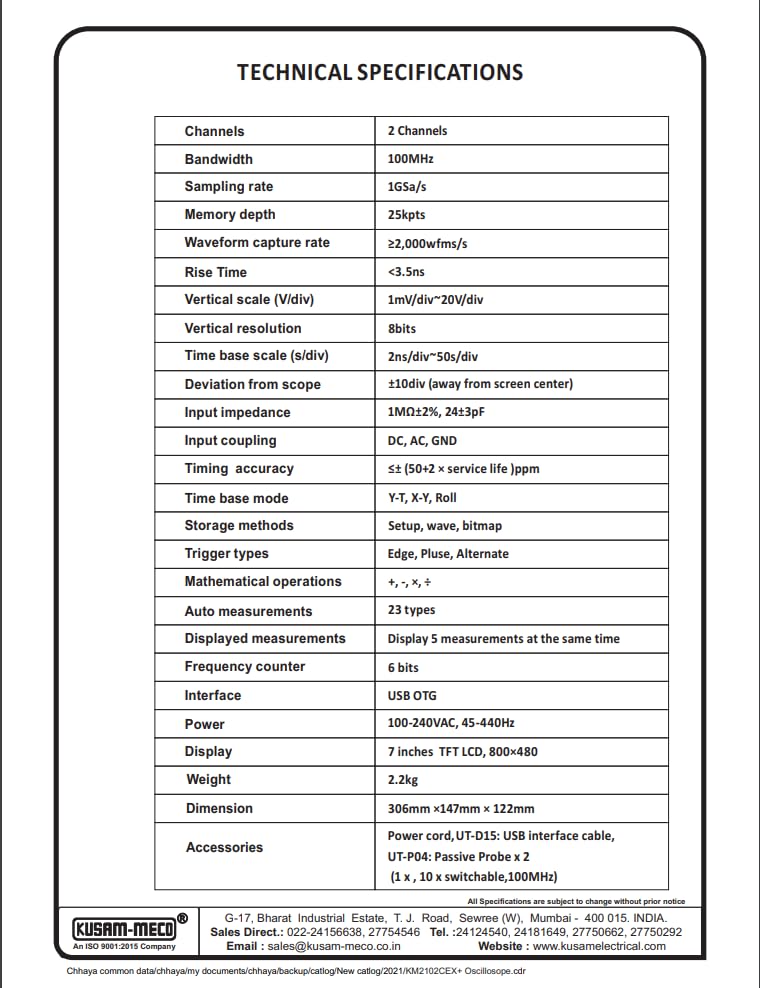

| Channels | 2 Channels |
| Bandwidth | 100MHz |
| Sampling rate | 1GSa/s |
| Memory depth | 25kpts |
| Waveform capture rate | ≥2,000wfms/s |
| Rise Time | <3.5ns |
| Vertical scale (V/div) | 1mV/div~20V/div |
| Vertical resolution | 8bits |
| Time base scale (s/div) | 2ns/div~50s/div |
| Deviation from scope | ±10div (away from screen center) |
| Input impedance | 1MΩ±2%, 24±3pF |
| Input coupling | DC, AC, GND |
| Timing accuracy | ≤± (50+2 × service life )ppm |
| Time base mode | Y-T, X-Y, Roll |
| Storage methods | Setup, wave, bitmap |
| Trigger types | Edge, Pluse, Alternate |
| Mathematical operations | +, -, ×, ÷ |
| Auto measurements | 23 types |
| Displayed measurements | Display 5 measurements at the same time |
| Frequency counter | 6 bits |
| Interface | USB OTG |
| Power | 100-240VAC, 45-440Hz |
| Display | 7 inches TFT LCD, 800×480 |
| Weight | 2.2kg |
| Dimension | 306mm ×147mm × 122mm |
