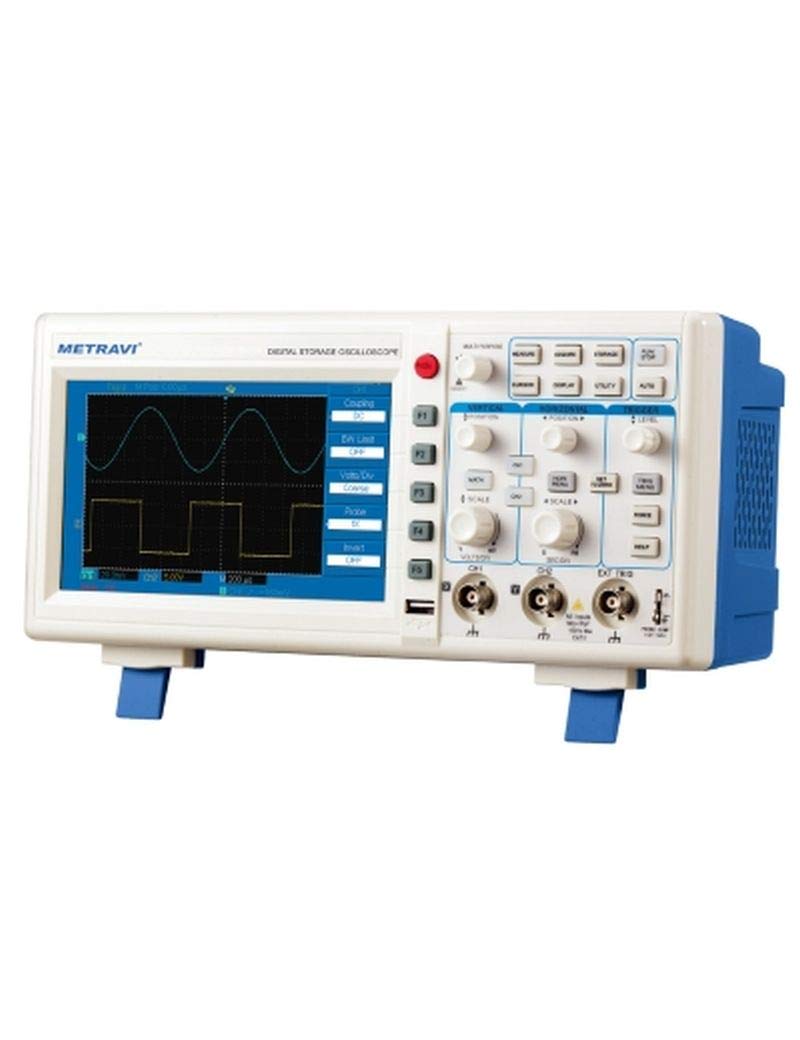

Metravi DSO-5050E 50MHz Digital Storage Oscilloscope
Click To Zoom
Metravi DSO-5050E 50MHz Digital Storage Oscilloscope
Metravi DSO-5050E 50MHz Digital Storage Oscilloscope
50MHz DSO, 500MSa/Sec, with colored display, USB PC Interface cable and software
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 23,069.00
(GST inclusive price) i₹31,050.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Sampling | |||
Sampling mode | Real-time | Equivalent | |
Sampling Rate | DSO-5150E/DSO-5200E | 1GS/s | 50GS/s |
DSO-5050E | 500MS/s | 25GS/s | |
DSO-5070E/DSO-510OE | 1GS/s | 50GS/s | |
Average Rate | N can be selected from2,4, 8, 16,32, 64, 128and 256 aftersampling all channels for N times at the same time. | ||
Input | |
Input Coupling | DC , AC , GND |
Input Impedance | DSO-5150E/DSO-5200E: 1±2% MΩ for parallel connection to 21±3pF |
DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E: 1±2% MΩ for parallel connection to 24±3pF; | |
Probe Attenuation Coefficient | 1 x, 10 x, 100 x and 1000 x |
The Maximum InputVoltage | 400V (DC + AC peakvalue and inputimpedance of 1MW) |
Vertical | |
Analog digital converter (A/D) | 8-bit resolution withsynchronous sampling for2 channels |
Scope of deflection coefficient (V/div) | DSO-5150E/DSO-5200E: 2mV/div~5V/div (in inpu BNC); DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E: 1mV/div (in inputBNC) |
Displacement Scope | ± 10div |
(Typical) optIonal band width limitation | 20 MHz |
Low-freequency response (AC coupling, -3dB) | ≤ 10Hz(in BNC) |
DC gain precision (by adopting sampling or sampling mode of average value | DSO-5150E/DSO-5200E: ±4% if vertical Sensitivity is 2mV/div or 5mV/div ±3% if vertical Sensitivity is 10mV/div or 5mV/div DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E: ±5% if vertical Sensitivity is 1mV/div or 2mV/div ±4% if vertical Sensitivity is 5mV/div ±3% if vertical Sensitivity is 10mV/div or 20mV/div |
DC measurement precision (by adopting average sampling mode) | ± [(3% x (reading+vertical displacement reading)+(1%xvertical displacement reading)] To add 2mVwhen setting from2mV/div to 200mV/div: To add setvalue by 50mVwhen setting from 200mV/div to 5V/div ; DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E: If vertical displacement is 0 and N ≥ 16: ± (5% x reading+0.1 grid+1mV) by selecting 1mV/div or 2mV/div; ±(4% x rcading+0.1 grid+1mV) by selecting 5mV/div; ±(3% x reading+0.1 grid+ 1mV) by selecting 10mV/div to 20V/div; if vertical displacement is not 0 and N ≥ 16; ± [(3% x (rcading--vcrtical displacement reading)+(1% x vertical displacement reading)] +0.2div; To add 2mVwhen setting from5mV/div to 200mV/div : To add set valueby 50mV whensetting from 200mV/div to 20V/div; |
Measurement precision ofvoltage difference(DV) (by adopting sampling mode of average value) | Voltage difference betweenany 2 points all the waveform aftercalculating average valuefor at least 16 captured waveform under the same setup and environment conditions: ±(3% x reading +0.05div) |
