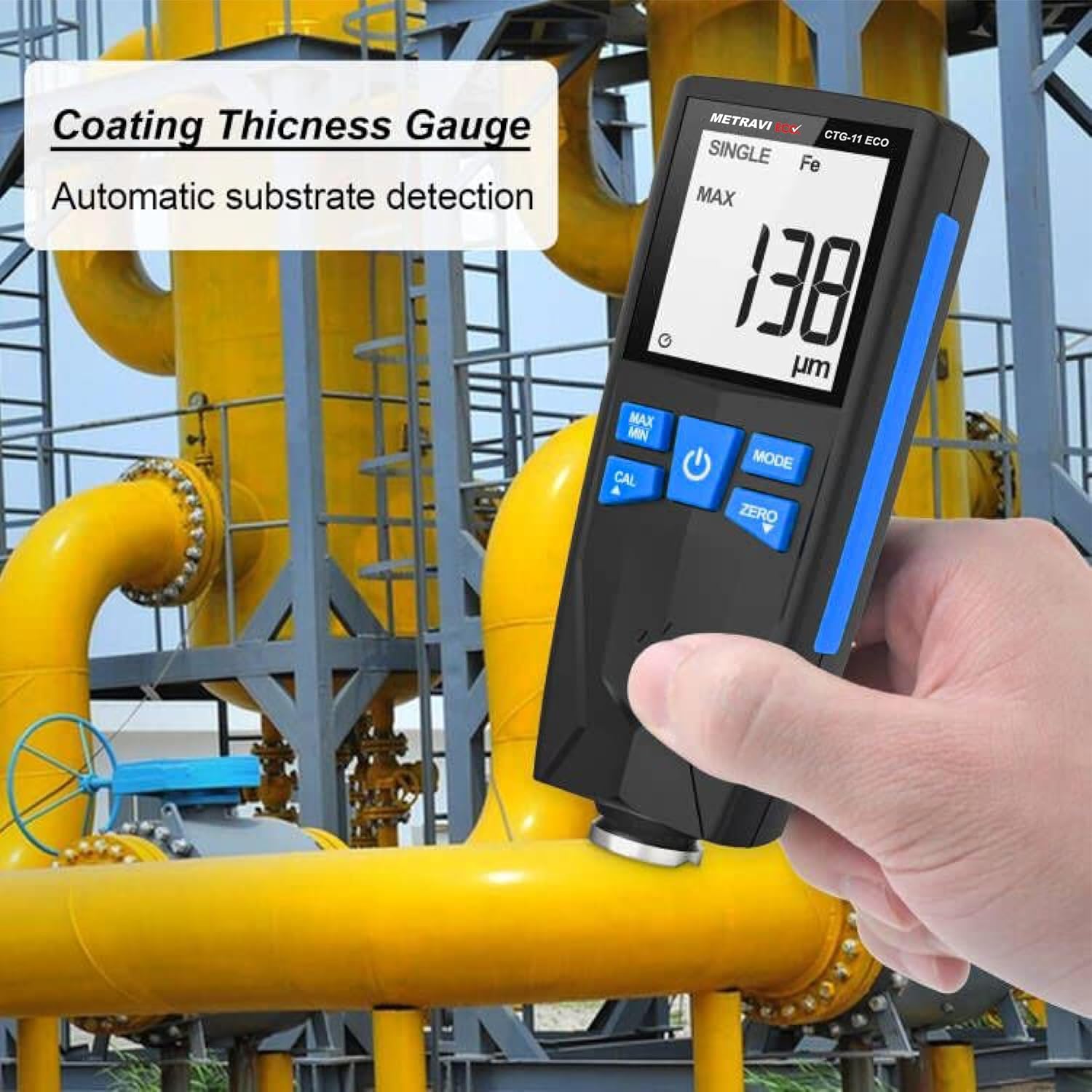

Metravi CTG-11 ECO Coating Thickness Gauge for up to 1500µm
Click To Zoom
Metravi CTG-11 ECO Coating Thickness Gauge for up to 1500µm
Metravi CTG-11 ECO Coating Thickness Gauge for up to 1500µm
Coating Thickness Gauge with single composite probe for both ferrous and non-ferrous metal substrates. Features backlit LCD display, MAX/MIN, Data Reset, High/Low Alarms, Unit Conversion. Self-calibratable. Measures upto 1500μm.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 5,760
(GST inclusive price) i-
Base Value: ₹ 4881.4
-
GST: (18) % ₹ 878.6
-
Total Value ₹ 5760
₹8,235.00
( - 30% OFF )
Description
Key Features
- Clear back lit digital HD display
- Ergonomic, anti-skid design
- Single & Continuous measurements

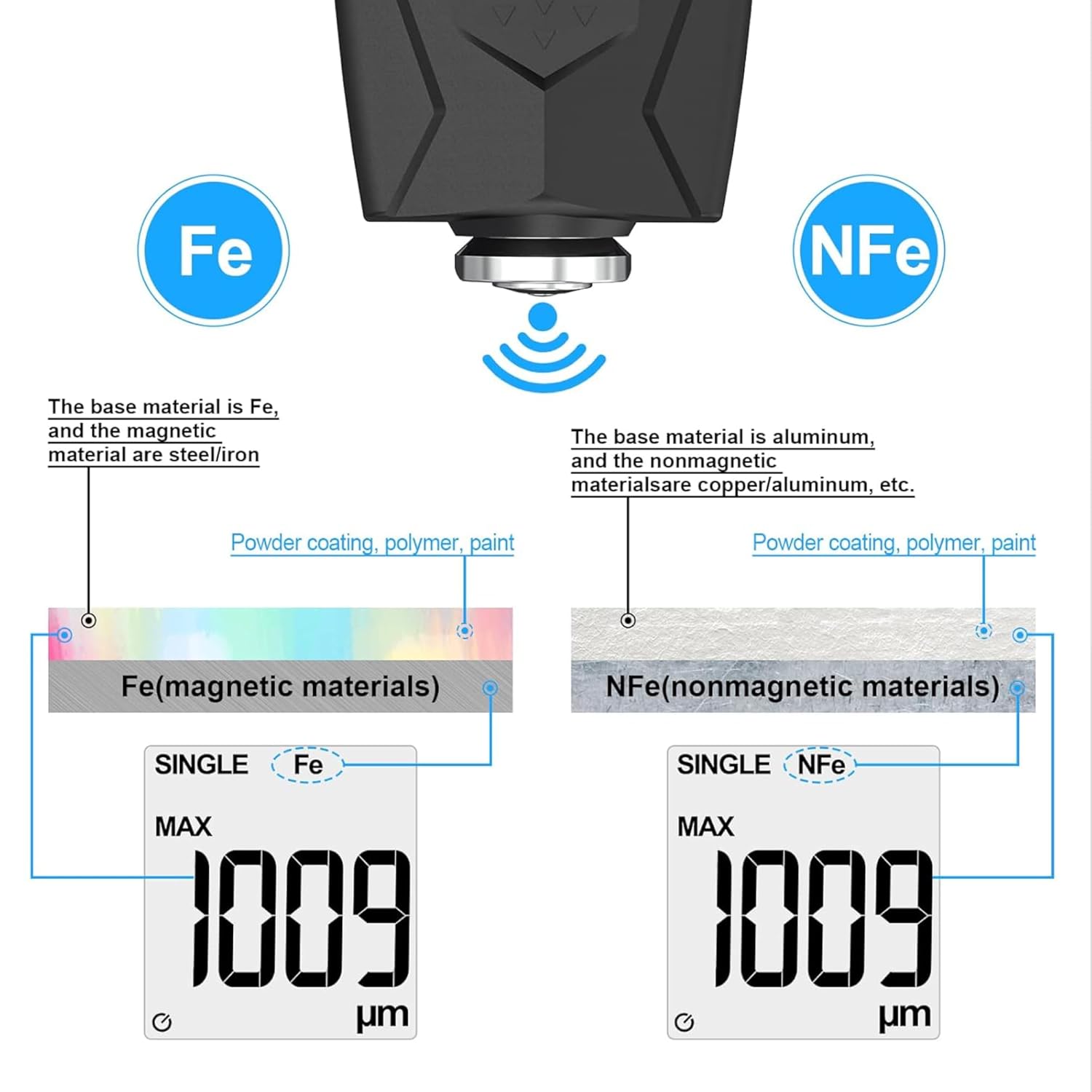

- Single high-precision probe for ferrous & non-ferrous substrates

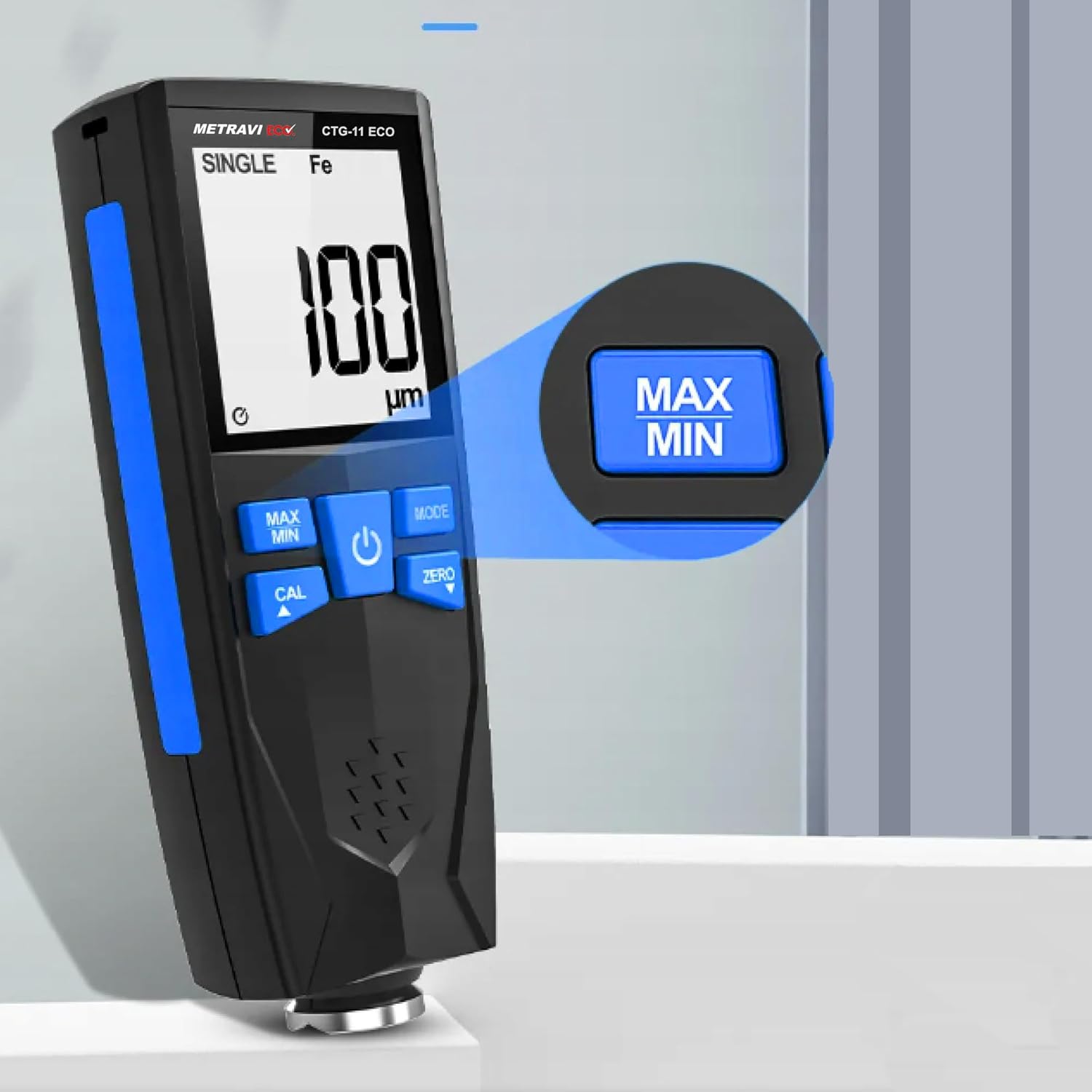

- Max & Min values

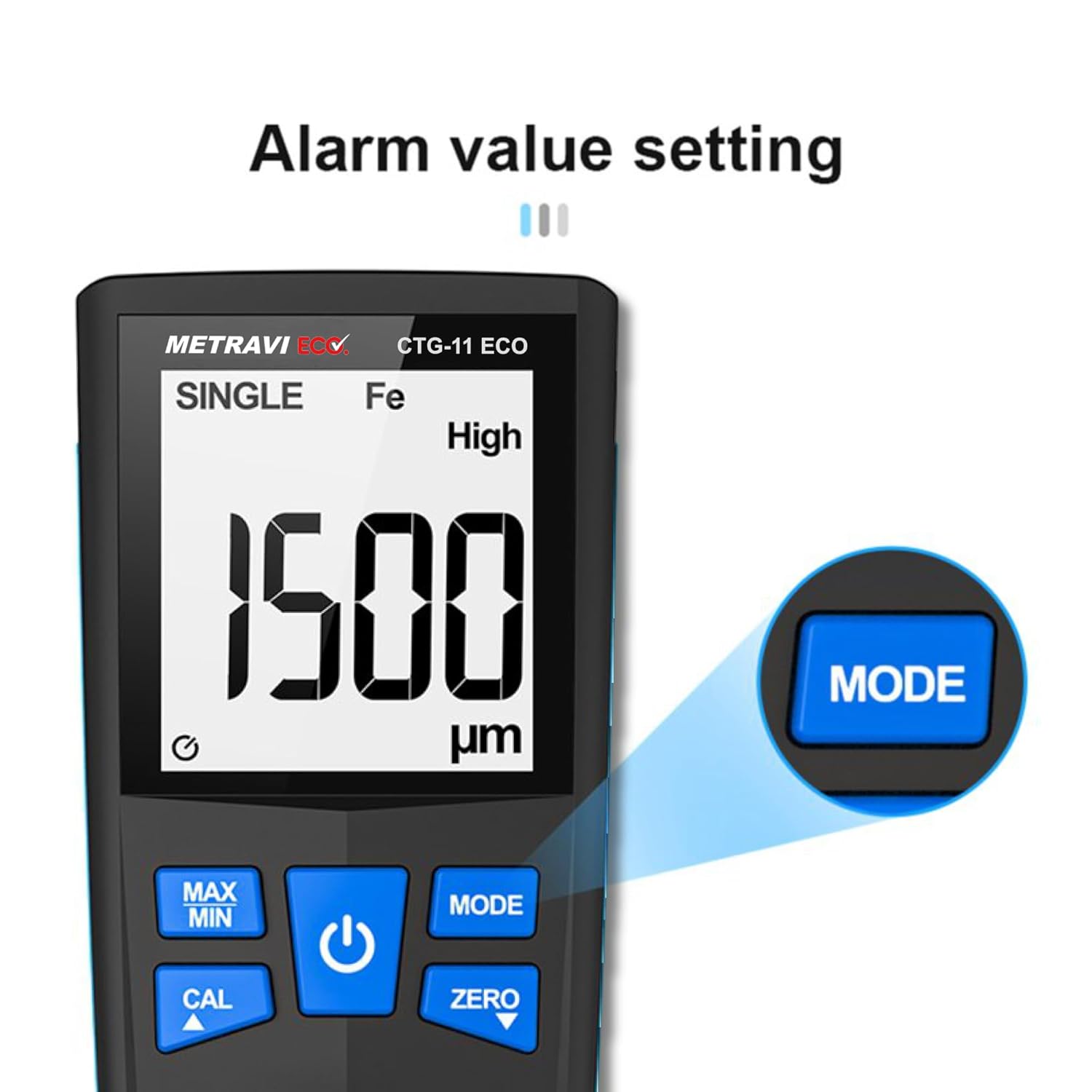

- High & Low Alarm

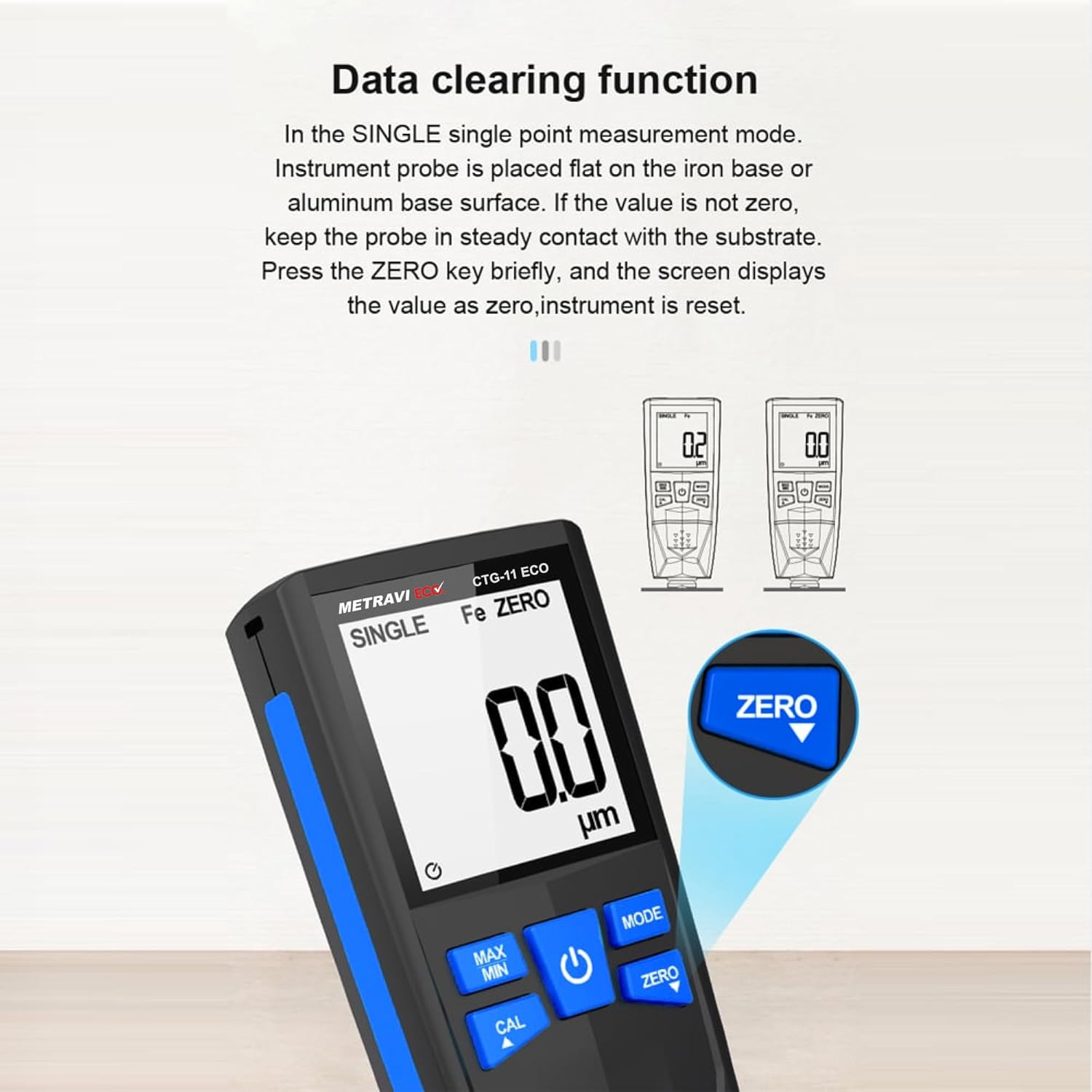

- Data Reset

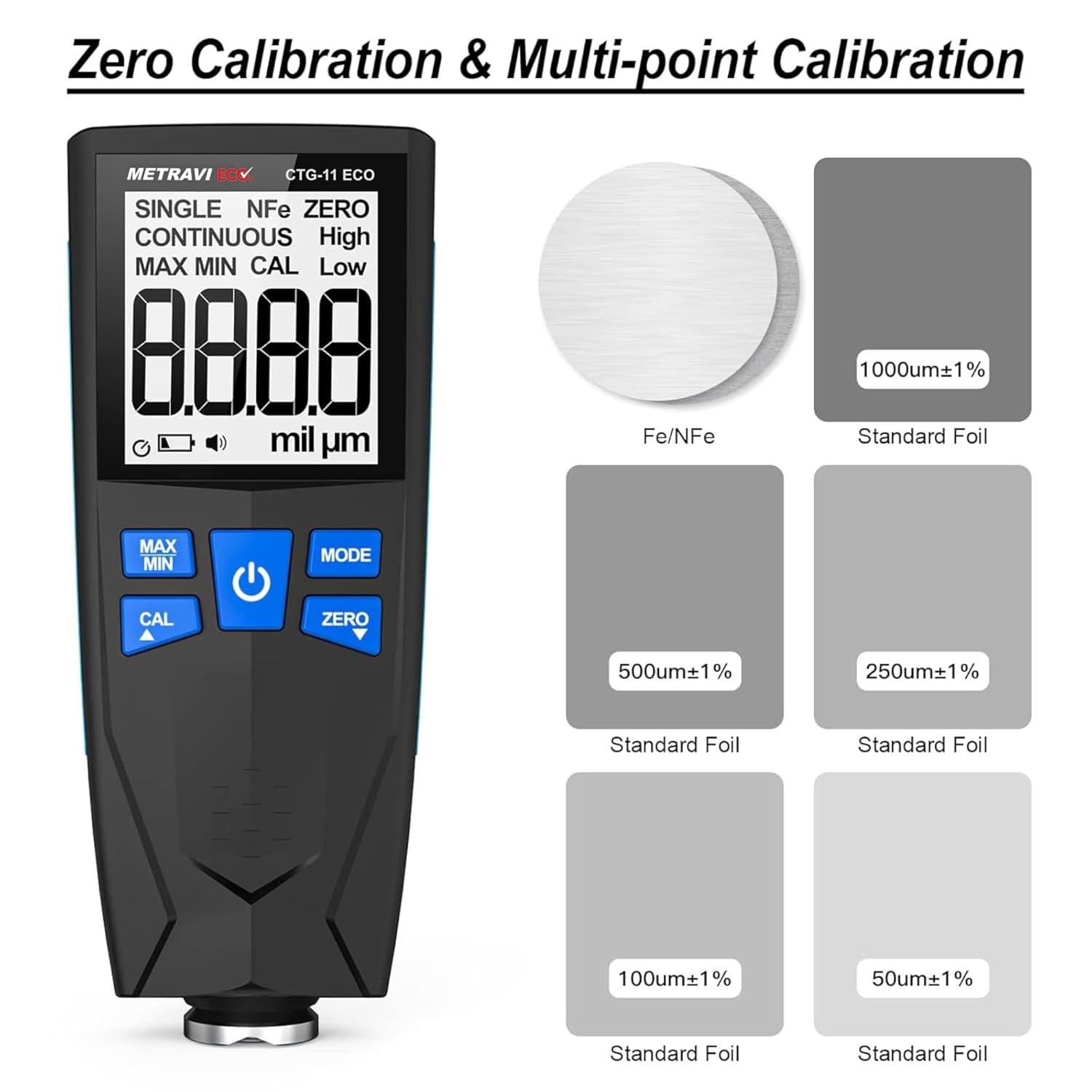

- Self Calibration
- Unit conversion
- Automatic shutdown
- Low Battery indication
What's in the box?
|
Rating & Reviews
Rating
| Display | Backlit HD LCD |
| Sampling Method | Electromagnetic Induction / Eddy CurrentEffect |
| Measuring Range | 0 ～ 1500 µm |
| Resolution | 0.1 µm |
| Accuracy | ±3% + 2µm |
| Auto Shutdown | After 10 mins of non-operation |
| Measurement Modes | Single / Continuous |
| Units | µm (micrometer) |
Radius of Minimum Convex Curvature | 5mm |
Radius of Minimum Concave Curvature | 50mm |
| Dia of MinimumMeasuring Area | 20mm |
| Minimum Thickness of Base Material | Ferrous 0.5mm Non-Ferrous 0.3mm |
| Charging Mode | - |
| Voice Guide | - |
| Operating Environment | 0 ～50°C / ≤80%RH |
| Power | 1.5Vx 2 AAA Alkaline Batteries |
| Dimensions | 128 x 40 x 26 mm |
| Weight | 95 gms (exclusing battery) |
| Accessories | SelfCalibration Foil Set,User Manual Battery, Carrying Pouch |
