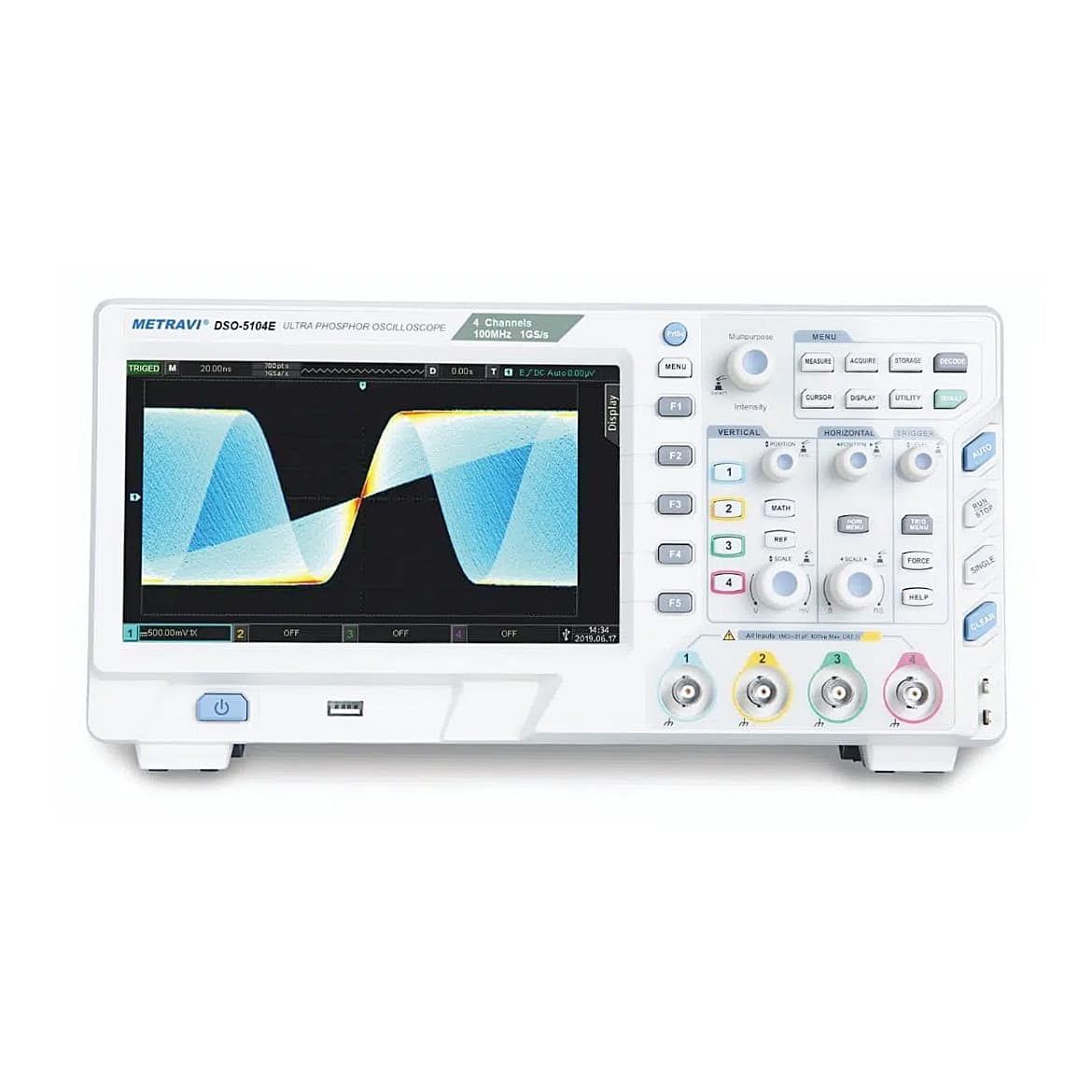

Metravi DSO-5104E Four Channel Phosphor Digital Storage Oscilloscope
Click To Zoom
Metravi DSO-5104E Four Channel Phosphor Digital Storage Oscilloscope
Metravi DSO-5104E Four Channel Phosphor Digital Storage Oscilloscope
100MHz DSO with coloured display, 1GSa/Sec sampling rate with USB device & host interface. Increased auto-measure speed, improved UI, optimised software which reduces wait-time and fixed upper limit bandwidth distortion in multi-channel mode.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 71,469.00
(GST inclusive price) i₹96,188.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Bandwidth | 100MHz |
| Channels | 4 |
| Sample Rate | 1GS/s |
| Max. Memory Depth | 56Mpts (single channel) |
| Waveform Capture Rate | 80,000 wfms/s |
| Time Base Scale | 5ns/div-50s/div |
| Input Coupling | (1MW±2%) II (20pF±3pF) |
| Vertical Scale | 1mV/div-20V/div (1MW) |
| DC Gain Accuracy | ±3% |
| Waveform Record | 65,000 Frames |
| Trigger | Edge, Pulse width, Runt, Window, N-edge, Delay, Timeout, Duration, Setup/hold, Slope, Video, Code |
| Bus Decode | RS-232/UART, I2C, SPI |
| Waveform Operation | A+B, A-B, AxB, NB, FFT, Logic operation, Editable advanced |
| Auto Measurement | Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay A- >B , Delay A- > B , Delay B- > A , Delay B- > A |
| Number of Measurements | Display 5 measurements at the same time |
| Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
| Frequency Counter | Hardware 6 bits counter (Channels are selectable) |
| Standard Interface | USB-Host, USB-Device, LAN, AUX (Trig Out, Pass/Fail) |
| Optional Interface | 25MHz Function/Arbitrary Waveform Generator |
