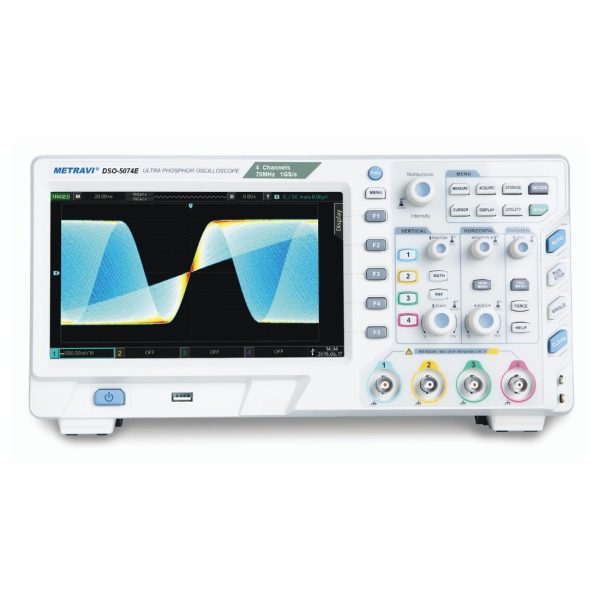

Metravi DSO-5074E Digital Storage Oscilloscope
Click To Zoom
Metravi DSO-5074E Digital Storage Oscilloscope
Metravi DSO-5074E Digital Storage Oscilloscope
70MHz DSO with coloured display, 1GSa/Sec sampling rate with USB device & host interface. Increased auto-measure speed, improved UI, optimised software which reduces wait-time and fixed upper limit bandwidth distortion in multi-channel mode.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 63,250
(GST inclusive price) i-
Base Value: ₹ 53601.7
-
GST: (18) % ₹ 9648.3
-
Total Value ₹ 63250
₹90,450.00
( - 30% OFF )
Description
Key Features
- Sample rate up to 1GS/s
- Channels 4
- Bandwidth 70MHz, 100MHz
- Memory Depth 56Mpts (single channel)
- Waveform Capture Rate up to 80,000 wfms/s
- 256 multi-level intensity grading display
- Up to 65,000 frames for waveform record, replay
- Increased trigger types: Edge, pulse width, runt, window, N-edge,
- delay, timeout, duration, setup/hold, slope, video, code
- Support serial bus trigger and decoding (RS-232, I2C, SPI included)
- 8 inches, TFT LCD, WVGA (800 x 480)
- Interface: USB Host, USB Device, LAN, AUX (Trig Out, Pass/Fail)
What's in the box?
|
Rating & Reviews
Rating
| Bandwidth | 70MHz |
| Channels | 4 |
| Sample Rate | 1GS/s |
| Max. Memory Depth | 56Mpts (single channel) |
| Waveform Capture Rate | 80,000 wfms/s |
| Time Base Scale | 5ns/div-50s/div |
| Input Coupling | (1MW±2%) II (20pF±3pF) |
| Vertical Scale | 1mV/div-20V/div (1MW) |
| DC Gain Accuracy | ±3% |
| Waveform Record | 65,000 Frames |
| Trigger | Edge, Pulse width, Runt, Window, N-edge, Delay, Timeout, Duration, Setup/hold, Slope, Video, Code |
| Bus Decode | RS-232/UART, I2C, SPI |
| Waveform Operation | A+B, A-B, AxB, NB, FFT, Logic operation, Editable advanced |
| Auto Measurement | Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay A- >B , Delay A- > B , Delay B- > A , Delay B- > A |
| Number of Measurements | Display 5 measurements at the same time |
| Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
| Frequency Counter | Hardware 6 bits counter (Channels are selectable) |
| Standard Interface | USB-Host, USB-Device, LAN, AUX (Trig Out, Pass/Fail) |
| Optional Interface | 25MHz Function/Arbitrary Waveform Generator |
