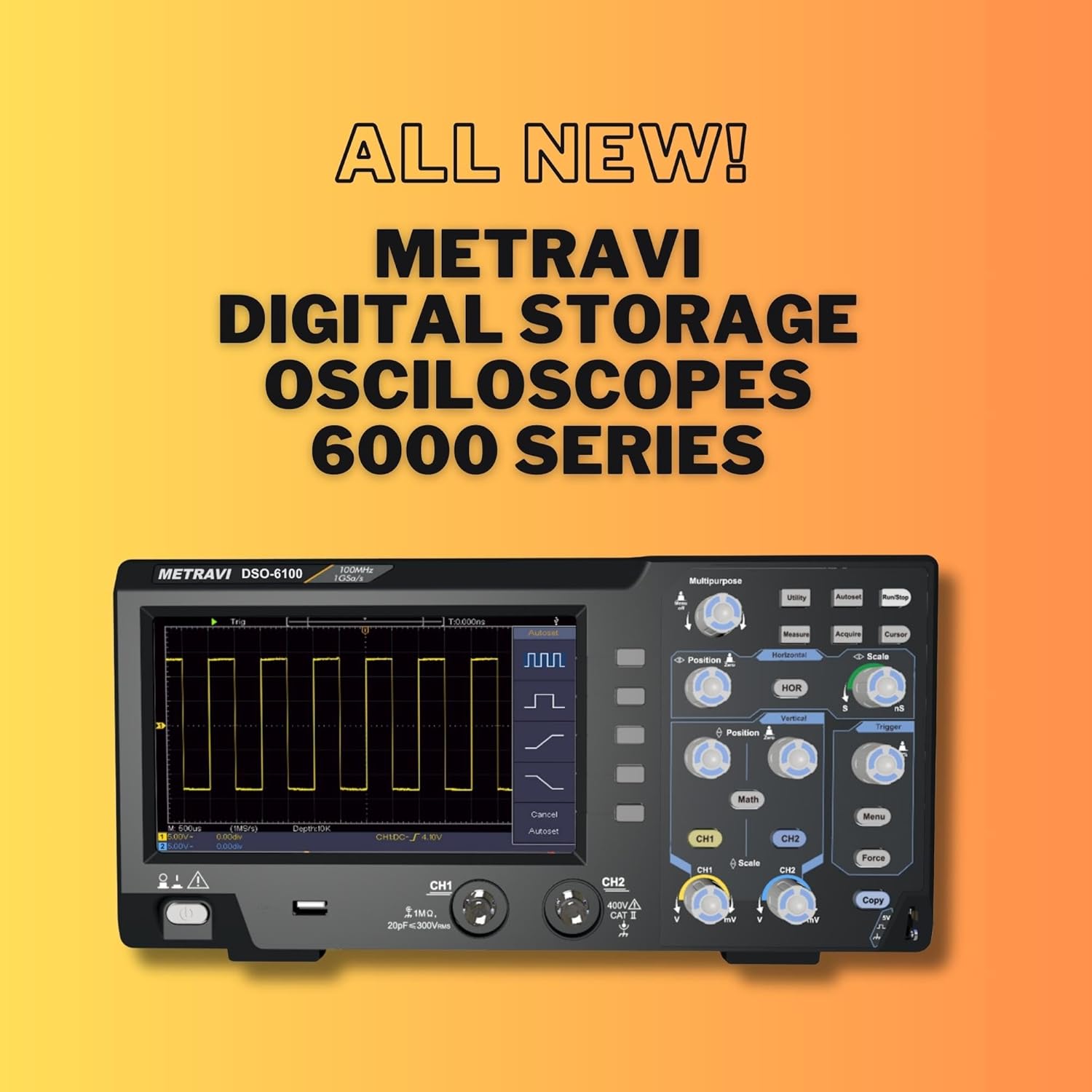

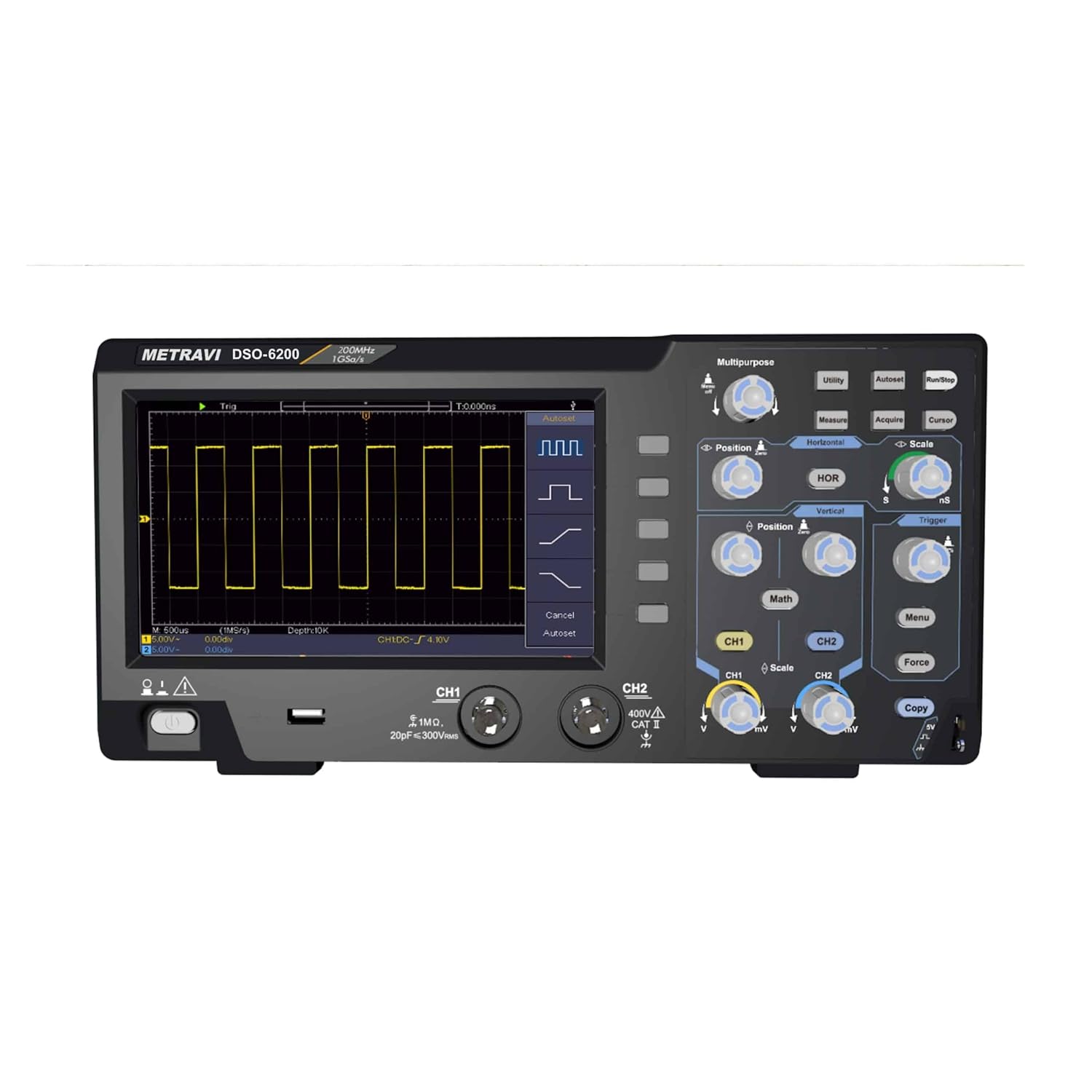

Metravi DSO-6200 Digital Storage Oscilloscope 200 MHz with colour display
Click To Zoom
Metravi DSO-6200 Digital Storage Oscilloscope 200 MHz with colour display
Metravi DSO-6200 Digital Storage Oscilloscope 200 MHz with colour display

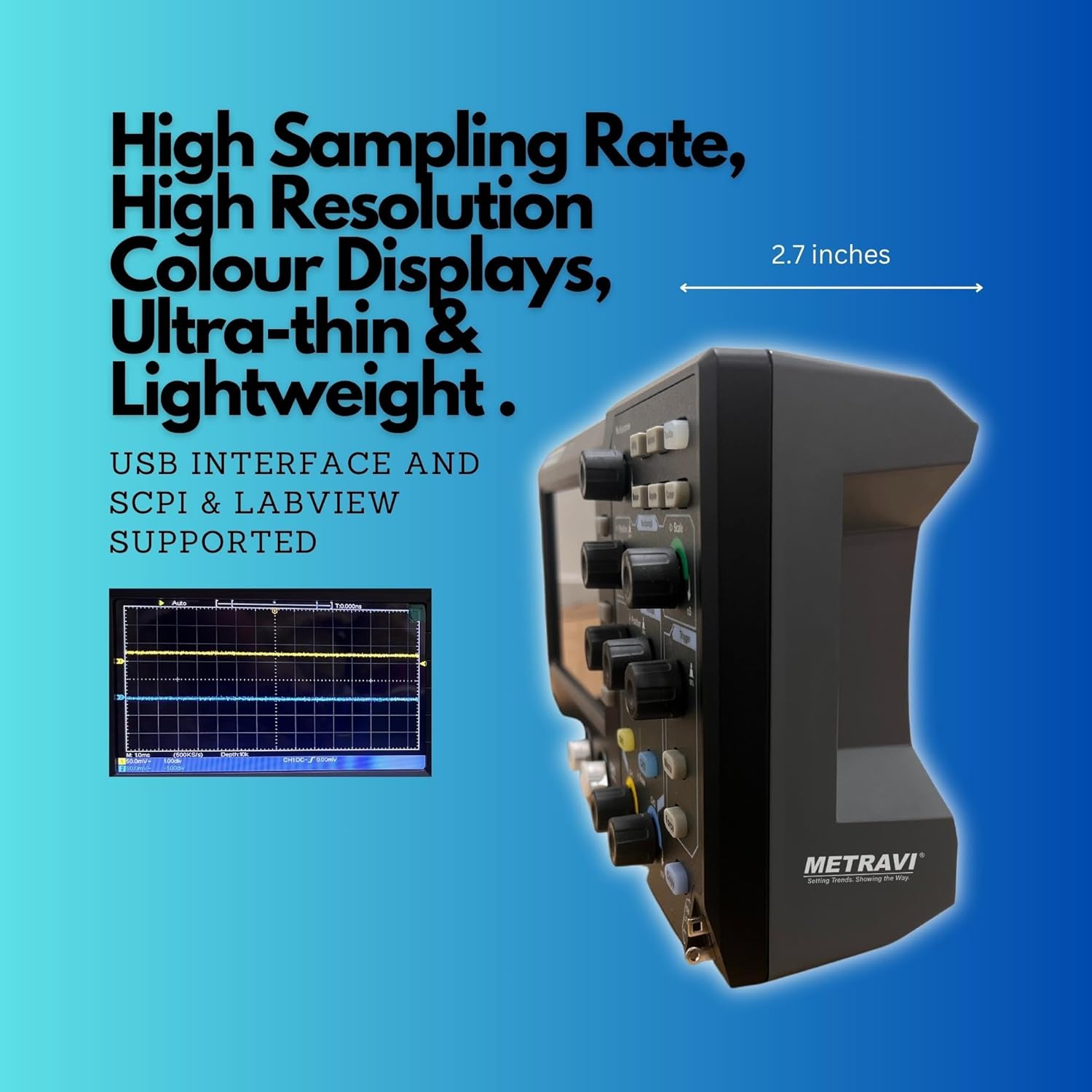

200 MHz DSO with colour display, 1GSa/Sec sampling rate, with USB PC Interface cable and software, with USB device & host.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 39,819.00
(GST inclusive price) i₹53,595.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Specification / Model | DSO-6200 | |
Bandwidth | 200MHz | |

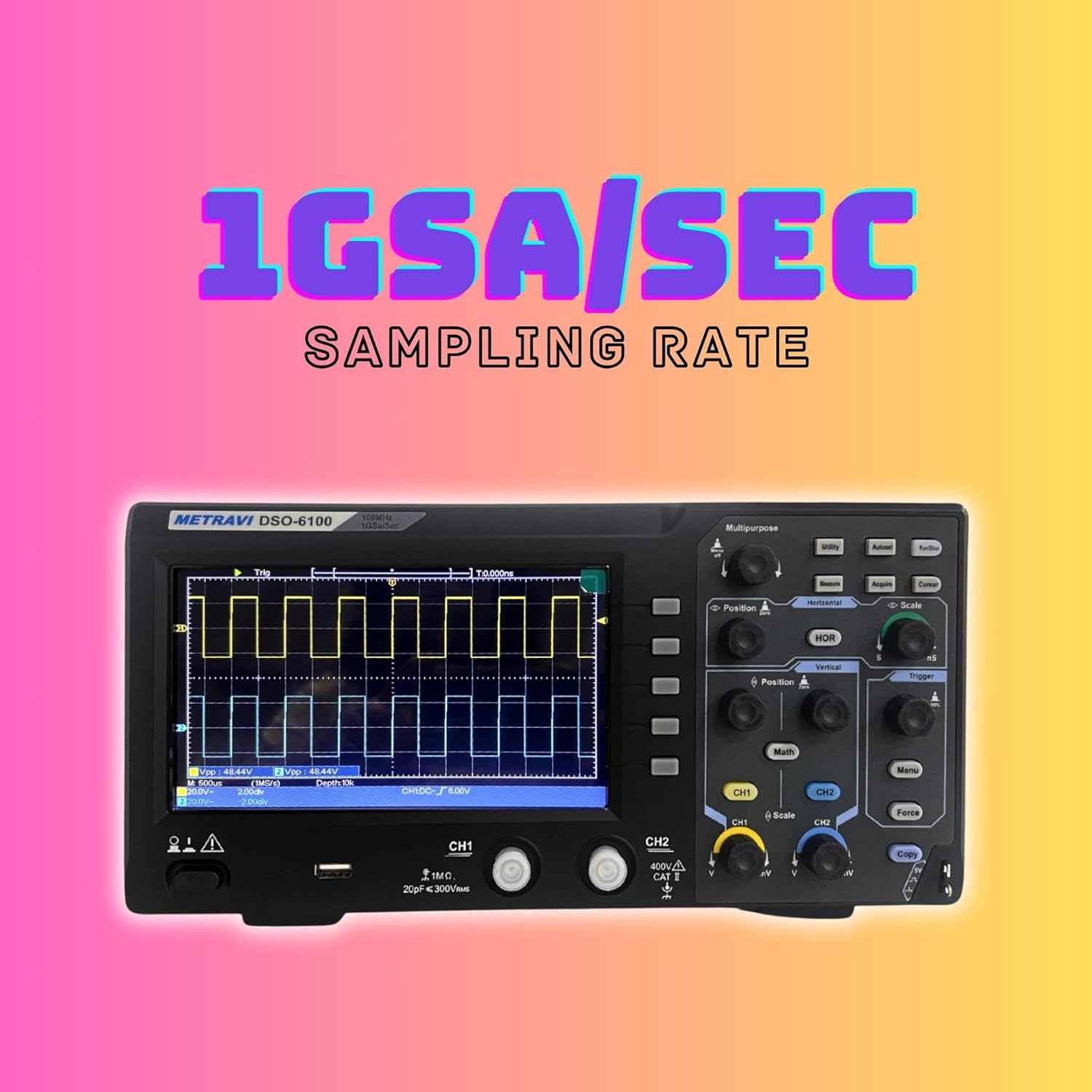

Sample Rate | 1GS/s | |
Horizontal Scale(s/div) | 2ns/div - 1000s/div, step by 1 - 2 - 5 | |
Rise Time (at input, typical) | ≤3.5ns | |
Channel | 2 | |
Display | 7" colourLCD, 800 x 480 pixels | |
Input Impedance | 1MΩ ± 2%, in parallel with20pF±5pF | |
Channel Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | |
Max Input Voltage | 400V (PK - PK) (DC+AC, PK - PK) | |
DC Gain Accuracy | ±3% | |
Record Length | 10K | |
DC Accuracy (average) | Average≥16：±(3% reading+ 0.05 div) for △V | |
Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |
LF Respond (AC, -3dB) | ≥10Hz (at input,AC coupling, -3dB) | |
Sample Rate/ Relay TimeAccuracy | ±100ppm | |
Interpolation | sin (x) / x | |
Interval (△T) Accuracy (full bandwidth) | Single : ±(1 interval time + 100ppm x reading + 0.6ns), Average>16 : ±(1 interval time + 100ppmx reading + 0.4ns) | |
Input Coupling | DC, AC , and GND | |
Vertical Resolution (A/D) | 8 bits (2 channelssimultaneously) | |
Vertical Sensitivity | 5mV/div - 5V/div (at input) | |
Trigger Type | Edge, Video | |
Trigger Mode | Auto, Normal,and Single | |
Trigger Level | ±5 divisions from screencenter | |
Line / Field Frequency (video) | NTSC, PAL and SECAMstandard | |
Cursor Measurement | △V, and △T betweencursors | |
Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time,Fall time, +Width,-Width, +Duty, -Duty,Delay A→B , Delay A→B , area, cycle area | |
Waveform Math | ＋, －, x, ÷, invert,FFT | |
Waveform Storage | 16 waveforms | |
Lissajous Figure | Bandwidth | Full bandwidth |
PhaseDifference | ±3 degrees | |
Communication Interface | USB host, USB device | |
Frequency Counter | Available | |
Power Supply | 100V - 240V AC, 50/60Hz, CAT II | |
Power Consumption | ＜15W | |
Fuse | 2A, T class, 250V | |
Dimension (W x H x D) | 301 x 152 x 70 mm | |
Device Weight | 1.10 kg | |
