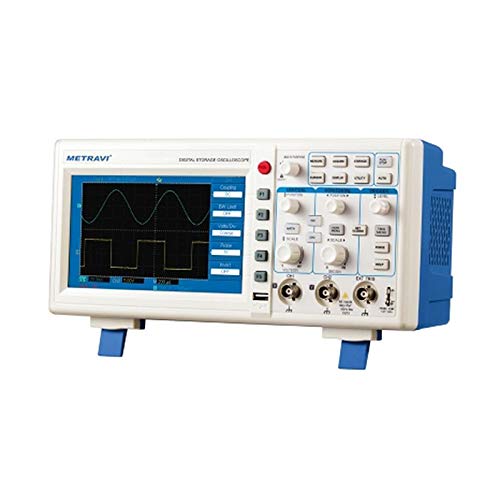

Metravi DSO-5200E 200MHz Digital Storage Oscilloscope

Metravi DSO-5200E 200MHz Digital Storage Oscilloscope
Metravi DSO-5200E 200MHz Digital Storage Oscilloscope

Metravi DSO-5200E 200MHz Digital Storage Oscilloscope

Click To Zoom

Metravi DSO-5200E 200MHz Digital Storage Oscilloscope

Metravi DSO-5200E 200MHz Digital Storage Oscilloscope

(Based On 10 Reviews)

200MHz DSO, 1GSa/Sec, with colored display, USB PC Interface cable and software.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 42,500

(GST inclusive price) i
  • Base Value: ₹ 36016.9
  • GST: (18) % ₹ 6483.1
  • Total Value ₹ 42500

₹60,750.00

( - 30% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Double Analog Channels
  • High-resolution colorful LCD display system with resolution of 400 X 240 (or 800 X 480)
  • To support plug and play USB storage instrument to communicate with computer.
  • Automatic waveform and status setup.
  • Waveform, setup, bitmap storage, waveform and setup reoccurrence.
  • Elaborate view window extension function for delicate analysis of waveform details and profile
  • Automatic measurement of 28 kinds of waveform parameters
  • Automatic cursor tracing and measurement function
  • Unique waveform recording and playback functions
  • Embedded FFT
  • Multiple mathematical calculation functions (including +, -, X, ÷ ) for waveform
  • Edge, video, pulse width and ALT TRIG functions
  • Multi-language menu display



What's in the box?

  • Metravi DSO-5050E 50MHz Digital Storage Oscilloscope

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Sampling



Sampling mode

Real-time

Equivalent



Sampling Rate

DSO-5150E/DSO-5200E

1GS/s

50GS/s

DSO-5050E

500MS/s

25GS/s

DSO-5070E/DSO-510OE

1GS/s

50GS/s



Average Rate

N can be selected from2,4, 8, 16,32, 64, 128and 256 after sampling all channels for N times at the same time.

Input

Input Coupling

DC , AC , GND



Input Impedance

DSO-5150E/DSO-5200E: 1±2% MΩ for parallel connection to 21±3pF

DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E:

1±2% MΩ for parallel connection to 24±3pF;

Probe Attenuation Coefficient

1 x, 10 x, 100 x and 1000 x

The Maximum InputVoltage

400V (DC + AC peak value and input impedance of 1MW)

Vertical

Analog digital converter (A/D)

8-bit resolution with synchronous sampling for2 channels

Scope of deflection coefficient (V/div)

DSO-5150E/DSO-5200E: 2mV/div~5V/div (in input BNC);

DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E: 1mV/div (in input BNC)

Displacement Scope

± 10div

(Typical) optIonal band width limitation

20 MHz

Low-freequency response (AC coupling, -3dB)

≤ 10Hz(in BNC)





DC gain precision (by adopting sampling or sampling mode of average value

DSO-5150E/DSO-5200E:

±4% if vertical Sensitivity is 2mV/div or 5mV/div

±3% if vertical Sensitivity is 10mV/div or 5mV/div

DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E:

±5% if vertical Sensitivity is 1mV/div or 2mV/div

±4% if vertical Sensitivity is 5mV/div

±3% if vertical Sensitivity is 10mV/div or 20mV/div













DC measurement precision (by adopting average sampling mode)

± [(3% x (reading + vertical displacement reading)+(1%xvertical displacement reading)]

To add 2mVwhen setting from2mV/div to 200mV/div: To add set value by 50mVwhen setting from 200mV/div to 5V/div ;

DSO-5025E/DSO-5050E/DSO-5070E/DSO-5100E:

If vertical displacement is 0 and N â‰¥ 16:

± (5% x reading+0.1 grid+1mV) by selecting 1mV/div or 2mV/div;

±(4% x rcading+0.1 grid+1mV) by selecting 5mV/div;

±(3% x reading+0.1 grid+ 1mV) by selecting 10mV/div to 20V/div; if vertical displacement is not 0 and N â‰¥ 16;

± [(3% x (rcading--vcrtical displacement reading)+(1% x vertical displacement reading)] +0.2div;

To add 2mVwhen setting from5mV/div to 200mV/div : To add set valueby 50mV whensetting from 200mV/div to 20V/div;

Measurement precision ofvoltage difference(DV) (by adopting sampling mode of average value)

Voltage difference betweenany 2 points all the waveform aftercalculating average valuefor at least 16 captured waveform under the same setup and environment conditions:

±(3% x reading +0.05div)
