Metravi 52C Milli Ohms Meter
Click To Zoom

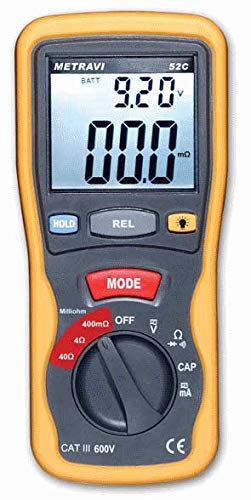

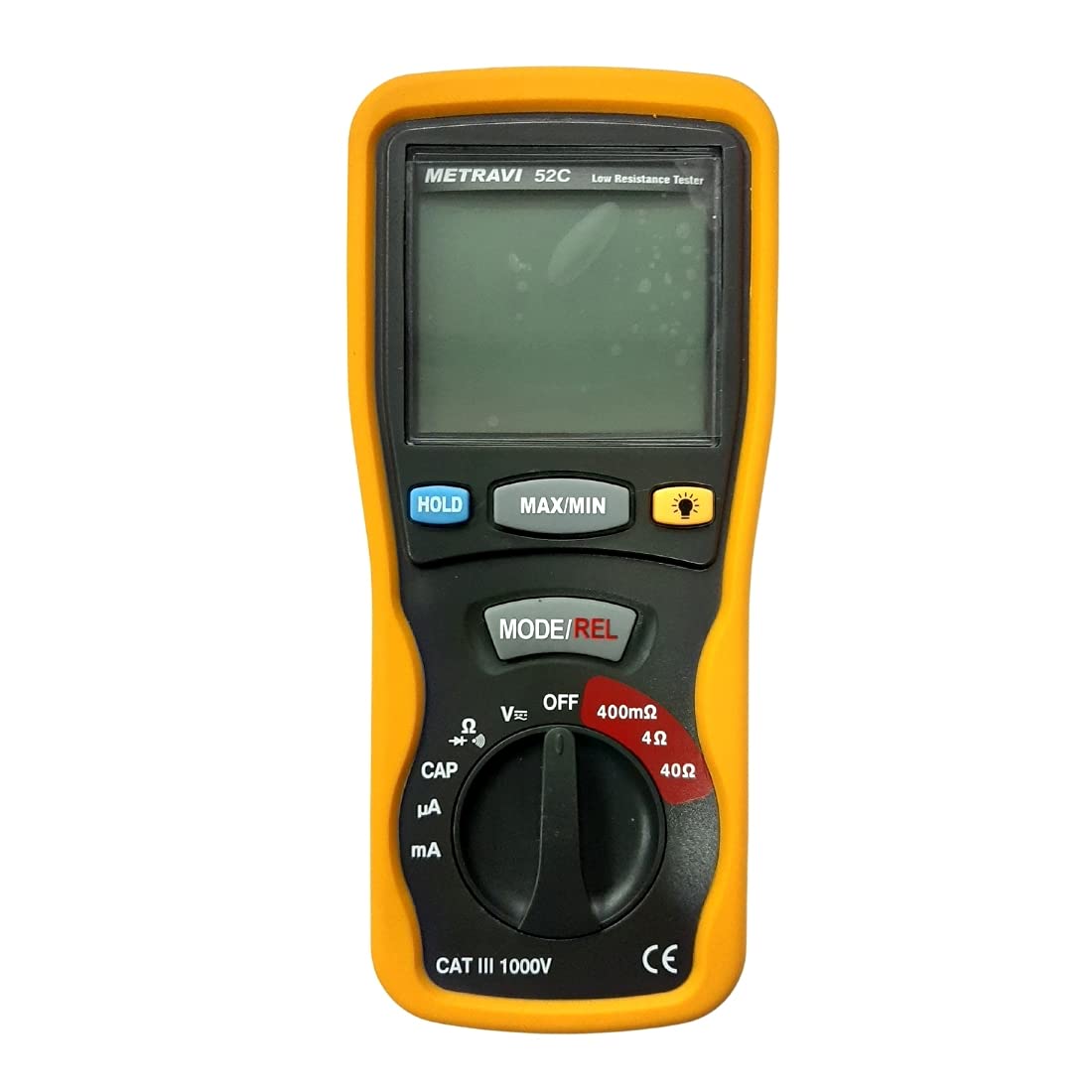

Metravi 52C Milli Ohms Meter
Metravi 52C Milli Ohms Meter
Hand Held, 0.1mOhms to 40 Ohms, 4 wire Kelvin type connection, also measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance and continuity.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 10,500
(GST inclusive price) i-
Base Value: ₹ 8898.3
-
GST: (18) % ₹ 1601.7
-
Total Value ₹ 10500
₹14,985.00
( - 30% OFF )
Description
Key Features
- Low resistance range: 0~40Ω
- Display: 3-3/4 Digits Large LCD with bar graph display
- Maximum output current : 200mA (400mΩ)
- Relative measurement
- Auto Power Off
- Low Battery and Over Range Indication
- 4Terminal Measurement with kelvin clip probes
- Overload Protection on all ranges
- Max / Min Recording
- Confirms to CAT-III 600V
- Low Resistance: 0 – 400m / 4 / 40 Ω

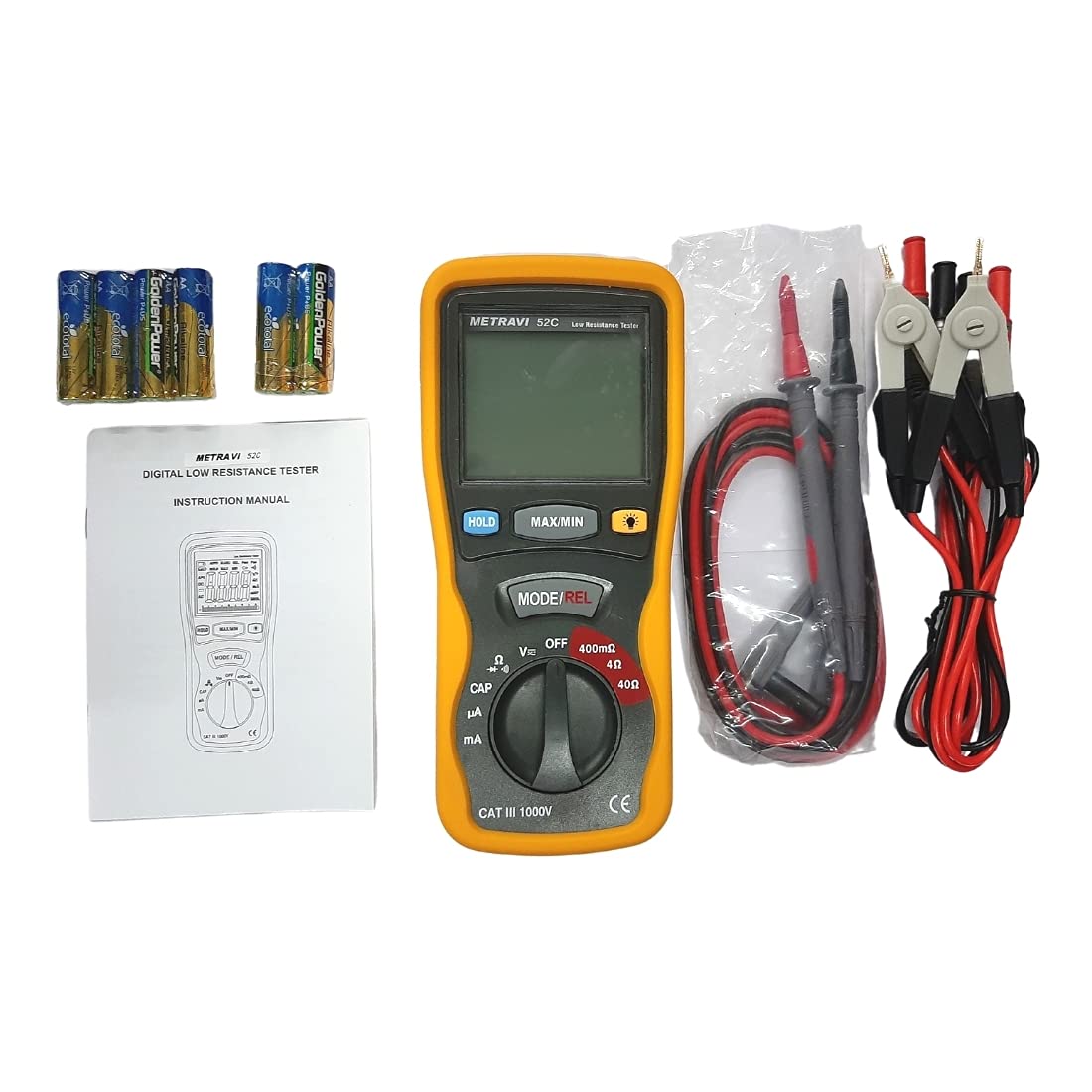

What's in the box?
|
Rating & Reviews
Rating
GENERAL
Low resistance range : 0~40Ω
Display : 3-3/4 Digits Large LCD with bar graph display.
Maximum output current : 200mA (400mΩ) Sampling Rate : 2 times per second. Relative measurement
Over Range Indicator : OL of highest digit is displayed.
Low Battery Indication : The “ ” is displayed when the battery Voltage drop below the operating voltage.
Auto Power Off : After approx. 30 minutes of non-use.4 Terminal measuring system with Kelvin type probes Overload Protection on all ranges Simultaneous display of Battery Voltage and measured value Max/Min Recording Mode Confirms to CAT-III 600V.
Operating Temperature : 0ºC to 40ºC (32ºF to 104ºF) and Humidity below 80% RH
Storage Temperature : -10ºC to 60ºC(14ºF to140ºF) and Humidity below 70% RH
Power source : 6x1.5V Size "AA" battery or Equivalent (DC9V)
Dimensions : 200(L) x 92(W)x 50(H) mm
Weight : Approx 700g include battery

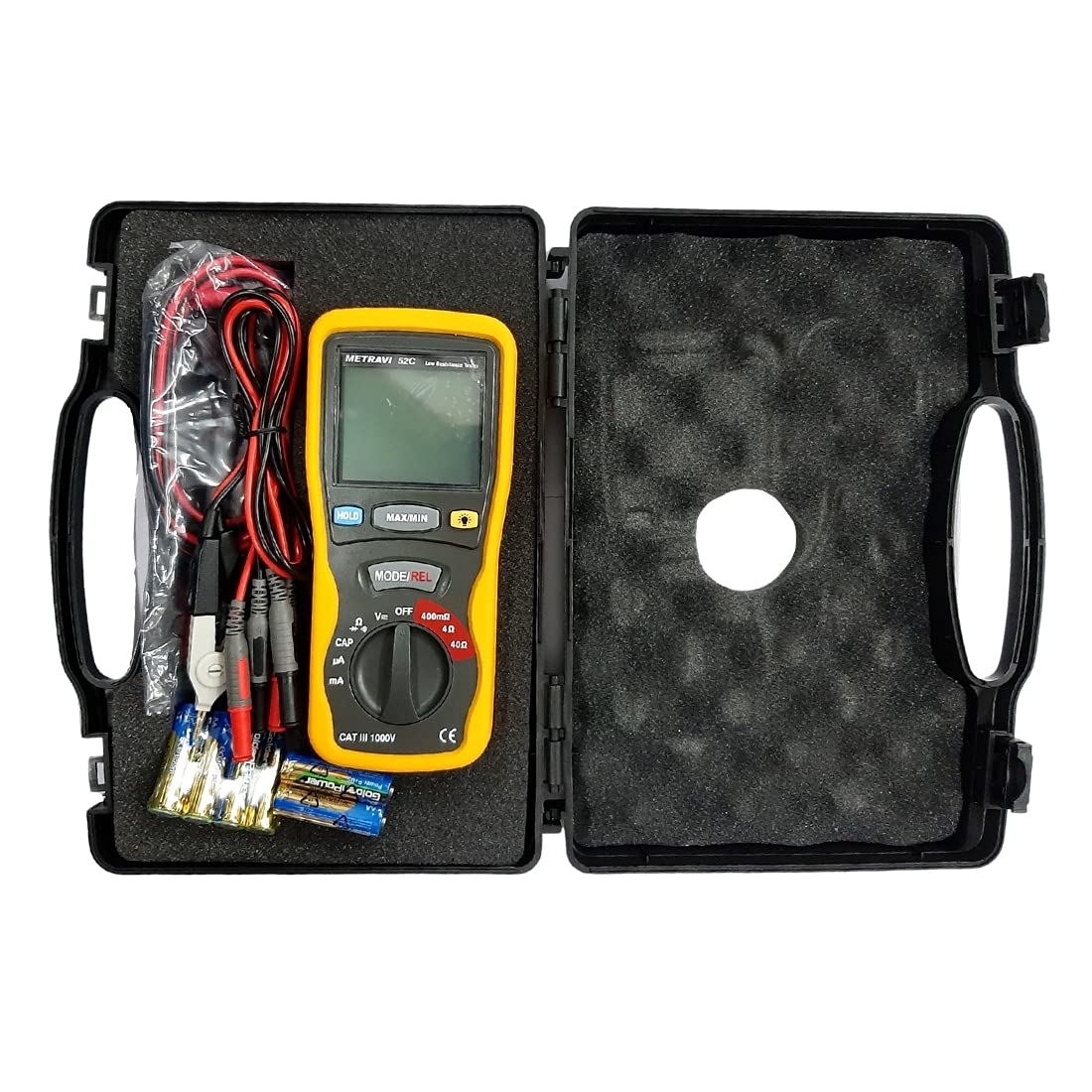

Accessories : Test Leads 6pcs battery, Carrying case, manual.
TECHNICAL
Low resistance
| Range | Resolution | Accuracy | Current |
| 400mΩ | 0.1mΩ | ± (1%+10d) | 200mA |
| 4Ω | 1mΩ | ± (1%+5d) | 20mA |
| 40Ω | 0.01Ω | ± (1%+5d) | 2mA |
DC Current
| Range | Resolution | Accuracy |
| 400µA | 0.1µA | ± (1.5%+5d) |
| 4000µA | 1µA | |
| 40mA | 0.01mA | |
| 400mA | 0.1mA |
DC Voltage
| Range | Resolution | Accuracy |
| 400mV | 0.1 mV | ± (1%+5d) |
| 4V | 1 mV | |
| 40V | 0.01V | |
| 400V | 0.1V | |
| 1000V | 1V | ± (1.2%+5d) |
Capacitance
| Range | Resolution | Accuracy |
| 4nF | 1pF | unspecified |
| 40nF | 10PF | ± (5.0% + 20d) |
| 400nF | 0.1nF | ± (3%+10d) |
| 4uF | 1nF | |
| 40uF | 10nF | |
| 400uF | 0.1uF | ± (4%+10d) |
| 4mF | 1uF | ± (10%+10d) |
| 40mF | 10uF | unspecified |
AC Current
Range | Resolution | Accuracy / 50~60Hz | Accuracy / 400Hz |
400µA | 0.1µA | ± (1.5%+5d) | ± (1.5%+5d) |
4000µA | 1µA | ± (1.5%+5d) | ± (1.5%+5d) |
40mA | 0.01mA | ± (1.5%+5d) | ± (1.5%+5d) |
400mA | 0.1mA | ± (1.5%+5d) | ± (1.5%+5d) |
AC Voltage
| Range | Resolution | Accuracy / 50~60Hz | Accuracy / 400Hz |
| 400mV | 0.1 mV | ± (1.2%+10d) | ± (2.5%+10d) |
| 4V | 1 mV | ± (1.0%+10d) | ± (1.2%+10d) |
| 40V | 0.01V | ± (1.0%+10d) | ± (1.2%+10d) |
| 400V | 0.1V | ± (1.0%+10d) | ± (1.2%+10d) |
| 750V | 1V | ± (1.0%+10d) | ± (1.2%+10d) |
OHMS
| Range | Resolution | Accuracy |
| 400Ω | 0.1Ω | ± (1.0% + 4d) |
| 4KΩ | 1Ω | ± (1.5% + 2d) |
| 40KΩ | 10Ω | |
| 400KΩ | 100Ω | |
| 4MΩ | 1KΩ | ± (2.5% + 3d) |
| 40MΩ | 10kΩ | ± (3.5% + 5d) |
