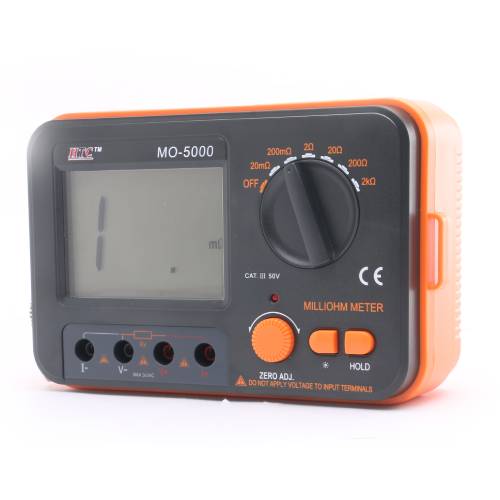

HTC-MO-5000 Milli ohm Meter
Click To Zoom
HTC-MO-5000 Milli ohm Meter
HTC-MO-5000 Milli ohm Meter
The HTC-MO-5000 is a digital milliohm meter ideal for measuring ultra-low resistance. It boasts a wide range, high accuracy, and a clear LCD display for easy reading.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 10,481
(GST inclusive price) i-
Base Value: ₹ 8882.2
-
GST: (18) % ₹ 1598.8
-
Total Value ₹ 10481
₹11,414.00
( - 8% OFF )
Description
Key Features
- Large LCD Display for easy reading
- 4 wire testing, capable of testing extreme low resistance
- Accurate measurement of conductor, electric heading elements & solder point
- High measurement range of 0.01mΩ~2kΩ at 6 ranges
- Strong anti-magnetic & anti-jamming functions
- Full function Protection

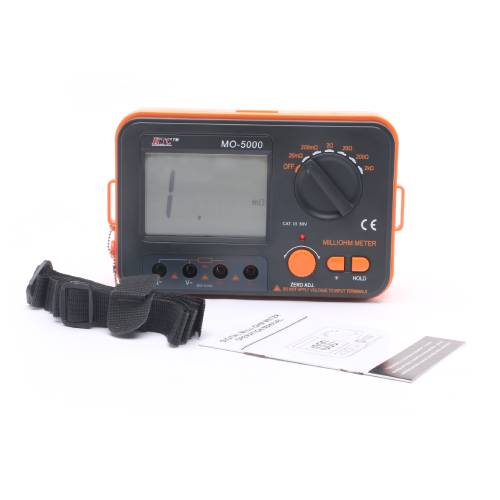

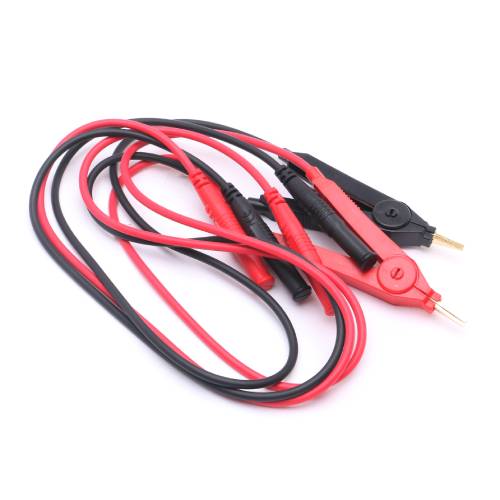

What's in the box?
|
Rating & Reviews
Rating
| TECHNICAL DATA | |||
| Range | Resolution | Accuracy | Measuring Current |
| 20mΩ | 0.01mΩ | ±0.5% of rdg ± 3 digits | Approx. 100mA |
| 200mΩ | 0.1mΩ | ±0.5% of rdg ± 3 digits | Approx. 50mA |
| 2Ω | 1mΩ | ||
| 20Ω | 10mΩ | ||
| 200Ω | 100mΩ | ||
| 2kΩ | 1Ω | ||
| SPECIAL FUNCTION | |
| Low battery indication | Less than approx. 7.5V |
| Functional protection | ✔ |
| Sampling rate | 3 times/sec. |
| Operation mode | Manual range |
| Max. display | 1,999 |
| LCD size | 75 x 52 mm |
| Power Source | AA 1.5V x 6 or external DC 9V power Source |
| Power consumption | Quiescent current approx. 50mA |
| Dimension | |
| 176(H) x 116(W) x 63(D)mm | |
Rating & Reviews
Rating
Similar Products

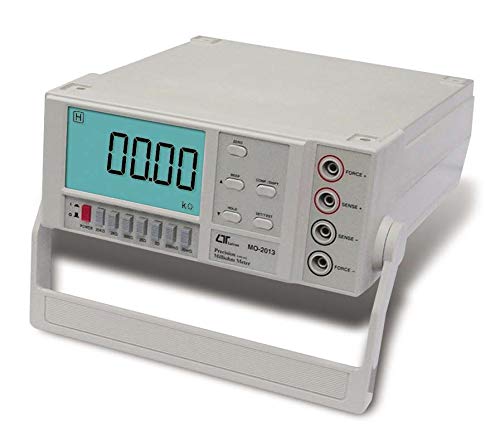

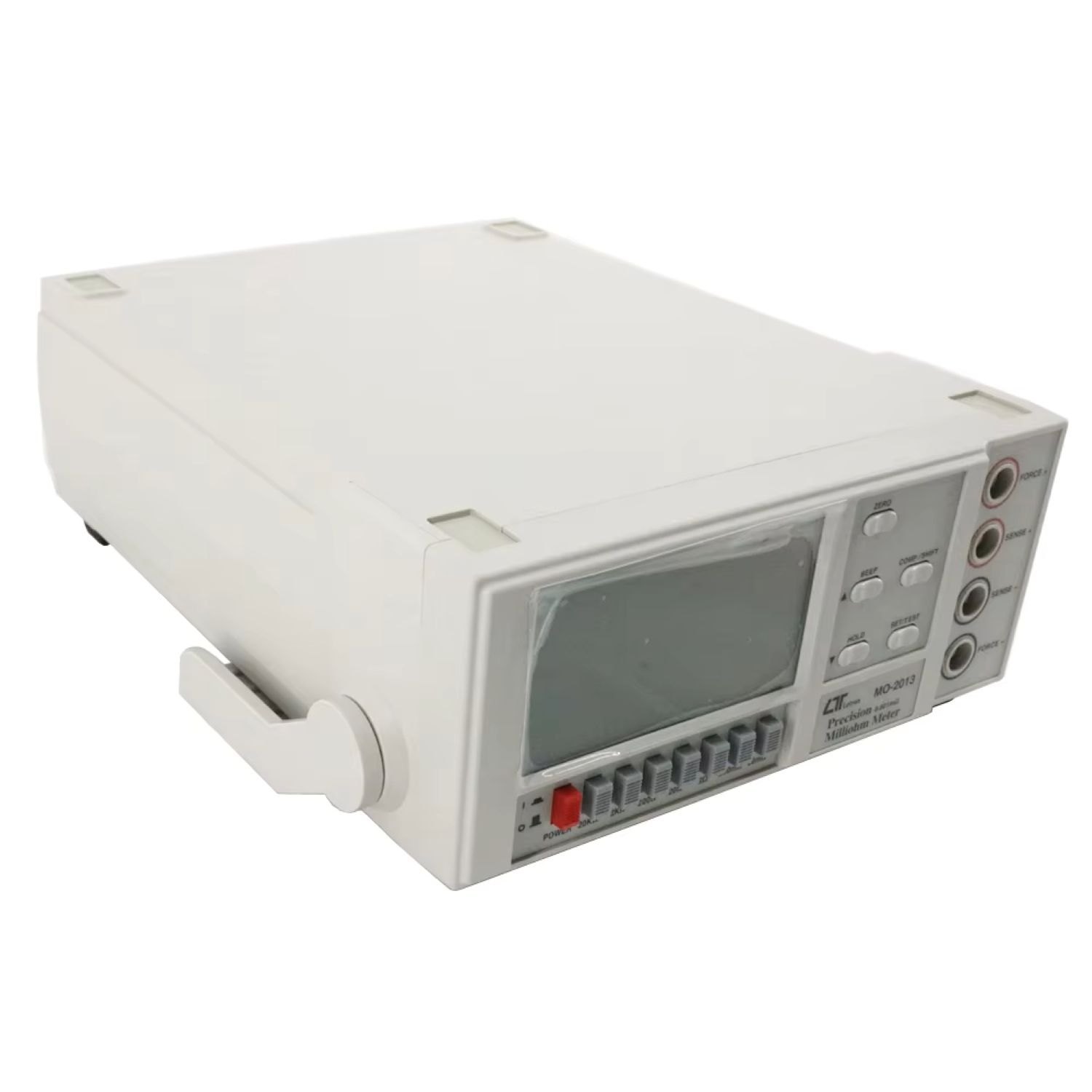

-(1).png "Lutron MO-2001 MILLIOHM METER"){kind=tracking}
