Metravi PRO 8220 220A Microohms Meter
Click To Zoom

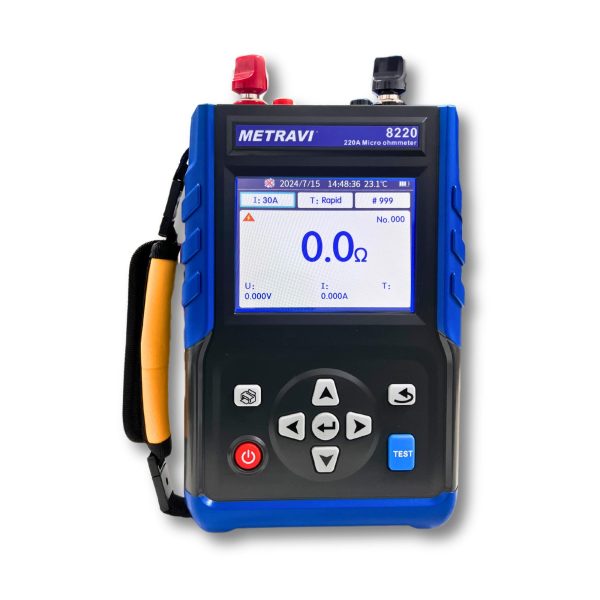

Metravi PRO 8220 220A Microohms Meter
Metravi PRO 8220 220A Microohms Meter
Upto 220A, Step Current: 2.5A, 87 current gears, 1μΩ~5mΩ, Resolution:0.01μΩ, High accuracy, 4-wire measurement, high stability with open circuit & overheating protection, Data Logging upto 999 sets, Data Query, Rechargeable Battery, IEC61010-1, CAT III 600V, Pollution Level 2.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 4,00,000
(GST inclusive price) i-
Base Value: ₹ 338983.1
-
GST: (18) % ₹ 61016.9
-
Total Value ₹ 400000
₹4,25,000.00
( - 6% OFF )
Description
Key Features
- Test current up to 220 A DC (87 adjustable steps).
- 4-wire (Kelvin) measurement for high accuracy.
- Measures from 0.01 µΩ up to several mΩ, depending on current.
- High resolution: 0.01 µΩ.
- Large 5.6" color LCD for clear display.
- Rechargeable battery: 9000 mAh, portable use.
- Stores up to 999 test records.
- Includes auto shutoff, data query, and delete options.
- Built-in overheat & circuit protection.
- Meets IEC 61010-1, CAT III 600V standards.

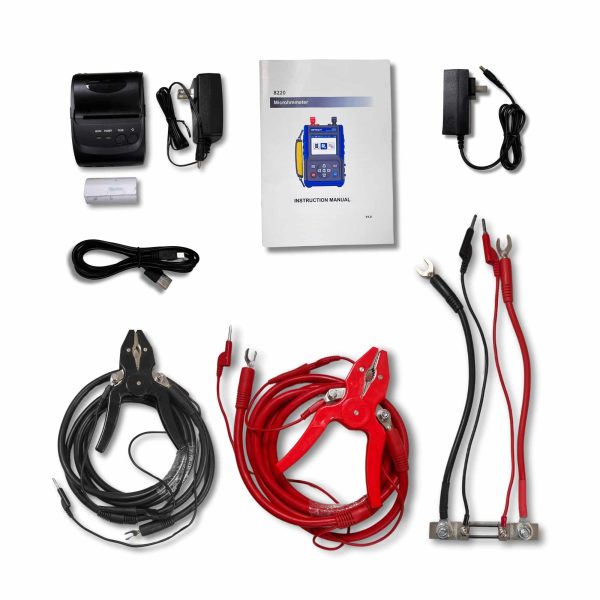

What's in the box?
|
Rating & Reviews
Rating
| Measurement Method | 4-wire measurement |
| Display | 5.6-inch industrial colour LCD with high-brightness |

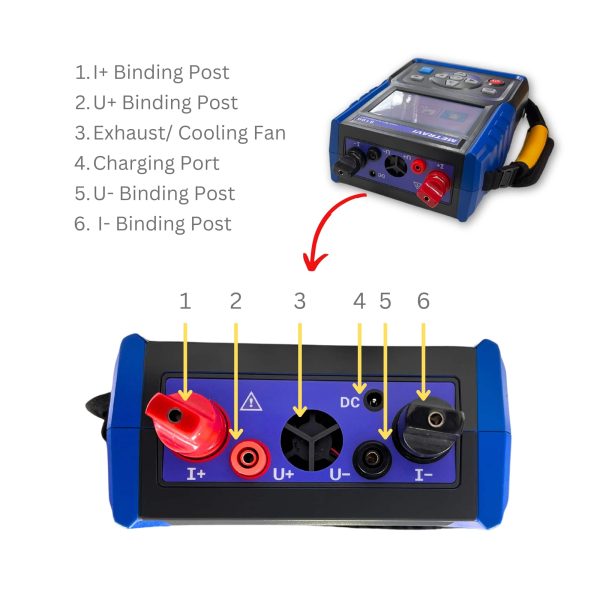

| Test Interface | I+, I-, U+, U |
| Output Current | ≤5A, 10A, 30A, 50A, 80A, 100A, 200A, 220A |
| Resolution | 0.01µΩ |
| Accuracy | 30A~220A ±(reading*0.1%+measurement range*0.2%+1μΩ) |
| Measurement Time | ≤100A fast mode (recommended), 10s, 20s, 30s, 40s, 50s, 60s >100A fast mode |
| Printer | Optional, press the print button to print the test results |
| Data Storage | After the completion of the test, the data is automatically and cyclically saved with up to 999 sets of data stored. |
| Test Leads | Standard Length: 3m (5m is optional), connecting the test leads to the current port and voltage port with a resistance of less than 10mΩ |
| Data Delete | Select Format Memory in the setting interface to delete all data |
| Data Query | Enter the Data Query interface, press the up, down, left, or right keys to browse the stored data |
| Automatic Shutdown | Battery shuts down after 15 mins. of non-operation |
| Back Light | Adjustable High, medium & Low brightness |
| Working Current | 230mA in non-test state, Current can be set in test state. |
| Circuit Protection | Open-circuit protection, Over-heat protection |
| Temperature Protection | By temperature monitoring |
| Power | Built-in 12.6V 9000mAh rechargeable lithium battery |
| Charger | 12.6V/2A |
| Working Environment | -10°C - 50°C, below 90%RH, no condensation |
| Storage Environment | -10°C - 60°C, below 70%RH |
| Safety Standards | IEC61010-1, CATIII 600V, Pollution Level 2, JJG724-1991 Verification Regulation of DC Digital Ohmmeter, JJG166-1993 Verification Regulation of DC Resistors, DL/T967-2005 Verification Regulation of Loop Resistance Tester and DC Resistance High-speed Tester |
