Metravi UONT-200A 100A - 5A Test Current Range Micro Ohms Meter
Click To Zoom

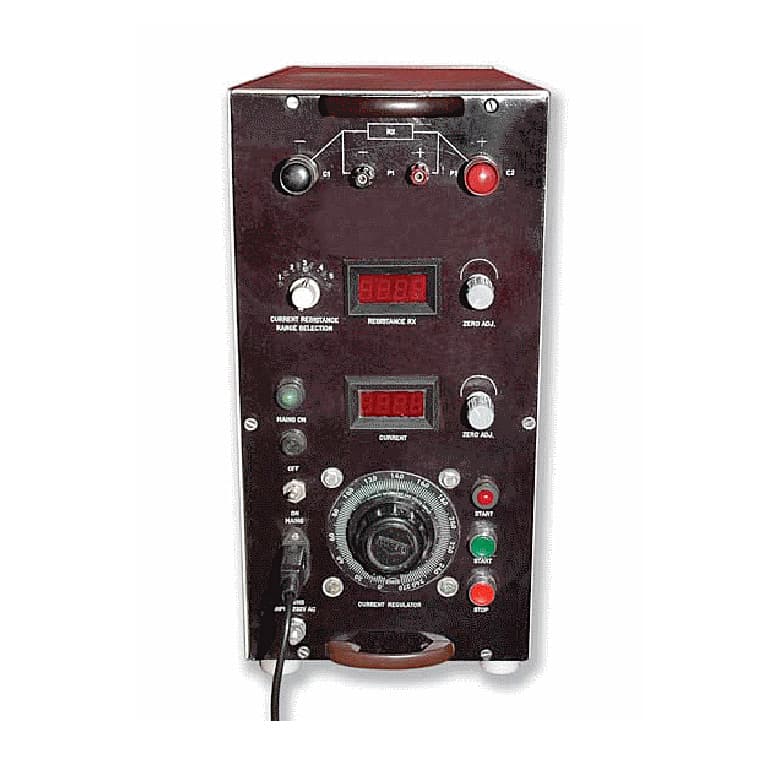

Metravi UONT-200A 100A - 5A Test Current Range Micro Ohms Meter
Metravi UONT-200A 100A - 5A Test Current Range Micro Ohms Meter
The test set is capable of measuring low resistance like switch contacts, busbar, slices, joints, fuses, low inductive windings, etc., by circulating high value of DC current through the contact/junction and measuring DC voltage drop (4 terminal method) which is then sent to instrument amplifiers, thereby displaying resistance on the meter.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,84,100
(GST inclusive price) i-
Base Value: ₹ 156016.9
-
GST: (18) % ₹ 28083.1
-
Total Value ₹ 184100
₹2,63,250.00
( - 30% OFF )
Description
Key Features
- 4-wire (Kelvin) method for accurate low-resistance measurement.
- Measures 200 µΩ to 20 mΩ.
- Test currents: 200 A, 100 A, and 10 A selectable.
- ±1% accuracy.
- Dual digital displays for current and resistance.
- Output voltage: 5V (high current), 10V (low current).
- Includes 20 m test leads.
- Built-in safety features (overload, lead disconnection, etc.).
- Mains powered: 230V AC.
- 1-year warranty.
What's in the box?
|
Rating & Reviews
Rating
GENERAL
Input Power Supply: 230V ± 10%, Single phase A.C.
Accuracy: ± 1% of selected resistance range.
Display: 2 nos. 3-½ digit LED module for resistance measurement.
Output test Voltage : 5 V for 200A & 100A current output & 10V for other current outputs.
Protection: Protection against current lead disconnection while in use. Induction Kickback Suppression Snap acting overload protection.
TECHNICAL
| Resistance Range | Resistance meterreading display | Resolution | Test current |
| 200µ Ω | 199.9 | 0.1µ Ω | 200A |
| 200µ Ω | 199.9 | 0.1µ Ω | 100A |
| 20 m Ω | 19.99 | 10µ Ω | 10A |
