Metravi PRO 7274 10A Digital Mirco Ohms Meter

Metravi PRO 7274 10A Digital Mirco Ohms Meter
Metravi PRO 7274 10A Digital Mirco Ohms Meter
Metravi PRO 7274 10A Digital Mirco Ohms Meter
Metravi PRO 7274 10A Digital Mirco Ohms Meter
Metravi PRO 7274 10A Digital Mirco Ohms Meter
Metravi PRO 7274 10A Digital Mirco Ohms Meter

Click To Zoom

Metravi PRO 7274 10A Digital Mirco Ohms Meter

Metravi PRO 7274 10A Digital Mirco Ohms Meter

(Based On 10 Reviews)

1mA/10ma/100mA/1A/5A/10A, 200.0µΩ~50.0kΩ, Resolution 0.1uΩ, Accuracy 0.2%±2dgt, precise 4-wire method, 2-channel A/D simultaneous detection, Automatic & Manual Modes, Auto Test & 7 Current Gears, 5″ true colour LCD Touchscreen display with backlight adjustment, Bluetooth with Mobile App, USB Interface, Monitoring Software, built-in Printer, Data Logging 600 sets, Data Hold, Temperature Compensation, Automatic Discharge, user-settable Alarms, Clock function, Rechargeable Battery & AC 220V Power options, IP65 dust & water proof.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 82,249.00

(GST inclusive price) i
  • Base Value: ₹ 69702.5
  • GST: (18) % ₹ 12546.5
  • Total Value ₹ 82249

₹1,10,700.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • The tester has two power supply modes: AC 220V and large-capacity lithium built-in rechargeable battery, to meet the user`s requirements in various testing environments.
  • Two measurement modes: Automatic measurement mode: the test current can be automatically selected according to the load. Manual measurement mode: There are 6 test current gears of 10A, 5A,1A, 100mA, 10mA, 1mA.
  • Max output voltage 24V, Max test current 10A, the test speed is fast and suitable to transformer measurement.
  • 5 inch true colour LCD touchscreen.
  • Operatable with touchscreen as well as buttons.
  • Equipped with a built-in printer, which can print the measurement results on site.
  • With Bluetooth communication function, which can perform test operations or help view the test result on the mobile phone after installing the free Smartphone APP.
  • USB interface and monitoring software, for reading, viewing and saving test results, as well as reporting and printing the historical data after connecting and communicating with the computer.
  • Automatic discharge after the test, and the discharge indication is clear to avoid mis-operation. • Resistance conversion function at 75°C, which can be compensated and converted according to the temperature and material of the tested sample.
  • Alarm function, which can set the Resistance alarm value.
  • Automatic shutdown after 15 minutes without any operation.
  • The instrument housing is a waterproof, protective case, which is anti-collision, anti-drop, waterproof, safe and durable.
  • It is an ideal instrument for quickly measuring the transformer DC Resistance.

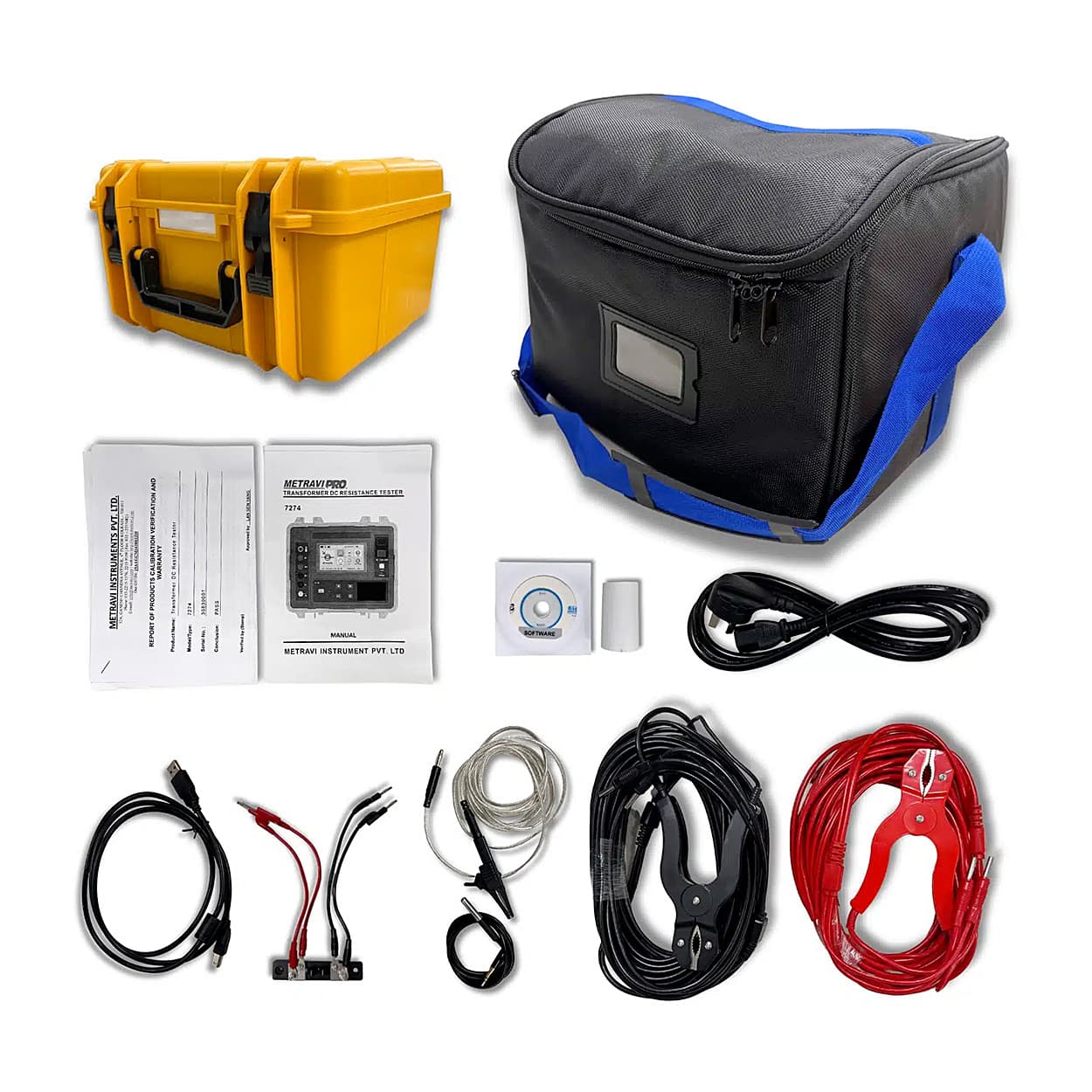

What's in the box?

  • Metravi PRO 7274 10A Digital Mirco Ohms Meter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Test MethodPrecision 4-wire method, 2-channel A/D simultaneous detection
Test ModesAutomatic; Manual
Display480X854 px resolution 5 inch true colour LCD touchscreen
Power SupplyAC 220V Mains Operatable; DC 22.2V 5200mAh Rechargeable Battery
Measurement Range200.0uΩ~50.00KΩAuto
200.0uΩ~20.00mΩ10A
10.00mΩ~200.0mΩ5A
100.0mΩ~2.000Ω1A
1.000Ω~20.0Ω100mA
10.00Ω~200Ω 10mA
100.0Ω~50.0kΩ 1mA
Max. Resolution0.1uΩ
Measurement Accuracy0.2%±2dgt
Wire Length TestL：≤99999m
Current Test GearsAuto,10A, 5A, 1A, 100mA,10mA,1mA
Output Voltage24V Max
Temperature Measurement Range-55°C 〜 125°C
Temperature Accuracy±0.5°C
Measurement TimeSampling AD rate 1s/ time
AlarmsAlarm Setting, Alarm Indication, Overflow Indication, Charge Indication, Low Voltage Indication
Data Storage / Logging600 groups (power down or battery replacement will not lose the data)
Data HoldAutomatic
Calculate Converted ResistanceConversion according to the temperature and material of the tested product
Discharge FunctionAutomatic
Operating Environment-10°C 〜 40°C; Below 80%RH
Storage Environment-10°C 〜 60°C; Below 70%RH
ProtectionIP65 Dust Proof and Waterproof (with case closed)
PrinterBuilt-in
BluetoothYes, helps sync with free Smartphone App
USB InterfaceHelps with installing the monitoring software and upload stored data to computer
Safety StandardsIEC61010-1, CAT III 600V, Pollution Degree 2, JJG724-1991
Dimensions280mm×260mm×160mm
Weight6.4kg (with accessories)
