Metravi 7272A 10A Digital Micro Ohms Meter
Click To Zoom
Metravi 7272A 10A Digital Micro Ohms Meter
Metravi 7272A 10A Digital Micro Ohms Meter

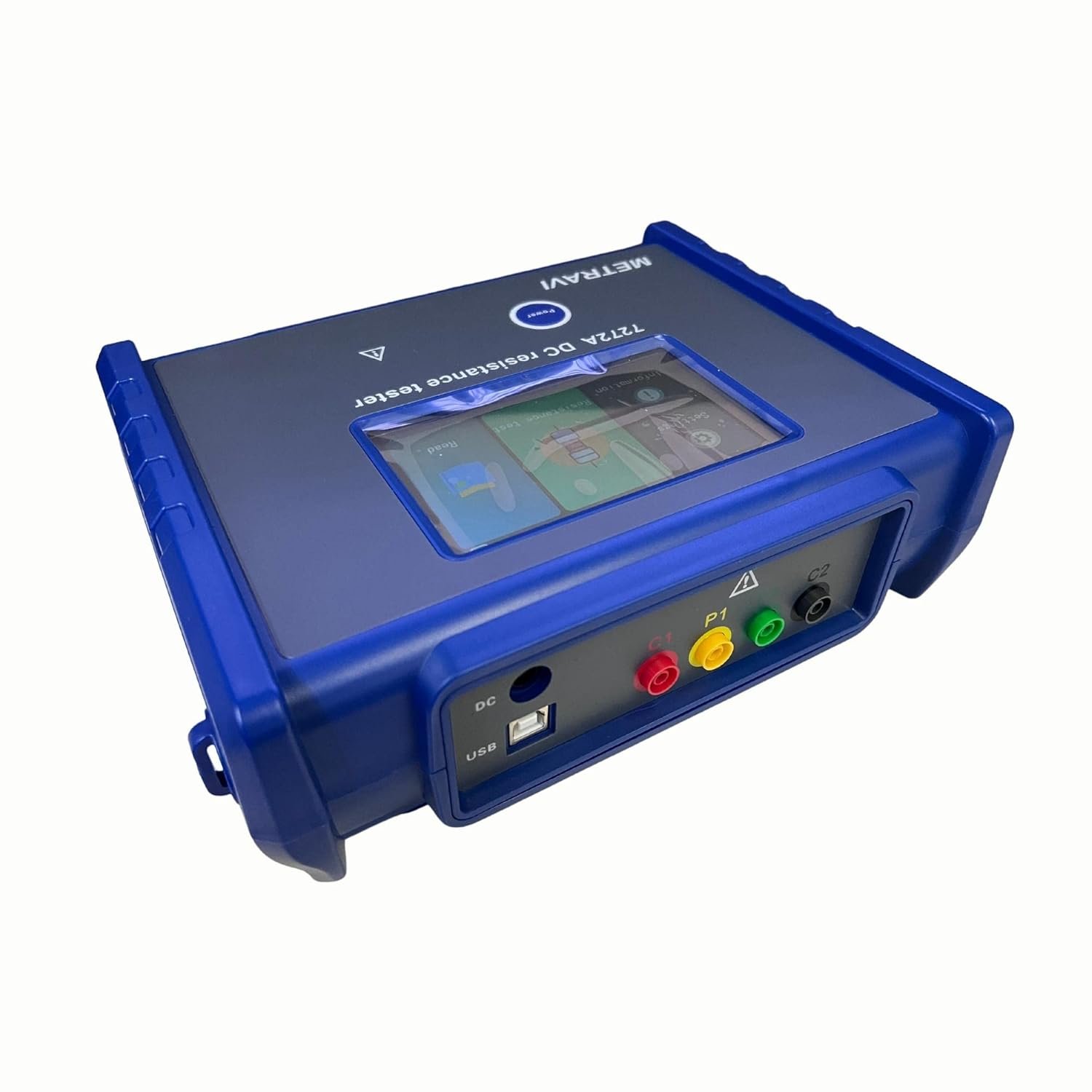

The 7272A portable DC Resistance Tester is also known as Transformer DC Resistance Tester, Resistance Rapid Tester or Grounding Conductivity Tester. It adopts microprocessor technology, uses a four-wire test, is safe, precise and reliable. It Is mainly used for measurement of transformer winding resistance, ground down lead conduction testing, measurement of wire resistance of cables, switches, sockets, relay contact resistance, windings, motors, shell and equipment, lightning protection zones, ground beams, structures, racks, steel, pipes, windows, fence, radiators, pipeline connections between objects and metal components’ resistance testing. It is widely used in various fields like telecommunication, electric power, meteorology, machine rooms, oil fields, electric power distribution lines, tower transmission lines, gas station, factory grounding grid, lightning rod and so on. The 7272A Portable DC Resistance Tester is composed of a host, monitoring software, test line and communication line. The host handheld portable design is convenient for field applications as it uses battery power and has a charging function, saving the usual on-site power supply search. There is a full-colour, large, clear LCD display, with easy-to-use touch screen operations and port overload protection function. It comes with large capacity storage for 500 groups of data, offers resistance measurement range: 10.0 u Ω 50.00 K Ω, with measuring accuracy of: ±0.2% FS ±10 digits. The computer software has functions for reading, consulting, saving and reporting historical data.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 45,315
(GST inclusive price) i-
Base Value: ₹ 38402.5
-
GST: (18) % ₹ 6912.5
-
Total Value ₹ 45315
₹64,800.00
( - 30% OFF )
Description
Key Features
- Resistance Range : 10.0uΩ-50.00KΩ
- Resolution Ratio : 0.1 uΩ
- Precision : ±0.2%FS±10dgt
- Detection Method : The four-wire test
- Measuring Current : 10A, 5A, 1A, 0.1A, 10mA, 1mA
- Maximum short circuit Current : 10
- Overload Protection : Yes
- Self Discharge : Yes
- Power : DC12.6v 2500mAh large-capacity lithium battery
- Charging Function : Yes
- Back Light : Yes, suitable for dark places

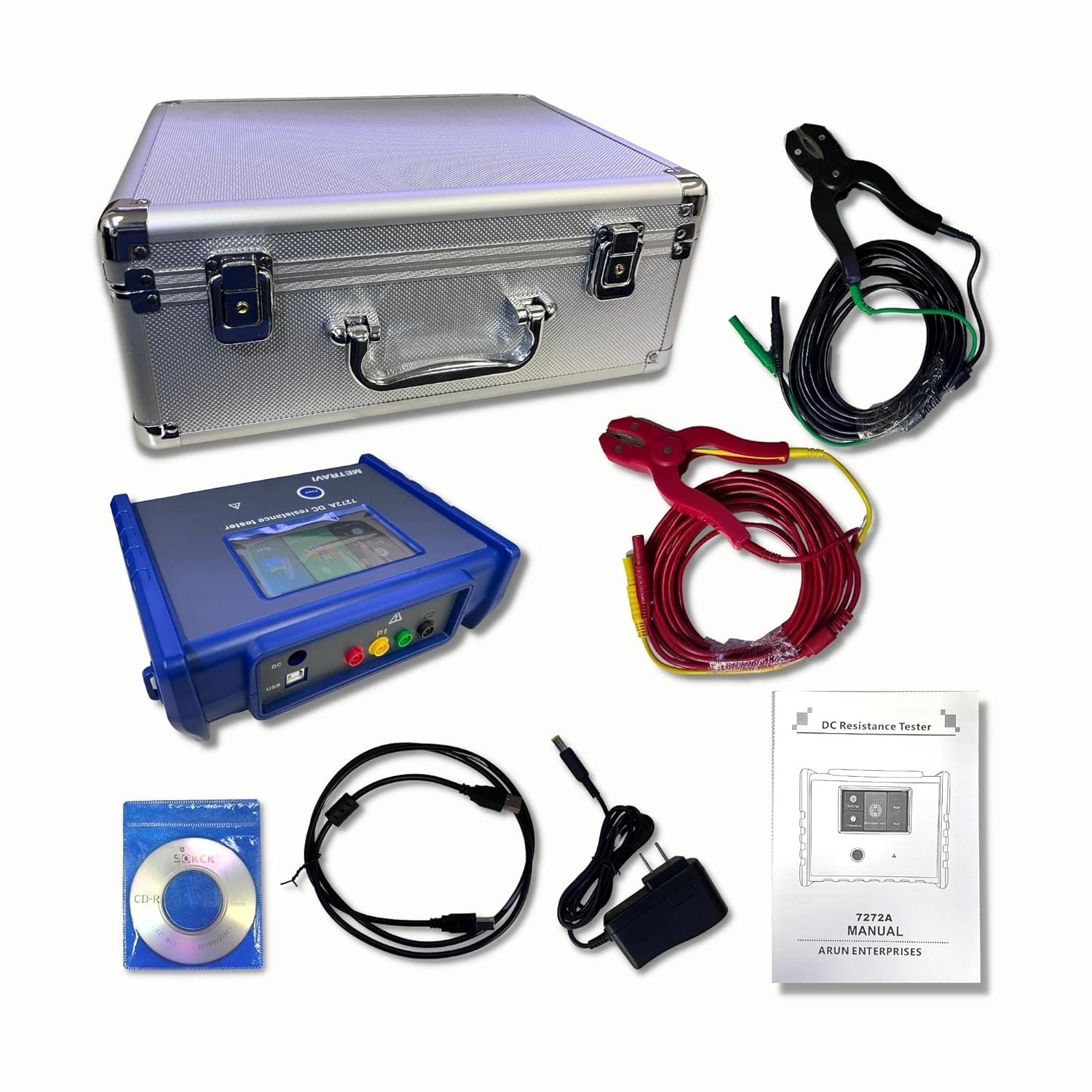

What's in the box?
|
Rating & Reviews
Rating
- Display Mode : LCD Full-colour display
- Overflow Shows : LCD Full-colour display : The “OL” symbol is displayed when the overrange overflow occurs
- Touch Screen Operation : Yes
- LCD Size : Length and width : 108mm×65mm
- Size of Instrument : Length, width and height : 240mm×188mm×85mm

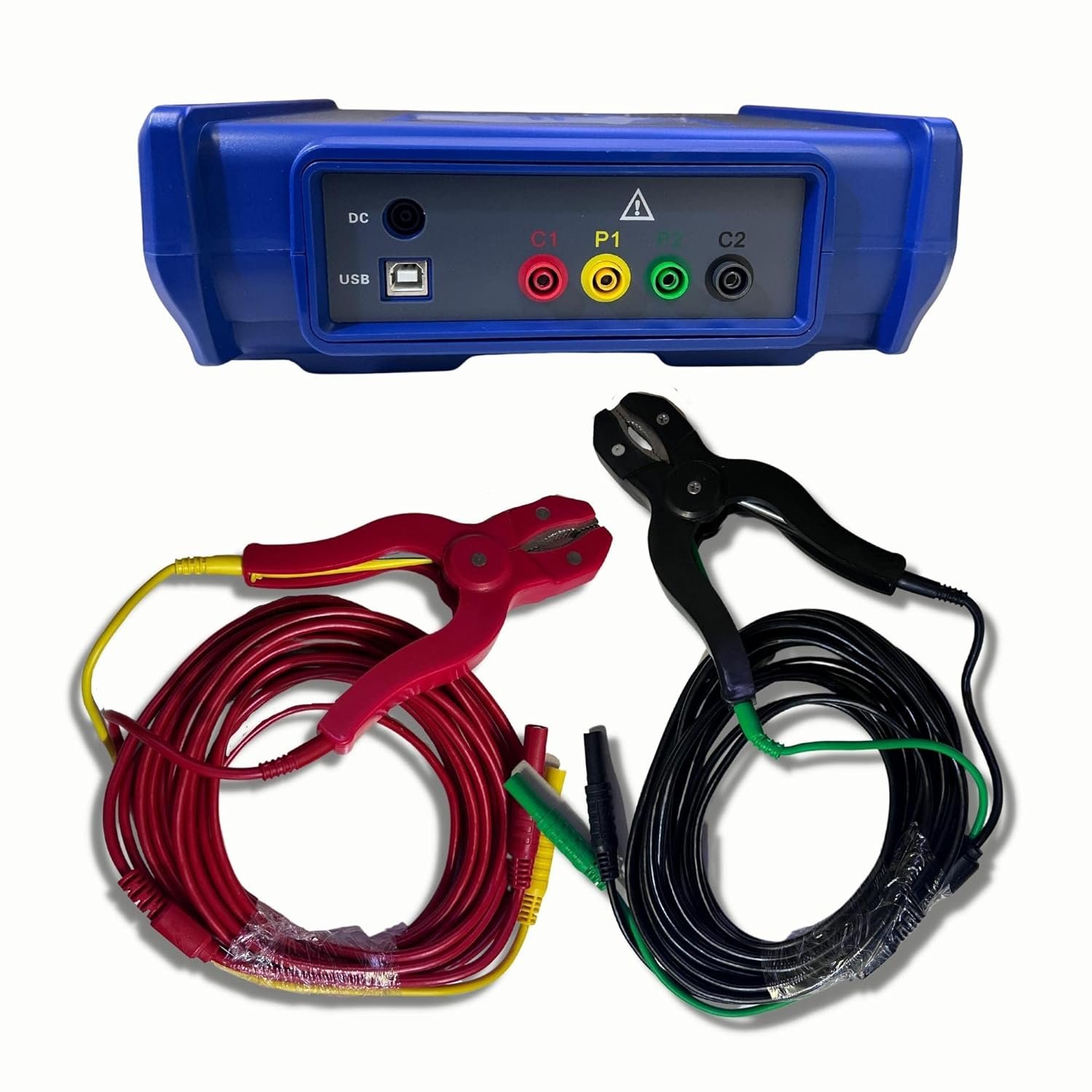

- Test Line Length : 5 meters, 1 red, 1 black
- USB Interface : With USB interface
- Line of Communication : 1 USB communication cable
- Data Storage : 500 groups
- View Data : Data access function
- Cell voltage : The battery power is displayed in real time, indicating that the battery should be charged in time when the battery voltage is low
- Auto Power-Off : Turns off automatically after no operations for about 15 minutes
- Power Dissipation : Standby: approx. 116mA (20% brightness) Measurement : 27W Max
- Weight : Instrument : 1100g (including batteries) Test line : 850g
- Operating Temperature and Humidity : -10°C ~ 40°C, Below 70%rh
- Storage Temperature and Humidity : -20°C ~ 60°C, Below 70%rh
- Insulation Resistance : More than 10 mΩ (circuit between the shell and 500V)
- Withstand Voltage : AC 3700V/ RMS (between circuit and housing)
- Electromagnetic Property : IEC61010-4-3, wireless frequency electromagnetic field ≤1V/m
- Suitable for Safety : IEC61010-1, CAT III 600V, Pollution level 2, JJG724-1991 <>, JJG166-1993 <>, <>
Range and Accuracy
| Measuring Current | Range | Precision | Resolution Ratio |
| 10A | 10.0uΩ~1000.0uΩ | ±0.2%FS±10dgt | 0.1uΩ |
| 1.00mΩ~100.00mΩ | ±0.2%FS±10dgt | 0.01mΩ | |
| 5A | 100.0mΩ~1000.0mΩ | ±0.2%FS±10dgt | 0.1mΩ |
| 1A | 1.000Ω~10.000Ω | ±0.2%FS±10dgt | 0.001Ω |
| 0.1A | 10.00Ω~100.00Ω | ±0.2%FS±10dgt | 0.01Ω |
| 10mA | 100.0Ω~1000.0Ω | ±0.2%FS±10dgt | 0.1Ω |
| 1mA | 1.000KΩ~10.000KΩ | ±0.2%FS±10dgt | 0.001KΩ |
| 10.00KΩ~50.00KΩ | ±0.2%FS±20dgt | 0.01KΩ |
