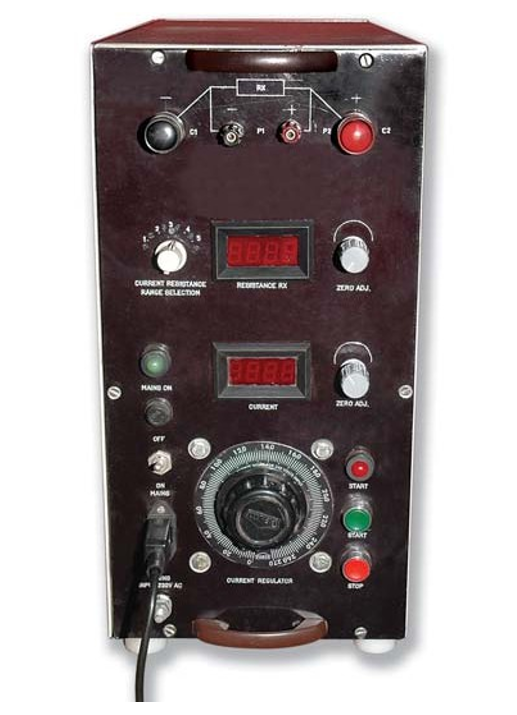

METRAVI UOT-10A Digital Micro Ohms Meter
Click To Zoom
METRAVI UOT-10A Digital Micro Ohms Meter
METRAVI UOT-10A Digital Micro Ohms Meter
This Test Set is suitable to measure winding resistance of transformers single or 3 phase, star or delta connected upto several MVA. Two independent displays read the resistance of both primary or secondary winding simultaneously. However primary or secondary winding can also be measured separately. DC power source allows the selected current to flow through the winding / windings and the voltage developed across the winding are sent to instrumentation amplifiers , thereby displaying directly the ohmic value
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 90,270.00
(GST inclusive price) i₹1,21,500.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
Input Power Supply 230V ± 10%, Single phase A.C ‘OR' 24 Volts
rechargeable NI-Cd Batterey
Accuracy ± 1% of selected resistance range.
Display 1 no. 4 ½ digit LED Display digital meter for resistance measurement.
Ordering instrument Portable Low Resistance Micro-Ohm Meter with
one set of 5 meter long test Leds, power supply cord, carrying case, in built rechrage Ni-Cd Batteries and battery Charger and 2 sets of Maint. & Operational Manual.
Protection Protection against current lead disconnection while in use.Induction Kickback Suppression. Snap acting overload protection
| Resistance Range | Resistance meters reading display | Resolution | Test Current |
| 2m Ω | 1.999 | 1 µ Ω | 10A |
| 20m Ω | 19.99 | 10 µ Ω | 1A |
| 200m Ω | 199.9 | 100µ Ω | 0.1A |
| 2000 m Ω | 1999 | 1 m Ω | 0.01A |
| 20 Ω | 19.99 | 10 m Ω | 0.mA |
| 200 Ω | 199.9 | 100 m Ω | 0.10mA |
| 2000 Ω | 1999 | 1 Ω | 0.01mA |
