Metravi Pro 7270 1A Micro Ohms Meter with High Accuracy, Data Logging1A Micro Ohms Meter with High Accuracy, Data Logging
Click To Zoom
Metravi Pro 7270 1A Micro Ohms Meter with High Accuracy, Data Logging1A Micro Ohms Meter with High Accuracy, Data Logging
Metravi Pro 7270 1A Micro Ohms Meter with High Accuracy, Data Logging1A Micro Ohms Meter with High Accuracy, Data Logging

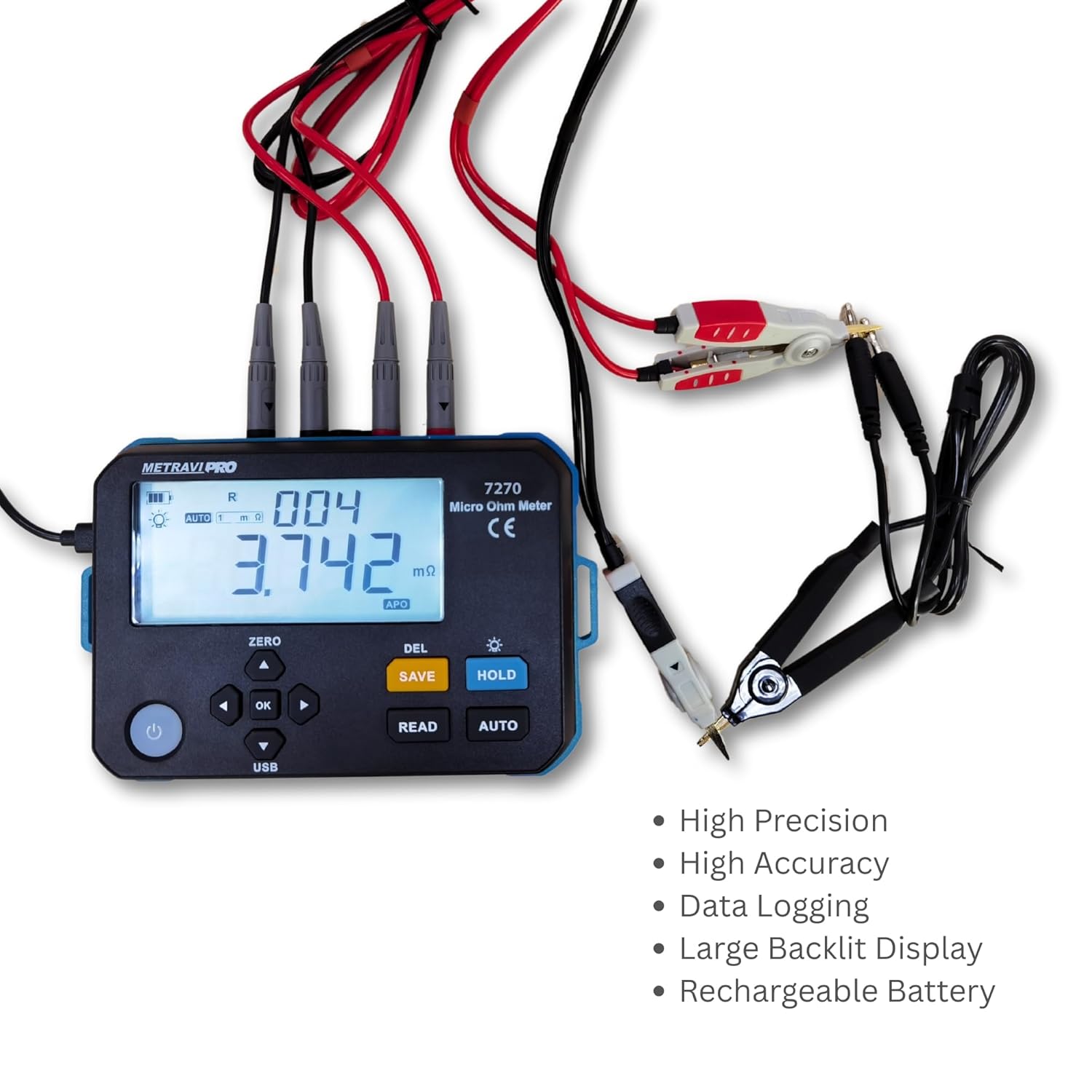

The Metravi PRO 7270 1A Micro Ohms Meter with Data Logging is designed with microprocessor technology and 4-wire testing method, which ensures safety and delivers accurate and reliable testing results
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 21,712
(GST inclusive price) i-
Base Value: ₹ 18400
-
GST: (18) % ₹ 3312
-
Total Value ₹ 21712
₹31,050.00
( - 30% OFF )
Description
Key Features
- Micro-ohm level measurement, Resistance measurement range: 0.001mΩ～300.0KΩ
- Resolution up to 1μΩ
- Accuracy can reach ±0.1%FS
- Measurement current ≤ 1A
- Data Logging for 500 groups
- Large LCD display
- Automatic shutdown, longer standby time
- Lithium battery can be used repeatedly
- Compact design, easy to carry and operater

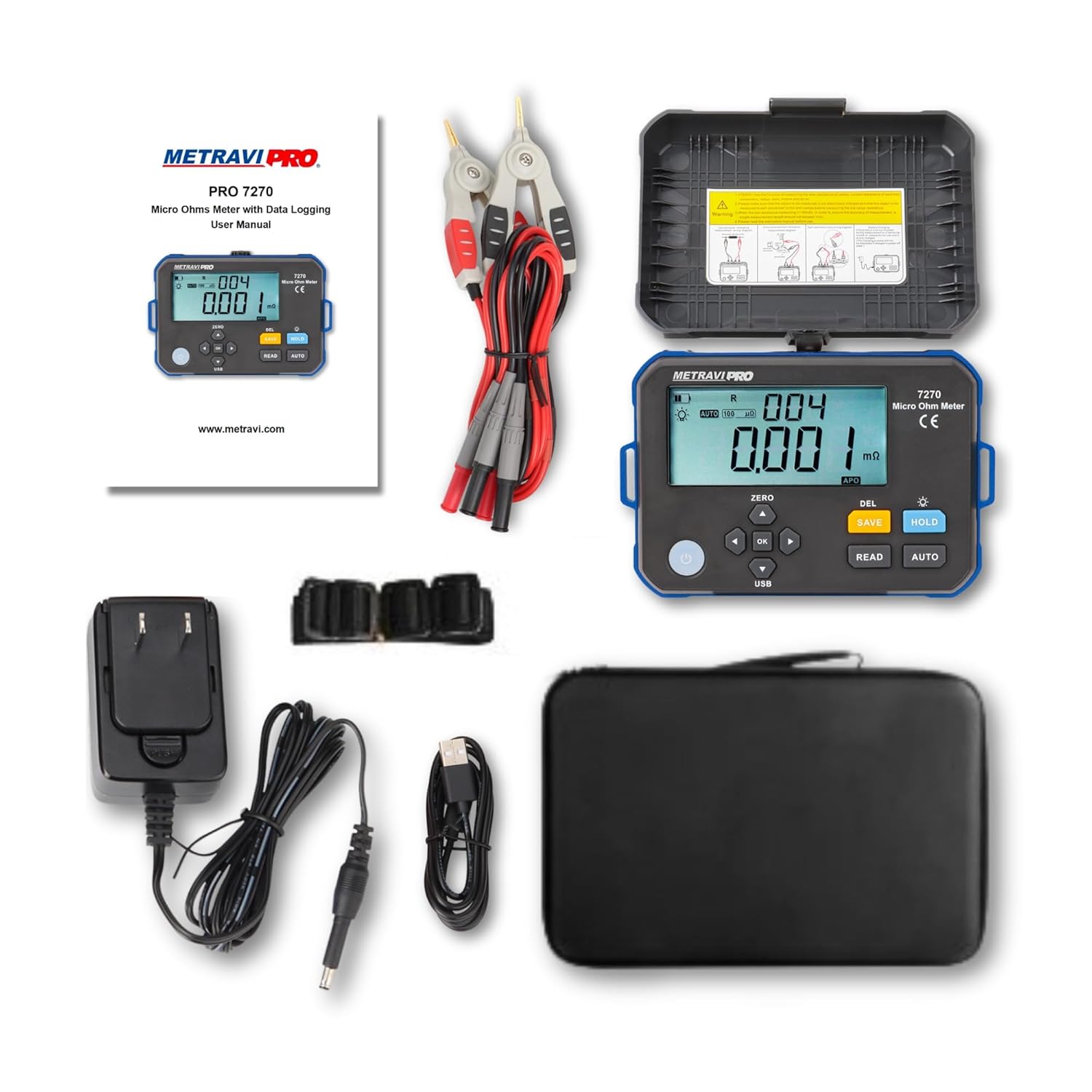

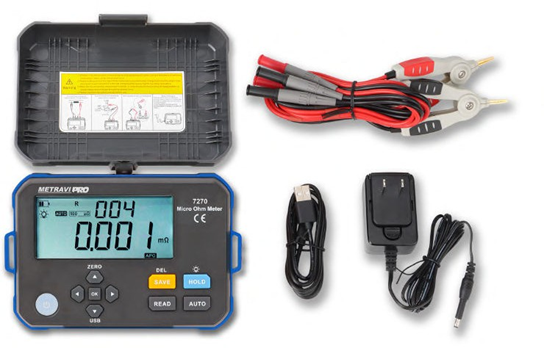

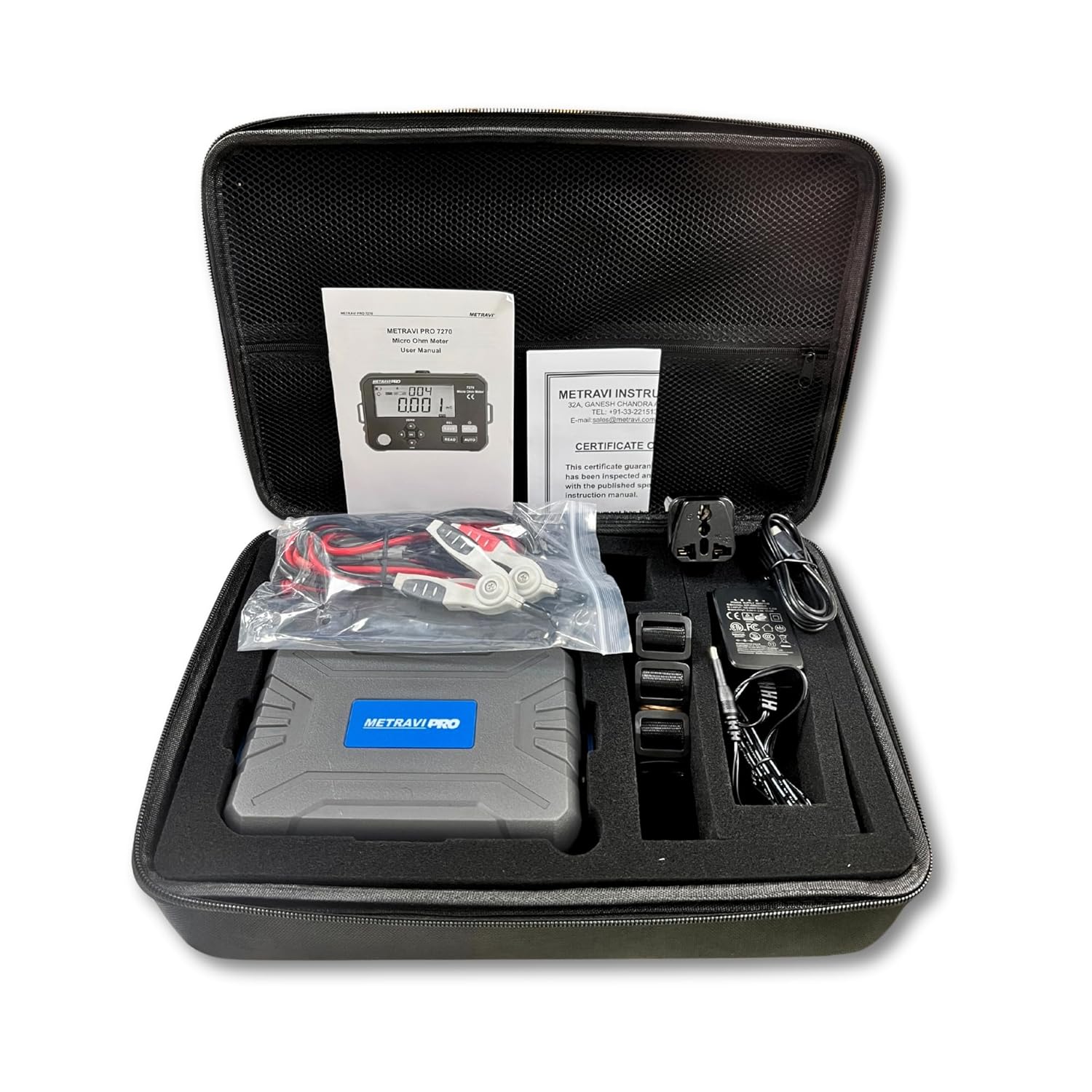

What's in the box?
|
Rating & Reviews
Rating
General
| FUNCTION | SPECIFICATIONS |
| Testing Method | 4-wire method |
| Testing Current | ≤1A |
| Open Circuit Voltage | ≤4.2V |
| Power | Measurement power: 8W |
| Power Supply | DC 3.7V 3200mAhrechargeable lithium battery |
| Display | 102mm × 50mm(Length × Width)Backlit LCD |
| Backlight | Adjustable backlight on grey screen(Suitable for usein dark environments) |
| Sampling Time | About 2 times/s |
| Interface | USB C-type |
| Data Logging | 499groups of data(“SAVE” appears to indicate data storage. “FULL”is displayed to indicate full storage.) |
| Over Range Indicator | “OL” is displayed |
| Battery Power Indication | Displaying battery powerin real time (If the remaining batterypower is less than 25% of fully-charged battery power, pleasecharge the battery in time) |
| Auto Power-off | Powers off automatically within 15 mins.of inactivity “APO” symbol is displayed as an indication |
Certifications & Standards | CE Certified IEC61010-1, Pollution Degree 2, indooruse JJG724-1991 “Verification Regulation of DC Digital Ohmmeter” JJG116-1993 ”Verification Regulation of DC Resistors” “DL/T967-2005 Verification Regulation of Loop Resistance Tester and DC Resistance High-Speed Tester” |
| Operating Environment | -10°C ~ 50°C;< 75% RH |
| Storage Environment | -20°C ~ 60°C;< 75% RH |
| Test Lead Length | About 70cm (Red ×1; Black × 1) |

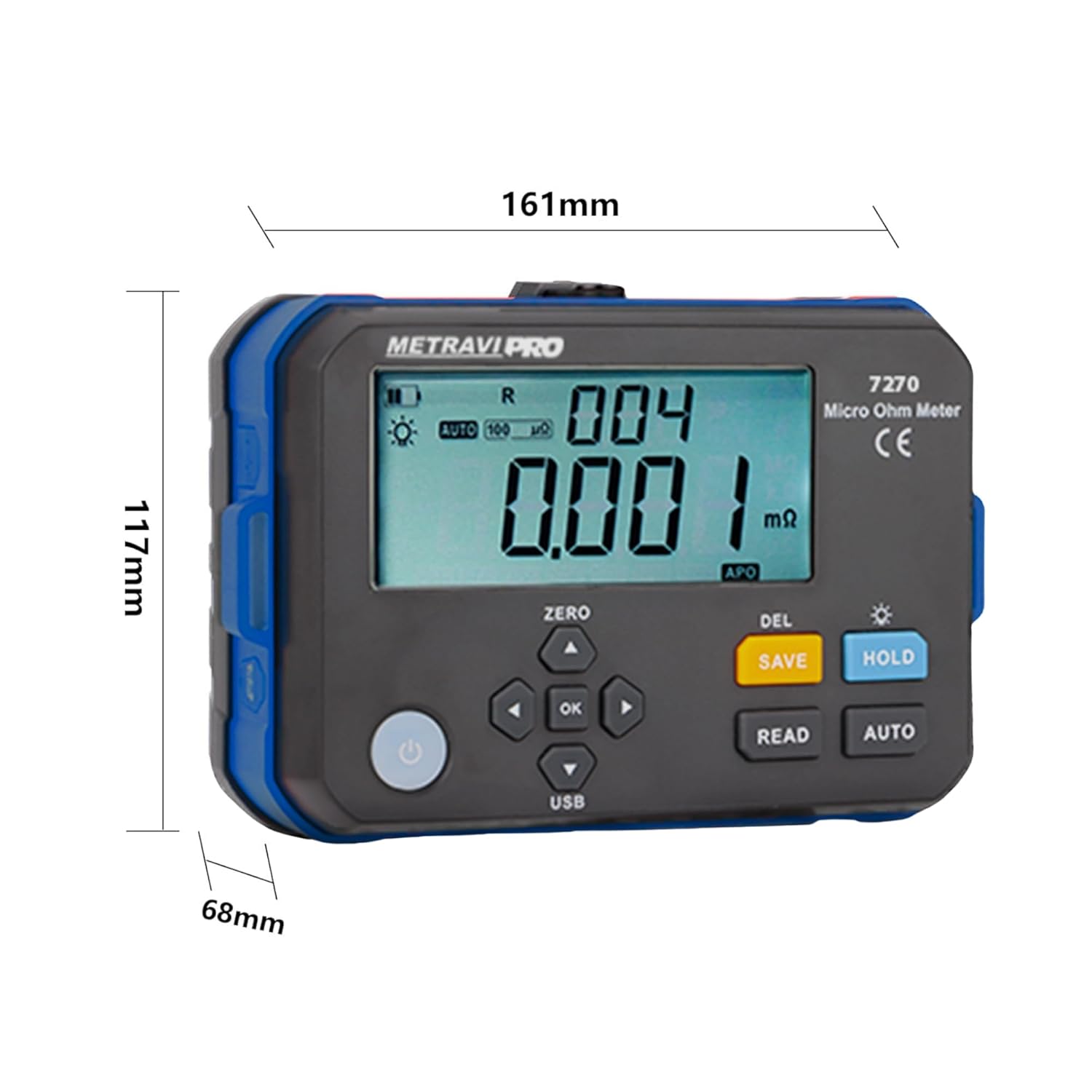

| Dimensions | 161mm × 117mm× 63mm (Length× Width × Height) |
| Weight | Meter: about 590g(including battery) ; Test lead:about 145g |
Range and Accuracy
RANGE | ACCURACY | RESOLUTION | MAX. TESTING CURRENT |
0.001mΩ~10.000mΩ |
±(0.1%FS+20dgt) (18°C ~ 28°C ; <75%RH) | 0.001mΩ | 1A |
10.01mΩ~100.00mΩ | 0.01mΩ | ||
100.1mΩ~1000.0mΩ | 0.1mΩ | 100mA | |
1.001Ω~10.000Ω | 0.001Ω | 10mA | |
10.01Ω~100.00Ω | 0.01Ω | 1mA | |
100.1Ω~1000.0Ω | 0.1Ω | 100µA | |
1.001KΩ~10.000kΩ | 0.001kΩ | 10µA | |
10.01KΩ~100.00kΩ | 0.01kΩ | ||
100.1KΩ~300.0kΩ | 0.1kΩ | 3µA |
