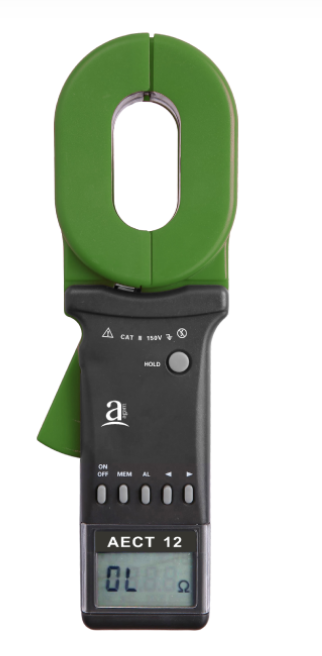

RISHABH AECT 12 Smart Earth Clamp Tester
Click To Zoom
RISHABH AECT 12 Smart Earth Clamp Tester
RISHABH AECT 12 Smart Earth Clamp Tester
AECT 12 Clamp Earth Resistance Tester is widely used in the grounding resistance measurement of Utilities, Telecommunications, industrial and electrical equipment, etc. It is safe, fast, and simple to use.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 34,899
(GST inclusive price) i-
Base Value: ₹ 29575.4
-
GST: (18) % ₹ 5323.6
-
Total Value ₹ 34899
₹59,720.00
( - 42% OFF )
Description
Key Features
- No need for auxiliary electrodes for measurement of earth resistance in grounding system with loop
- Wide earth resistance measurement up to 1500Ω
- Internal data logging up to 99 readings for analysis
- Wide jaw size of 65 x 32 mm to fit in different conductors/earthing strips
- Alarm function with sound and light indication for pass/fail test
What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Data Storage | 99 readings |
| Audio - light alarm | "beep--beep--beep --" alarm sound. Press “AL” key to turn on and off |
| Alarm Crical Value Seng Range | Resistance:1-199Ω |
| Power | 6VDC (4 PCS alkaline dry baery) |
| Working Temp | -20℃-55℃；10％RH-90％RH |
| LCD Screen | 4-bit LCD digital display, 47mm(L) × 28.5mm(W) |
| Jaw Size(mm) | Long-jaw 65mmX32mm |
| Open Size of Jaw(mm) | Long clamp 32mm |
| Weight | Long jaw 1100 g (including baery) |
| Meter Size | Long jaw:285mm(L)x85mm(W)x56 mm(H) |
| Protecon Level | Double insulaon, CAT III 150V, CE |
| Structure | Clamp CT |
| Shit | Automac shi |
| External Magnec Electric field | ＜40A/m；＜1V/m |
| Single Measurement Time | 0.5 s |
| Resistance Measurement Frequency | ＞1KHz |
| Measured Current Frequency | 50/60hz automacally |
| Standard Accessories | Standard loop, Instrucon manual, Aluminium case |
| Mode | Range | Resolution | Accuracy |
| Resistance | 0.010Ω-0.099Ω | 0.001Ω | ±（1%＋0.1Ω） |
| 0.10Ω-0.99Ω | 0.01Ω | ±（1%＋0.1Ω） | |
| 1.0Ω-49.9Ω | 0.1Ω | ±（1%＋0.5Ω） | |
| 50.0Ω-99.5Ω | 0.5Ω | ±（1.5%＋0.5Ω） | |
| 100Ω-199Ω | 1Ω | ±（2%＋1Ω） | |
| 200Ω-395Ω | 5Ω | ±（5%＋5Ω） | |
| 400-590Ω | 10Ω | ±（10%＋10Ω） | |
| 600Ω-880Ω | 20Ω | ±（20%＋20Ω） | |
| 900Ω-1500Ω | 30Ω | ±（25%＋30Ω） |
