Metravi CEM DT-5301 LOOP/PSC Tester
Click To Zoom
Metravi CEM DT-5301 LOOP/PSC Tester
Metravi CEM DT-5301 LOOP/PSC Tester
Loop Impedance Tester with PSC, microprocessor controlled, high accuracy. 3 LEDs for checking correct wiring status. 15mA LOOP measurement: LOOP impedance 2000Ω range measurement with low test current (15mA). Direct reading of Prospective Short Circuit Current(PSC), Safe voltage measurement function, Large custom digital display readout. Measure low loop resistance (resolution 0.01Ω). Automatic lock-out & Visual indication of reversed phase and neutral wiring at socket.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 12,272
(GST inclusive price) i-
Base Value: ₹ 10400
-
GST: (18) % ₹ 1872
-
Total Value ₹ 12272
₹17,750.00
( - 31% OFF )
Description
Key Features
- Custom Microcontroller for high accuracy and reliability
- 15mA LOOP measurement
- Direct reading of Prospective Short Circuit Current (PSC)
- Safe Voltage measurement function
- Large custom digital display readout
- Measure low loop resistance (resolution of 0.01Ω)
- Automatic lock out if test resister overheats
- Visual indication of reversed phase and neutral wiring at socket
- Complies with CE, EN-61010-1

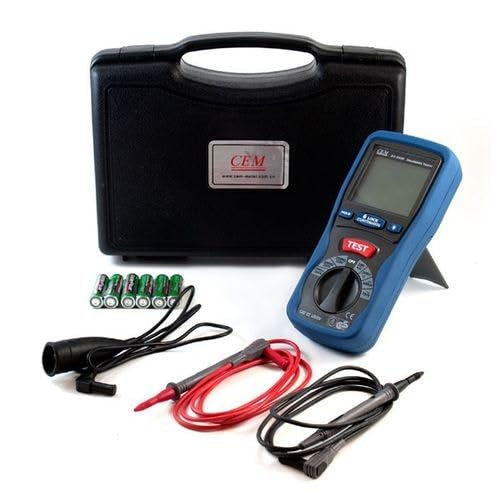

What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Lines test | 3 LED indicates lines state. When reversed, the third LED light |
| Over heat protect | When the temperature of the resister is high, tester will cut and lock. LCD will display “Temperature is High” and flash the flag “ ” |
| Overload protect | When the voltage of P-E is up to 250v, the tester will stop test to protect the tester and LCD will flash “250v”. |
| Low Battery Indication | The flag “ ” is displayed when the battery voltage drop below the operating voltage |
| Test mode | when press the key “TEST”, Tester will display the result for 5’s then display the voltage |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) and Humidity below 80% RH |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) and Humidity below 70% RH |
| Power source | 6x1.5V Size “AA” battery or Equivalent (DC9V) |
| Dimensions | 200(L) x 92(W) x 50(H) mm |
| Weight | Approx 700g include battery |
TECHNICAL
| Loop resistance | |||
| Range | Resolution | Test times | Full scale accuracy |
| 20Ω | 0.01Ω | 25A/20ms | ± 2% of F.S ± 5d |
| 200Ω | 0.1Ω | 2.3A/40ms | ± 2% of F.S ± 5% |
| 2000Ω | 1Ω | 15mA/280ms | ± 2% of F.S ± 5d |
| Prospective short current | |||
| Range | Resolution | Test times | Full scale accuracy |
| 200A | 0.1A | 2.3A/40ms | ± 2% of F.S ± 5d |
| 2KA | 1A | 25A/20ms | ± 2% of F.S ± 5d |
| 20KA | 10A | 25A/20ms | ± 2% of F.S ± 5d |
| AC Voltage (50HZ) | |
| Range | Full scale accuracy |
| 50~250V | ± 2% of F.S ± 5d |
