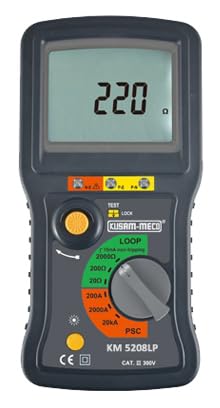

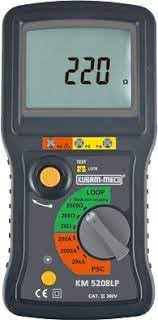

Kusam Meco KM 5208LP LOOP IMPEDANCE TESTER
Click To Zoom
Kusam Meco KM 5208LP LOOP IMPEDANCE TESTER
Kusam Meco KM 5208LP LOOP IMPEDANCE TESTER
As Per the guidelines for implementation of Electrical Installation Standards in buildings, the earth fault loop impedance has to be low enough to allow adequate earth fault current flow to cause an over current protective device in a faulty circuit to operate in a sufficiently short time
KM-5208 LP measures the earth fault loop impedance for safe operation of the circuits.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 27,810
(GST inclusive price) i-
Base Value: ₹ 23567.8
-
GST: (18) % ₹ 4242.2
-
Total Value ₹ 27810
₹45,805.00
( - 23% OFF )
Description
Key Features
- 3 ½ digit LCD (2000-count).
- Backlight function.
- 15mA loop measurement which will not trip ELCBs.
- Convenient and easier for users to measure the loop impedance directly without bypassing the wires.
- Wiring check function.
- Over temperature protection.
- Safety standard : EN 61010-1 CAT III 300V EN 61326-1
- Over voltage protection.
- Built-in voltmeter.
- Built-in earth tester.
- Built-in loop/psc tester.
- No Batteries used.
What's in the box?
|
Rating & Reviews
Rating
TECHNICAL
| Loop Impedance | |||
| Range | Measuring | Range Nominal test current at 0Ω external loop | Accuracy |
| 20Ω | 0.00~19.99 Ω | 23A / 40ms | (2%rdg + 4dgt) |
| 200Ω | 0.0~199.9 Ω | 2.3A / 40ms | |
| 2000Ω | 0~1999 Ω | 15mA / 400ms | |
| Prospective Short-circuit Current | |||
| Range | Measuring | Range Nominal test current at 0Ω external loop | Accuracy |
| 20KA | 0.00~4.00 KA | 23A / 40ms | Consider accuracy of loop impedance |
| 2000A | 0~1999 A | 23A / 40ms | |
| 200A | 0.0~199.9 A | 2.3A / 40ms | |
| Voltage Display | |||
| Measuring Range | Accuracy | Remark | |
| 150~260V | (2%rdg + 4dgt) | at 0 Ω external loop | |
| General | |||
| Temperature | 0~40°C | ||
| System voltage | 230V | +13% | |
| -15% | |||
| System frequency | 50Hz | ||
| None Battery system voltage | 150V~260V | ||
| Over Temperature protection | When overheating, the “ ” symbol will show on the LCD, and the 8025LP stop measuring. | ||
| Wiring check | P-E | LEDs illuminate when the wiring polarity of circuit under test is correct | |
| P-N | |||
| N-E | LED is light when P and N are reversed or the Earth is not connected. | ||
| 15mA Loop measurement | Loop impedance 200Ω range measurement is carried out with low test current (15mA). The Current will not cause tripping out for ELCBs. | ||
