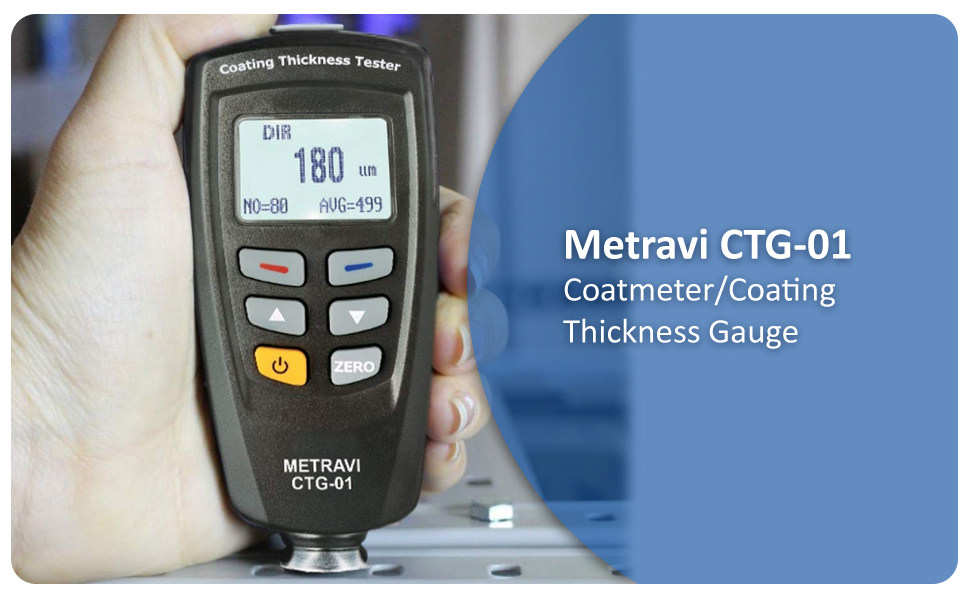

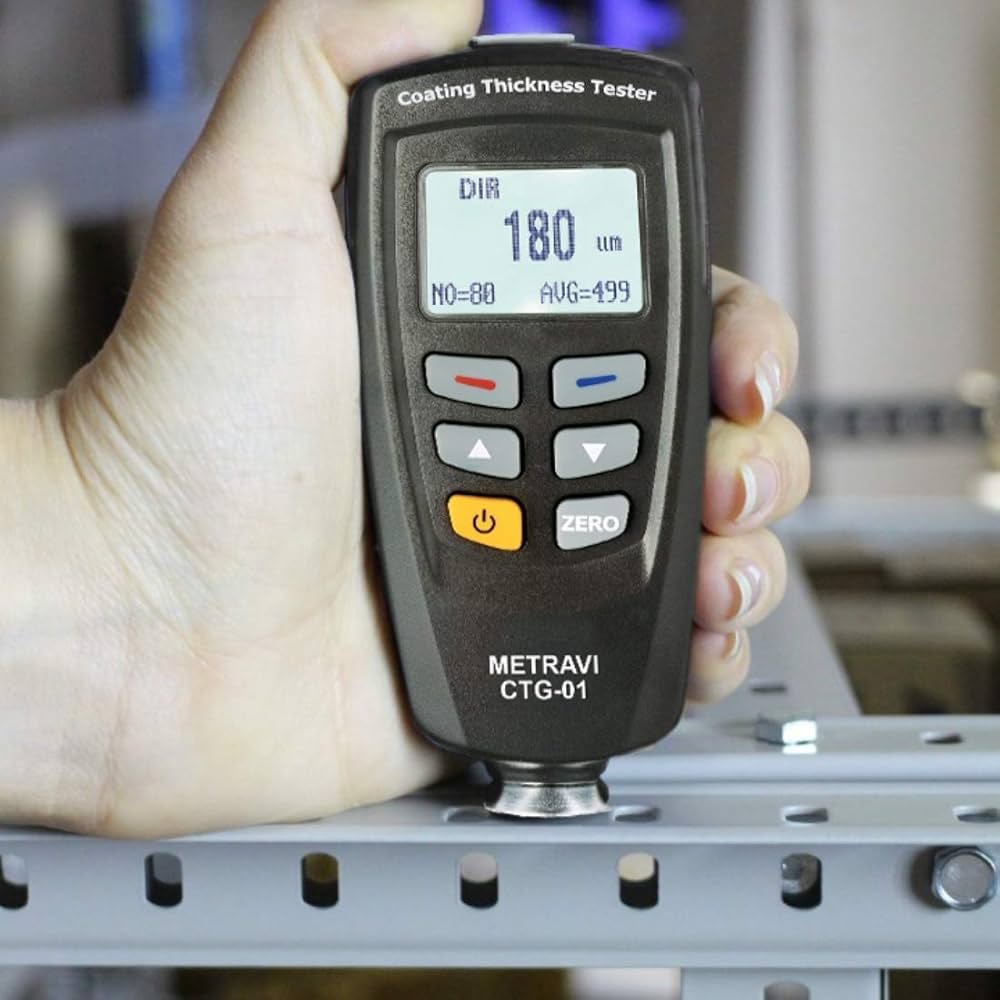

Metravi CTG-01 Coating Thickness Gauge
Click To Zoom
Metravi CTG-01 Coating Thickness Gauge
Metravi CTG-01 Coating Thickness Gauge
The Metravi CTG-01 Coating Thickness Gauge works both on the magnetic induction principle and on the eddy current principle, depending on the type of probe used. You can select the type of probe via MENU system, or it will work automatically.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 11,150
(GST inclusive price) i-
Base Value: ₹ 9449.2
-
GST: (18) % ₹ 1700.8
-
Total Value ₹ 11150
₹15,923.00
( - 30% OFF )
Description
Key Features
- Measures coating thickness: Non-magnetic coatings (e.g. paint, zinc) on steel; Insulating Coatings (e.g. paint, anodizing coatings) on nonferrous metals.
- Operates with in-built MENU easily.
- Two measuring modes: CONTINOUS and SINGLE
- Two working modes: DIRECT and GROUP (4 groups)
- Statistic Display: AVG, MAX, MIN, NO, S.DEV
- One-point calibration and two-point calibration available independently
- for each working mode.
- Zero calibration is easily done
- Memory for 320 readings (80 for each group)
- Delete single readings and all group readings easily
- High and Low alarms for all working modes
- Low battery and error indications
- USB interface for PC with analysis software
- Disable Auto-Power-off function feature via MENU setting

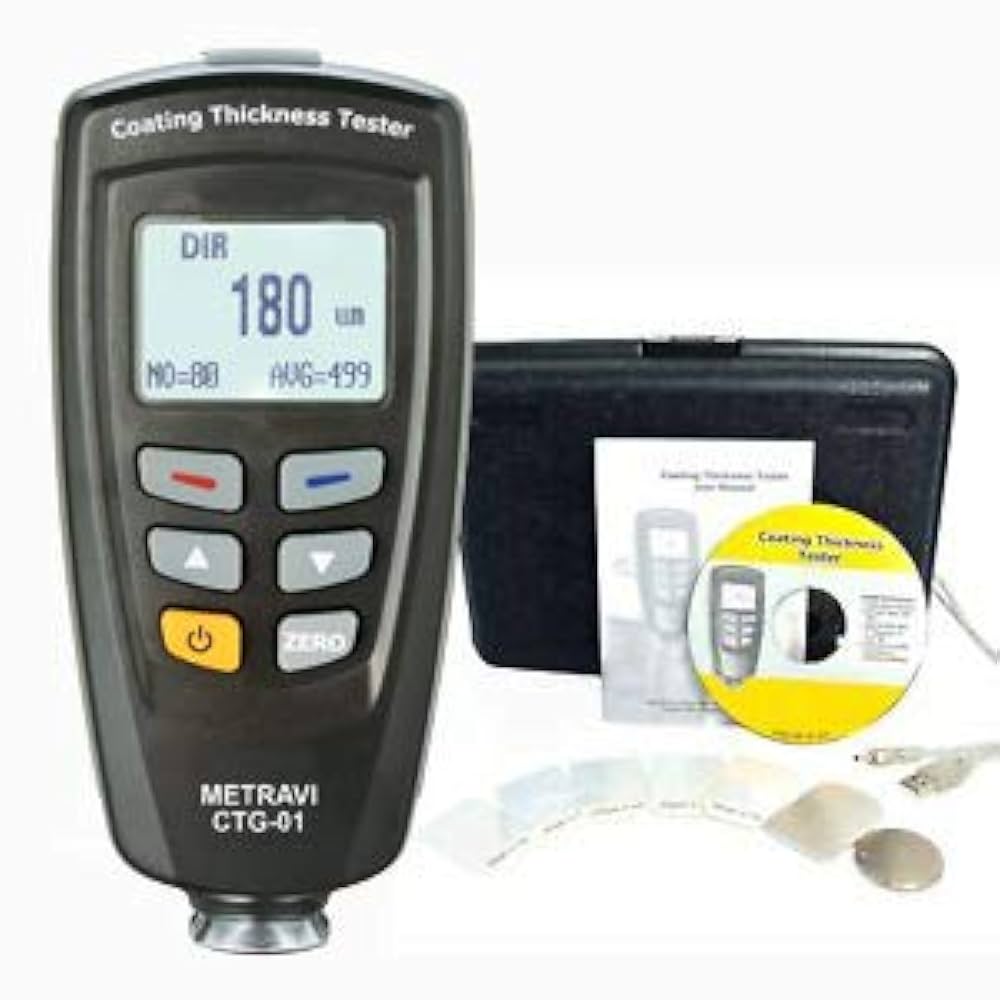

What's in the box?
|
Rating & Reviews
Rating
| General Specification | ||
| Sen | FERROUS | NON-FERROUS |
| Working principle | Magnetic Induction | Eddy Current |
| Measuring range | 0~1250um 0-49.21mils | 0-1250um 0~49.21mils |
| Guaranteed Tolerance (of readings) | 0-850 um (+/-3%+1um) 850um-1250 um (+/-5%) 0-33.46 mils (+/ (- 3)% +0.039mils) 33.46um-49.21mils (+/-5%) | 0-850 um(+/ (- 3)% + 1.5um ) 850um ∼ 1250um (+/-5\%) 0-33.46mils (+/-3%+0.059mils) 33.46um∼49.21mils (+/-5%) |
| Precision | 0~50um (0.1um) 50um-850um (1um) 850um sim 1250um(0.01mm) 0-1.968mils (0.001mils) 1.968mils-33.46mils(0.01mils) 33.46mils-49.21mils(0.1mils | Oum-50um(0.1um) 50um - 850um(1um) 850um sim 1250um(0.01mm) 0-1.968mils (0.001mils) 1.968mils-33.46mils(0.01mils) 33.46mils-49.21mils(0.1mils) |
| Minimum curvature radius | 1.5mm | 3mm |
| Diameter of Minimum area | 7mm | 5mm |
| Basic critical thickness | 0.5mm | 0.3mm |
| Working temperature | 0° C ∼40° C(32° F ∼104°F ) | |
| Working relative humidity | 20% ∼90% | |
| Size (H X D X W) | 110 × 50 × 23 | |
| Weight | 100g | |
