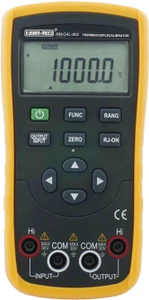

Kusam Meco KM CAL 802 Digital Voltage Tester
Click To Zoom
Kusam Meco KM CAL 802 Digital Voltage Tester
Kusam Meco KM CAL 802 Digital Voltage Tester

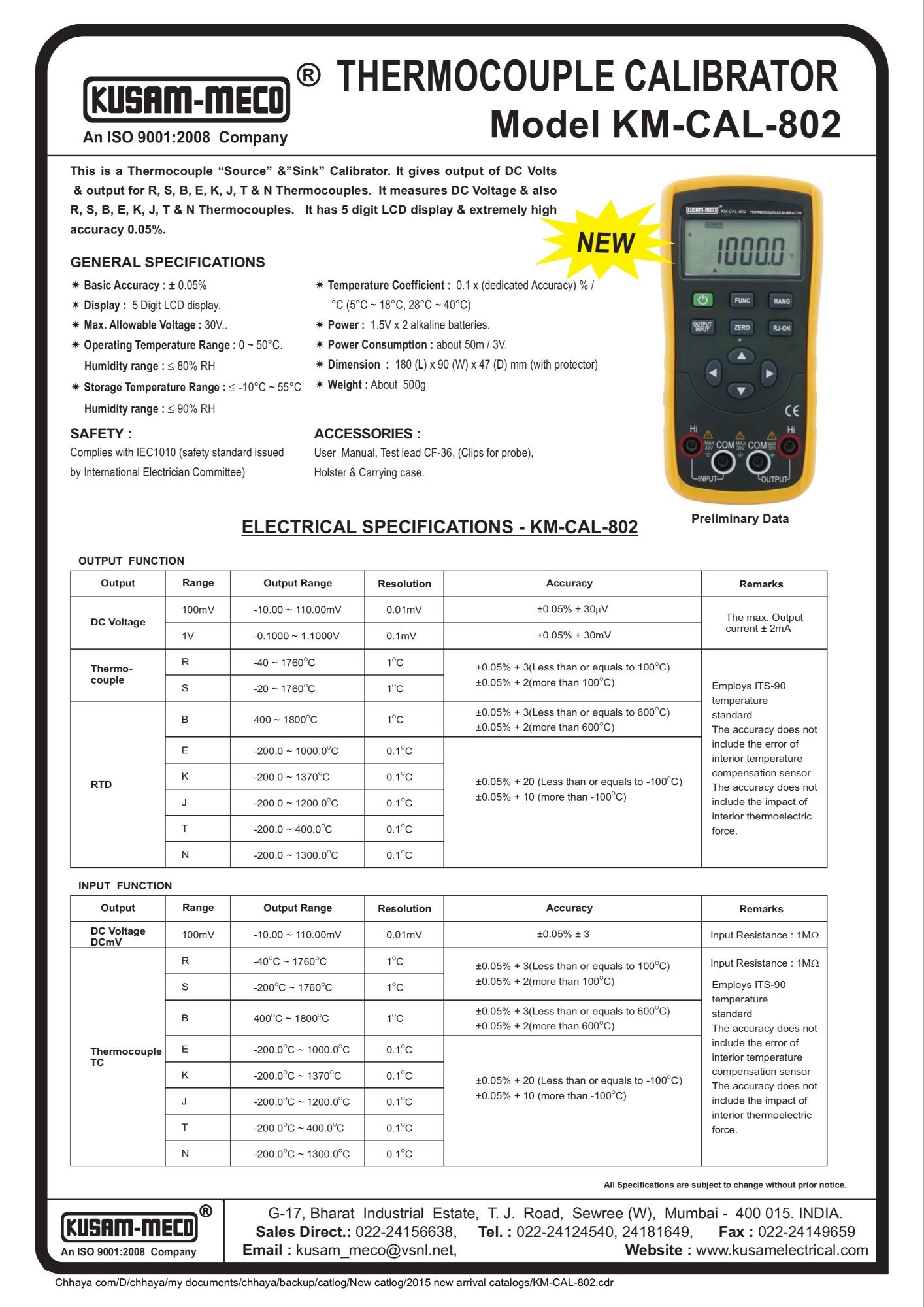

This is a Thermocouple “Source” &”Sink” Calibrator. It gives output of DC Volts & output for R, S, B, E, K, J, T & N Thermocouples. It measures DC Voltage & also R, S, B, E, K, J, T & N Thermocouples. It has 5 digit LCD display & extremely high accuracy 0.05%.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 23,199.00
(GST inclusive price) i₹30,000.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
• Basic Accuracy : ± 0.05%
• Display : 5 Digit LCD display.
• Max. Allowable Voltage : 30V.
• Operating Temperature Range : 0 ~ 50°C.
• Humidity range : = 80% RH
• Storage Temperature Range : ≤ -10°C ~ 55°C
• Humidity range : ≤ 90% RH
• Temperature Coefficient : 0.1 x (dedicated Accuracy) %
/°C (5°C ~ 18°C, 28°C ~ 40°C)
• Power Consumption : about 50m / 3V.
• Dimension : 180 (L) x 90 (W) x 47 (D) mm (with protector)
• Weight : About 500g.
| Output | Range | Output Range | Resolution | Accuracy | Remarks |
| DC Voltage | 100mV | -10.00 ~ 110.00mV | 0.01mV | ±0.05% ± 30μV | The max. Output current ± 2mA |
| 1V | -0.1000 ~ 1.1000V | 0.1mV | ±0.05% ± 30mV | ||
| Thermocouple | R | -40 ~ 1760 C | 1 C | ±0.05% + 3(Less than or equals to 100 C) O ±0.05% + 2(more than 100 C) | Employs ITS-90 temperature standard The accuracy does not include the error of interior temperature compensation sensor The accuracy does not include the impact of interior thermoelectric force. |
| S | -20 ~ 1760 C | 1 C | |||
| RTD | B | 400 ~ 1800 C | 1 C | ±0.05% + 3(Less than or equals to 600 C) O ±0.05% + 2(more than 600 C) | |
| E | -200.0 ~ 1000.0 C | 0.1 C | ±0.05% + 20 (Less than or equals to -100 C) O ±0.05% + 10 (more than -100 C) | ||
| K | -200.0 ~ 1370 C | 0.1 C | |||
| J | -200.0 ~ 1200.0 C | 0.1 C | |||
| T | -200.0 ~ 400.0 C | 0.1 C | |||
| N | 200.0 ~ 1300.0 C | 0.1 C |
| Output | Range | Output Range | Resolution | Accuracy | Remarks |
| DC Voltage | 100mV | -10.00 ~ 110.00mV | 0.01mV | ±0.05% ± 3 | Input Resistance : 1MΩ |
Thermocouple RTD | R | -40 ~ 1760 C | 1 C | ±0.05% + 3(Less than or equals to 100 C) O ±0.05% + 2(more than 100 C) | Input Resistance : 1MΩ Employs ITS-90 temperature standard The accuracy does not include the error of interior temperature compensation sensor The accuracy does not include the impact of interior thermoelectric force |
| S | -200 ~ 1760 C | 1 C | |||
| B | 400 ~ 1800 C | 1 C | ±0.05% + 3(Less than or equals to 600 C) O ±0.05% + 2(more than 600 C) | ||
| E | -200.0 ~ 1000.0 C | 0.1 C | ±0.05% + 20 (Less than or equals to -100 C) ±0.05% + 10 (more than -100 C) | ||
| K | 200.0 ~ 1370 C | 0.1 C | |||
| J | -200.0 ~ 1200.0 C | 0.1 C | |||
| T | 200.0 ~ 400.0 C | 0.1 C | |||
| N | -200.0 ~ 1300.0 C | 0.1 C |
