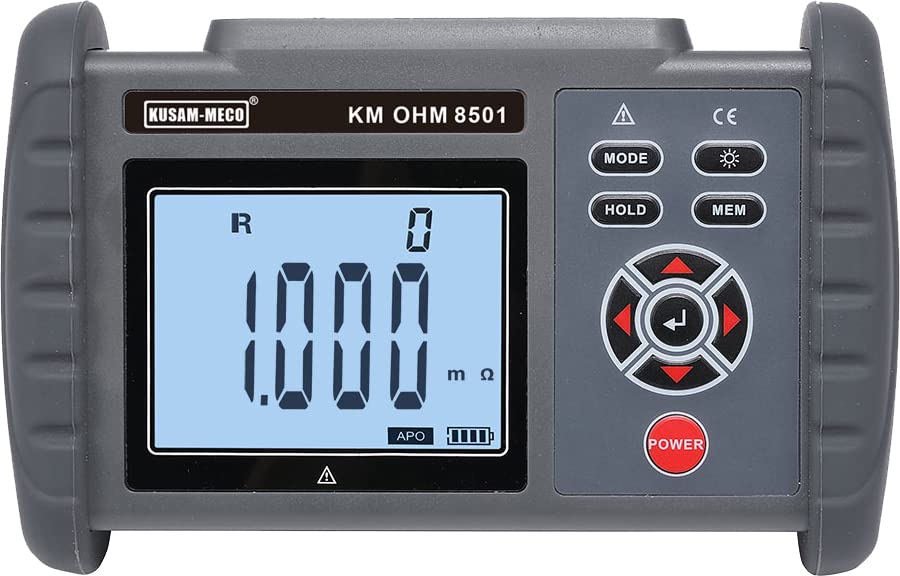

Kusam Meco KM OHM 8501 DIGITAL DC LOW RESISTANCE METER
Click To Zoom
Kusam Meco KM OHM 8501 DIGITAL DC LOW RESISTANCE METER
Kusam Meco KM OHM 8501 DIGITAL DC LOW RESISTANCE METER
The KM OHM 8501 is a digital DC low resistance meter (micro-ohmmeter) for safe, precise, four-wire testing. It measures resistance in cables, switches, coils, motor windings, and grounding systems (0.001mΩ-300.0KΩ). Featuring a large LCD, overload protection, and 500-data storage, it's vital for telecommunications, power, and industrial applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 25,899.00
(GST inclusive price) i₹33,500.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Function | Mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and metal riveting resistance, the connection resistance test between metal components, the low-value resistance test, and the ground grid and ground poles. Resistance test of connecting conductor, contact resistance test, etc |
| Detection method | Four-wire method test |
| Test current | ≥1A |
| Open circuit voltage | ≤4.2V |
| Overload protection | Yes |
| Power | Measuring power≤8W |
| Power supply | DC 3.7V 2000mAh |
| Back light | Controllable gray and white screen backlight, suitable for dim places |
| Display mode | |
| LCD size | 72 mm×55mm |
| Instrument size | 187 mm×119 mm×50mm |
| Test line length | About 60cm, red, black 1pcs |
| Measure time | About 2 times/sec |
| USB interface | With micro USB interface |
| Communication line | micro USB 1pcs |
| Data storage | 500 groups, "MEM" storage indication, display "FULL" symbol to indicate storage is full |
| Data review | Data review function: "MR" symbol display |
| Overflow display | Over-range overflow function: "OL" symbol display |
| Battery voltage | Real-time display of battery power, reminding timely charging when battery voltage is low |
| Automatic shut-down | “APO” indicates, automatic shutsdown after 15 minutes |
| Power consumption | Standby: about 100mA (backlight off) |
| Turn on backlight: about 105mA | |
| Measure : 2A Max (backlight off) | |
| Weight | |
| Working temperature and humidity | -10℃～50℃; below 80%rh |
| Storage temperature and humidity | -20℃～60℃; below 70%rh |
| Overload protectiony | AC 220V/0.0001 second between C1-C2 P1-P2 ports, after overload protection, you need to restart the meter to test normally |
| Insulation resistance | More than 10MΩ (Between circuit and case 500V) |
| Pressure resistance | AC 3700V/rms (between circuit and case) |
| Electromagnetic properties | IEC61010-4-3, Wireless frequency electromagnetic field≤1V/m |
| Suitable for Safety Regulations | IEC61010-1, CAT Ⅲ 600V, pollution level 2, JJG724-1991 "Determination of Direct Current Digital Ohmmeters", JJG166-1993 "Dialect Resistor Verification Regulations", "DL/T967-2005 Loop Resistance Tester and DC Resistance Fast Tester Verification Proce |
