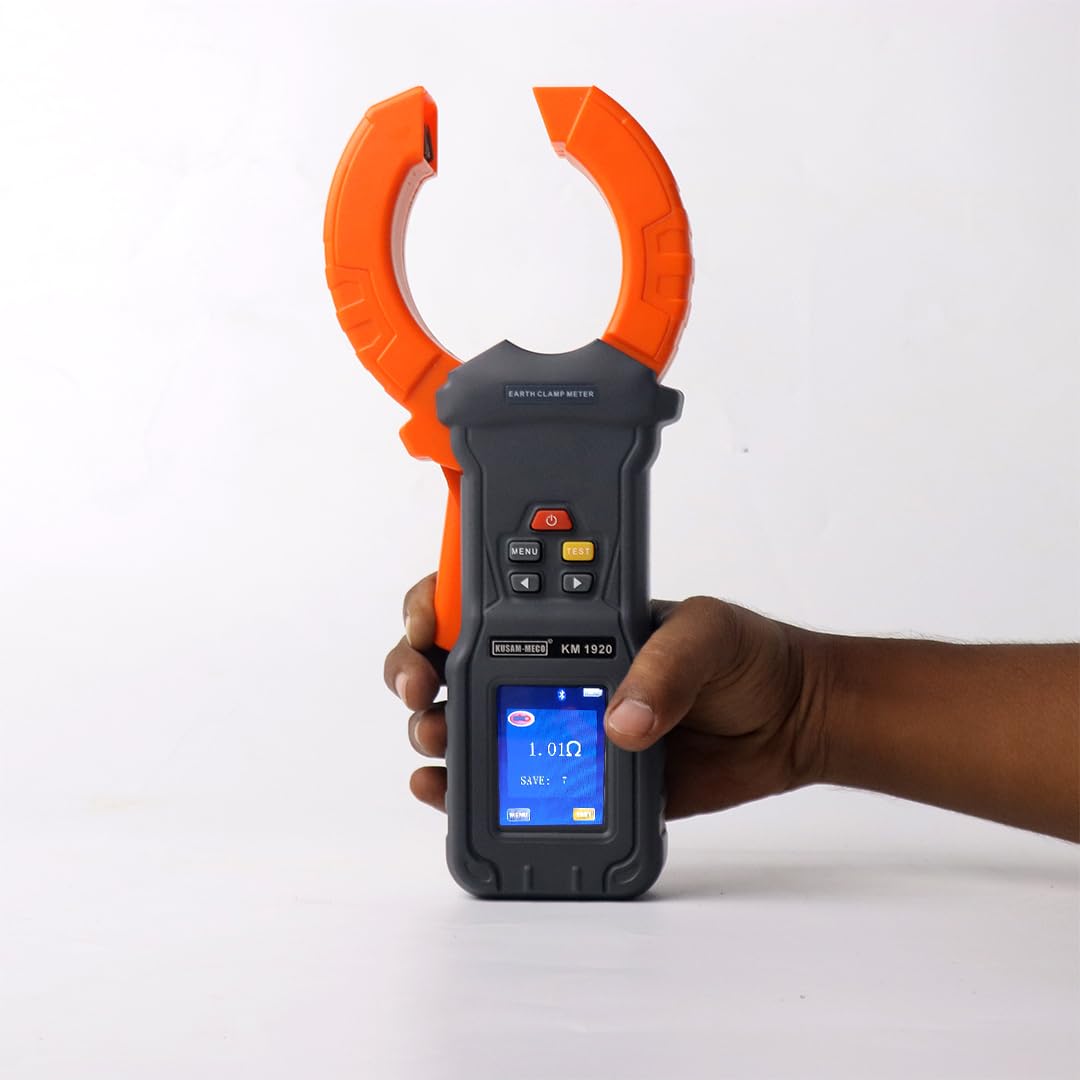

Kusam Meco KM 1920 Ground Pile Type Clamp Ground Resistance Tester
Click To Zoom

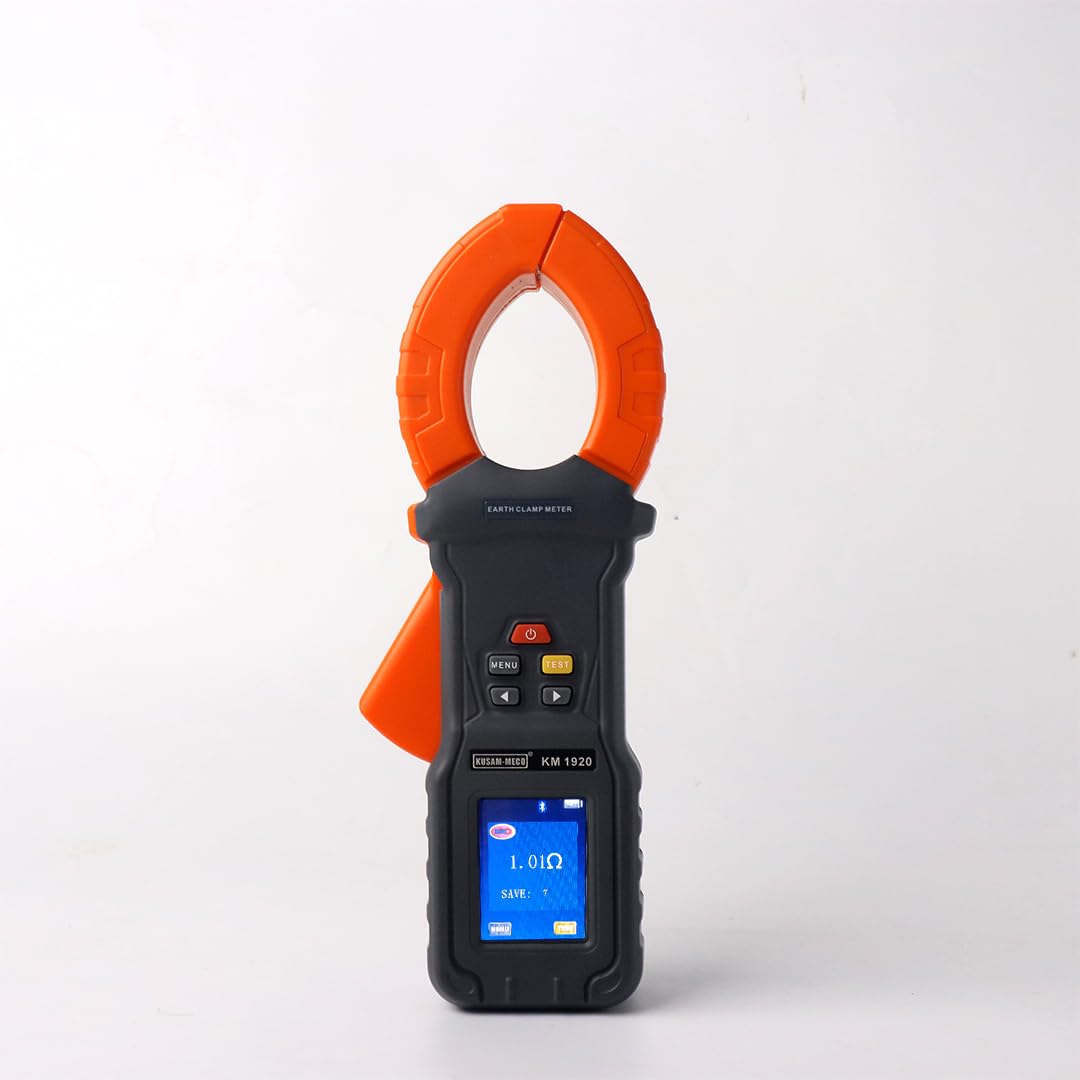

Kusam Meco KM 1920 Ground Pile Type Clamp Ground Resistance Tester
Kusam Meco KM 1920 Ground Pile Type Clamp Ground Resistance Tester

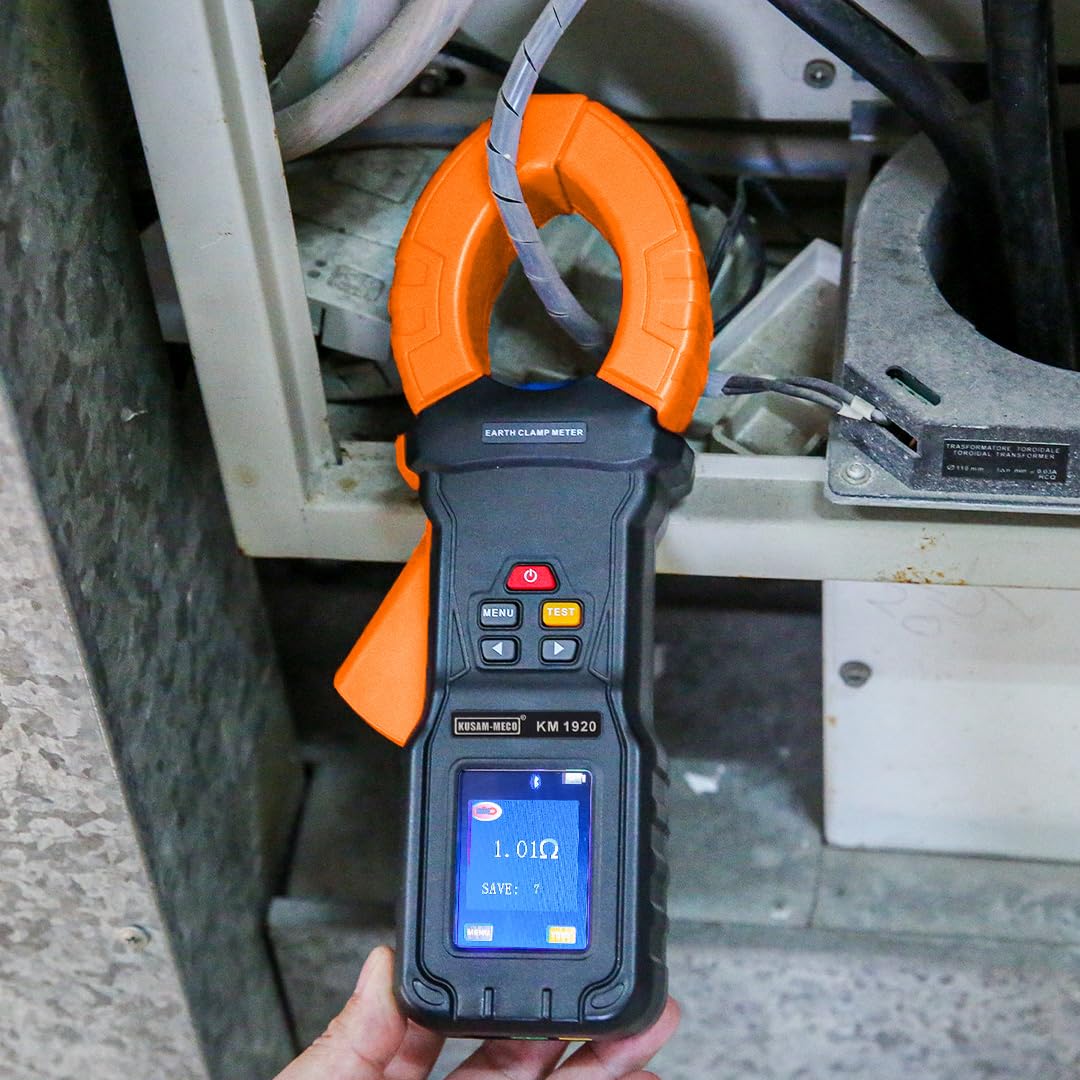

The Ground-Pile Clamp Ground Resistance Tester (Loop Resistance Tester) is a high-performance instrument designed to measure ground resistance accurately. It features a 2.4-inch color screen, supports clamp and wire-based resistance testing, AC voltage/current measurement, and includes data storage, alarm, and auto-shutdown. Built for durability with shock, dust, and moisture resistance, it’s ideal for telecom, power, oil, and industrial sectors. Controlled by a microprocessor, it ensures precise readings with strong anti-interference capabilities and convenient data upload.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 70,800
(GST inclusive price) i-
Base Value: ₹ 60000
-
GST: (18) % ₹ 10800
-
Total Value ₹ 70800
₹1,16,300.00
( - 23% OFF )
Description

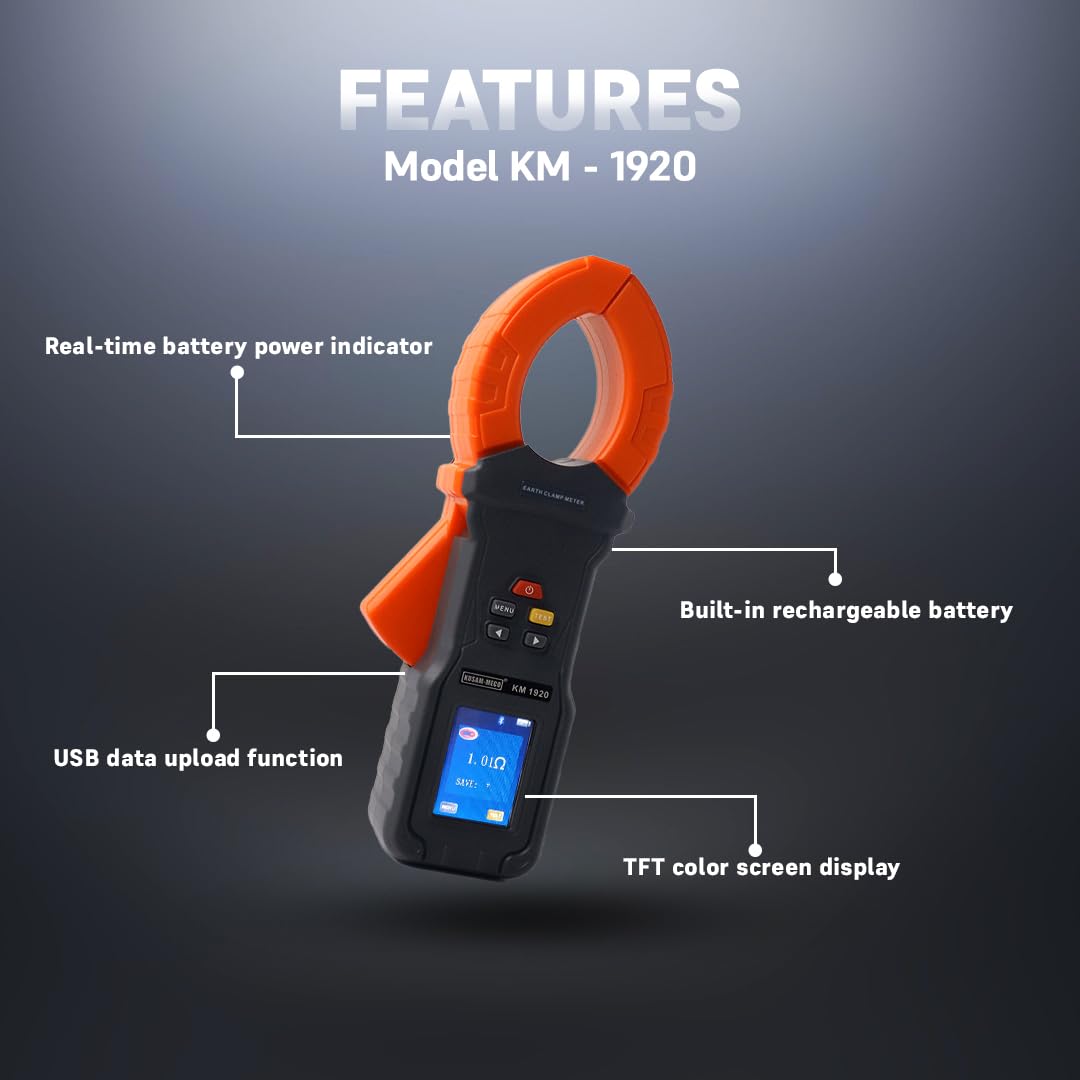

Key Features
- Clamp resistance range : 0.00Ω-1500Ω
- Leakage current range : 0.000mA-40A
- Current resolution : 1uA
- Three-four-wire method range: 0.00Ω-3000Ω
- Ground voltage range: 600V
- Built-in rechargeable battery
- TFT color screen display
- USB data upload function
- Data storage
- Real-time battery power indicator
- Back light
- Alarm function
- Low battery voltage indication
- Overload protection

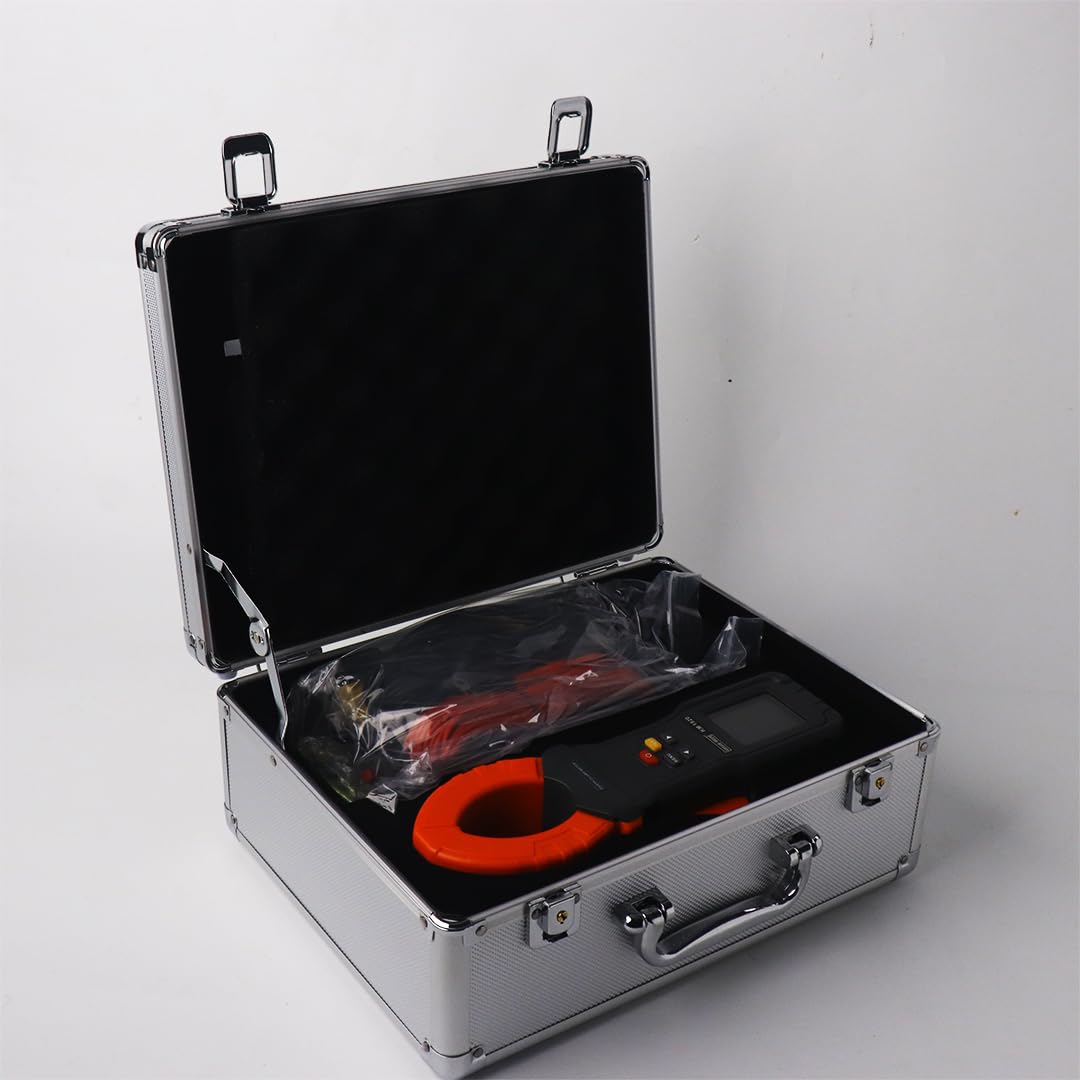

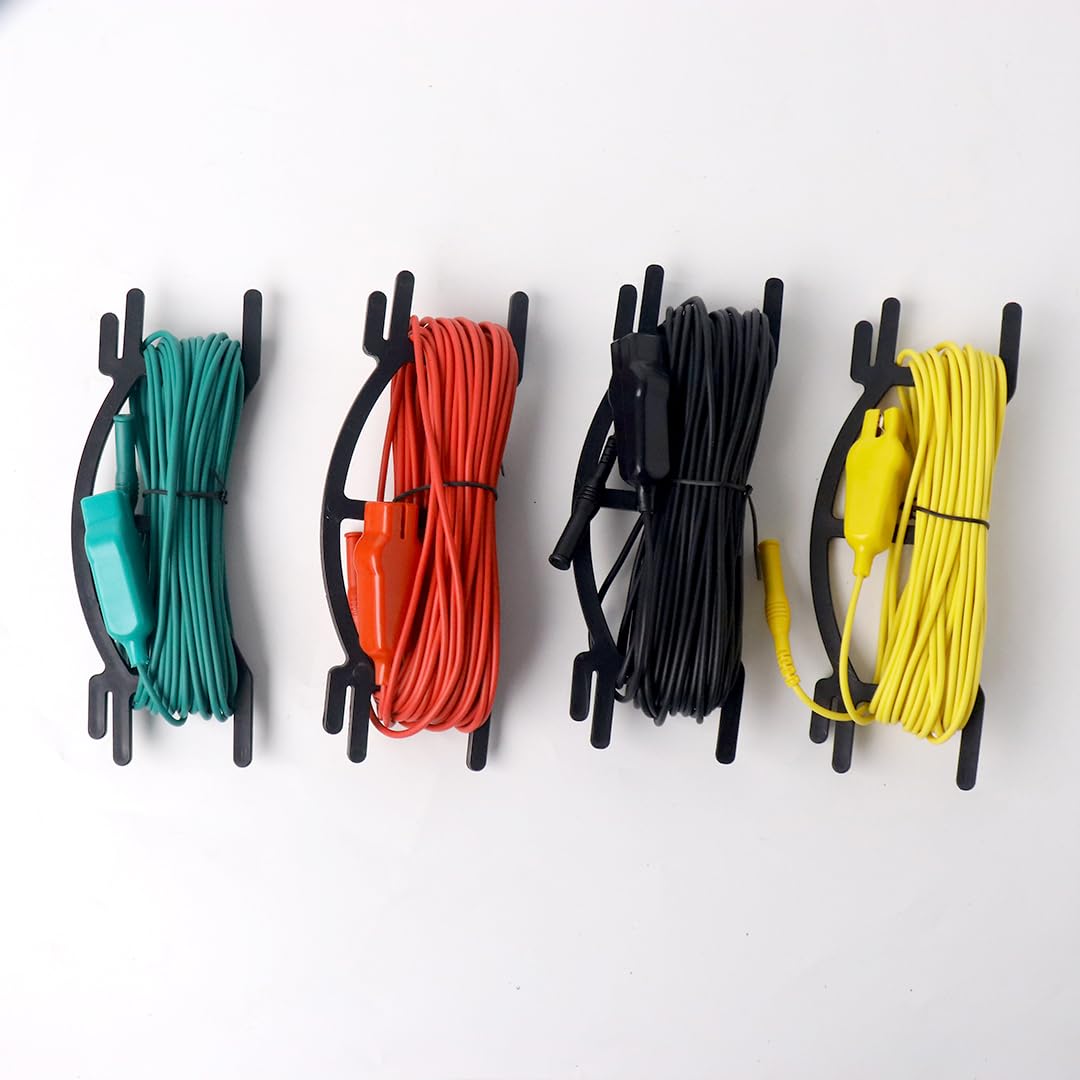

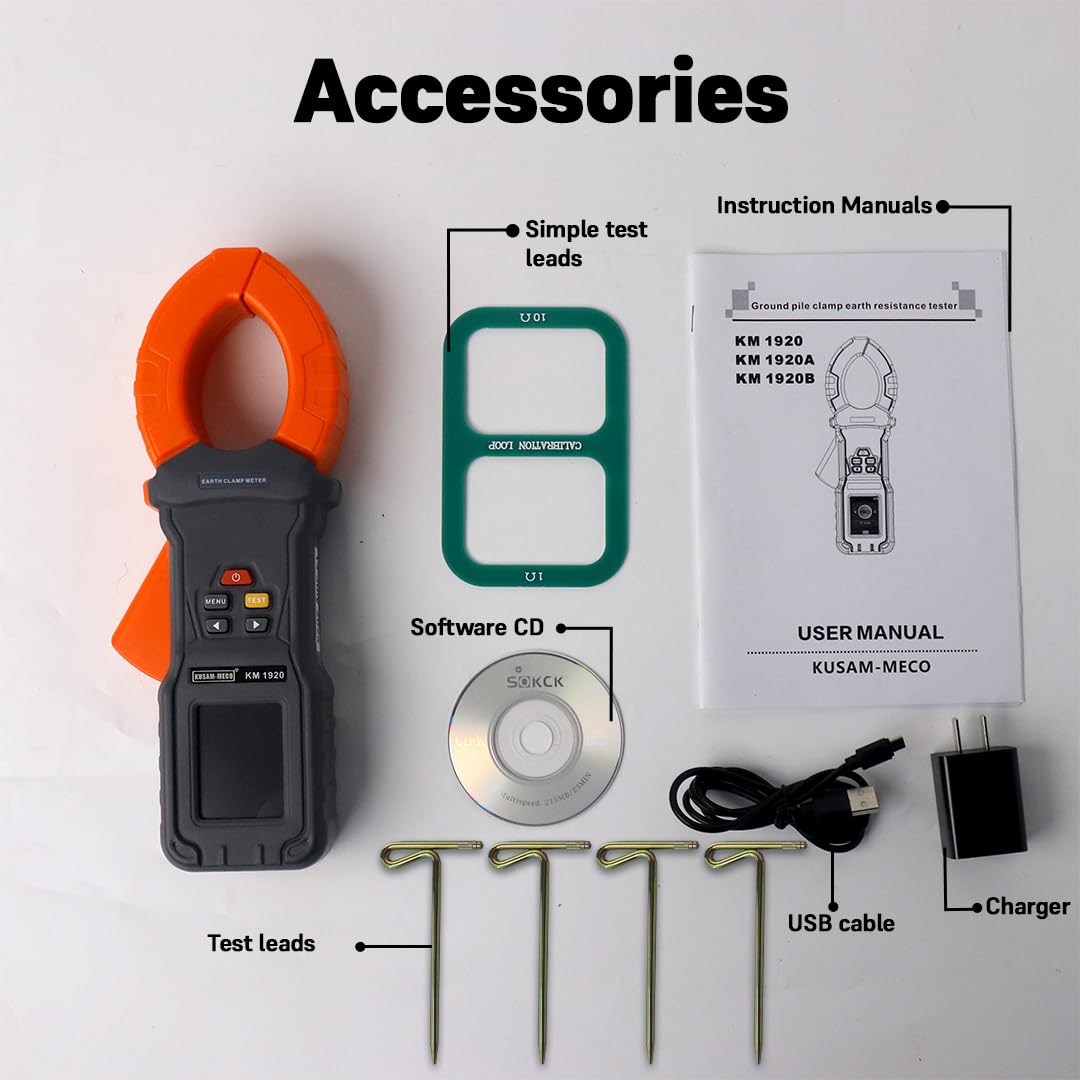

What's in the box?
|
Rating & Reviews
Rating

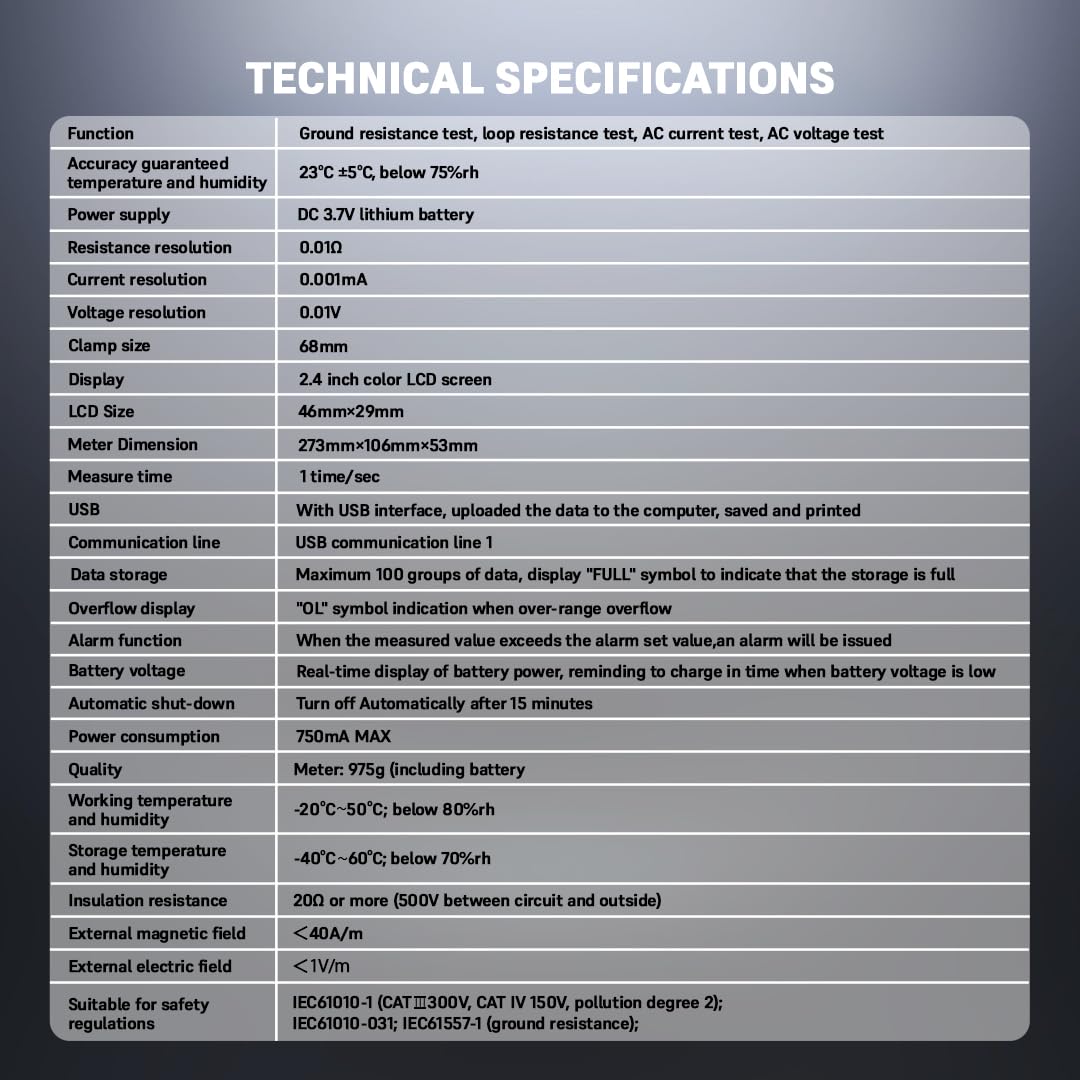

TECHNICAL
| Function | Ground resistance test, loop resistance test, AC current test, AC voltage test |
| Accuracy guaranteed temperature and humidity | 23℃±5℃, below 75%rh |
| Power supply | DC 3.7V lithium battery |
| Resistance resolution | 0.01Ω |
| Current resolution | 0.001mA |
| Voltage resolution | 0.01V |
| Clamp size | 68mm |
| Display | 2.4 inch color LCD screen |
| LCD Size | 46mm×29mm |
| Meter Dimension | 273mm×106mm×53mm |
| Measure time | 1 time/sec |
| USB | With USB interface, uploaded the data to the computer, saved and printed |
| Communication line | USB communication line 1 |
| Data storage | Maximum 100 groups of data, display "FULL" symbol to indicate that the storage is full |
| Overflow display | "OL" symbol indication when over-range overflow |
| Alarm function | When the measured value exceeds the alarm set value,an alarm will be issued |
| Battery voltage | Real-time display of battery power, reminding to charge in time when battery voltage is low |
| Automatic shut-down | Turn off Automatically after 15 minutes |
| Power consumption | 750mA MAX |
| Quality Meter | 975g (including battery) |
| Working temperature and humidity | -20℃～50℃; below 80%rh |
| Storage temperature and humidity | -40℃～60℃; below 70%rh |
| Insulation resistance | 20Ω or more (500V between circuit and outside) |
| Pressure resistance | AC 3700V/rms (between circuit and outside) |
| External magnetic field | ＜40A/m |
| External electric field | ＜1V/m |
| Suitable for safety regulations | IEC61010-1 (CAT â…¢ 300V, CAT IV 150V, pollution degree 2); IEC61010-031; IEC61557-1 (ground resistance) |
