Kusam Meco KM 1620 Clamp-On Type Battery Powered Earth Resistance Tester
Click To Zoom
Kusam Meco KM 1620 Clamp-On Type Battery Powered Earth Resistance Tester
Kusam Meco KM 1620 Clamp-On Type Battery Powered Earth Resistance Tester
Earth Resistance Tester is widely used for earth resistance testing of the equipments in the field of power, telecommunication,meteorology, oilfield, construction and the industrial and electrical equipment. It features easy operation, high-accuracy and good adaptation of testing environment.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 24,850
(GST inclusive price) i-
Base Value: ₹ 21059.3
-
GST: (18) % ₹ 3790.7
-
Total Value ₹ 24850
₹32,210.00
( - 23% OFF )
Description
Key Features
- Beyond the limitation of the traditional method of earth resistance testing, no assistance poles are required, with easy and convenient operation.
- Automatic range selection & self calibration.
- No error of electrodes arranging, which results in good consistency under the condition of earth resistance testing.
- Equipped with standard testing coil (5.1Ω)which can be used to do the self-testing with accuracy.
- With a compact & sturdy structure, it can operate under the condition of harsh-environment.

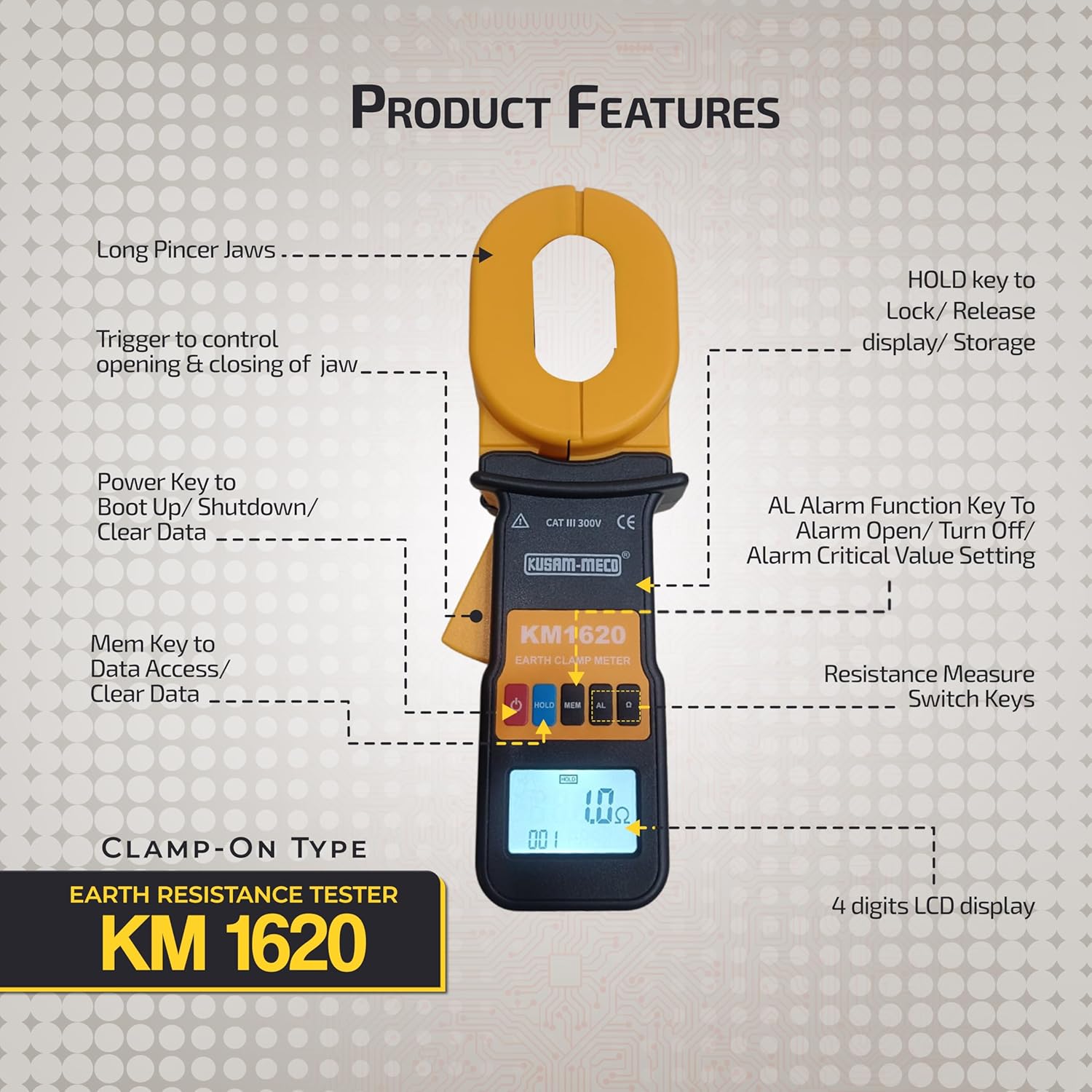

- Mode key switch key of function mode (Resistance measurement / Current measurement / data access).
- High-Low limits set table for Resistance & Current.
- Hold Key for lock / release display.
- Set key function key combinations.
What's in the box?
|
Rating & Reviews
Rating
GENERAL

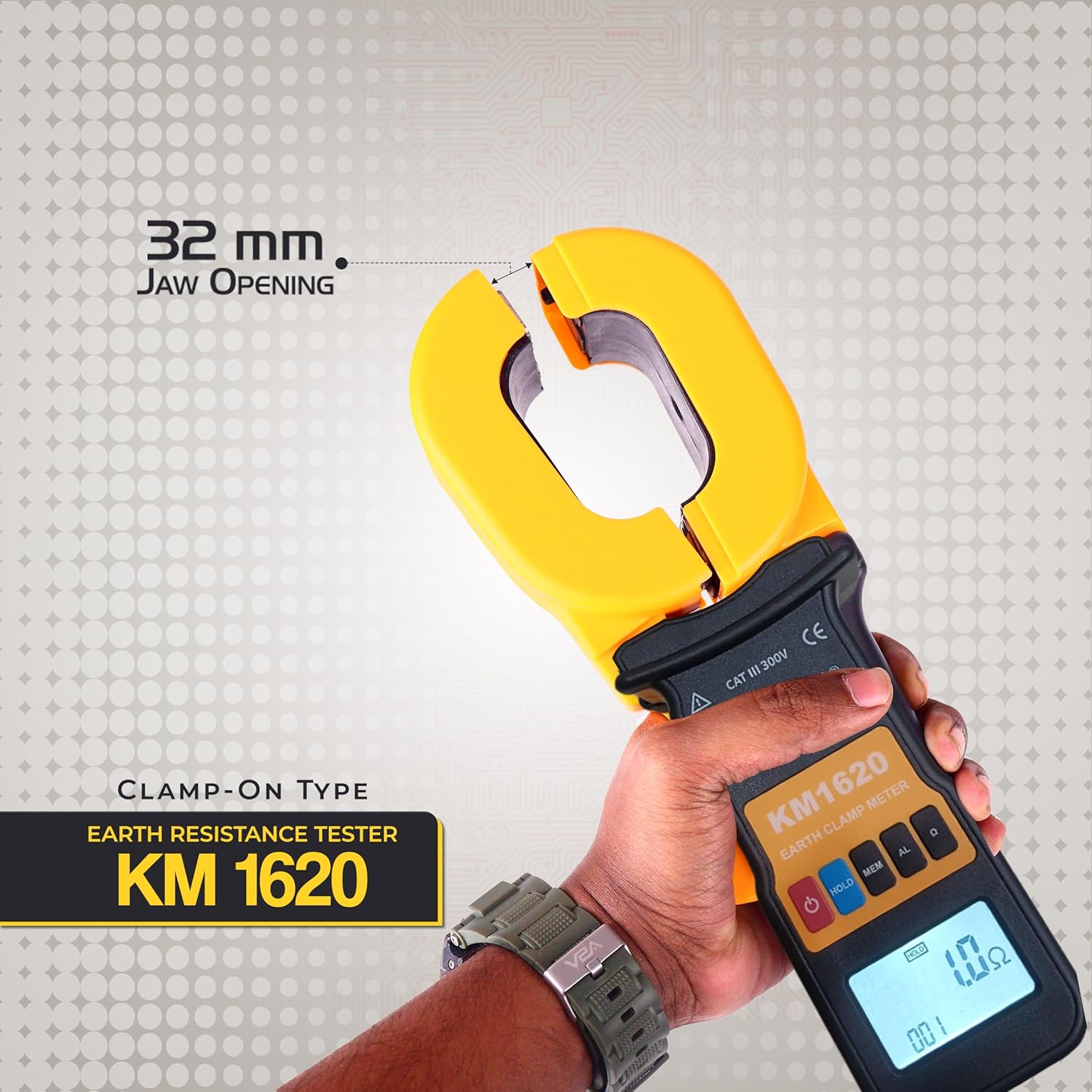

● Jaw Opening Size : 32 mm
● Display screen : 4 digit LCD Backlight,
47 x 28.5 mm in length
● Working Temperature : -20°C ~ 55°C10; RH-90%RH
● Operating Humidity: 10% ~ 90%RH
● Protection grade : double insulation
● External Magnetic Field : < 40A / m
● External Electric Field : < 1V/m
● Measurement Resistance Frequency : > 1 KHz
● Maximum Resistance Measurement Resolution : 0.001Ω
● Resistance Measurement Range : 0.01 - 1500 Ω
● Data Storage : 500 groups
● Audible & Visual alarm : "beep--beep--beep --" alarm sound.Press “AL” key to turn on
●Max. Bus Bar Dimension : 32 mm × 65 mm.
● Structure : Clamp CT
● Single Measurement Time : 0.5 second
● Measured Current Frequency : 50/60Hz automatically.
● Setting Range of Resistance Alarm Critical Value : 1 ~ 199Ω
● Setting Range of Current Alarm Critical Value : 1 ~ 499mA
● Power supply : 4 X AAA alkaline dry battery (6VDC)
● Weight : Approx. 1160gm
● Dimension : Approx. 285(L) x 85(W) x 56(D) mm
TECHNICAL
| RESISTANCE | ||
| Measurement Range (Ω) | Resolution (Ω) | Accuracy (Ω) |
| 0.010~ 0.099 | 0.001 | ±(1% + 0.01Ω) |
| 0.10~ 0.99 | 0.01 | ±(1% + 0.01Ω) |
| 1.0 ~ 49.9 | 0.1 | ±(1% + 0.1Ω) |
| 50.0 ~ 99.5 | 0.5 | ±(1.5% + 0.5Ω) |
| 100 ~ 199 | 1 | ±(2% + 1Ω) |
| 200 ~ 395 | 5 | ±(5% + 5Ω) |
| 400 ~ 590 | 10 | ±(10% + 10Ω) |
| 600 ~ 880 | 20 | ±(20% + 20Ω) |
| 900 ~ 1500 | 30 | ±(25% + 30Ω) |
