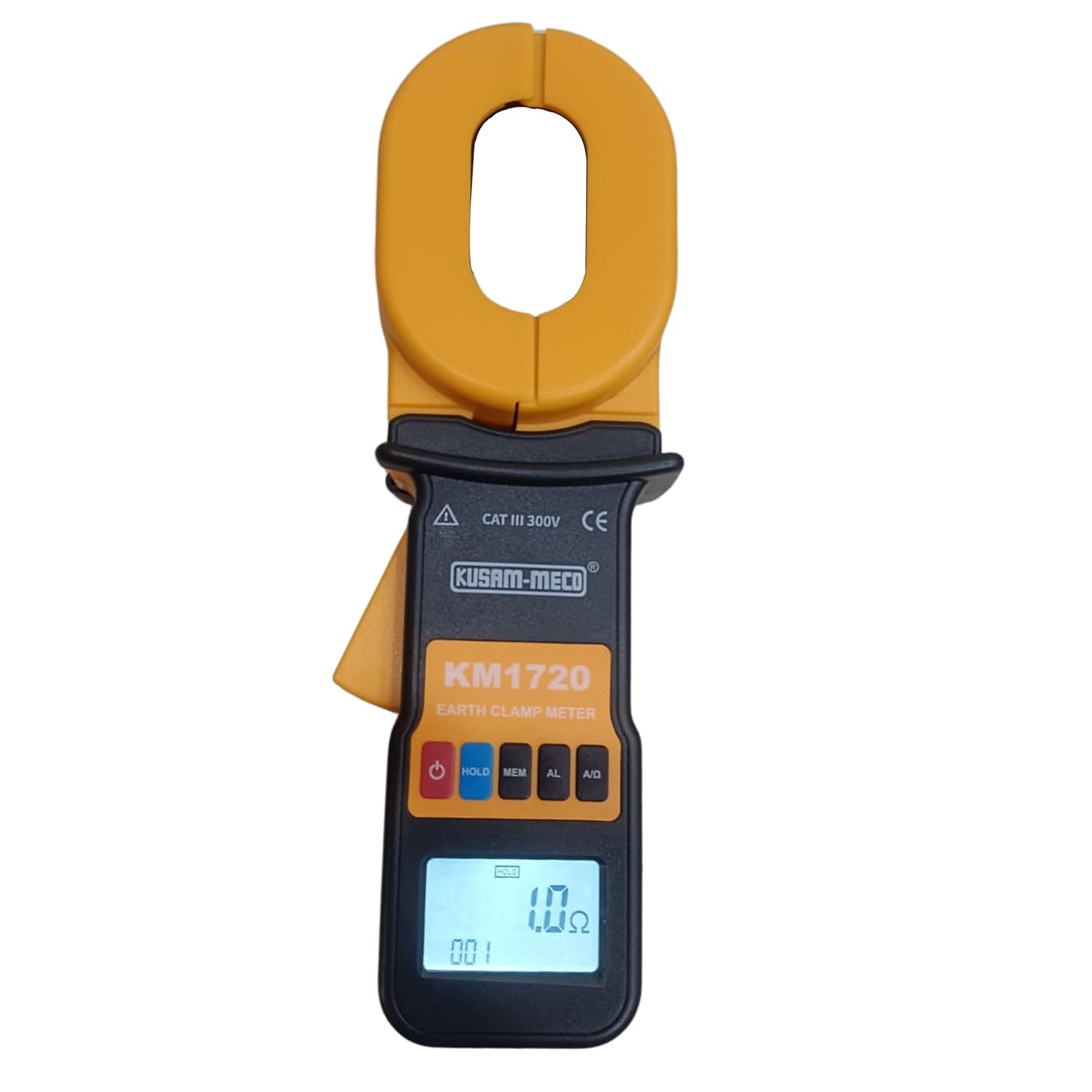

Kusam Meco KM 1720 CLAMP ON TYPE EARTH RESISTANCE TESTER
Click To Zoom
Kusam Meco KM 1720 CLAMP ON TYPE EARTH RESISTANCE TESTER
Kusam Meco KM 1720 CLAMP ON TYPE EARTH RESISTANCE TESTER
KM 1720 single-jaw type Earth Resistance Tester is widely used for earth resistance testing of the equipments in the field of power, telecommunication, as well as the other electrical equipments. It features easy operation, high-accuracy and good adaptation of testing environment.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 30,299.00
(GST inclusive price) i₹39,899.00
( - 24% OFF )
Description

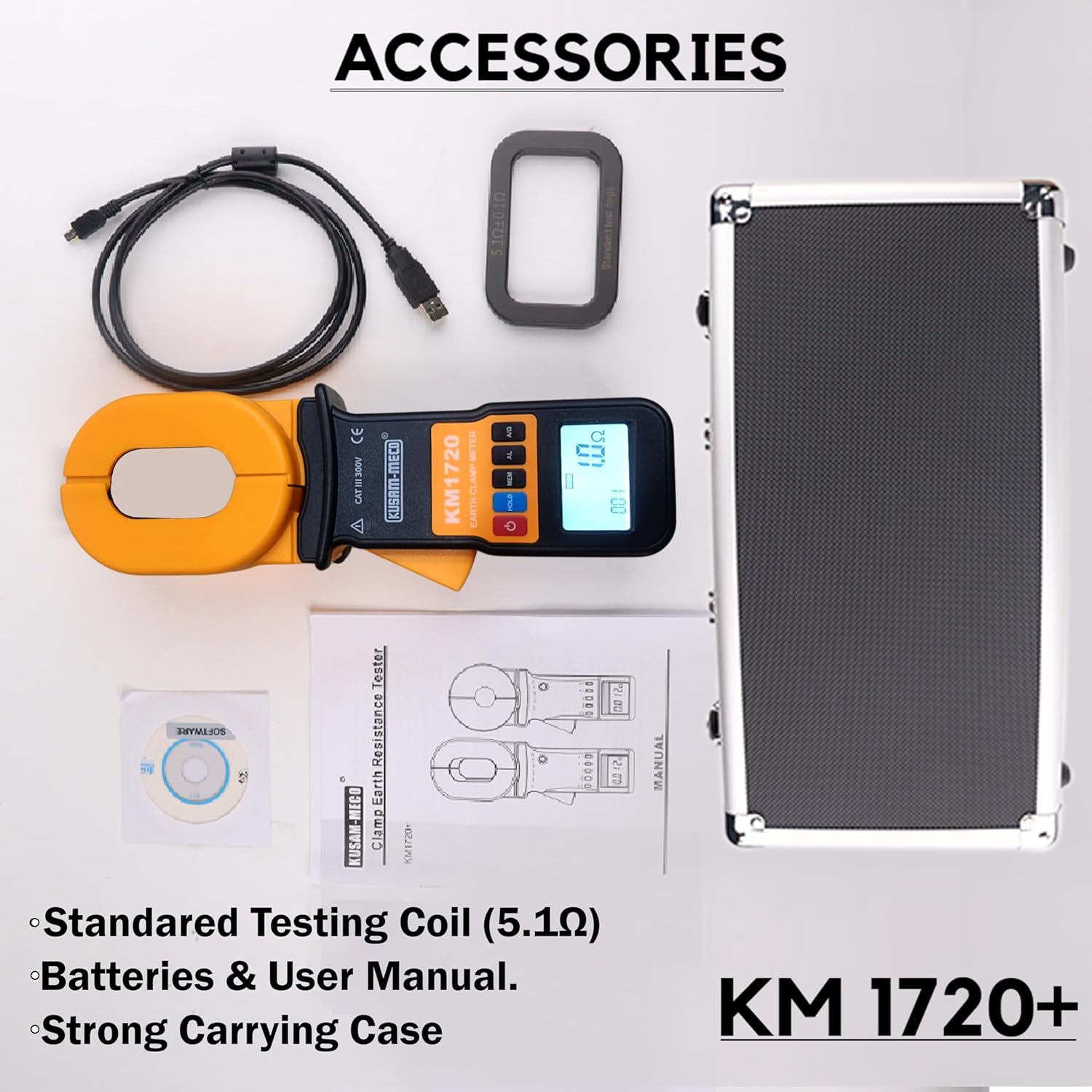

What's in the box?
|
Rating & Reviews
Rating

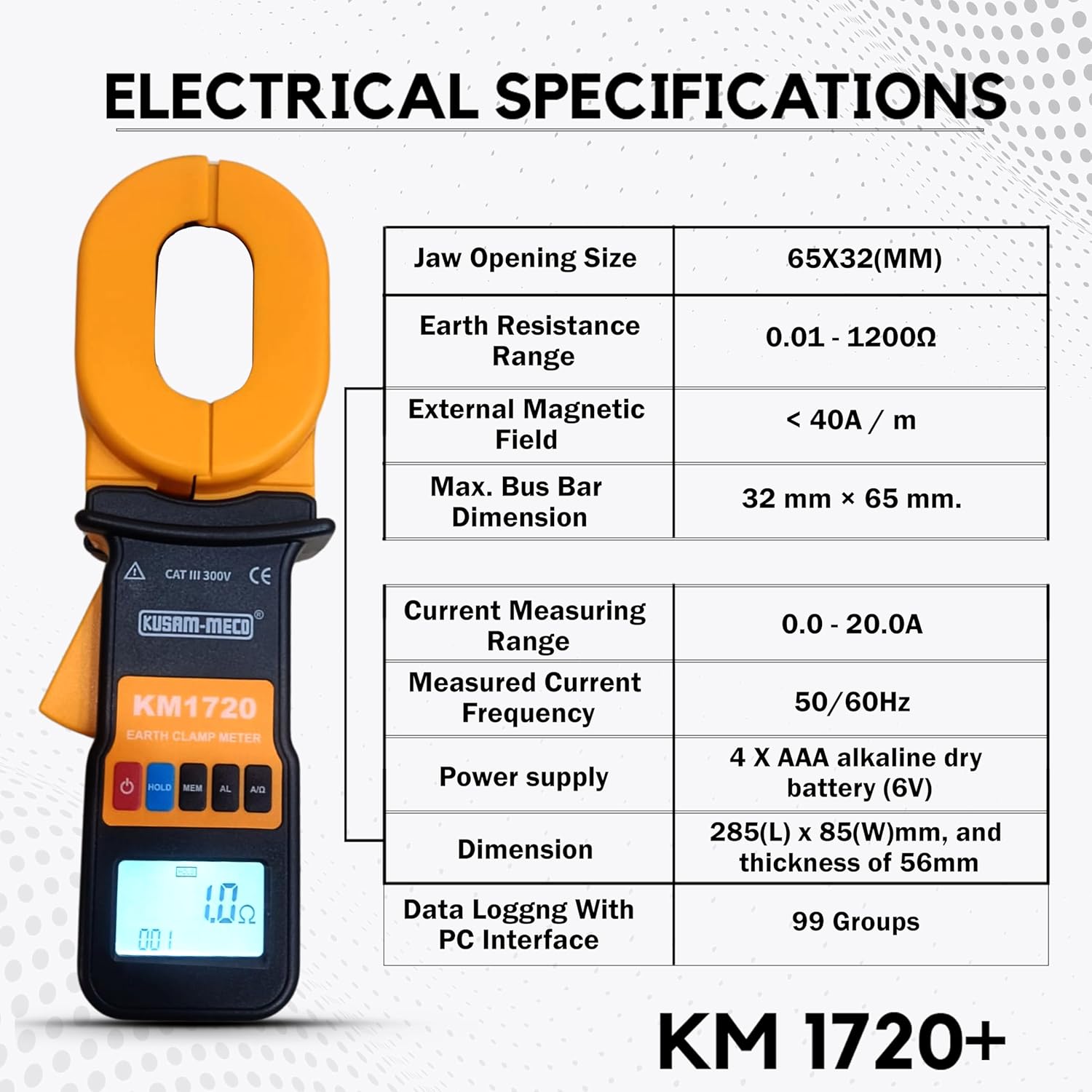

Product Specifications
• Jaw Opening Size : 32 mm
• Display screen : 4 digit LCD Backlight, 47 x 28.5 mm in length
• Operating temperature : -10 °C ~ 55 °C
• Operating Humidity : 10% ~ 90%RH
• Protection grade : double insulation
• External Magnetic Field : < 40A / m
• External Electric Field : < 1V/m
• Measurement Resistance Frequency : > 1 KHz
• Maximum Resistance Measurement Resolution : 0.001Ω
• Resistance Measurement Range : 0.01 - 1200 Ω
• Range selection : Automatic
• Max. Bus Bar Dimension : 32 mm x 65 mm.
• Calibration : Automatic self calibration
• Sampling Time : 1 second
• Current Measuring Range : 0.00 - 20.0A (KM 1720)
• Measured Current Frequency : 50/60Hz (KM 1720)
• Storable Measurement Data : 99 Units
• Setting Range of Resistance Alarm Critical Value : 1 - 199Ω (KM 1720)
• Setting Range of Current Alarm Critical Value : 1 - 499mA (KM 1720)
• Power supply : 4 X AAA alkaline dry battery (6V)
• Weight : 1160g (inclusive of battery)
• Dimension : 285(L) x 85(W)mm, and thickness of 56mm
| CURRENT RANGE MEASUREMENT | ||
| Measurement Range (A) | Resolution (A) | Accuracy (A) |
| 0.00-99.9mA | 1mA | ±(2.5% + 5mA) |
| 100 - 299mA | 1mA | ±(2.5%+10mA) |
| 0.30 - 2.99A | 10mA | ±(2.5%+0.1A) |
| 3.00 - 9.99A | 10mA | ±(2.5%+0.2A) |
| 10.00 - 20.00A | 10mA | ±(2.5%+0.3A) |
| RESISTANCE | ||
| Measurement Range (Ω) | Resolution (Ω) | Accuracy (Ω) |
| 0.010~ 0.099 | 0.001 | ±(1% + 0.01Ω) |
| 0.10~ 0. | 0.01 | ±(1% + 0.01Ω) |
| 1.0 ~ 49.9 | 0.1 | ±(1% + 0.1Ω) |
| 50.0 ~ 99.5 | 0.5 | ±(1.5% + 0.5Ω) |
| 100 ~ 199 | 1 | ±(2% + 1Ω) |
| 200 ~ 395 | 5 | ±(5% + 5Ω) |
| 400 ~ 590 | 10 | ±(10% + 10Ω) |
| 600 ~ 1200 | 20 | ±(20% + 20Ω) |
