Kusam Meco KM 1820EX Flameproof Type Earth Resistance Tester
Click To Zoom
Kusam Meco KM 1820EX Flameproof Type Earth Resistance Tester
Kusam Meco KM 1820EX Flameproof Type Earth Resistance Tester

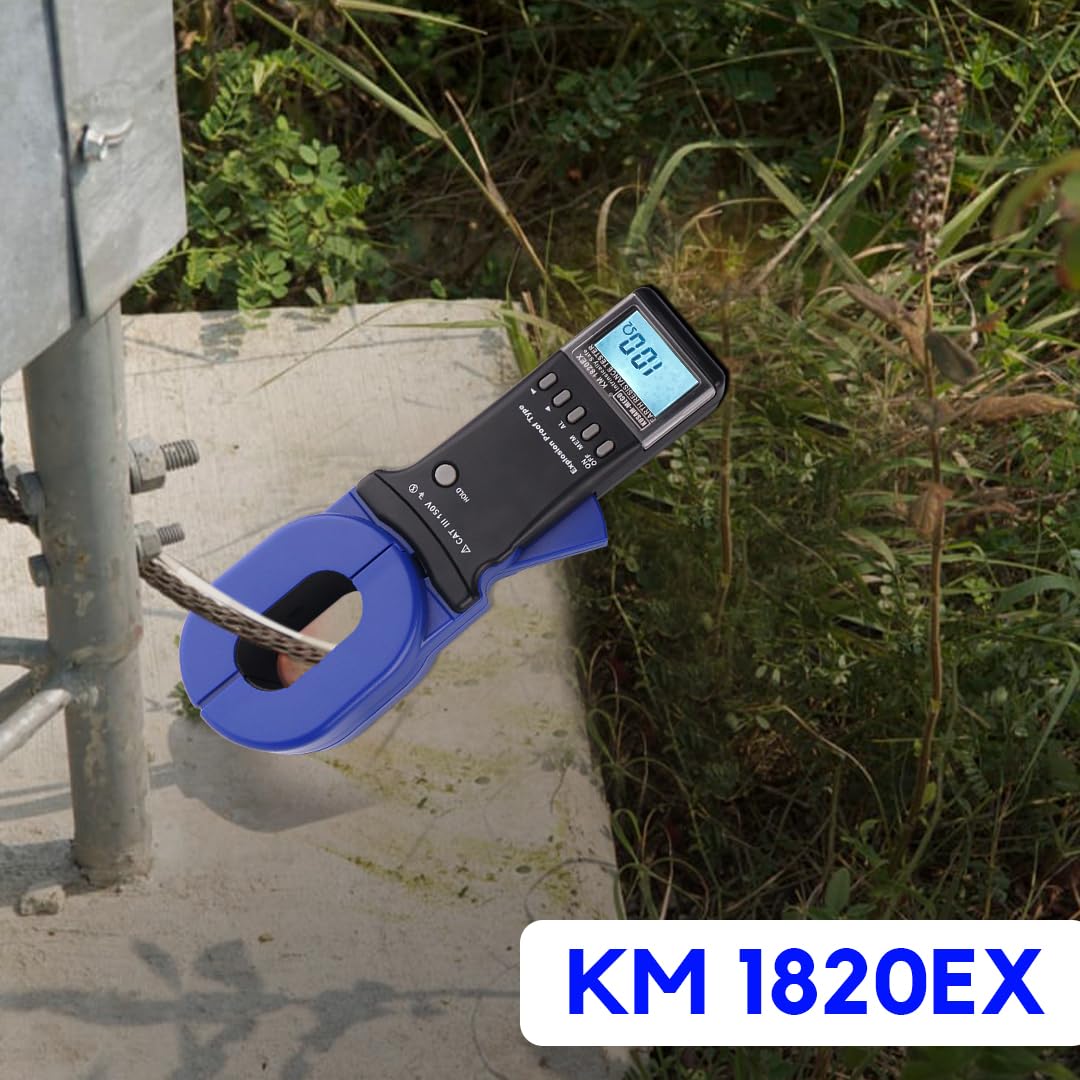

the Kusam-Meco KM 1820 EX, a robust, flameproof (Exia II BT3Ga) clamp-on earth resistance tester expertly engineered for safe and efficient earth loop measurements in hazardous environments. Its innovative clamp-on design cleverly eliminates the need to disconnect ground leads or use auxiliary electrodes, enabling comprehensive fault detection. This intrinsically safe device offers precise readings (typically 0.01Ω to 1200Ω) and is packed with user-friendly features like audible/visible alarms, data memory, and a clear LCD, all housed within a durable, anti-static, double-insulated shell for maximum operational safety.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 42,000
(GST inclusive price) i-
Base Value: ₹ 35593.2
-
GST: (18) % ₹ 6406.8
-
Total Value ₹ 42000
₹67,740.00
( - 21% OFF )
Description

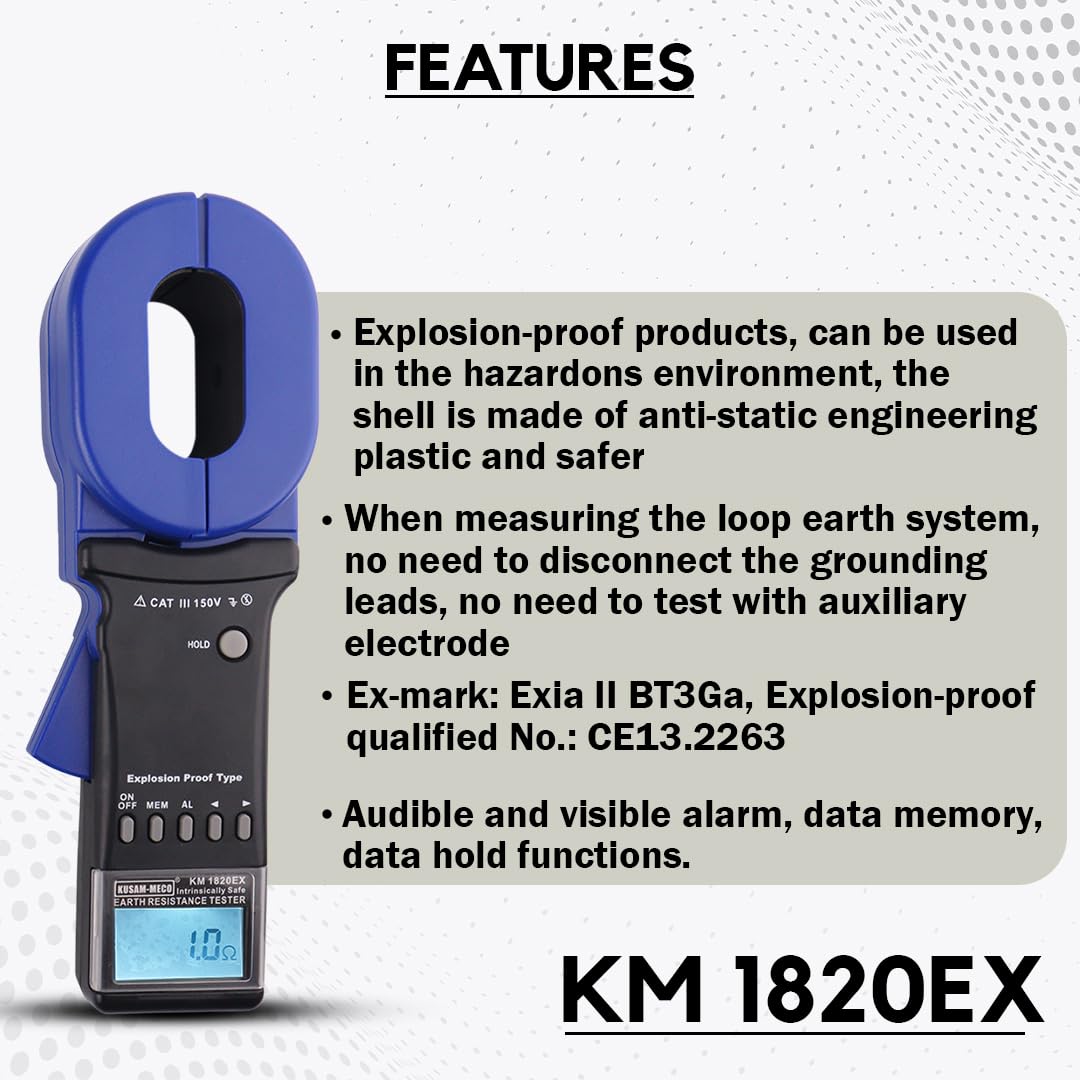

Key Features
- Explosion-proof products, can be used in the corresponding e nvironment, the shell is made of anti-static engineering plastic and safer.
- Ex-mark: Exia II BT3Ga, Explosion-proof qualified No.: CE13.2263
- When measuring the loop earth system, no need to disconnect the grounding down leads, no need w it h auxiliary electrode.
- Clamp Earth Resistance Tester can measure the ground fault which can’t be measured by traditional method, and apply in the situation where traditional methods could not measure.
- Audible and visible alarm, data memory, data hold functions.

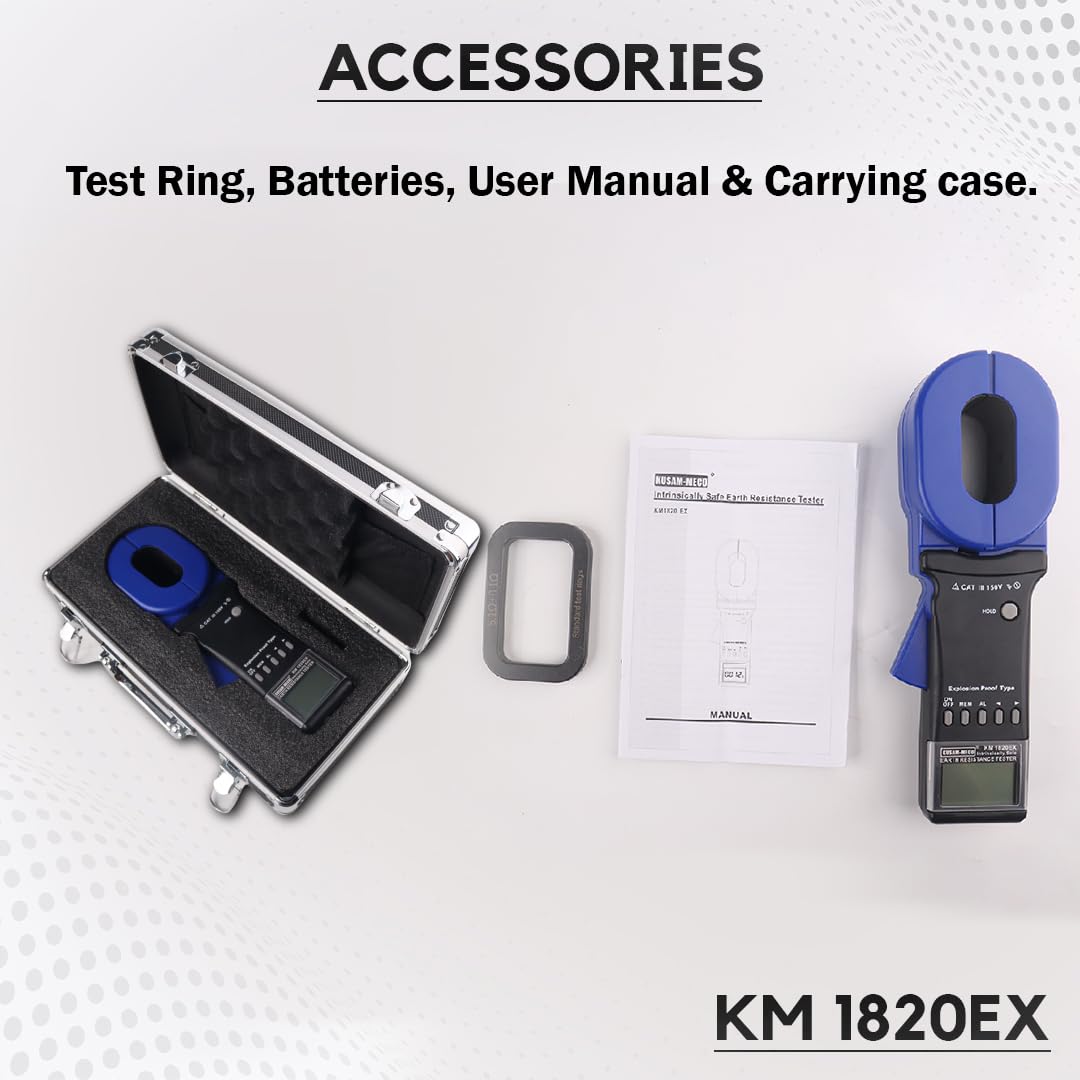

What's in the box?
|
Rating & Reviews
Rating

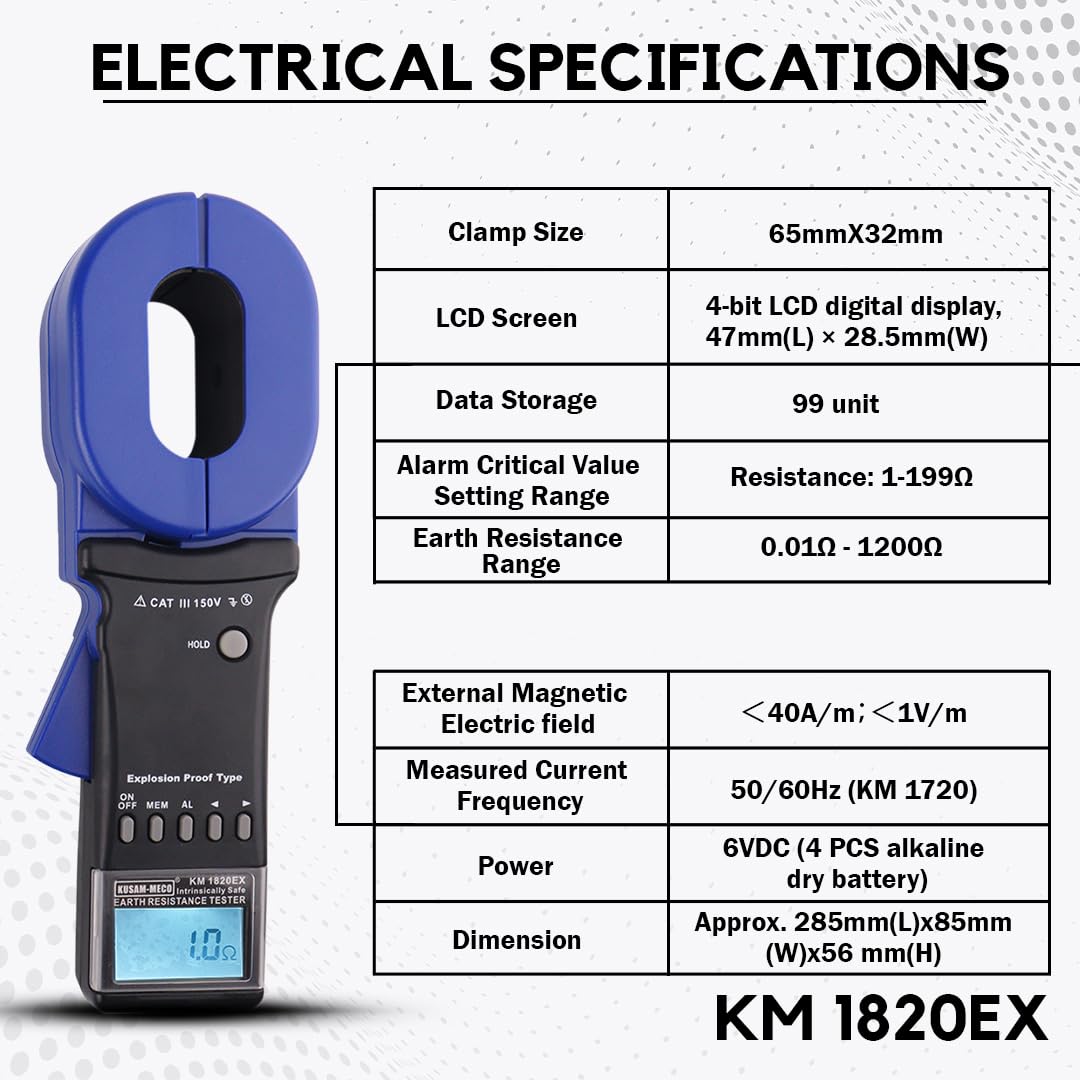

| Measurement Range | Range | Resolution | Accuracy |
| Resistance Range | 0.010Ω-0.099Ω | 0.001Ω | ±（1%＋0.01Ω） |
| 0.10Ω-0.99Ω | 0.01Ω | ±（1%＋0.01Ω） | |
| 1.0Ω - 49.9Ω | 0.1Ω | ±（1%＋0.1Ω） | |
| 50.0Ω-99.5Ω | 0.5Ω | ±（1.5%＋0.5Ω） | |
| 100Ω-199Ω | 1Ω | ±（2%＋1Ω） | |
| 200Ω-395Ω | 5Ω | ±（5%＋5Ω） | |
| 400 - 590Ω | 10Ω | ±（10%＋10Ω） | |
| 600Ω -1200Ω | 30Ω | ±（25%＋30Ω） | |
| Clamp Size | 65mmX32mm | ||
| Clamp Opening Size | 32mm | ||
| Ex-Mark | Ex ia ⅡBT3Ga | ||
| LCD Screen | 4-bit LCD digital display, 47mm(L) × 28.5mm(W) | ||
| Data Storage | 99 unit | ||
| Audio - light alarm | "beep--beep--beep --" alarm sound. Press “AL” key to turn on and off | ||
| Alarm Critical Value Setting Range | Resistance:1-199Ω | ||
| Working Temp | -20℃-55℃；10％RH-90％RH | ||
| Protection Level | Double insulation | ||
| Structure | Clamp CT | ||
| Shift | Automatic shift | ||
| External Magnetic Electric field | ＜40A/m；＜1V/m | ||
| Single Measurement Time | 0.5 s | ||
| Resistance Measurement Frequency | ＞1KHz | ||
| Power | 6VDC (4 PCS alkaline dry battery) | ||
| Dimension Approx | 285mm(L)x85mm(W)x56 mm(H) | ||
| Weight | Approx. 1160gm. | ||
