Metravi CET-09 Clamp-on Ground Resistance Tester
Click To Zoom
Metravi CET-09 Clamp-on Ground Resistance Tester
Metravi CET-09 Clamp-on Ground Resistance Tester
The Metravi CET-09 features Ground Resistance, Loop Resistance, Leakage Current measurements as well as judges Ground Faults. With USB communication interface, stored data can be uploaded to the computer, and through software analysis, reports can be printed or shared. It can measure up to 40A leakage current.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 60,180
(GST inclusive price) i-
Base Value: ₹ 51000
-
GST: (18) % ₹ 9180
-
Total Value ₹ 60180
₹81,000.00
( - 26% OFF )
Description
Key Features
- A major breakthrough in grounding resistance testing technology, noncontact measurements are safe and fast. When measuring loop earth systems, there is no need to disconnect the grounding down leads, no need for auxiliary electrodes, saving time and increasing effectiveness.
- Measuring instrument manufacturing license: 2016E119-44

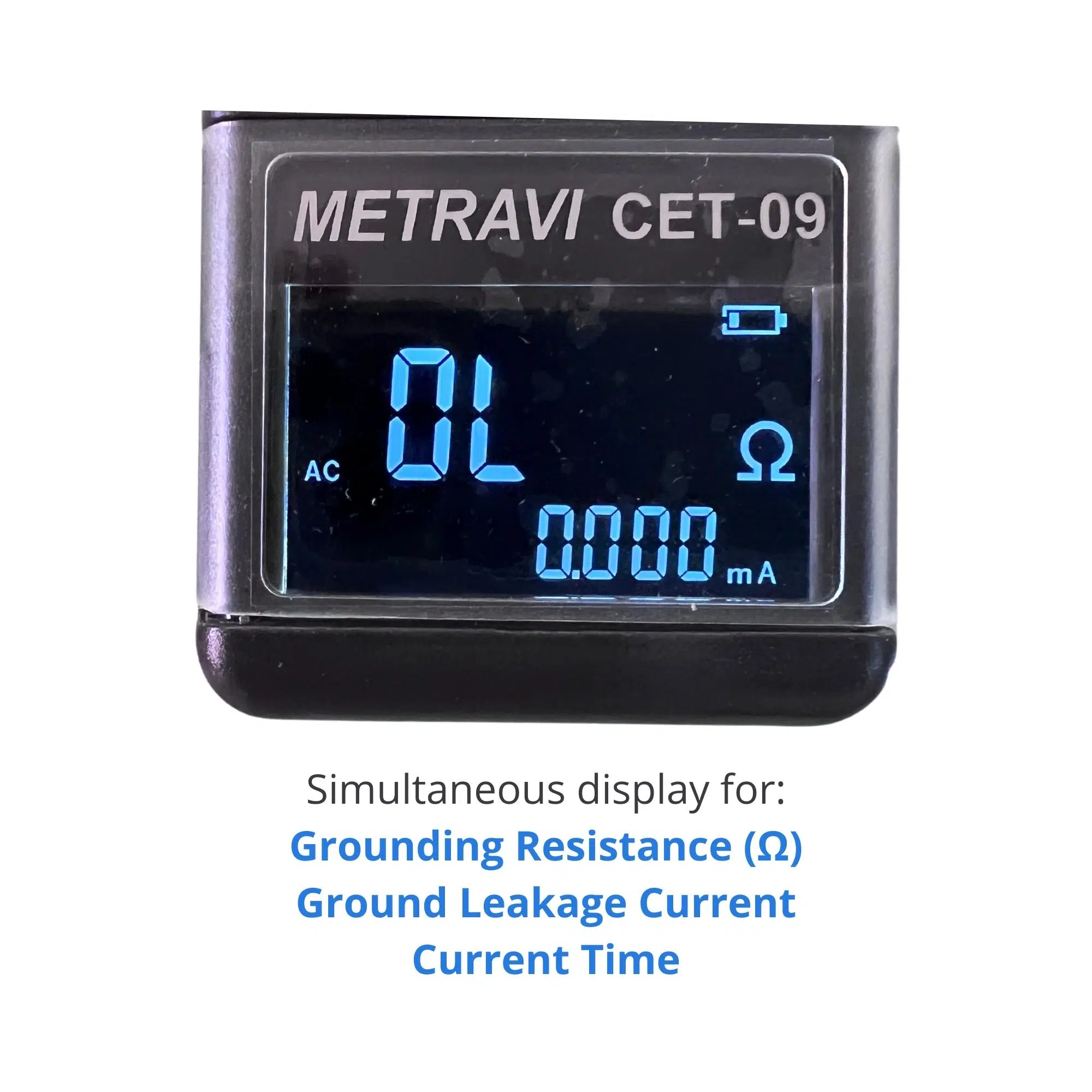

- The resistance and current measurements are displayed on the screen simultaneously and test results can be clearly and easily seen.
- Features Audible and Visible Alarm, Data Memory, Data Hold, and Clock which displays current time.
- Comes equipped with a USB Interface and free communication and line software. Stored data can be uploaded to the Computer for reading, saving and maybe printing.
- Equipped with a rechargeable lithium battery, easy to use.

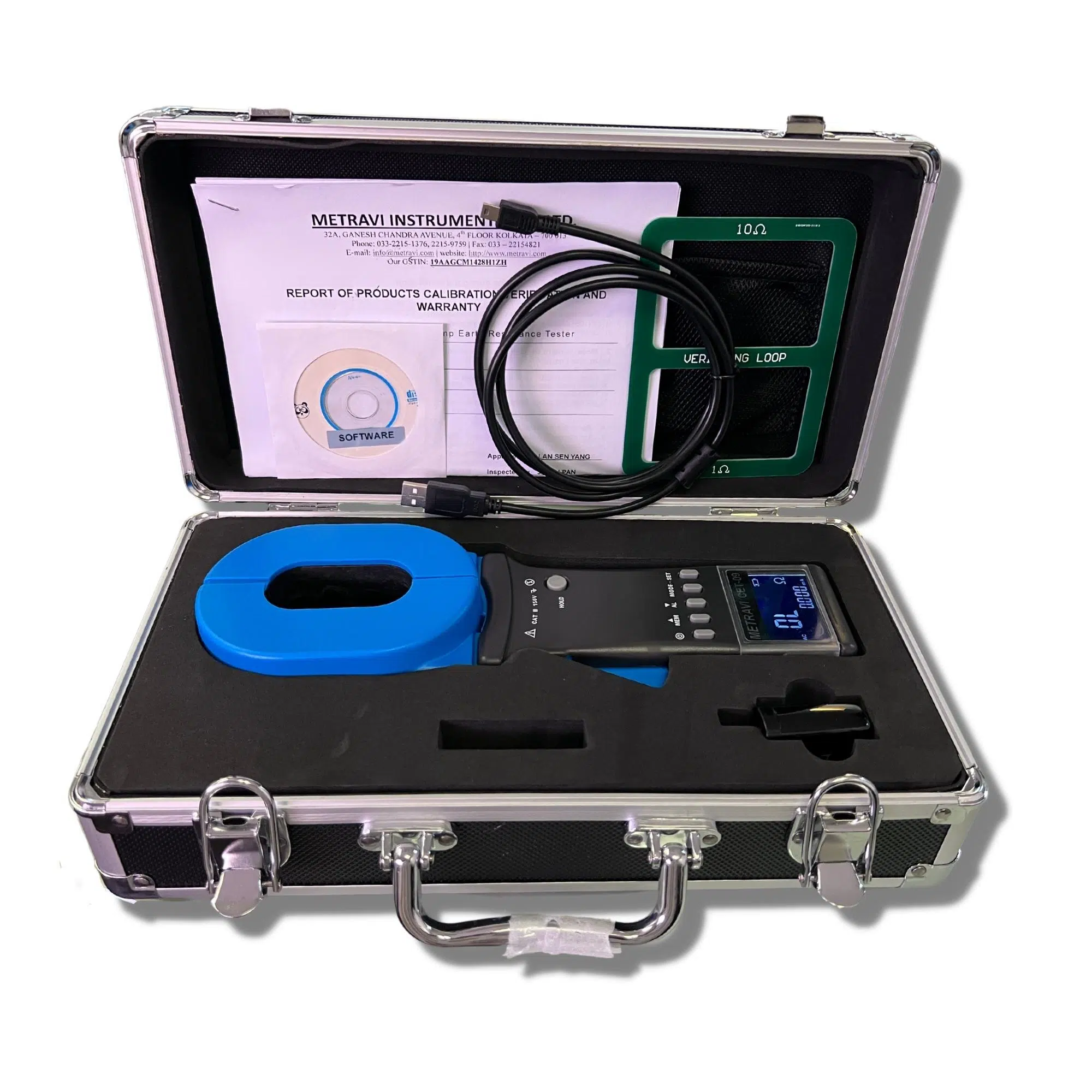

What's in the box?
|
Rating & Reviews
Rating
| Clamp Size | 65mm×32mm |
| Tester Size | 295mm×98mm×66mm |
| Weight | 2.5kg |
| Resistance Range | 0.010Ω-1500Ω |
| Resistance Resolution | 0.001Ω |
| Resistance Test Accuracy | ± (1%rdg + 0.01Ω) |
| Current Range | 0.000mA-40.0A |
| Current Resolution | 1uA |
| Current Test Accuracy | ± (1.5%rdg + 0.5mA) |
| Power Supply | Rechargeable lithium battery DC3.7V 2600mAh |
| Single Measurement Time | 0.5 second |
| Display | 4-digit LCD digital display, screen:47mm×28.5mm |
| Data Storage | 999 Groups |
| Alarm | Beeping audible alarm |
| Alarm Threshold Setting Range | Resistance : 1-199Ω; Current : 1-499mA |
| Shift | Automatically |
| External Magnet / Electric Field | <40A/m; <1V/m |
| Resistance Test Frequency | >1KHz |
| Interface | USB Interface and Software Monitoring for uploading data on computer |
