LUTRON VT-8204 Patent VIBRATION | TACHOMETER

LUTRON VT-8204 Patent VIBRATION | TACHOMETER
LUTRON VT-8204 Patent VIBRATION | TACHOMETER
LUTRON VT-8204 Patent VIBRATION | TACHOMETER
LUTRON VT-8204 Patent VIBRATION | TACHOMETER

Click To Zoom

LUTRON VT-8204 Patent VIBRATION | TACHOMETER

LUTRON VT-8204 Patent VIBRATION | TACHOMETER

(Based On 10 Reviews)

The VT-8204 Vibration/Tachometer Meter provides accurate and reliable measurements of acceleration, velocity, displacement, and rotational speed, making it an essential tool for industrial vibration monitoring and control.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 36,780.00

(GST inclusive price) i
  • Base Value: ₹ 31169.5
  • GST: (18) % ₹ 5610.5
  • Total Value ₹ 36780

₹52,000.00

( - 29% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features



  • Comprehensive Vibration Measurement: Measures acceleration, velocity, and displacement with RMS, peak, and peak-to-peak values, ensuring precise monitoring of industrial machinery vibrations.
  • Dual Tachometer Functions: Combines photo and contact tachometer functions, offering a wide measuring range from 0.5 to 100,000 RPM with high accuracy, suitable for various RPM measurement applications.
  • Real-Time Data Logging: Features a data logger function with flexible sampling time selection, capable of saving up to 1000 data points into the memory circuit for detailed analysis.
  • User-Friendly Interface: Equipped with a large LCD display with data hold, memory for maximum and minimum values, and auto shut off to save battery life.
  • Optional IR Temperature Measurement: Supports no contact infrared temperature measurement with an optional IR temperature probe, adding versatility to the device's functionality.
  • Microprocessor Circuit: Ensures high accuracy and provides special functions and features.

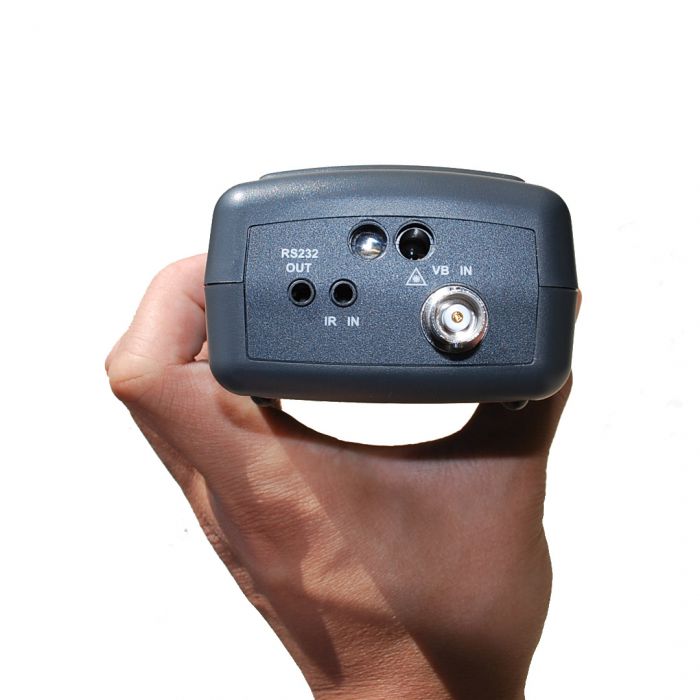

  • RS232 Computer Interface: Allows for easy data transfer and integration with other systems.
  • Auto Power Off: Saves battery life with automatic power off or manual power off by push button.
  • Large LCD Display: High brightness and easy to read.
  • Optional Accessories:
  1. Data Acquisition Software (SW-U801-WIN)
  2. Data Logger Software (SW-DL2005)
  3. RS232 Cable (UPCB-02)
  4. USB Cable (USB-01)
  5. IR Temp. Probe (IR-962)




What's in the box?



  • Manual
  • Vibration Sensor
  • Magnetic Base
  • Reflecting Tape Marks (600 mm)
  • RPM Cone Rubber (AS-35A)
  • RPM Funnel Rubber (AS-35B)
  • Carrying Case

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications:



Display:

  1. Type: LCD
  2. Size: 45 mm x 48 mm





Vibration Measurement Functions:



Acceleration:



  • Range: 0.5 to 199.9 m/s²
  • Accuracy: ±(5% + 2d) @ 160 Hz, 80 Hz, 23 ± 5℃



Velocity:



  • Range: 0.5 to 199.9 mm/s
  • Accuracy: ±(5% + 2d) @ 160 Hz, 80 Hz, 23 ± 5℃



Displacement (p-p):



  • Range: 0.005 to 1.999 mm
  • Accuracy: ±(5% + 2d) @ 160 Hz, 80 Hz, 23 ± 5℃



Frequency:



  • Range: 10 Hz to 1 kHz



Tachometer Functions:



Photo Tachometer:



  • Range: 10 to 99,999 RPM
  • Accuracy: ±(0.05% + 1d)



Contact Tachometer:



  • Range: 0.5 to 19,999 RPM
  • Accuracy: ±(0.05% + 1d)



Surface Speed:



  • Range: 0.05 to 1,999.9 m/min, 0.2 to 6,560 ft/min
  • Resolution: 0.1 RPM < 1,000 RPM, 1 RPM ≥ 1,000 RPM, 0.01 m/min < 100 m/min, 0.1 m/min ≥ 100 m/min, 0.1 ft/min < 1,000 ft/min, 1 ft/min ≥ 1,000 ft/min



Data Functions:



  • Data Hold: Freezes the desired reading
  • Memory: Records maximum and minimum values for RMS (Acc., Vel.) and Displacement (p-p)
  • Data Logger: Up to 1000 data points with flexible sampling time (1, 2, 10, 30, 60, 600, 1800, 3600 seconds)
  • Auto Shut Off: Saves battery life with automatic power off or manual power off by push button



Power Supply:



  • 1.5V AA batteries x 4
  • Power Consumption: Approx. 18 mA for vibration, 20 mA for contact tachometer, 31 mA for photo tachometer



Operating Environment:



  • Temperature: 0 to 50℃
  • Humidity: Less than 80% RH



Dimensions:



  • Meter: 188 x 75.5 x 46.8 mm (7.4 x 3.0 x 1.8 inch)
  • Vibration Sensor Probe: Round 18 mm Dia. x 40 mm



 Weight:



  • Meter: 397 g (0.87 lb)
  • Probe with Magnetic Base: 110 g (0.24 lb)
