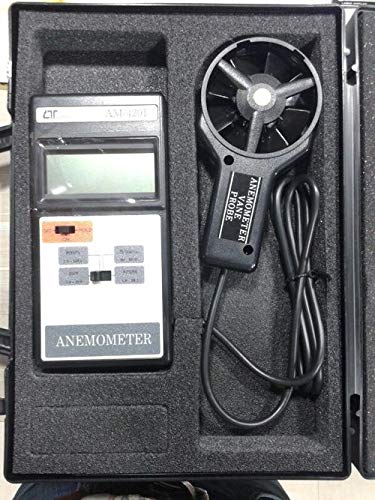

Lutron AM-4206 Anemometer
Click To Zoom
Lutron AM-4206 Anemometer
Lutron AM-4206 Anemometer
The AM-4206 Anemometer provides accurate and reliable measurements for air flow and air velocity, making it an essential tool for various industrial and environmental applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 10,200.00
(GST inclusive price) i₹10,200.00
( - 0% OFF )
Description
What's in The Box ?
|
Rating & Reviews
Rating
Product Specifications
| GENERAL SPECIFICATIONS | |
| Circuit | Exclusive one-chip of micro- computer LSI circuit. |
| Display | * 13 mm (0.5") Super large LCD display Dual function meter's display. |
| Measurement | Air velocity : m/s (meters per second), km/h (kilometers per hour),ft/min (feet/per minute),knots (nautical miles per hour),mile/h (miles per hour) Air flow : CMM ( m^3/min. ),CFM ( ft^3/min. ) Air temperature :℃ ℉, . Data hold |
| Memory Recall | l Record maximum & minimum reading value with recall. |
| Sensor Structure | Air velocity & Air flow : Conventional twisted van arm and low friction ball bearing design. Temperature : Thermistor |
| Power off | Auto shut off saves battery life or manual off by push button. |
| Sampling Time | Approx. 0.8 sec. |
| Operating Humidity | Less than 80% RH. |
| Operating Temperature | 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ) |
| Data Output | RS 232 PC serial interface |
| Power Supply | Alkaline or heavy duty type DC 9V battery, 006P MN1604 (PP3) or equivalent. |
| Power Current | Approx. DC 8.3 mA. |
| Weight | 381 g/0.84 LB |
| Dimension | Main instrument: 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ) Sensor head : Round, 72 mm Dia |
| Electrical Specification | |||
| Measurement | Range | Resolution | Accuracy |
| m/s | 0.4 - 25.0 m/s | 0.1 m/s | ± ( 2% + 2d ) |
| km/h | 1.4 - 90.0 km/h | 0.1 km/h | |
| mile/h | 0.9 - 55.9 mile/h | 0.1 mile/h | |
| knots | 0.8 - 48.8 knots | 0.1 knots | |
| ft/min | 80 - 4930 ft/min | 1 ft/min | ± ( 2% + 20 ft/min ) |
| Air flow | |||
| Measurement | Range | Resolution | Area |
| CMM ( m^3/min. ) | 0 - 999,900 m^3/min. | 0.001 - 100 m^3/min. | 0.001 - 9,999 m^3/min. |
| CFM ( ft^3/min. ) | 0 - 999,900 ft^3/min. | 0.001 - 100 ft^3/min. | 0.001 - 9,999 ft^3/min. |
| Air Temperature | |||
| Temperature(℃ ) | 0 to 50℃ | 32 to 122℉ | ±0.8℃ |
| Temperature ( ℉) | 32 to 122℉ | 0.1℉ | ±1.5℉ |
