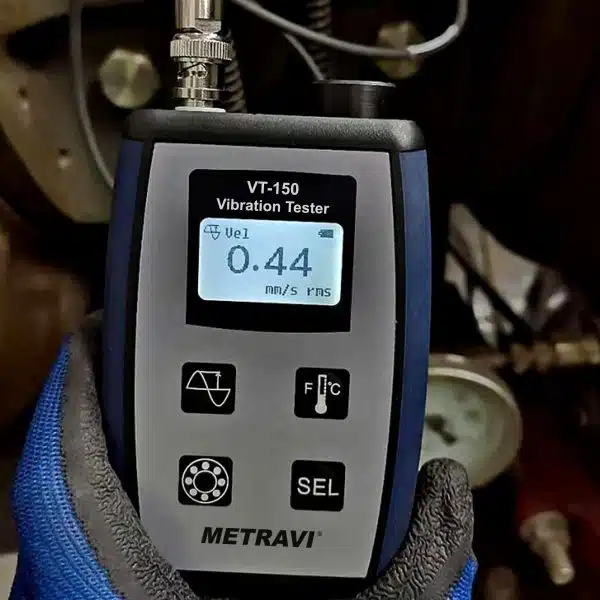

Metravi VT-150 Vibration Tester with Bearing Condition Analyser
Click To Zoom
Metravi VT-150 Vibration Tester with Bearing Condition Analyser
Metravi VT-150 Vibration Tester with Bearing Condition Analyser

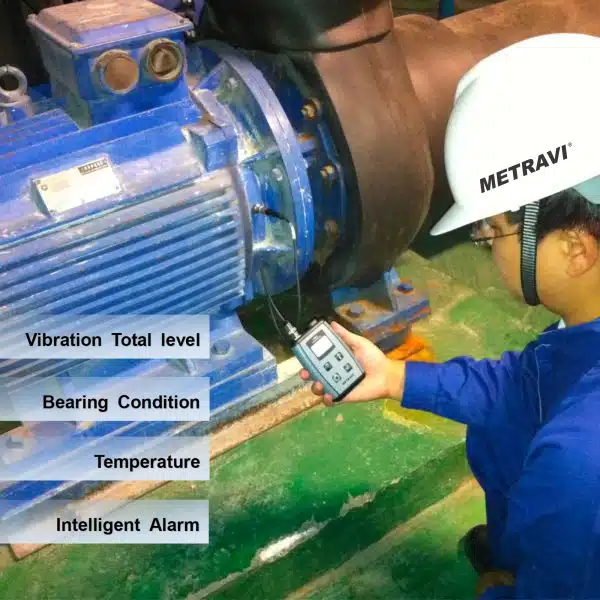

The Metravi VT-150 Vibration Meter is a reliable and easy to use, hand-held, condition inspection instrument; a fundamental tool of predictive maintenance on the plant floor. It provides Vibration measurement, Bearing Condition checks, and a built-in Infrared Thermometer, along with Machine Alarm indications as well.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 2,25,675
(GST inclusive price) i-
Base Value: ₹ 191250
-
GST: (18) % ₹ 34425
-
Total Value ₹ 225675
₹3,03,750.00
( - 26% OFF )
Description
Key Features
- Built-in analysis function.
- Analysis results are displayed on the screen at the press of a button.
- With ISO standard analysis function.
- Large buttons that are easy to press even with gloves on.
- Practical, easy-to-use vibrometer with diagnosis function.
- Three measurement modes such as acceleration, speed and displacement.
- Velocity in mm/s RMS.
- Acceleration in g RMS.
- Displacement in um Peak-Peak.
- Vibration Evaluation as per ISO10816-3.
- Bg - Hi Frequency Acceleration in g RMS.
- Bv - Hi Frequency Velocity in mm/s RMS.
- Bearing Status Check (by using rules of thumb).
- Non-contact Infrared Temperature in °C or°F with Laser Pointer.

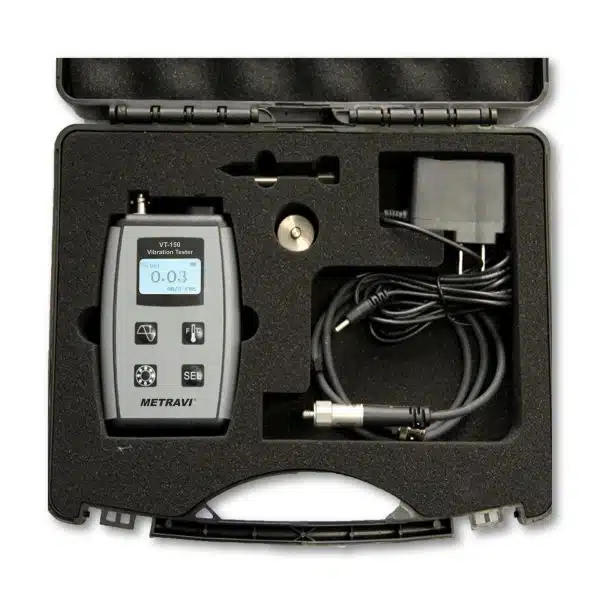

What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Display | Monochromatic LCD (128x64 px) |
| Sensors | IEPE Accelerometer, 100mv/g, Integral 80 cm Cable, BNC Connector |
| Accuracy | < ±5% |
| VIBRATION | |
| Acceleration Range | 0-20g, Peak Frequency 10-12kHz |
| Velocity Range | 0-200mm/s RMS, Frequency 10Hz-1kHz |
| Displacement Range | 0-2000μm, Peak-Peak Freq. 10Hz-1kHz |
| BEARING STATUS | |
| Bg | 0-20 g RMS Freq. Range 1kHz-12 kHz |
| Bv | 0-200 mm/s RMS Freq. Range 1kHz-12 kHz |
| ALARM INDICATIONS | Vibration Evaluation for velocity measure: ISO10816-3 |
| Bearing status check for BG and BV by rule-of-thumb | |
| TEMPERATURE | |
| IR Temperature Range | -20°C to 120°C or -5°F to +250°F |
| Accuracy | ±2°C |
| Resolution | 1°C |
| Laser Guide | Red, <1mW. IEC 60825-1 compliant |
| Distance to Sighting Ratio | 8:1 (Recommend distance range: < 20 cms) |
| POWER SUPPLY | |
| Battery | Lithium rechargeable battery, 3.6V 1700 mAh |
| Recharge Time | 3 hours approx. |
| Operation Time | >50 hours continuous |
| Mains Charger | AC 100-240 V, 50/60 Hz input; 4.2 V DC 600 mA output |
| In-Car Charger | DC 12-24V input; 4.2V DC 600mA output |
| ENVIRONMENT | |
| Operation Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Ingress Protection | IP64 - Dust-tight and splash-resistant |
| Electromagnetic Compatibility | 2004/108/EC |
| Dimensions | 115 x 75 x 25mm（LxWxH） |
| Weight | 230 gms (including battery) |
