LUTRON VB-8202 VIBRATION METER

LUTRON VB-8202 VIBRATION METER
LUTRON VB-8202 VIBRATION METER
LUTRON VB-8202 VIBRATION METER
LUTRON VB-8202 VIBRATION METER
LUTRON VB-8202 VIBRATION METER
LUTRON VB-8202 VIBRATION METER

Click To Zoom

LUTRON VB-8202 VIBRATION METER

LUTRON VB-8202 VIBRATION METER

(Based On 10 Reviews)

The VB-8202 Vibration Meter provides accurate and reliable vibration measurements for industrial machinery, making it an essential tool for maintenance and condition monitoring.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 31,435.00

(GST inclusive price) i
  • Base Value: ₹ 26639.8
  • GST: (18) % ₹ 4795.2
  • Total Value ₹ 31435

₹45,000.00

( - 30% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features


  • Industrial Vibration Monitoring: Ideal for monitoring industrial machinery to detect poor balance, misalignment, and structural looseness that increase vibration levels, indicating the need for maintenance.
  • High Accuracy Measurement: Measures velocity up to 200 mm/s and acceleration up to 200 m/s² with high accuracy, ensuring precise monitoring of machine conditions.
  • Wide Frequency Range: Covers a frequency range from 10 Hz to 1 kHz, meeting ISO 2954 sensitivity requirements for comprehensive vibration analysis.
  • RMS and Peak Measurement: Capable of both RMS and peak measurements, allowing for detailed analysis of vibration levels.
  • User-Friendly Design: Features a large LCD display with data hold, memory function for maximum and minimum readings, and auto shut-off to save battery life.
  • Optional Accessories:
  1. Data Acquisition Software (Windows version, SW-U801-WIN)
  2. RS-232 Cable (UPCB-01)
  3. USB Cable (USB-01)

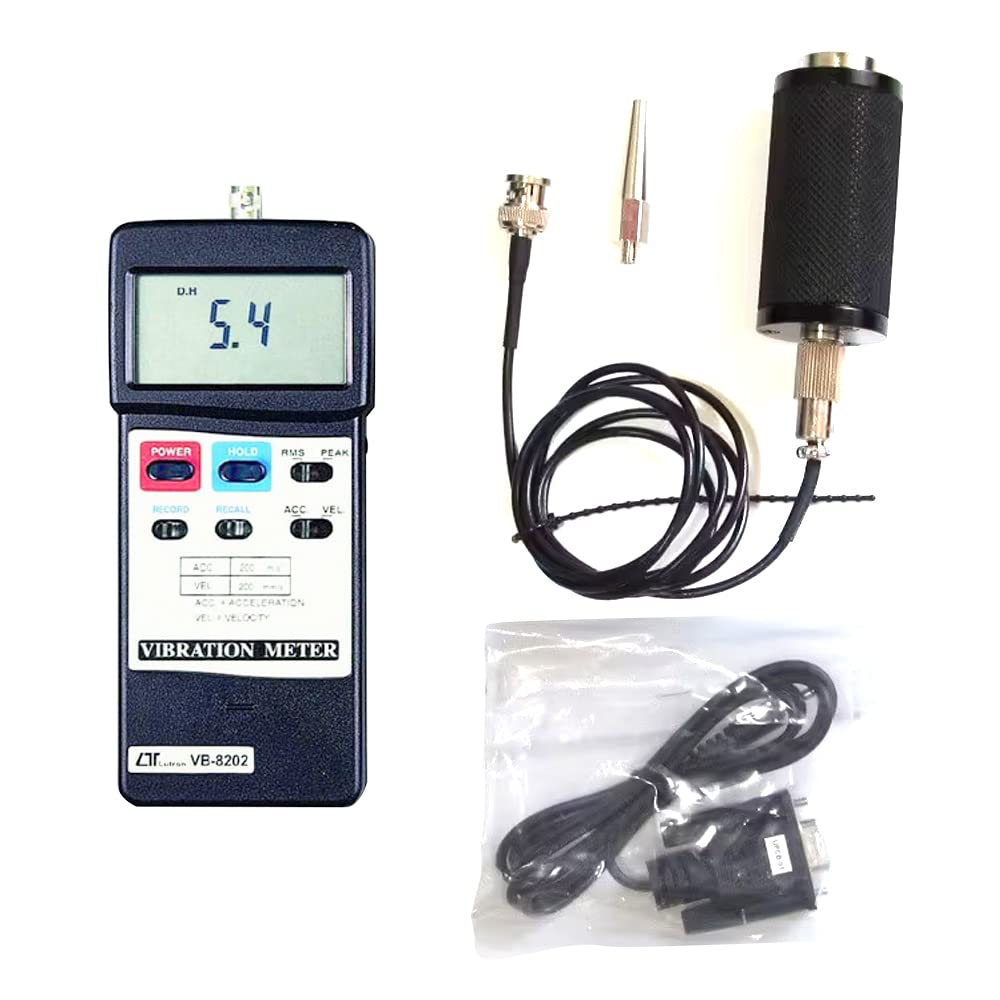

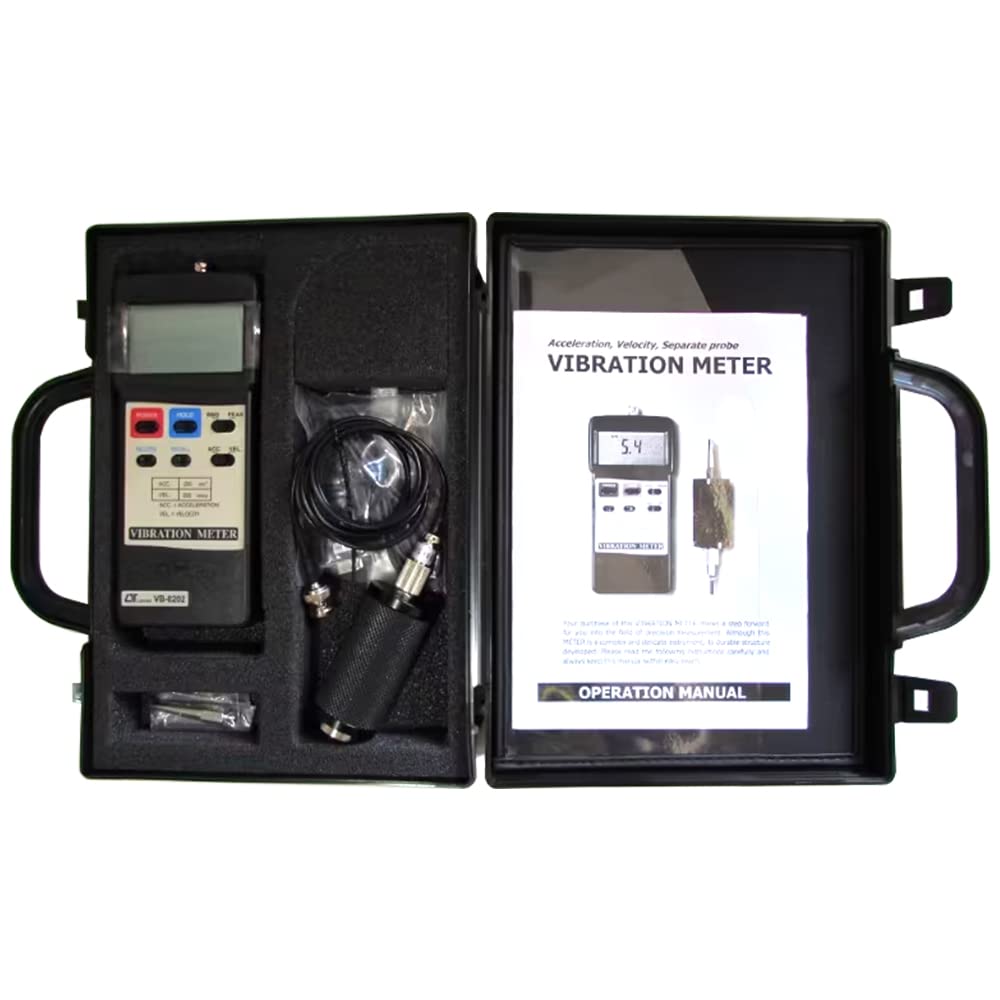

What's in the box?

  • Manual
  • Cable with Plugs
  • Vibration Probe
  • Sensing Head
  • Magnetic Base
  • Carrying Case

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications:



Display:

  1. Type: Super large LCD
  2. Size: 61 mm x 34 mm
  3. Digit Size: 15 mm (0.6 inch)





Measurement Range and Resolution:



Velocity:

  • Range: 0.5 to 199.9 mm/s
  • Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃



Acceleration:

  • Range: 0.5 to 199.9 m/s²
  • Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃



Frequency:

  • Range: 10 Hz to 1 kHz



Functions:

  • RMS and Peak value measurement
  • Data hold to freeze the desired reading
  • Memory function to record maximum and minimum readings
  • Auto power off and manual power off



Data Output: RS-232 serial output, isolated



Power Supply:

  • DC 9V battery (006P, MN1604, PP3 or equivalent)
  • Power Consumption: Approx. DC 6 mA
