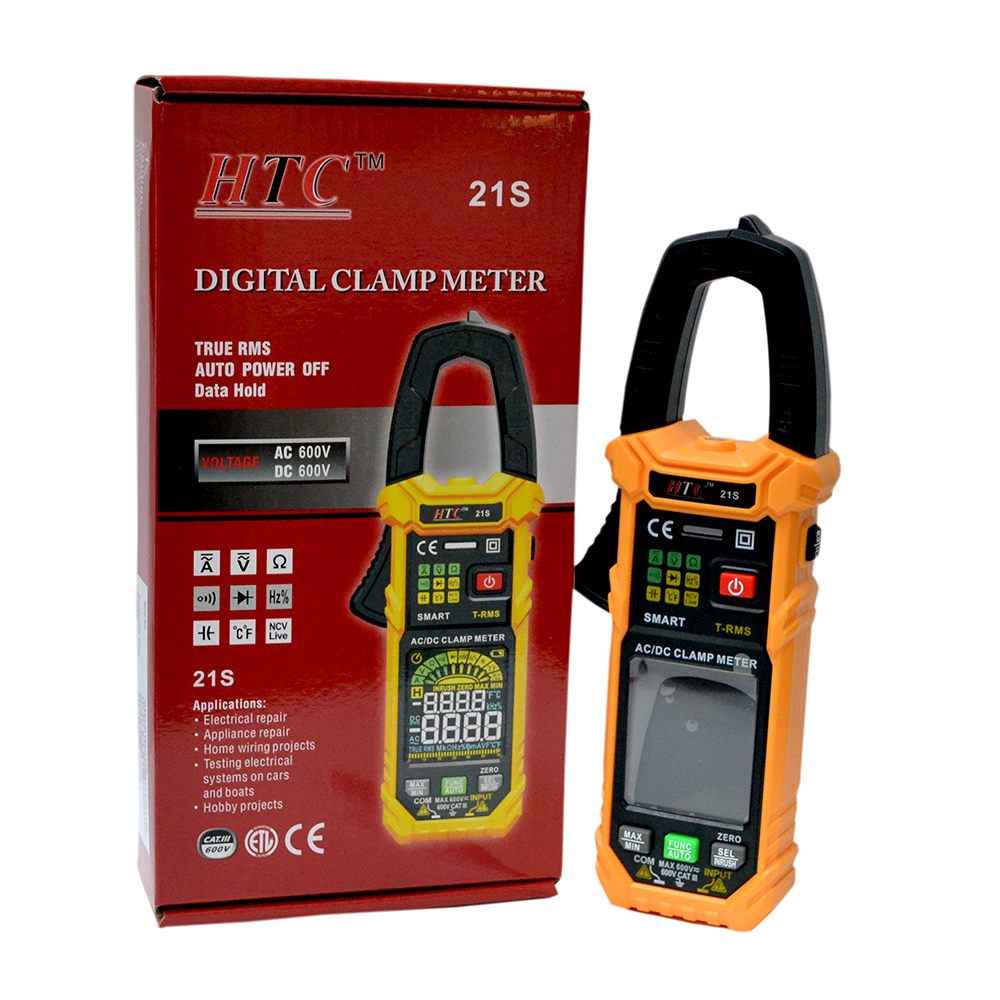

HTC-21S- Smart Clamp Meter 600A AC|DC
Click To Zoom
HTC-21S- Smart Clamp Meter 600A AC|DC
HTC-21S- Smart Clamp Meter 600A AC|DC
The HTC-21s is a 600A AC/DC clamp meter for measuring current, voltage, resistance, capacitance, and more. pen_spark
It features a color LCD display, auto-ranging, and a flashlight for working in low light.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 3,300.00
(GST inclusive price) i₹3,300.00
( - 0% OFF )
Description
Key Features
What's in the box?
|
Rating & Reviews
Rating
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600mV | 0.1mV | ±(0.5% rdg+5) |
| 6V | 0.001V | |
| 60V | 0.01V | |
| 600V | 0.1V | |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600mV | 0.1mV | ±(0.8% of rdg+5) |
| 6V | 0.001V | |
| 60V | 0.01V | |
| 600V | 0.1V | |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 60A | 0.01A | ±(2.5% rdg+5) |
| 600A | 0.1A | |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 60A | 0.01A | ±(2.5% rdg+5) |
| 600A | 0.1A | ±(3.0% rdg+10) |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 600Ω | 0.1Ω | ±(1.0% rdg+5) |
| 6KΩ | 0.001KΩ | |
| 60KΩ | 0.01KΩ | |
| 600KΩ | 0.1KΩ | |
| 6MΩ | 0.001MΩ | |
| 60MΩ | 0.01MΩ | |
| FREQUENCEY / DUTY | ||
| Range | Resolution | Accuracy |
| 100Hz | 0.01Hz | ±(1.0% of rdg+3) |
| 1000Hz | 0.1Hz | |
| 10kHz | 0.001kHz | |
| 100kHz | 0.01kHz | |
| 1000kHZ | 0.1kHz | |
| 10MHz | 0.001mHz | ±(3.0% of rdg+3) |
| 1~99% | 0.1% | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 6nF | 0.001nF | ±(4.0% rdg+5) |
| 60nF | 0.01nF | |
| 600nF | 0.1nF | |
| 6µF | 0.001µF | |
| 60µF | 0.01µF | |
| 600µF | 0.1µF | |
| 6mF | 0.001mF | |
| 60mF | 0.01mF | |
| TEMPERATURE | |||
| UNIT | Resolution | Accuracy | |
| ºC | 1ºC | -40ºC~10ºC | ±3ºC |
| 10ºC~100ºC | ±2ºC | ||
| 100ºC~1000ºC | ±2.0% | ||
| ºF | 1ºF | -40ºF~50ºF | ±6ºF |
| 50ºF~212ºF | ±4ºF | ||
| 212ºF~1832ºF | ±2.0% | ||
| Dimension | Weight | ||
| H197 x W73 x D34 mm | Approx 206 gms | ||
