HTC-CM-2046-AC| DC 1000A DIGITAL CLAMP METER

Click To Zoom

HTC-CM-2046-AC| DC 1000A DIGITAL CLAMP METER

HTC-CM-2046-AC| DC 1000A DIGITAL CLAMP METER

(Based On 10 Reviews)

This product comes with AC / DC Voltage, AC / DC Current, Capacitance, Over Range Display, Low Battery Indication.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 2,735.00

(GST inclusive price) i
  • Base Value: ₹ 2317.8
  • GST: (18) % ₹ 417.2
  • Total Value ₹ 2735

₹2,735.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

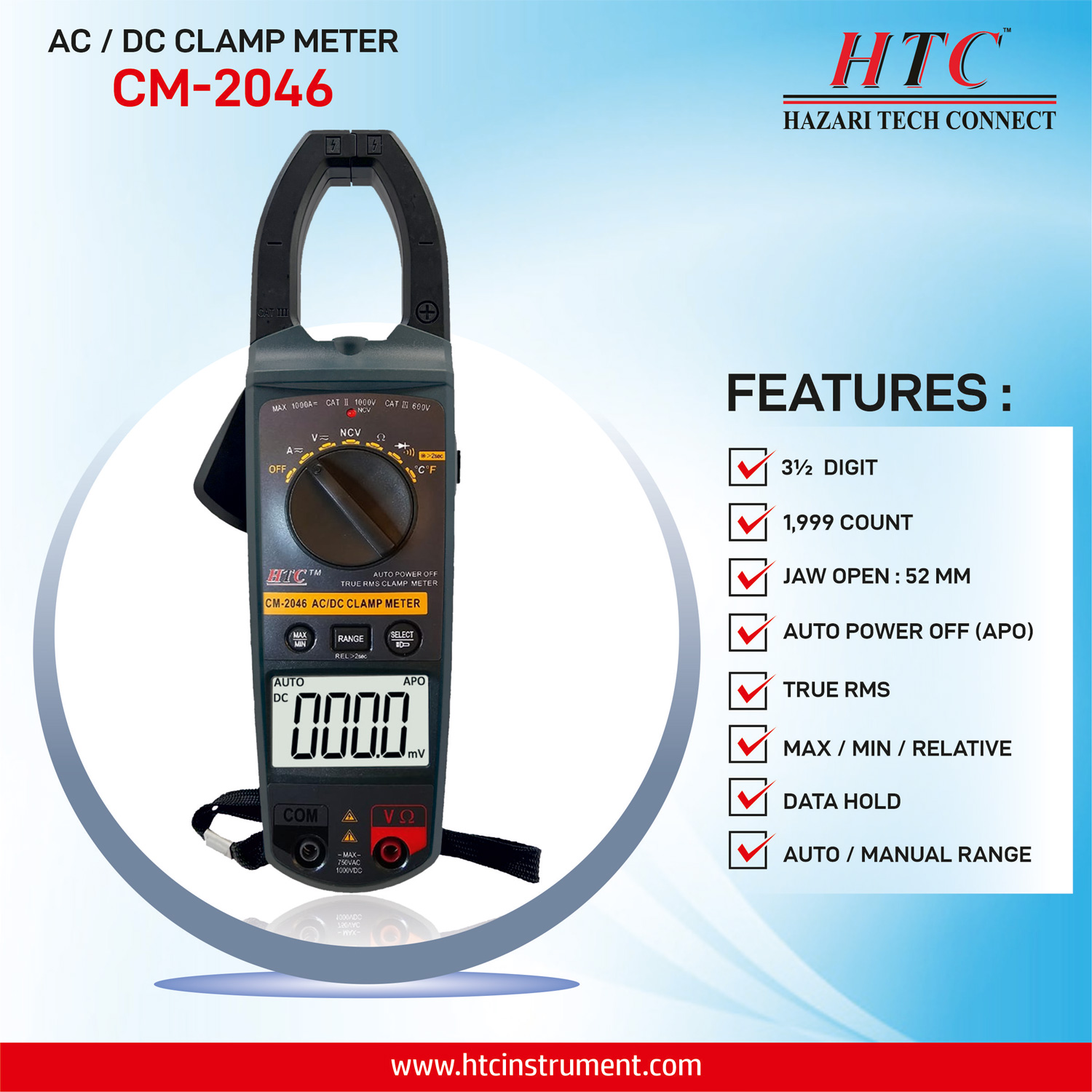

Key Features

  • 3 5/6 Digit
  • 1,999 Count

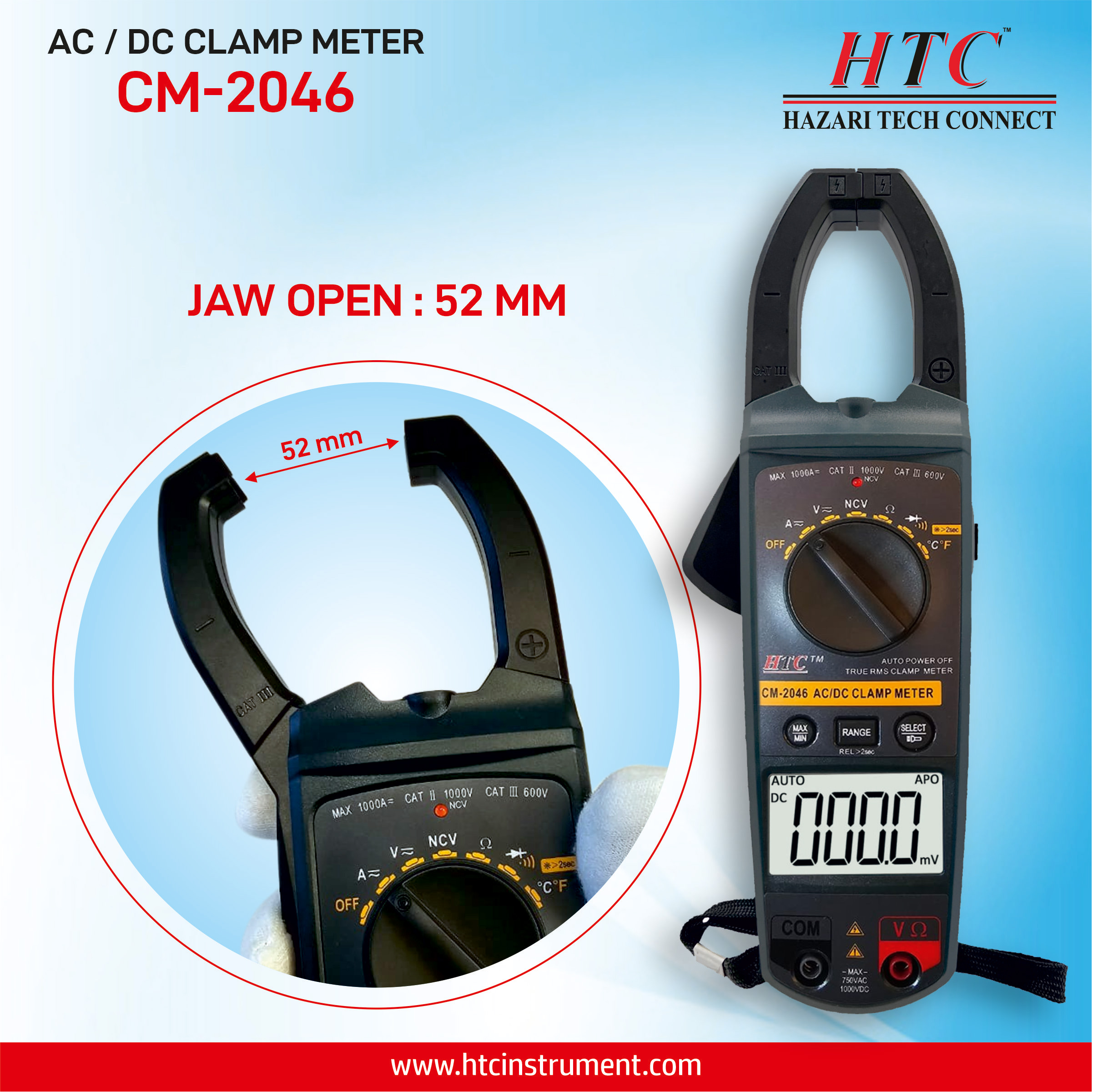

  • Jaw Open : 52 MM

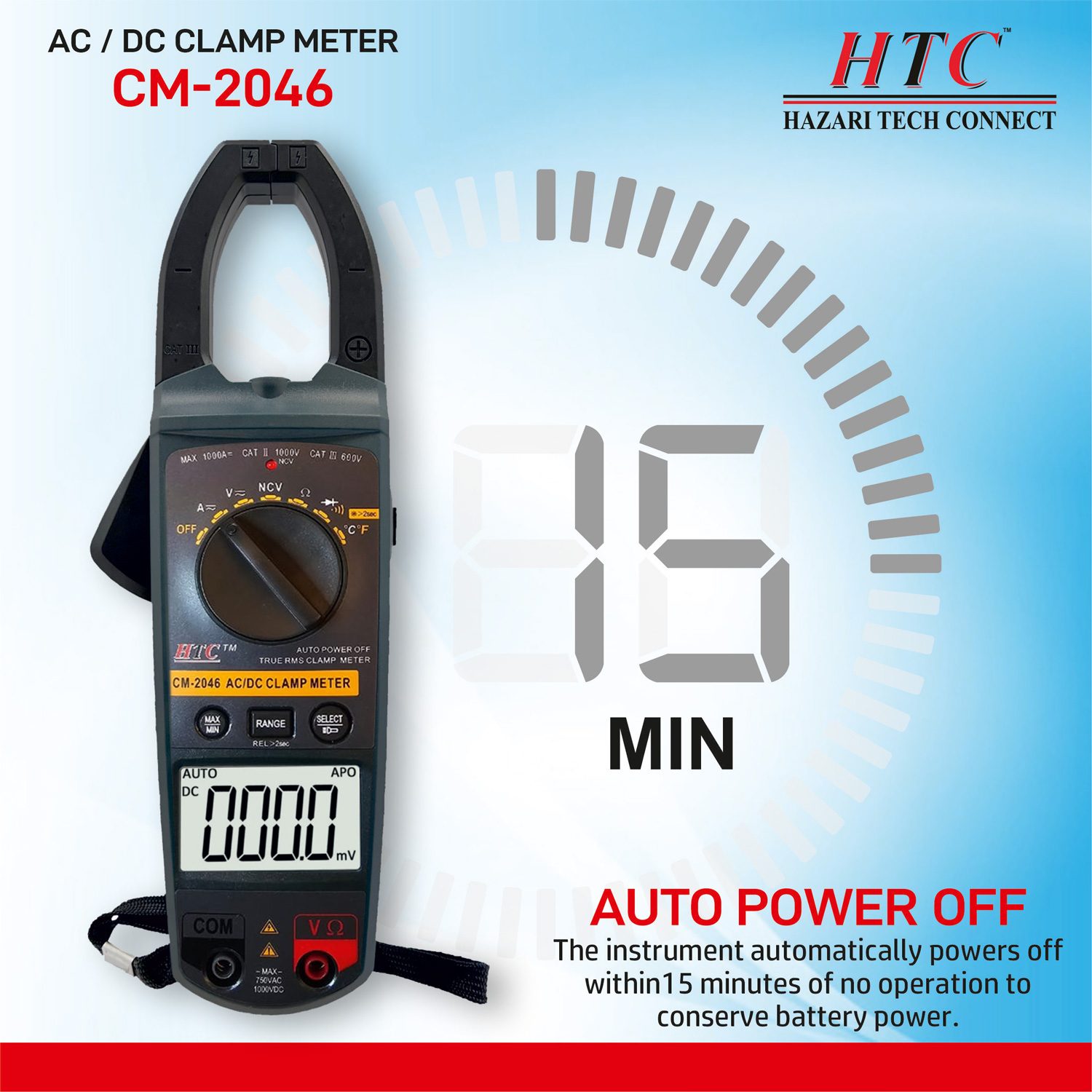

  • Auto Power Off (APO)

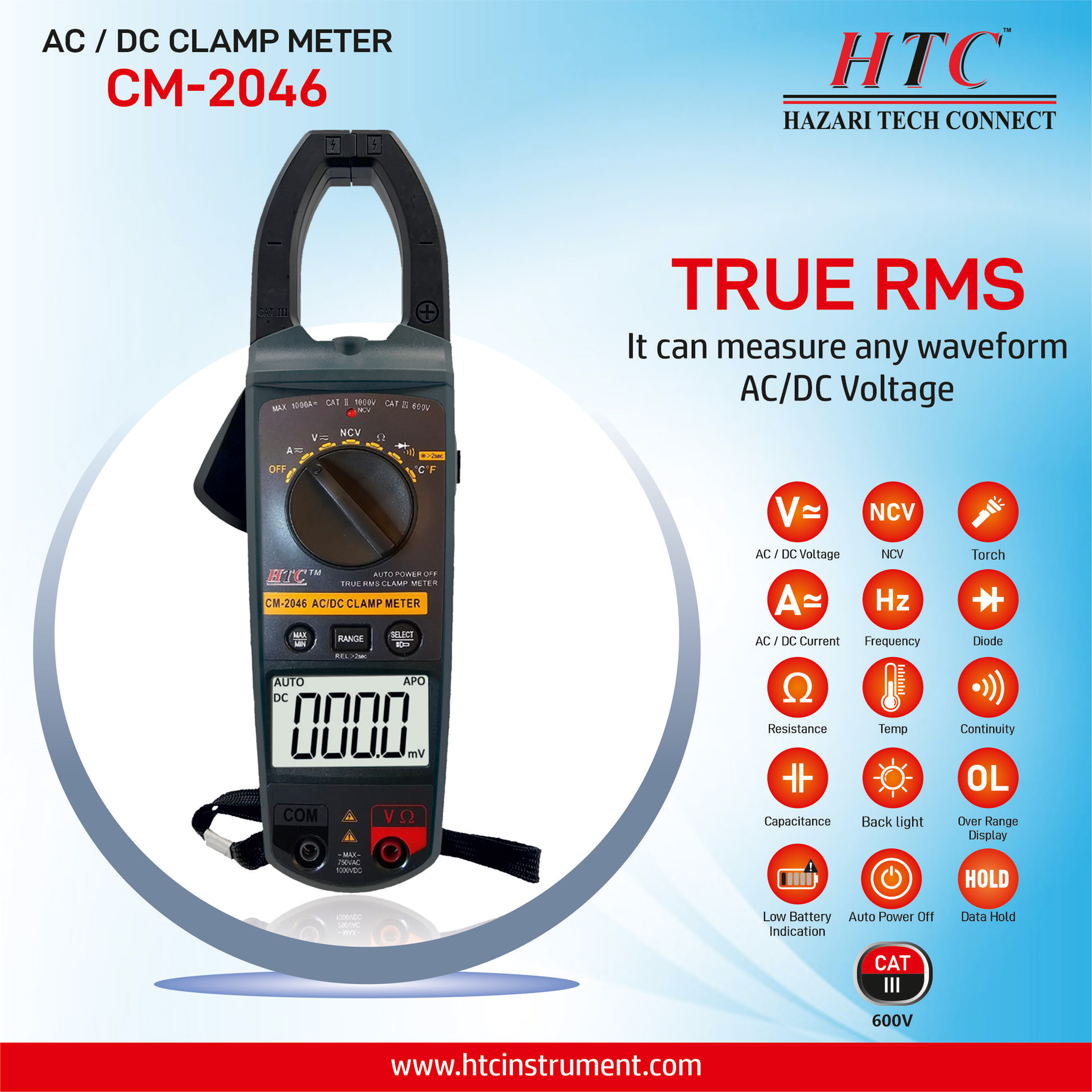

  • TRUE RMS
  • MAX / MIN RELATIVE
  • Data Hold
  • AUTO / MANUAL RANGE
  • Power : 1.5V AAA x 2
  • Dimension : H185 x W65 x D32 mm
  • Weight : Approx. 200 g

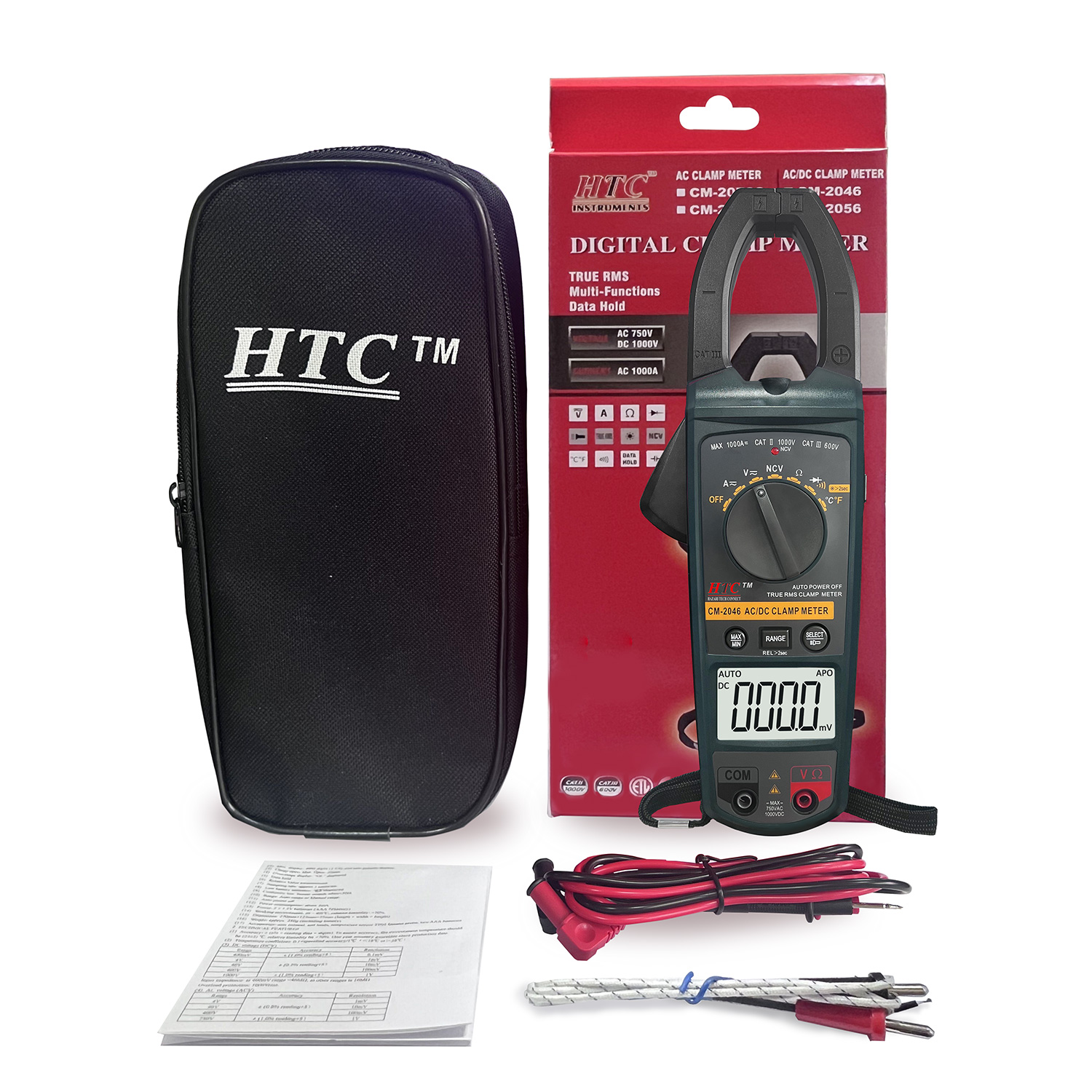

What's in the box?

  • Test leads
  • Manual
  • TP04 Thermocouple
  • Carrying Bag
  • Battery





Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

DC VOLTAGE
RangeResolutionAccuracy
200mV 0.1mV ±1.0% of rdg ±5 digits
2V 1mV ±0.5% of rdg ±5 digits
20V  10mV
200V100mV
1000V1V±1.0% of rdg ±5 digits



AC VOLTAGE
RangeResolutionAccuracy
200mV 0.1mV ±1.5% of rdg ±5 digits
2V 1mV ±1.0% of rdg ±5 digits
20V  10m1V
200V100mV
750V1V±1.5% of rdg ±5 digits



DC CURRENT
RangeResolutionAccuracy
200V100mA±2.0% of rdg±5 digits
1000V1A



AC CURRENT (TRUE RMS)
RangeResolutionAccuracy
200V100mA ±2.0% of rdg±5 digits
1000V1A



RESISTANCE
RangeResolutionAccuracy
200Ω 0.1Ω±0.8% of rdg±5 digits
2kΩ   ±0.8% of rdg±3 digits
20kΩ  10Ω
200kΩ     100Ω
2MΩ  1kΩ
20MΩ10kΩ±1.2% of rdg±5 digits



CAPACITANCE
RangeResolutionAccuracy
400µF100mF  ±5.0% of rdg±10 digits
4mF   1µF
40mF   10µF
