HTC-CM-2018-AC|DC 800A DIGITAL CLAMP METER

HTC-CM-2018-AC|DC 800A DIGITAL CLAMP METER

HTC-CM-2018-AC|DC 800A DIGITAL CLAMP METER

(Based On 10 Reviews)

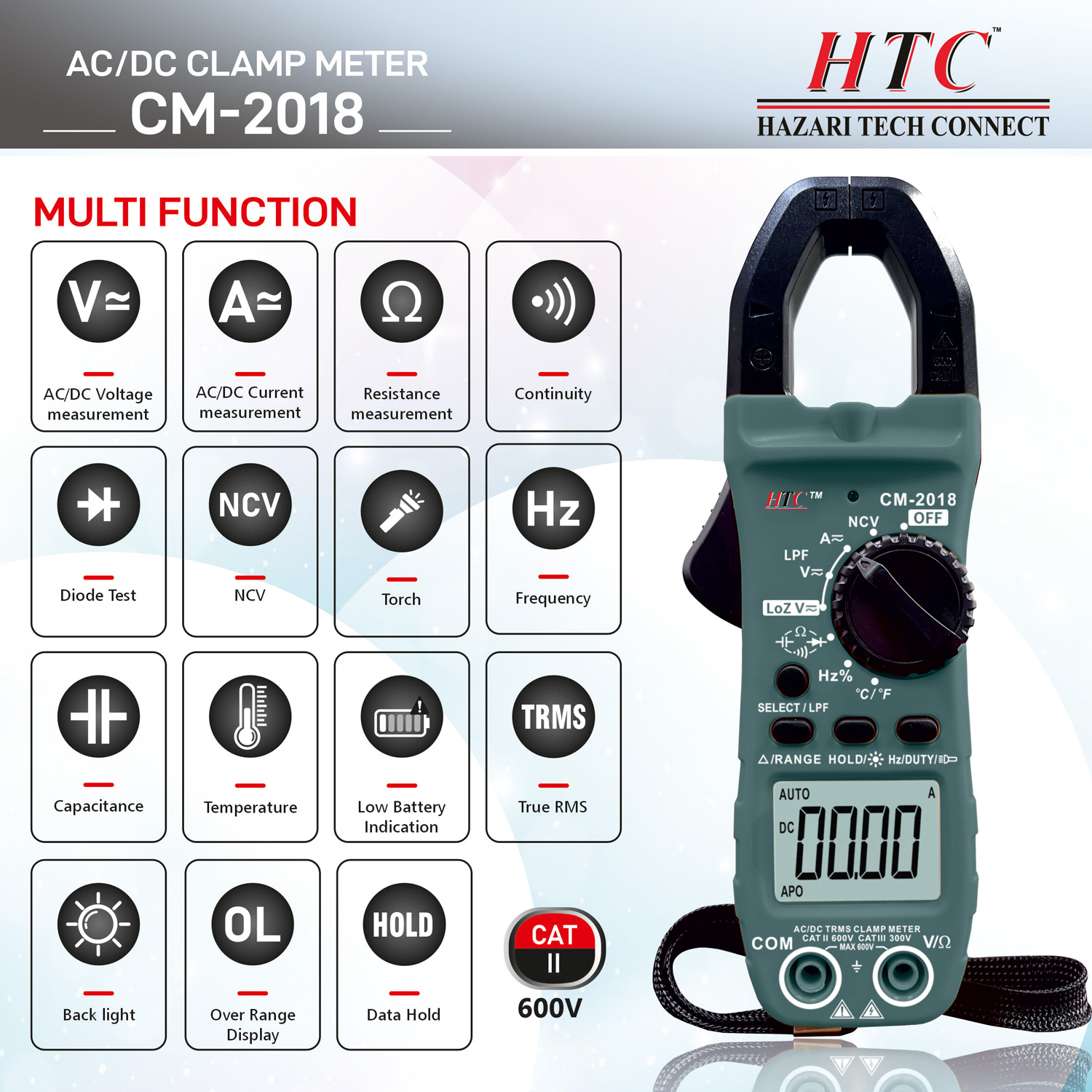

This product comes with AC / DC Voltage, AC Current, Frequency, Resistance, Capacitance.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 2,450.00

(GST inclusive price) i
  • Base Value: ₹ 2076.3
  • GST: (18) % ₹ 373.7
  • Total Value ₹ 2450

₹2,450.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

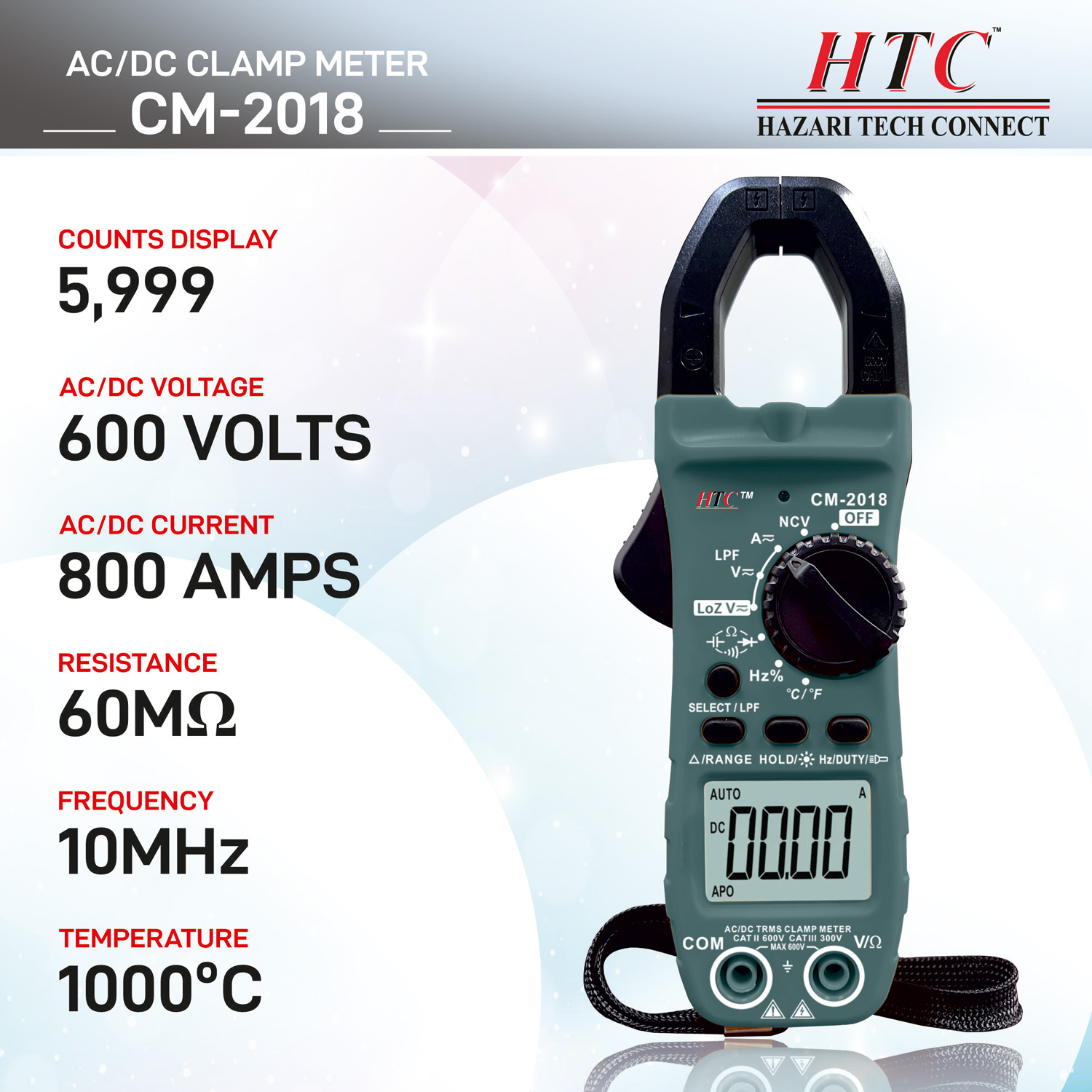

Key Features

  • 3 5/6 Digit
  • 5,999 Count
  • Jaw Open : 28MM
  • Auto Power Off (APO)
  • TRUE RMS
  • Duty Cycle  /  REL & Data Hold

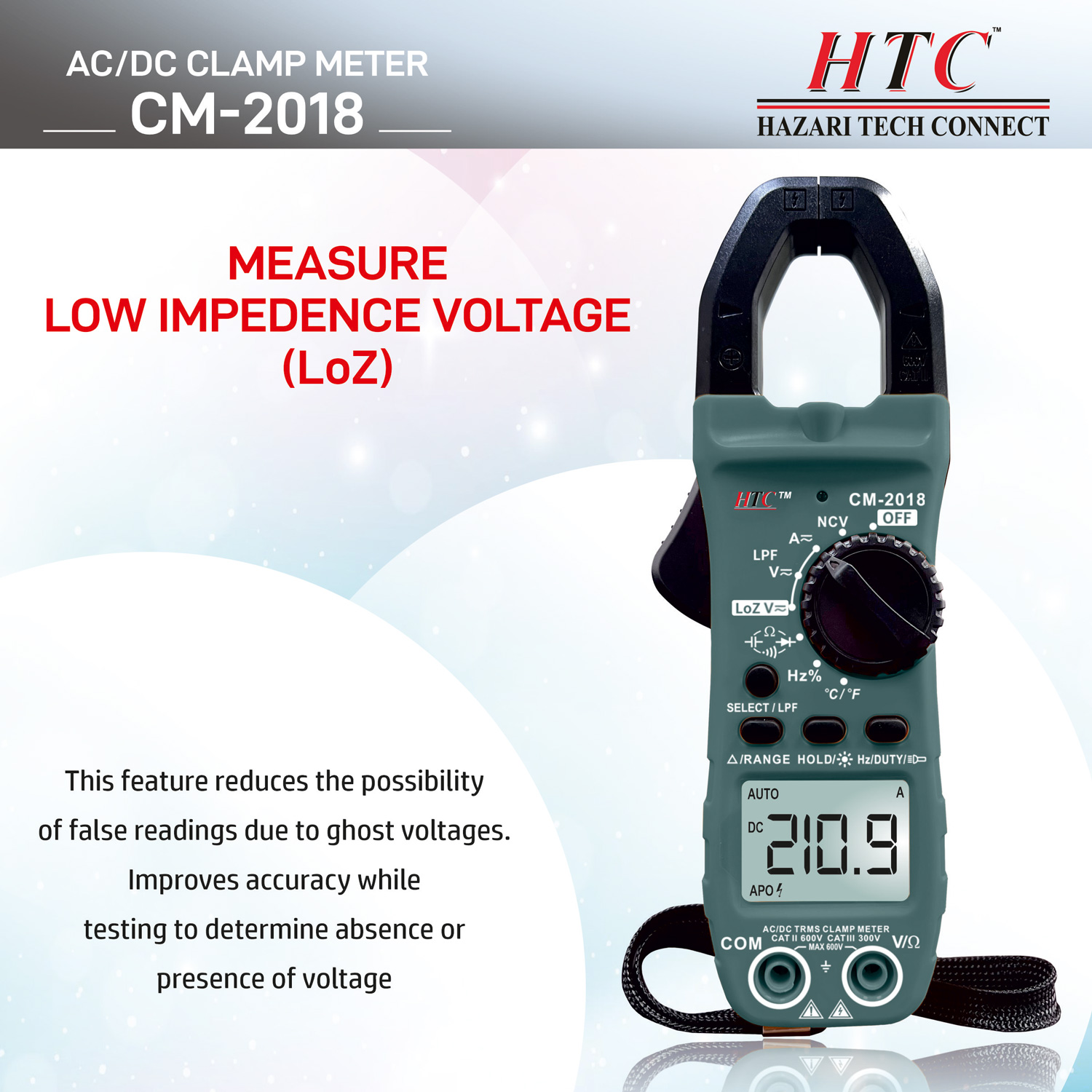

  • LPF & LoZ Voltage
  • Power : 1.5V AAA x 2

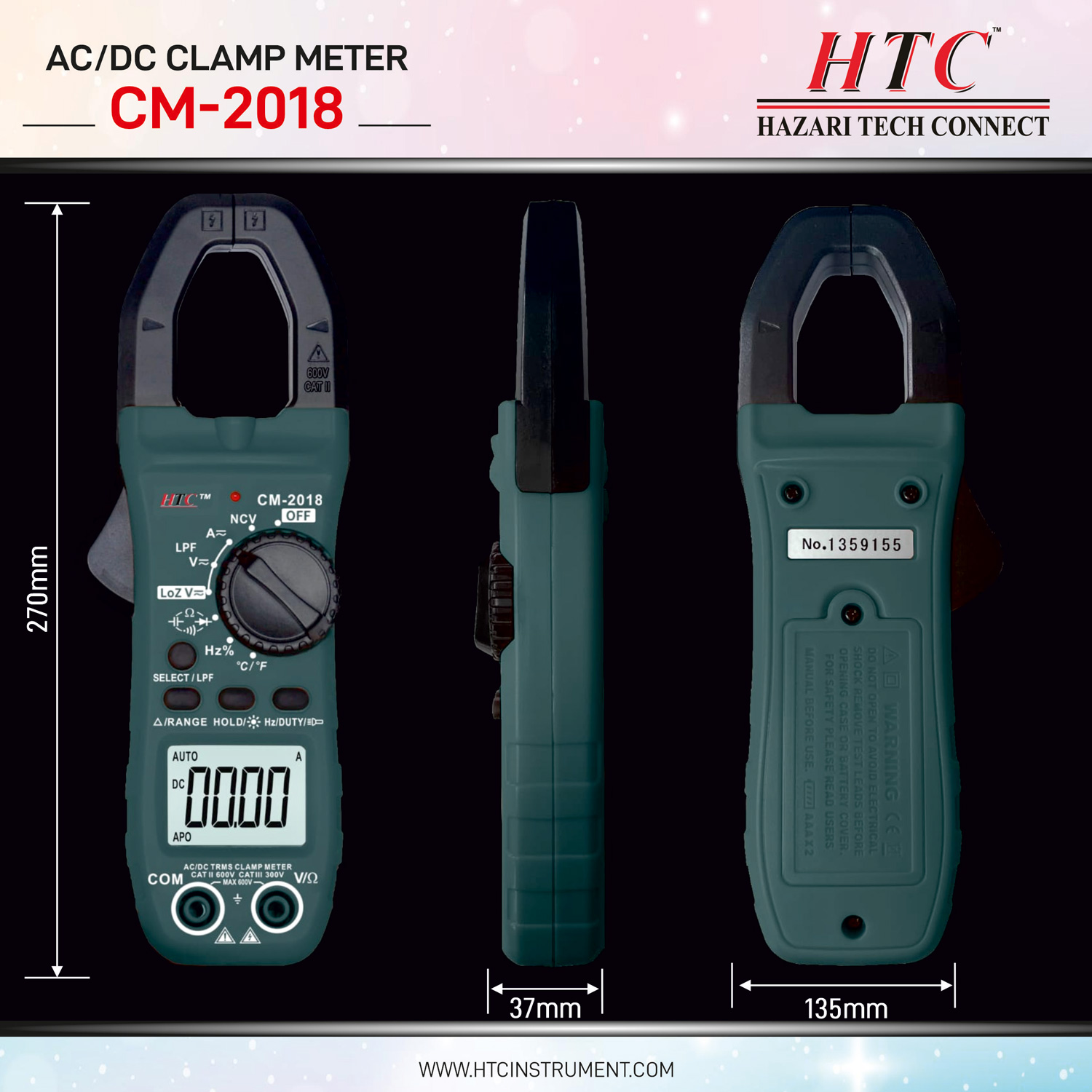

  • Dimension : H185 x W65 x D32 mm
  • Weight : Approx. 200 g

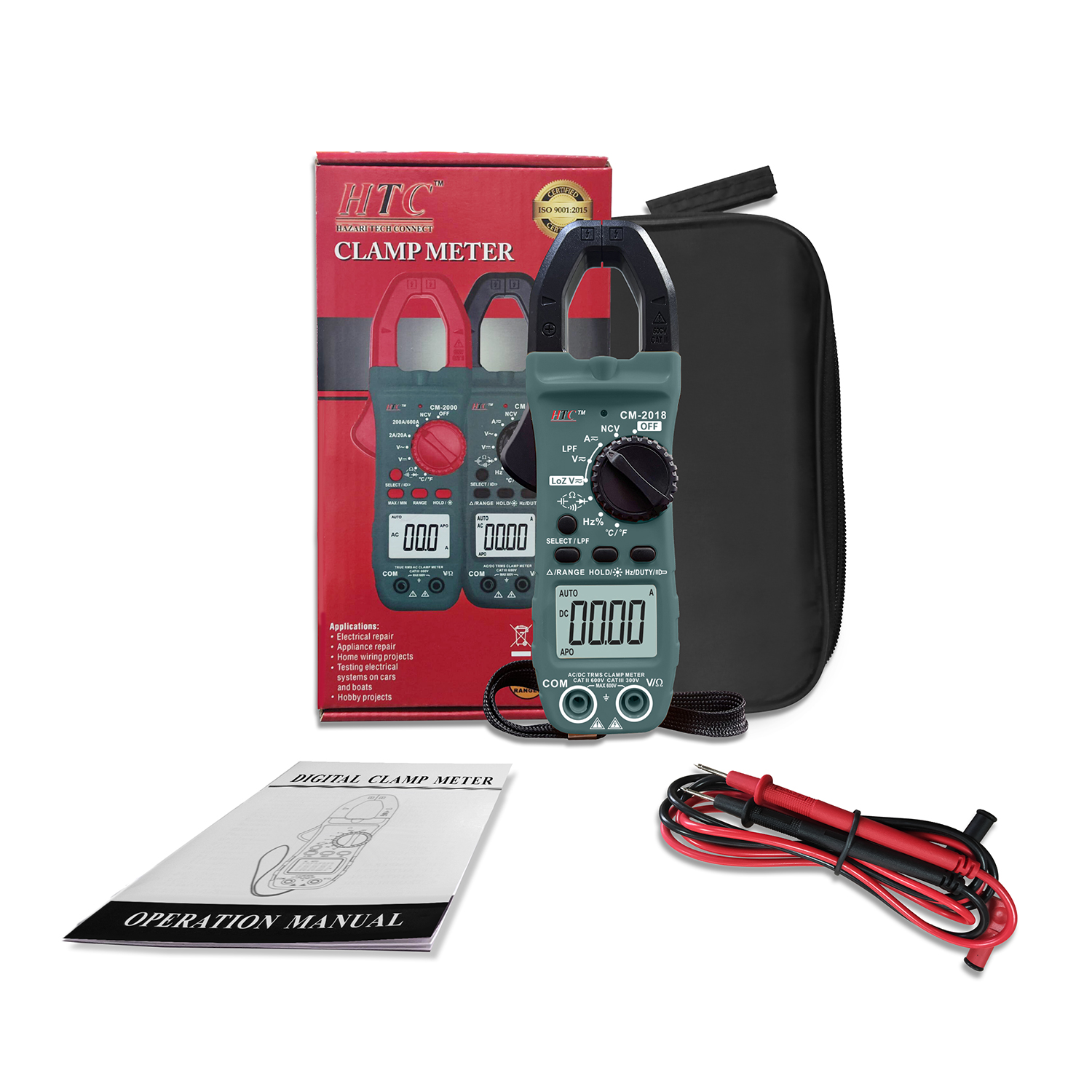

What's in the box?

  • Test leads
  • Manual
  • TP04 Thermocouple
  • Carrying Bag
  • Battery

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

DC VOLTAGE
RangeResolutionAccuracy
600mV0.1mV±1.0% of rdg ±5 digits
6V0.001V±0.5% of rdg ±5 digits
60V0.01V
600V0.1V
LoZ 0V-600V0.1V±2.0% of rdg ±10 digits



AC VOLTAGE
RangeResolutionAccuracy
6V0.001V±0.8% of rdg ±5 digits
60V0.01V
600V0.1V
LPF 0V-600V0.1V±4.0% of rdg ±5 digits
LoZ 0V-600V0.1V±2.0% of rdg ±10 digits



DC CURRENT
RangeResolutionAccuracy
60A 10mA ±1.5% of rdg±5 digits
600A 100mA
800A1A



AC CURRENT (TRUE RMS)
RangeResolutionAccuracy
60A 10mA ±1.5% of rdg±5 digits
600A 100mA
800A1A



RESISTANCE
RangeResolutionAccuracy
600Ω 0.1Ω  ±0.8% of rdg±5 digits
6kΩ  ±0.8% of rdg±1 digits
60kΩ 10Ω
600kΩ  100Ω
6MΩ  1kΩ
60MΩ10kΩ±1.0% of rdg±5 digits





FREQUENCY/DUTY
RangeResolutionAccuracy
10Hz~10MHz 0.001 Hz~1kHz ±0.5% of rdg±4 digits





CAPACITANCE
RangeResolutionAccuracy
6nF 1pF  ±5.0% of rdg±10 digits
60nF   10pF
600nF   100pF   ±2.5% of rdg±5 digits
6µF   1nF
60µF 10nF
600µF 100nF ±5.0% of rdg±10 digits
6mF  1µF
60mF10µF



TEMPERATURE
RangeResolutionAccuracy
-40~1000ºC1ºC<400ºC±(1.0% +5) digit
>400ºC±(1.5% +15) digit
0~1832ºF1ºF<750ºF±(1.0% +5) digit
>750ºF±(1.5% +15) digit
