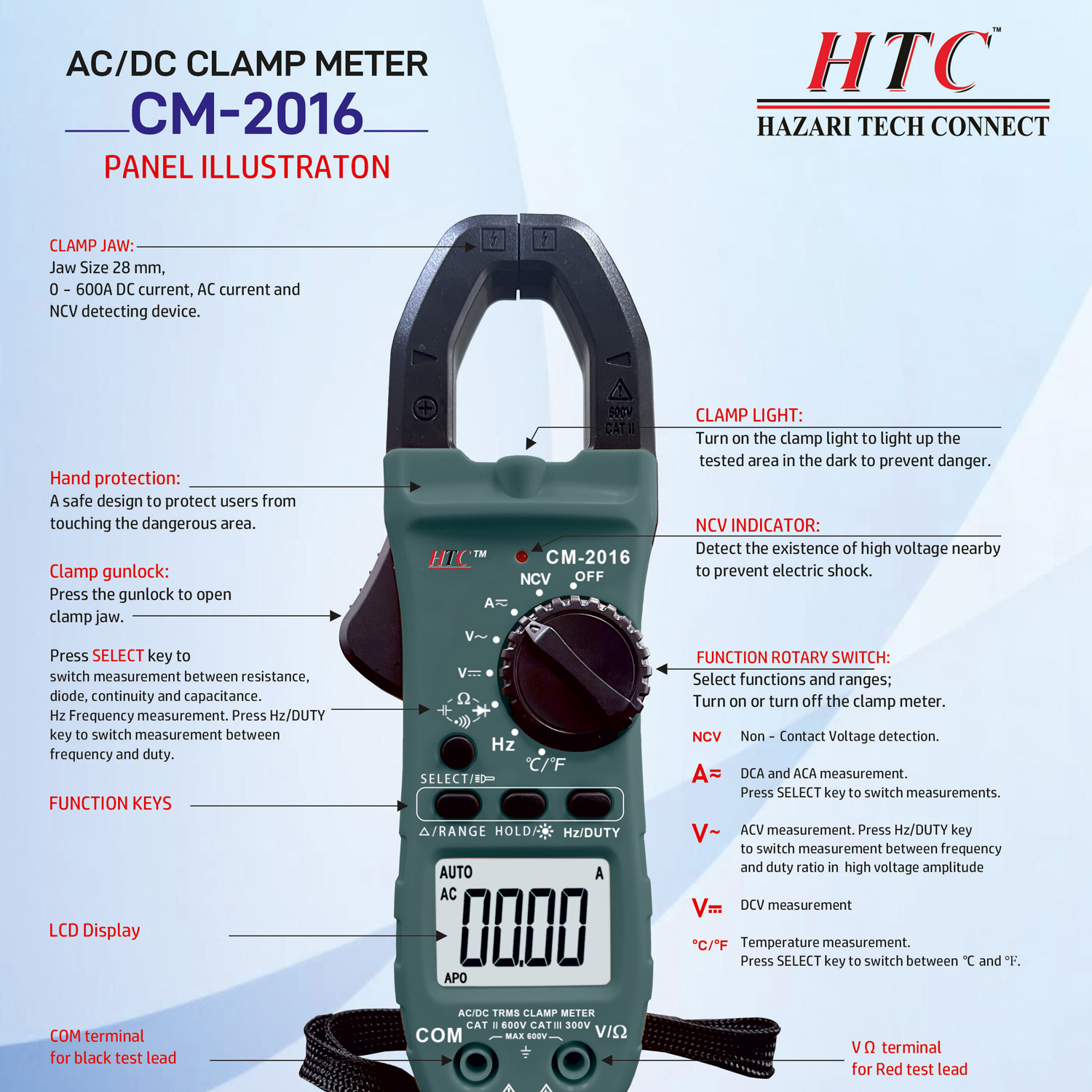

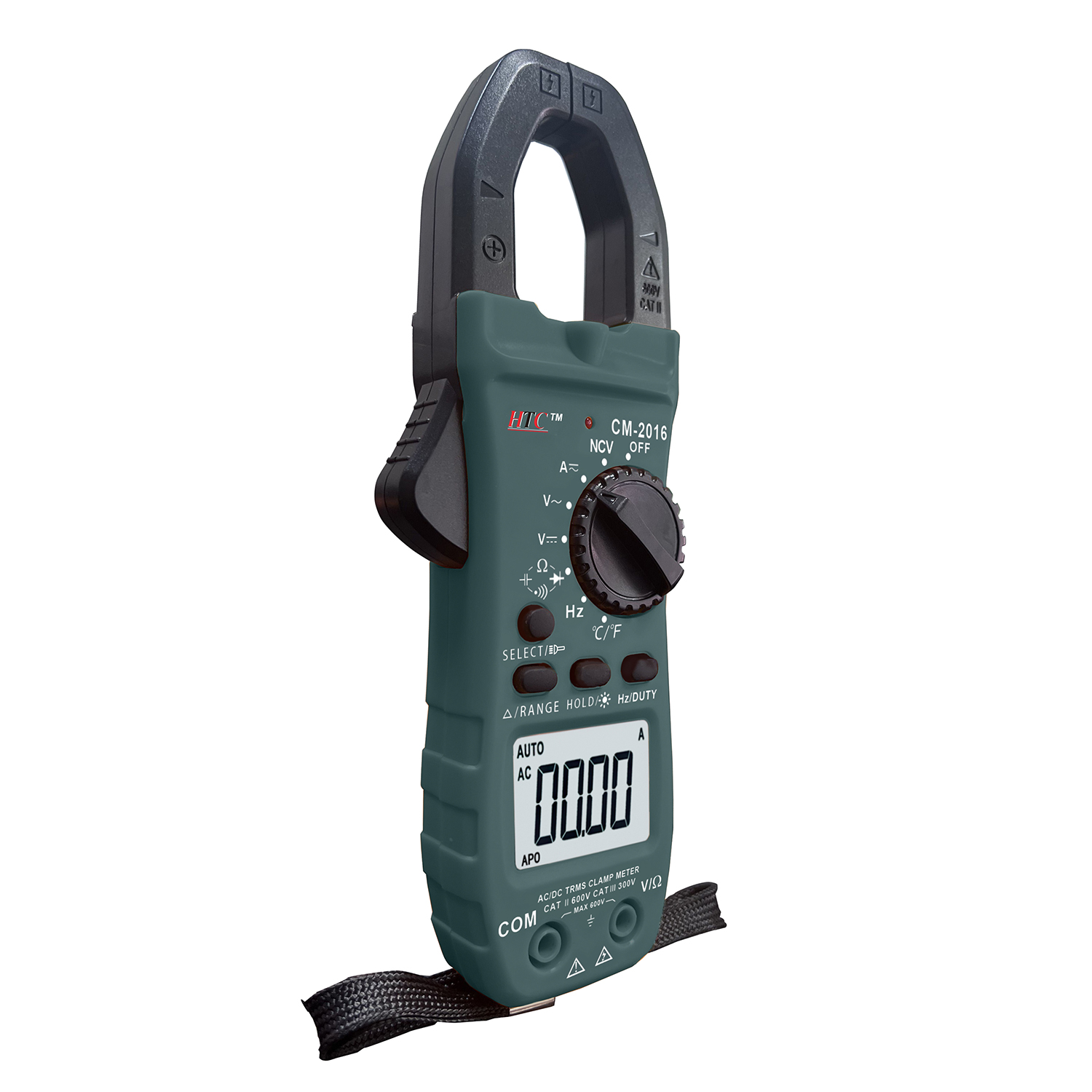

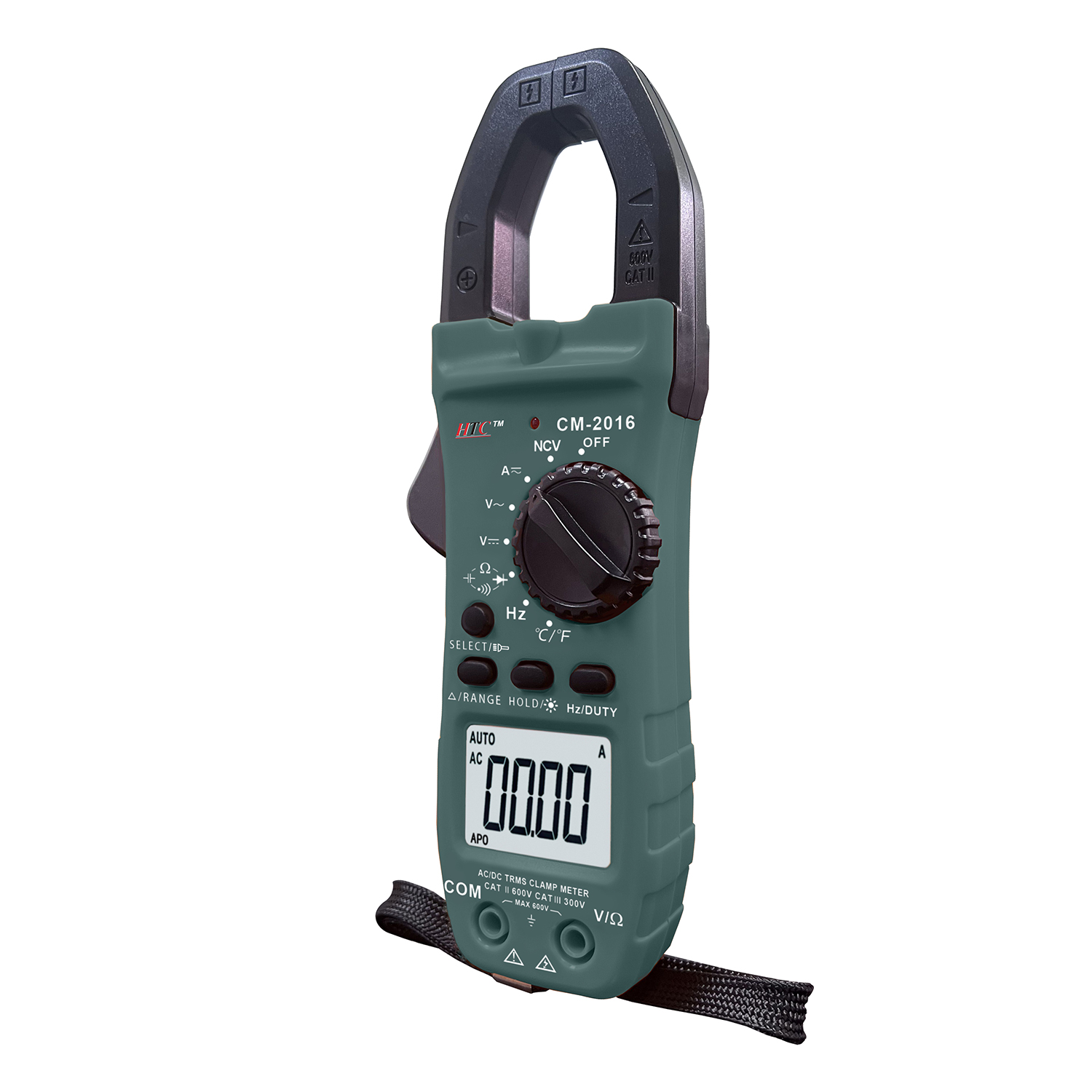

HTC-CM-2016-AC| DC 800A DIGITAL CLAMP METER
Click To Zoom
HTC-CM-2016-AC| DC 800A DIGITAL CLAMP METER
HTC-CM-2016-AC| DC 800A DIGITAL CLAMP METER

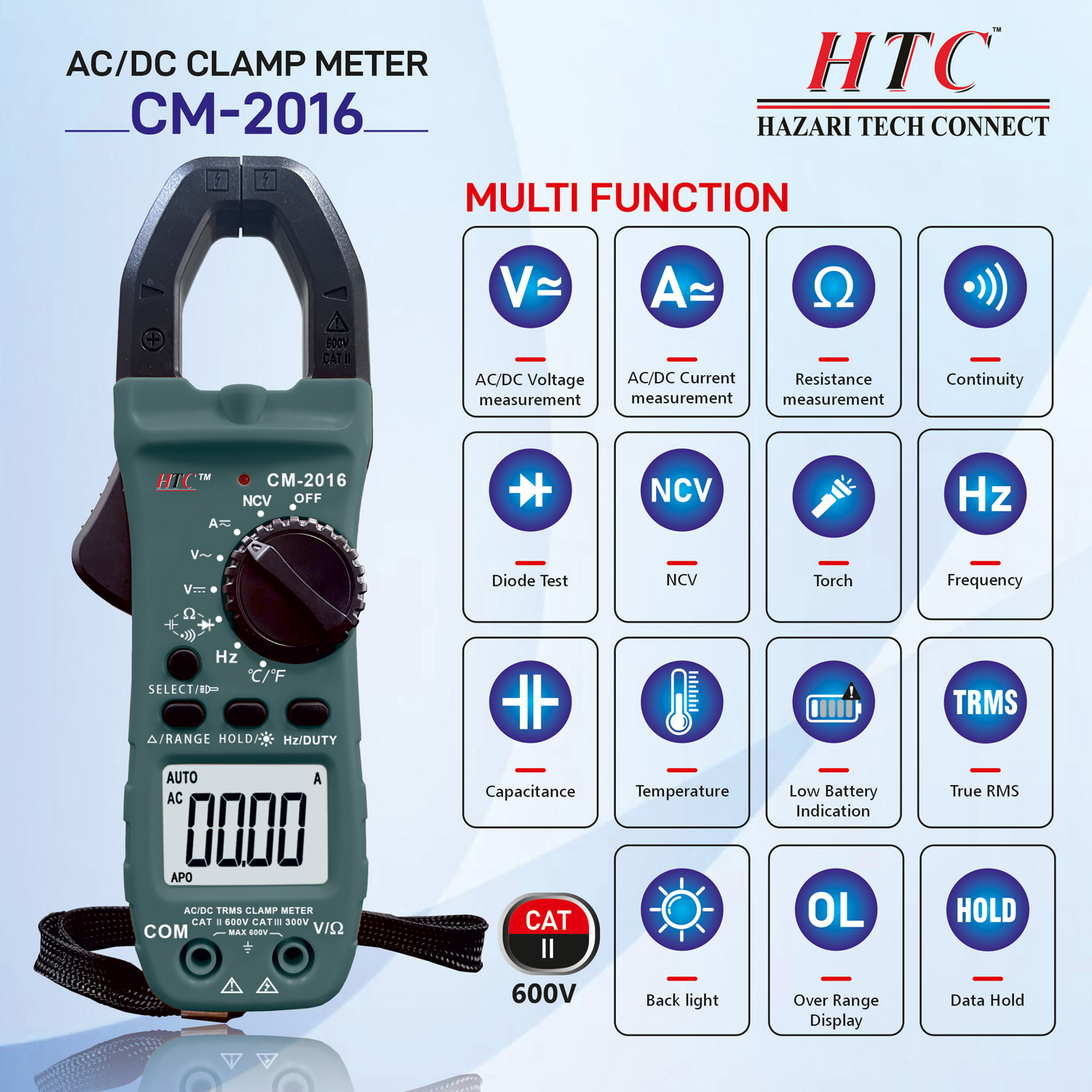

This product comes with AC / DC Voltage, AC Current, Resistance, Capacitance, Over Range Display.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 2,563
(GST inclusive price) i-
Base Value: ₹ 2172
-
GST: (18) % ₹ 391
-
Total Value ₹ 2563
₹3,349.00
( - 23% OFF )
Description

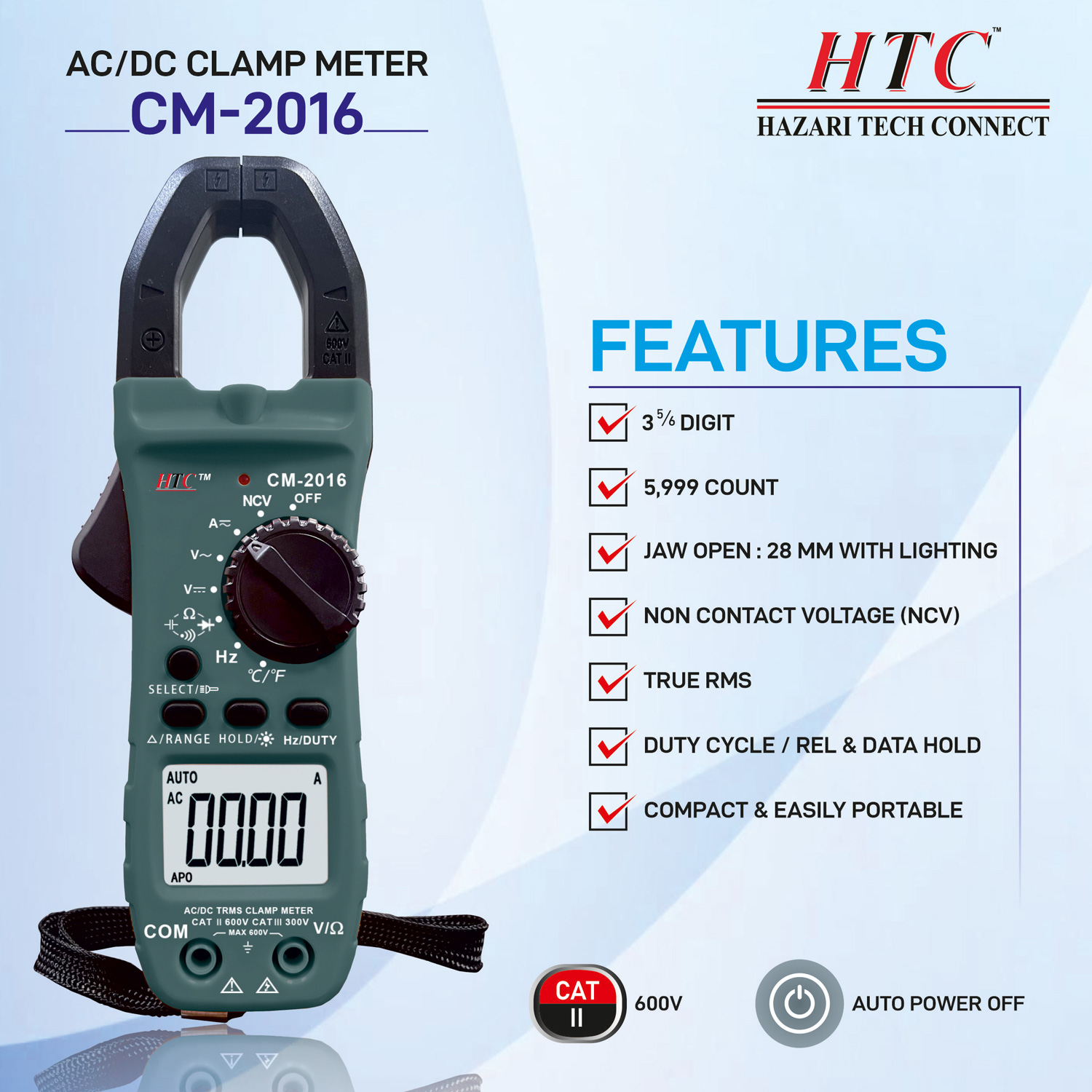

Key Features
- 3 5/6 Digit
- 5,999 Count
- Jaw Open : 28MM with lighting
- Auto Power Off (APO)
- Non Contact Voltage (NCV)
- TRUE RMS
- Duty Cycle / REL & Data Hold

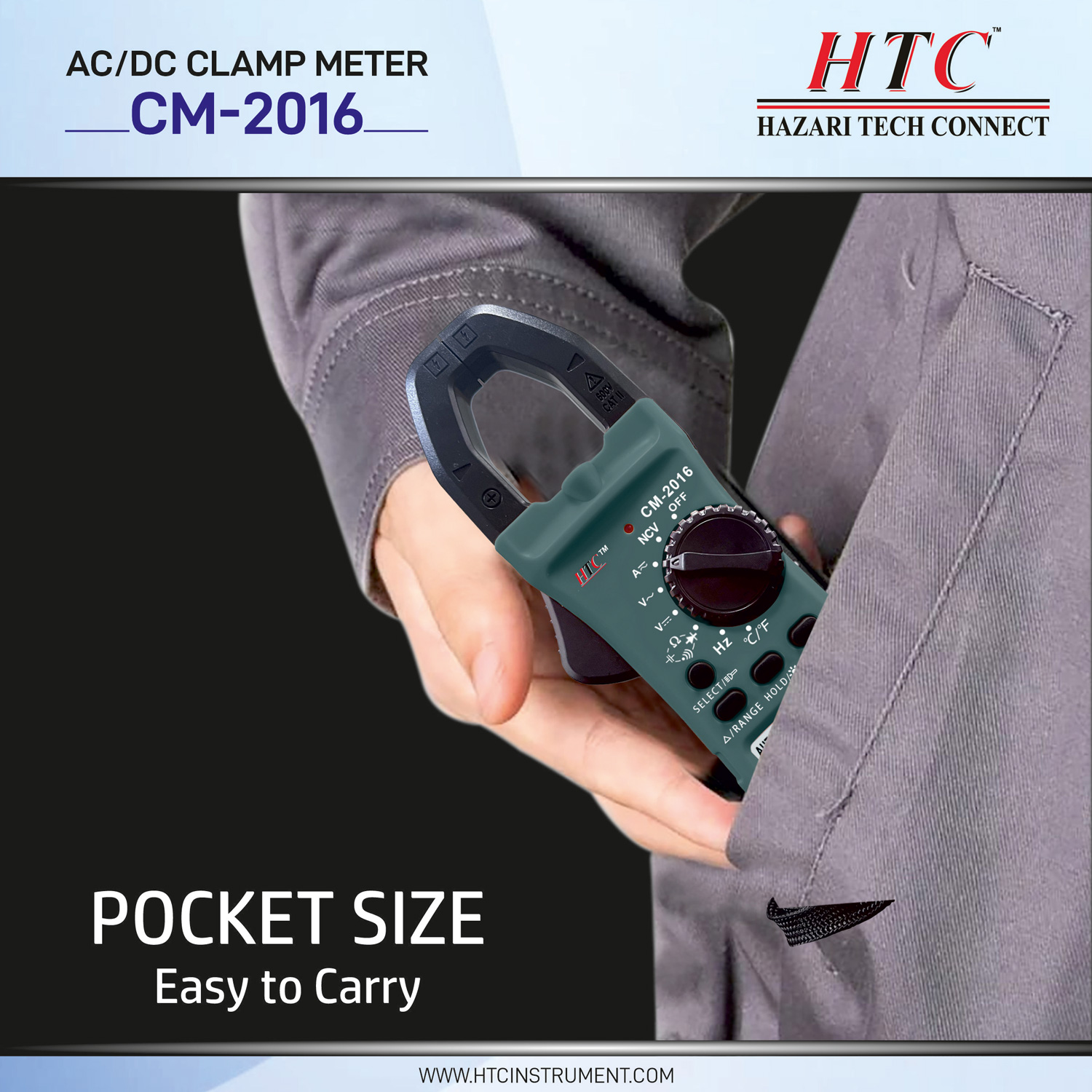

- Compact & Easily Portable
- Power : 1.5V AAA x 2
- Dimension : H270 x W123 x D35 mm
- Weight : Approx. 280 g

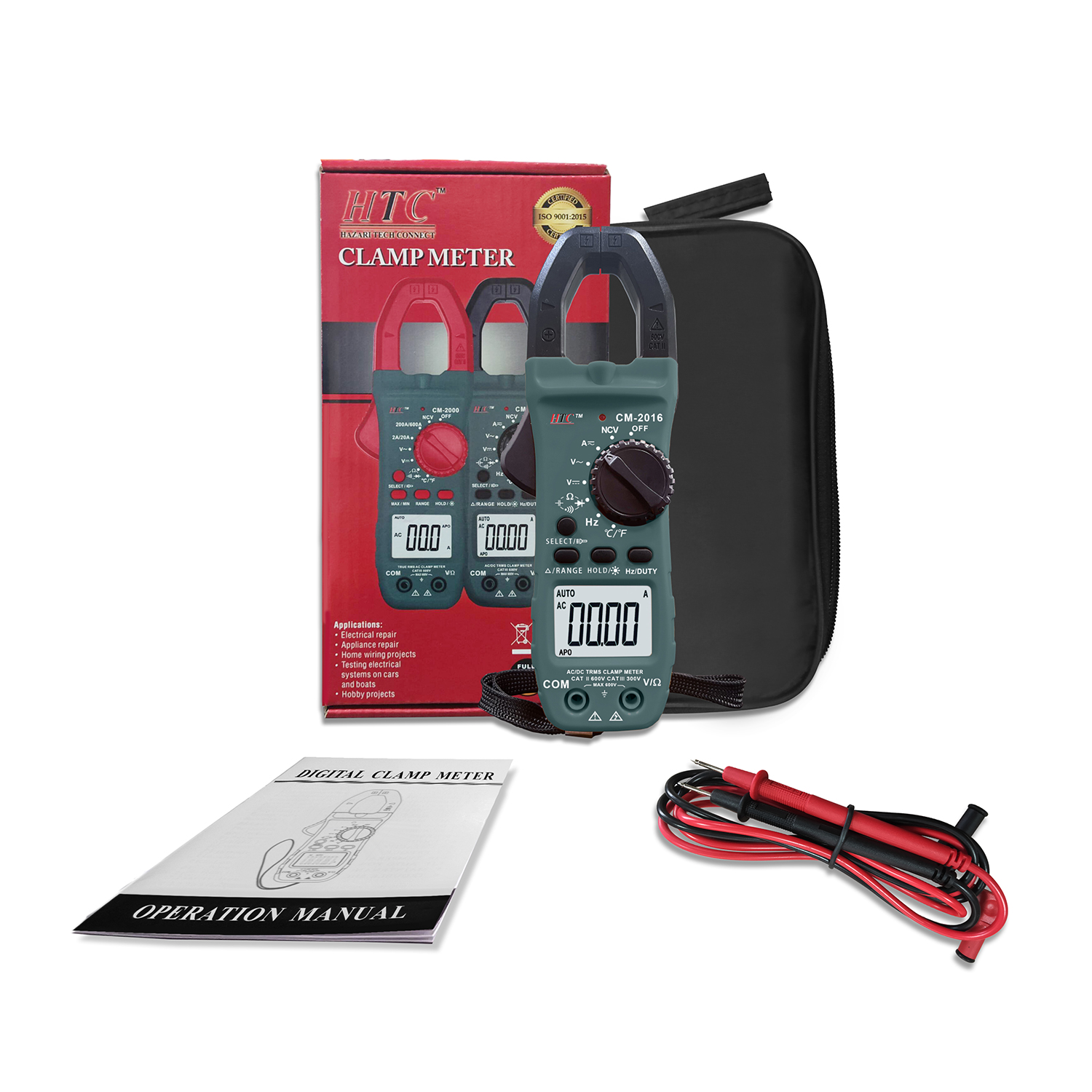

What's in the box?
|
Rating & Reviews
Rating
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600mV | 0.1mV | ±1.0% of rdg ±5 digits |
| 6V | 0.001V | ±0.5% of rdg ±5 digits |
| 60V | 0.01V | |
| 600V | 0.1V | |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 6V | 1mV | ±0.8% of rdg ±5 digits |
| 60V | 10mV | |
| 600V | 100mV | |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 60A | 0.01A | ±1.5% of rdg ±5 digits |
| 600A | 0.1A | |
| 800A | 1A | |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 60A | 0.01A | ±1.5% of rdg ±5 digits |
| 600A | 0.1A | |
| 800A | 1A | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 600Ω | 0.1Ω | ±0.8% of rdg±5 digits |
| 6kΩ | 1Ω | ±0.8% of rdg±1 digits |
| 60kΩ | 10Ω | |
| 600kΩ | 100Ω | |
| 6MΩ | 1kΩ | |
| 60MΩ | 10kΩ | ±1.0% of rdg±25 digits |
| FREQUENCY/DUTY | ||
| Range | Resolution | Accuracy |
| 10Hz | 0.01 Hz | ±0.5% of rdg±4 digits |
| 100Hz | 0.1Hz | |
| 1kHz | 1Hz | |
| 10kHz | 10Hz | |
| 100kHz | 100Hz | |
| 1MHz | 1kHz | |
| 20MHz | 10kHz | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 6nF | 1pF | ±5.0% of rdg±10 digits |
| 60nF | 10pF | ±2.5% of rdg±5 digits |
| 600nF | 100pF | |
| 6µF | 1nF | |
| 60µF | 10nF | |
| 600µF | 100nF | ±5.0% of rdg±10 digits |
| 6mF | 1µF | |
| 60mF | 10µF | |
| TEMPERATURE | ||
| Range | Resolution | Accuracy |
| -40~1000ºC | 1ºC | <400ºC±(1.0% +5) digit >400ºC±(1.5% +15) digit |
| 0~1832ºF | 1ºF | <750ºF±(1.0% +5) digit >750ºF±(1.5% +15) digit |
