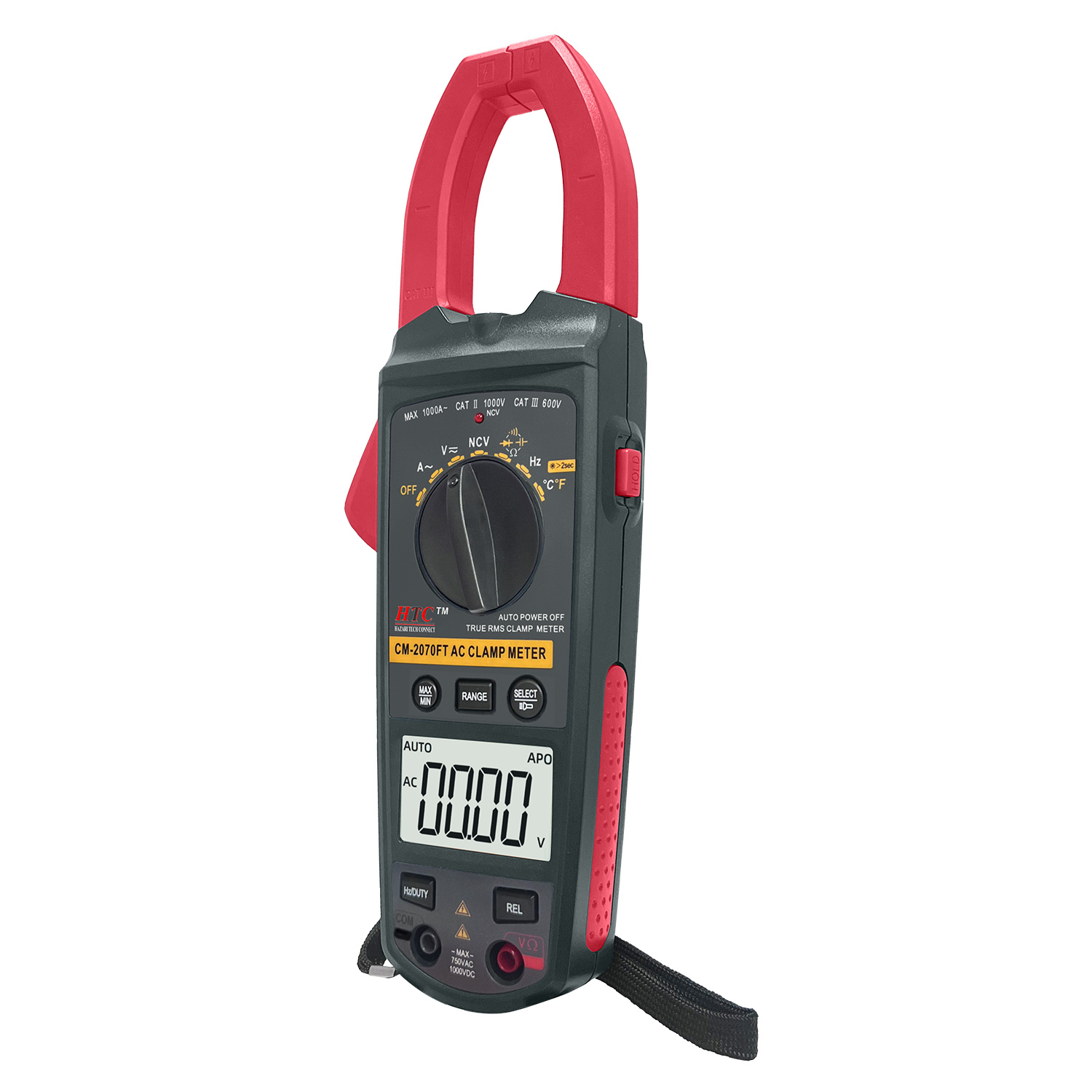

HTC-CM-2070-DIGITAL AC CLAMP METER
HTC-CM-2070-DIGITAL AC CLAMP METER
(Based On 10 Reviews)

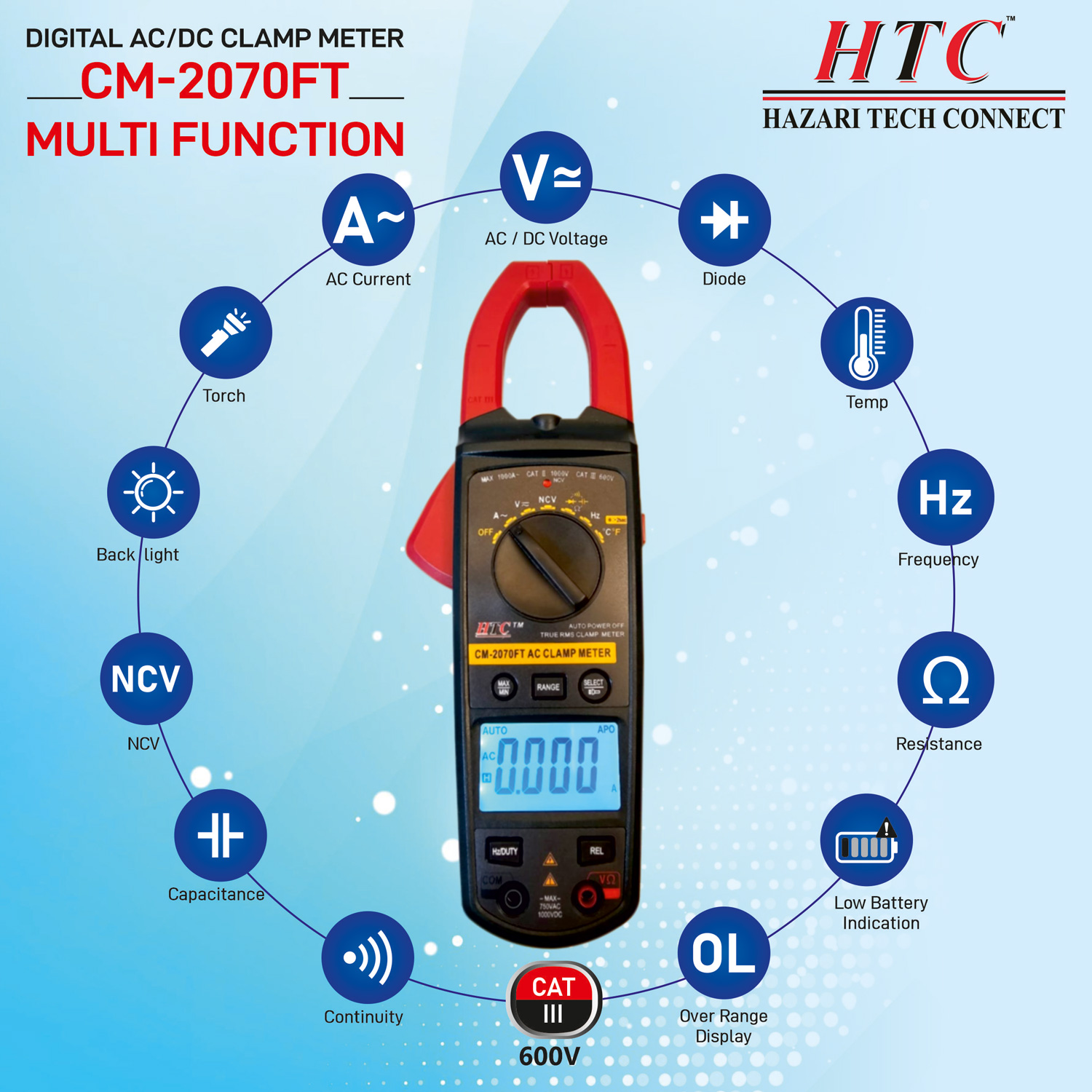

This product comes with AC / DC Voltage, AC Current, Frequency, Over Range Display.
Request Callback
Order In Bulk
Generate Quote
₹ 1,810.00
(GST inclusive price) i₹1,810.00
( - 0% OFF )
Description

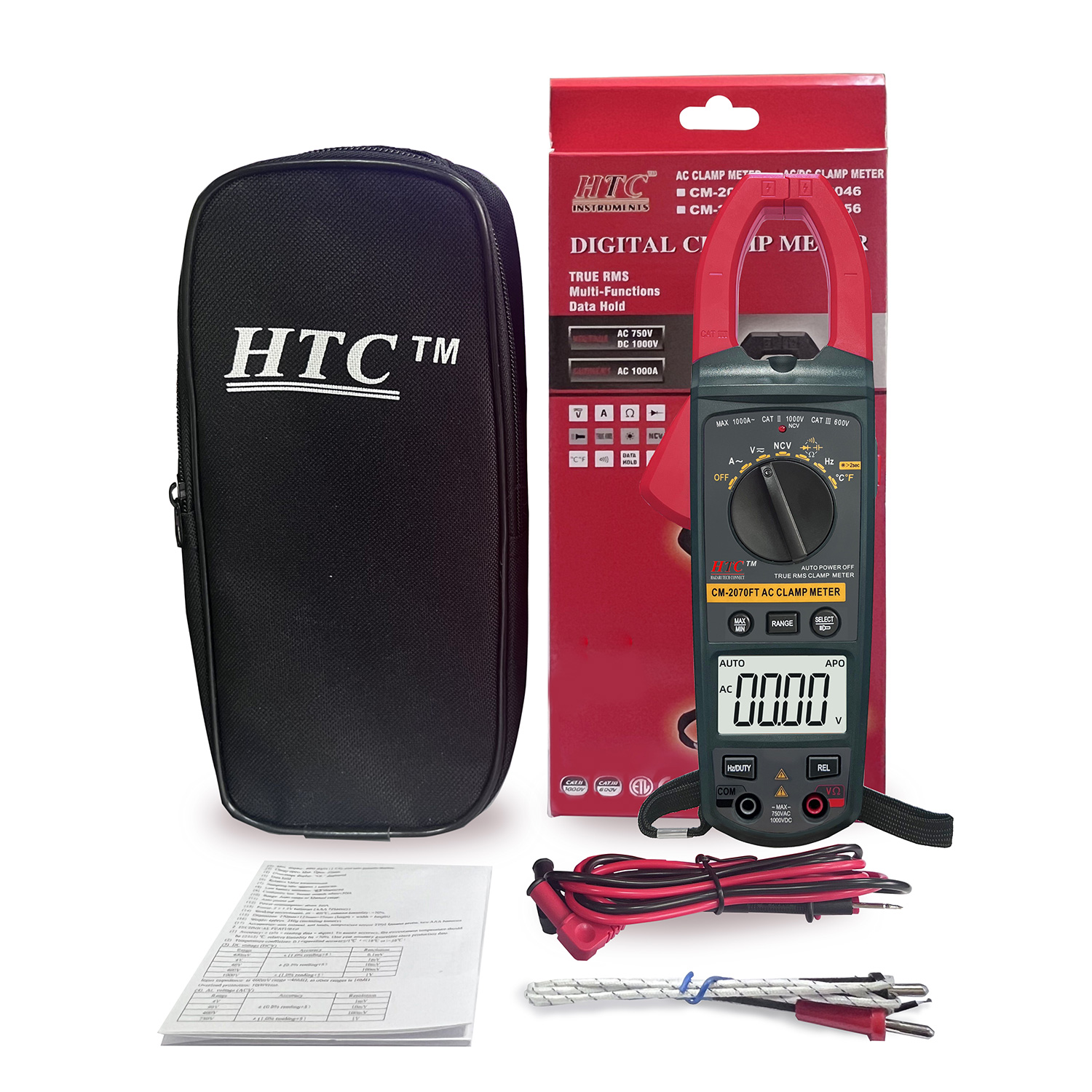

What's in the box?
|
Rating & Reviews
Rating
DC VOLTAGE | ||
Range | Resolution | Accuracy |
400mV | 0.1mV | ±1.0% of rdg ±5 digits |
4V | 1mV | ±0.5% of rdg ±5 digits |
40V | 10mV | |
400V | 100mV | |
1000V | 1V | ±1.0% of rdg ±5 digits |
AC VOLTAGE | ||
Range | Resolution | Accuracy |
4V | 1mV | ±0.8% of rdg ±5 digits |
40V | 10mV | |
400V | 100mV | |
750V | 1V | ±1.0% of rdg ±5 digits |
AC CURRENT | ||
Range | Resolution | Accuracy |
4A | 1mA | ±1.5% of rdg±5 digits |
40A | 10mA | |
400A | 100mA | |
1000A | 1A |
RESISTANCE | ||
Range | Resolution | Accuracy |
400Ω | 0.1Ω | ±0.8% of rdg±5 digits |
4kΩ | 1Ω | ±0.8% of rdg±1 digits |
40kΩ | 10Ω | |
400kΩ | 100Ω | |
4MΩ | 1kΩ | |
40MΩ | 10kΩ | ±1.0% of rdg±5 digits |
CAPACITANCE | ||
Range | Resolution | Accuracy |
4nF | 1pF | ±5.0% of rdg±10 digits |
40nF | 10pF | ±2.5% of rdg±5 digits |
400nF | 100pF | |
4µF | 1nF | |
40µF | 10nF | |
400µF | 100nF | ±5.0% of rdg±10 digits |
4mF | 1µF | |
40mF | 10µF |

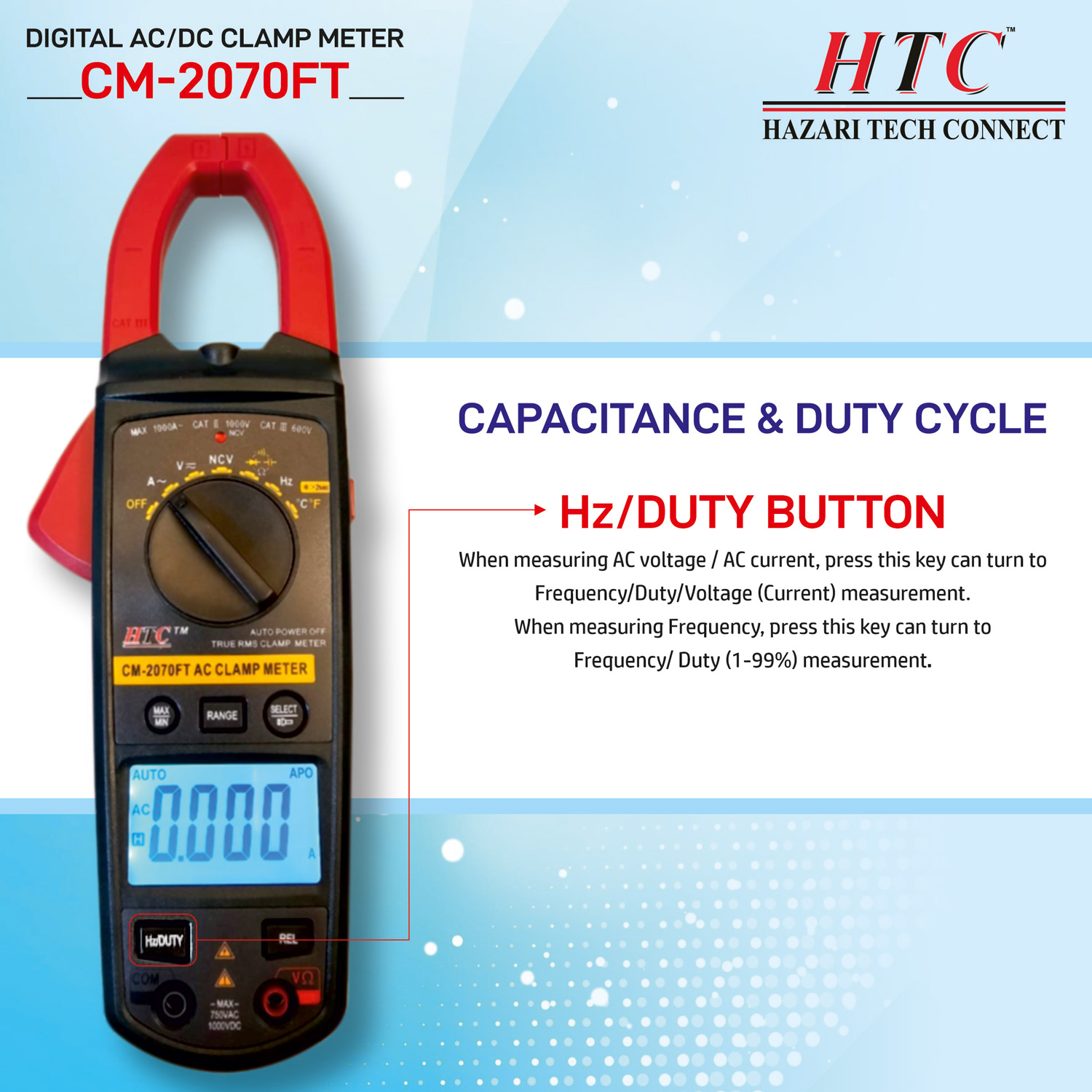

FREQUENCY/DUTY | ||
Range | Resolution | Accuracy |
10Hz | 0.01 Hz | ±0.5% of rdg±4 digits |
100Hz | 0.1Hz | |
1kHz | 1Hz | |
10kHz | 10Hz | |
100kHz | 100Hz | |
1MHz | 1kHz | |
10MHz | 10kHz |

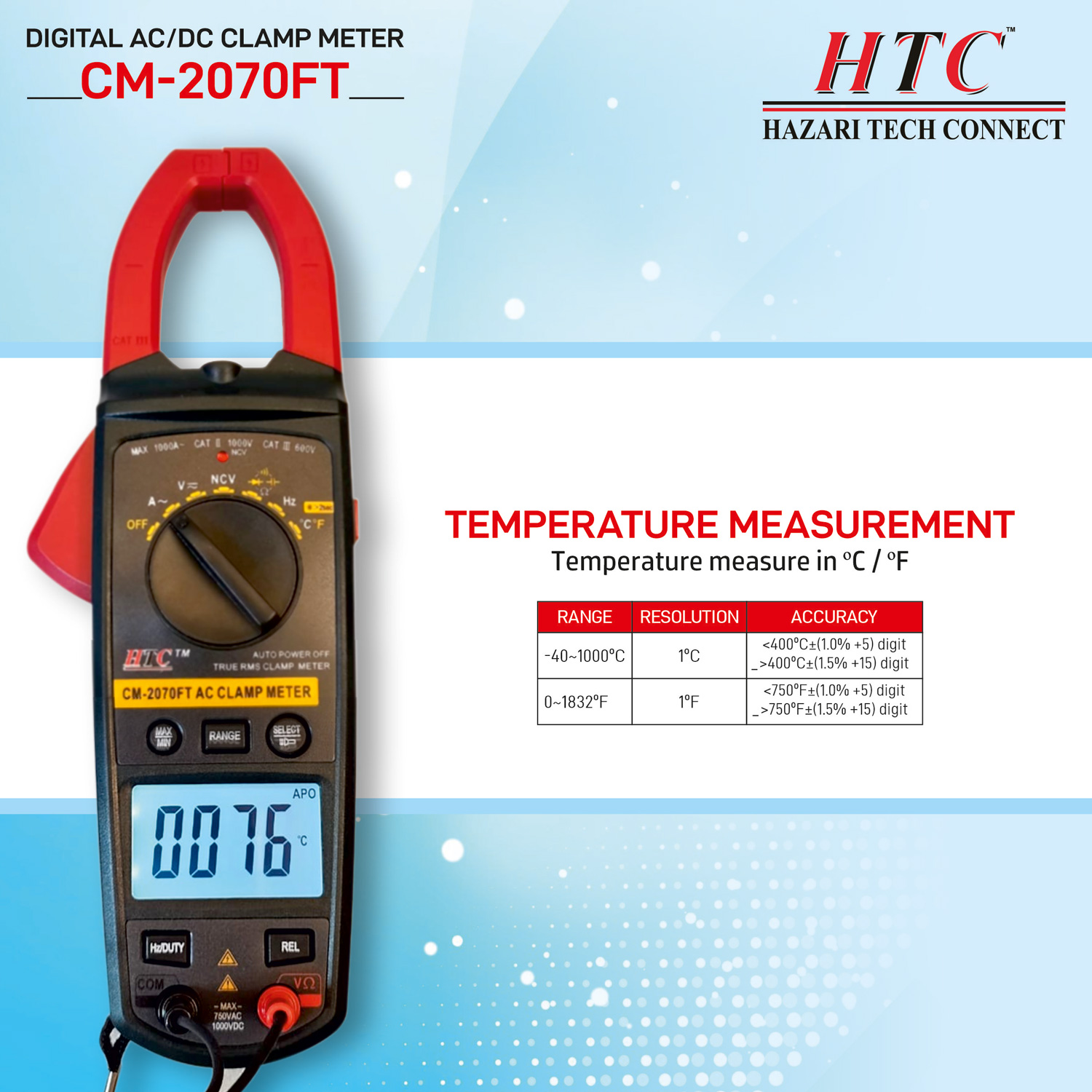

TEMPERATURE | ||
Range | Resolution | Accuracy |
-40ºC~1000ºC | 1ºC | <400ºC±(1.0% +5) digit >400ºC±(1.5% +15) digit |
0ºF~1832ºF | 1ºF | <750ºF±(1.0% +5) digit >750ºF±(1.5% +15) digit |
