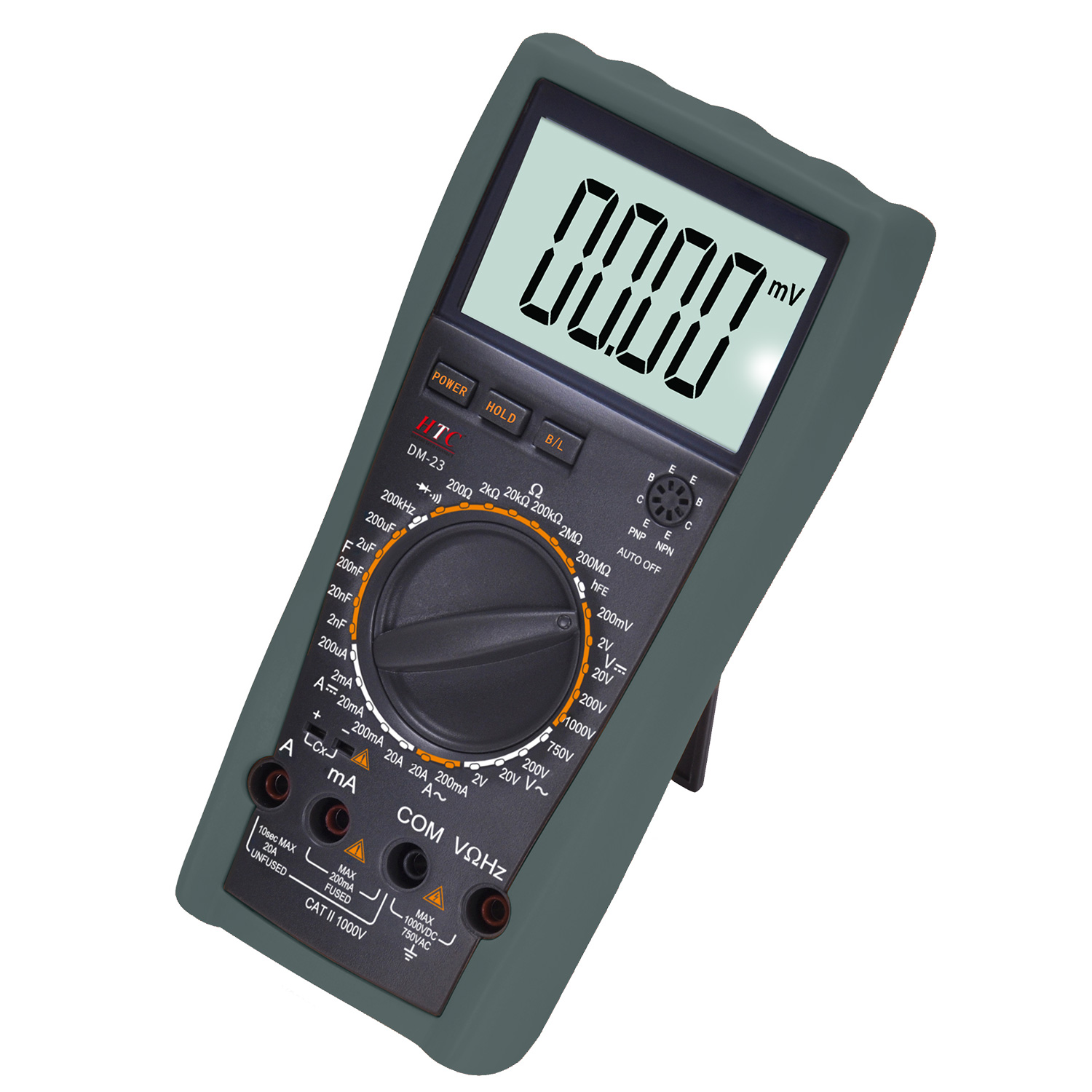

HTC-DM-23-DIGITAL MULTIMETER
Click To Zoom
HTC-DM-23-DIGITAL MULTIMETER
HTC-DM-23-DIGITAL MULTIMETER
This products comes with AC / DC Current, AC / DC Voltage, Back light, Capacitance.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 3,365
(GST inclusive price) i-
Base Value: ₹ 2851.7
-
GST: (18) % ₹ 513.3
-
Total Value ₹ 3365
₹3,860.00
( - 13% OFF )
Description
Key Features
- 4½ Digit Multimeter
- 19,999 Count
- Diode Test Anit Shock Protection
- Auto Power Off
- hFE Test
- Data Hold
- Power : 9V (6F22) x 1
- Dimension : H175 x W83 x D31 mm
- Weight : Approx. 290 Gms

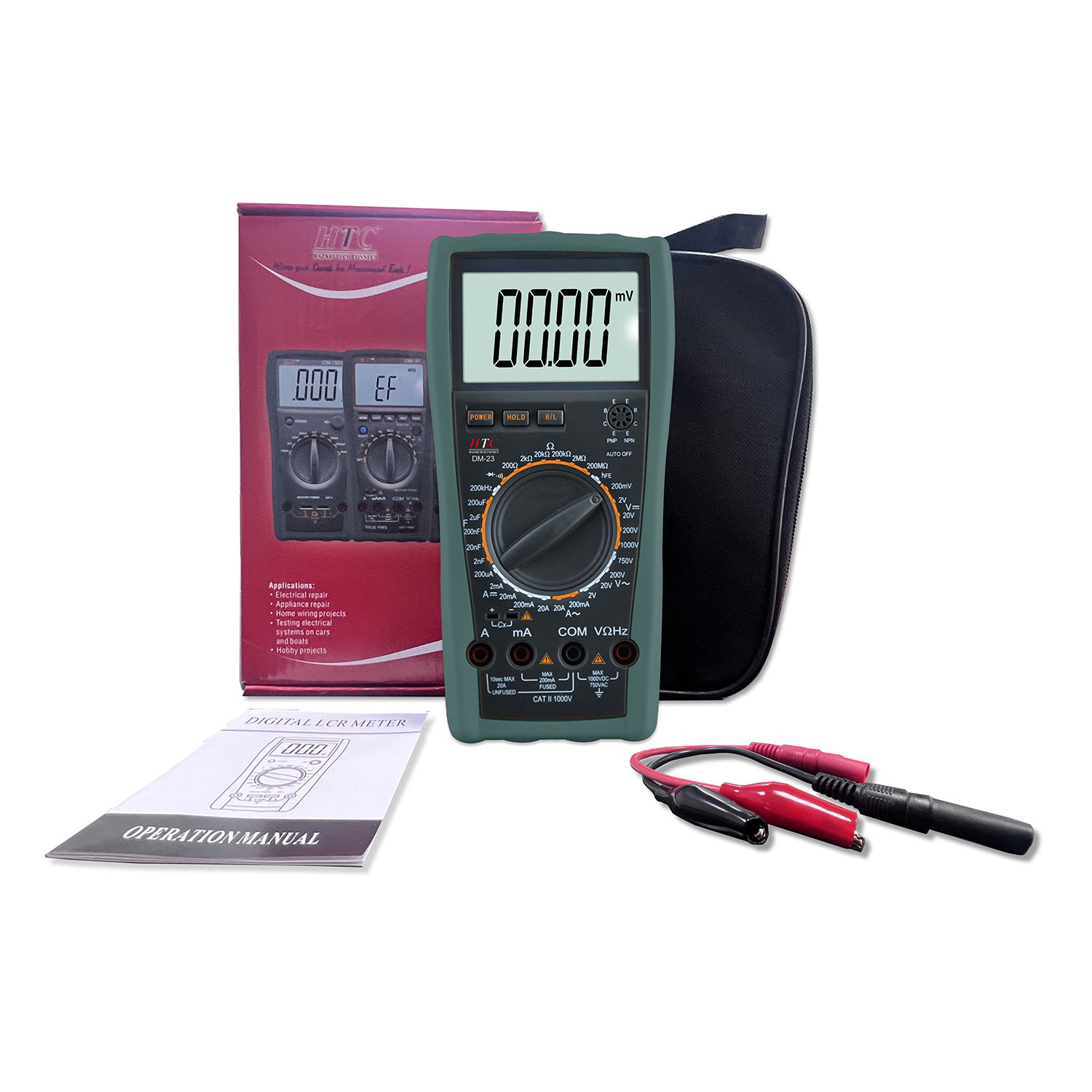

What's in the box?
|
Rating & Reviews
Rating
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 200mV | 10µV | ±0.05% of rdg ±3 digits |
| 2V | 100µV | |
| 20V | 1mV | |
| 200V | 10mV | |
| 1000V | 100mV | ±0.1% of rdg ±5 digits |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 2V | 100µA | ±0.8% of rdg ±25 digits |
| 20V | 1mV | |
| 200V | 10mV | |
| 750V | 100mV | ±1.0% of rdg ±25 digits |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 200µA | 0.01µA | ±0.5% of rdg±4 digits |
| 2mA | 0.1µA | |
| 20mA | 1µA | |
| 200mA | 10µA | ±0.8% of rdg±6 digits |
| 20A | 1mA | ±2.0% of rdg±15 digits |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 200mA | 10µA | ±1.5% of rdg±25 digits |
| 20A | 1mA | ±2.5% of rdg±35 digits |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 200Ω | 0.01Ω | ±0.2% of rdg±10 digits |
| 2kΩ | 0.1Ω | ±0.2% of rdg±5 digits |
| 20kΩ | 1Ω | |
| 200kΩ | 10Ω | |
| 2MΩ | 100Ω | |
| 200MΩ | 10kΩ | ±5% of rdg±10 digits±10 digits |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 2nF | 0.1pF | ±3.5% of rdg±10 digits |
| 20nF | 1pF | |
| 200nF | 10pF | |
| 2µF | 100pF | |
| 200µF | 10nF | ±3.8% of rdg±20 digits |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 200kHz | 10 Hz | ±3.0% of rdg±15 digits |
| TRANSISTOR (hFE) TEST | ||
| Range | Resolution | Accuracy |
| NPN OR PNP | 0~1000 | Base DC current is approx 10µA Vce is aaprox 3V |
