Metravi PVB-820 Pen Type Vibration Meter

Click To Zoom

Metravi PVB-820 Pen Type Vibration Meter

Metravi PVB-820 Pen Type Vibration Meter

(Based On 10 Reviews)

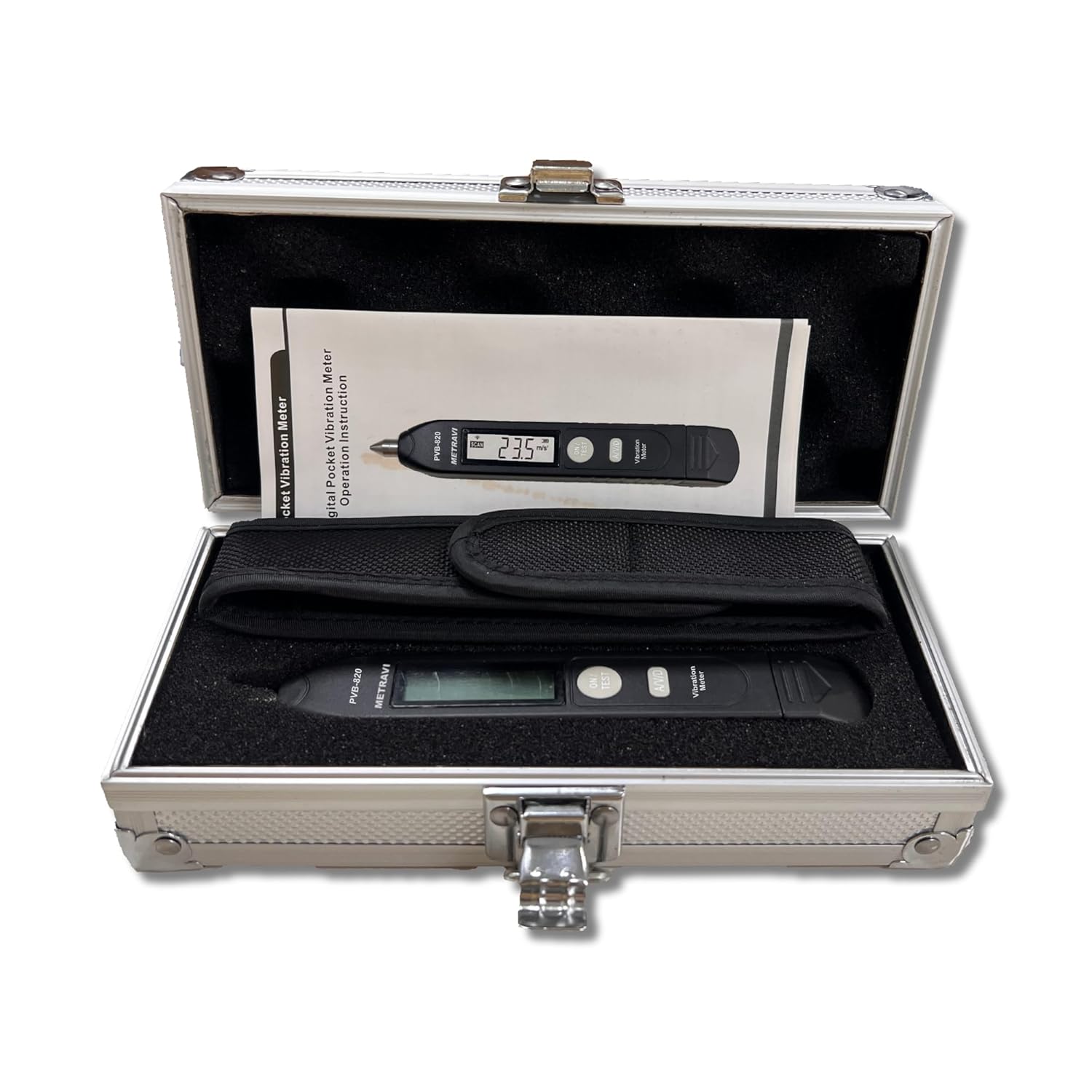

The Metravi PVB-820 is a handy and compact, pen-type Vibration Meter, to measure Acceleration, Velocity, and Displacement. It comes in a hard carrying case as well as a padded canvas holder, for safely carrying the instrument around. With precise and accurate measurements – it is a very useful device for consultants and maintenance professionals on the move and in the field.



Request Callback

Order In Bulk

Generate Quote

₹ 24,671.00

(GST inclusive price) i
  • Base Value: ₹ 20907.6
  • GST: (18) % ₹ 3763.4
  • Total Value ₹ 24671

₹24,671.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • Its function is comprehensive. It can measure three parameters as acceleration, speed and displacement
  • Its size is not large. It is light and easy to carry
  • You can control the meter with two keys. The operation is simple
  • Auto Power Off facility



What's in the box?

  • Pen Type Vibration Meter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
Measurement parametersAcceleration. Speed. Displacement
Measurement rangesAcceleration0.01-199.9m/s² (peak value)
Speed0.01-199.9mm/s (effective value)
Displacement0.001-1.999mm (peak- peak value)
Frequency range Acceleration10 Hz-1 kHz.
Speed 10 Hz-1 kHz.
Displacement10 Hz-500Hz
Accuracy Uncertainty of referred sensitivity: ±3%
Amplitude linear relative error ±5%±2
Relative error of frequency response:
When frequency is 10Hz.≤f <20Hz, relative error is +10/-20% When frequency is 20Hz.≤f.≤1000 Hz, relative error is ±5%
Display LCD display showing numbers from 0 to 9 and with the use of decimal point. Its display period is about 1S
Power supply voltage2 button cells (CR2032)
Battery lifeIf the meter works nonstop, its life is about 5h; when it is standby, its life is about 1 year
Working environmentThe temperature ranges from 0°C to 40°C; relative humility ≤85%
Dimension154.5mm*23. 5mm*1 8.7mm.
Weight of the meterabout    40g    (including    2    cells)
