Metravi 908 Portable Vibration Meter
Click To Zoom

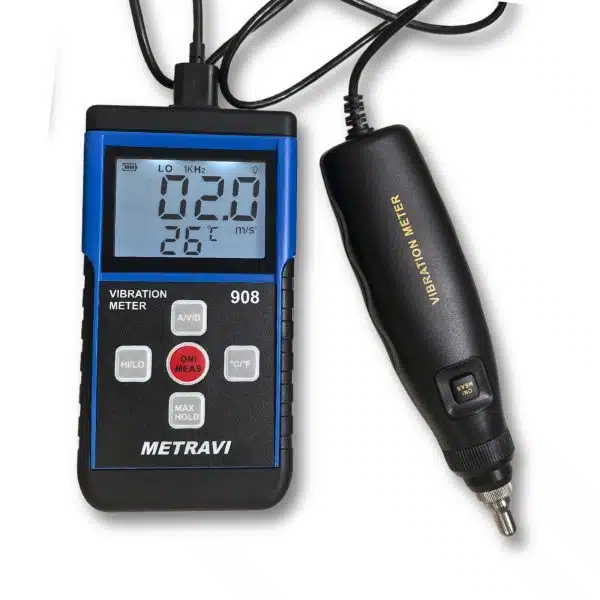

Metravi 908 Portable Vibration Meter
Metravi 908 Portable Vibration Meter

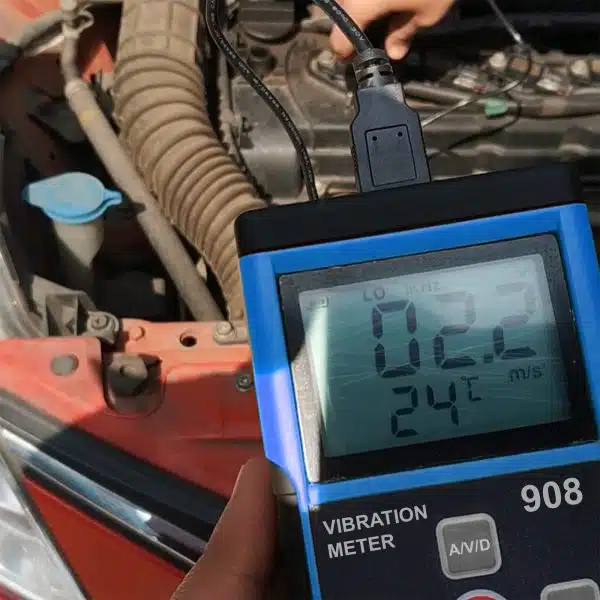

This product adopts piezoelectric effect of artificial polarized ceramic for design. it is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure Acceleration, Velocity and Displacement. It also measures Temperature of the object under test.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 17,765
(GST inclusive price) i-
Base Value: ₹ 15055.1
-
GST: (18) % ₹ 2709.9
-
Total Value ₹ 17765
₹25,400.00
( - 30% OFF )
Description
Key Features
- LCD measurement result and conditions directly
- Measures Acceleration (m/s² peak), Velocity (mm/s RMS), and Displacement (mm p-p)
- Selective vibration characteristic
- Uses his- sensitive vibration sensor for accurate measurements

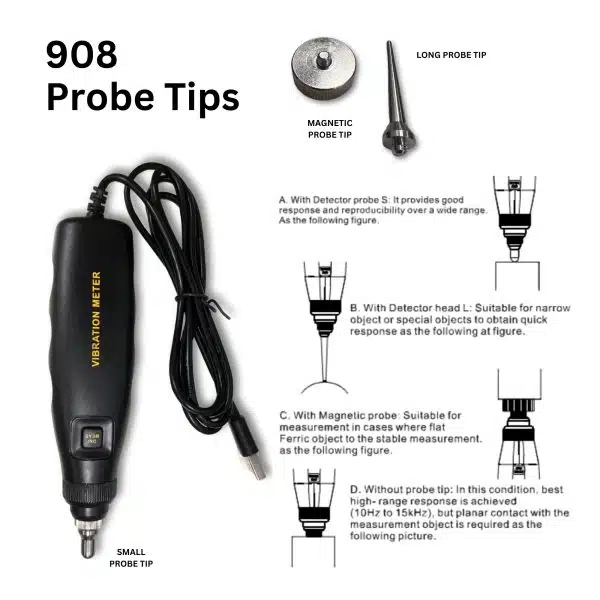

- The magnetic probe is provided, to be used for holding the sensor in un-easy conditions
- Equipped with two probe tips (SHORT and LONG) to adapt to the different measurement requirements
- Low battery Indication
- Auto Power-off
- Backlit LCD Display
- Maximum value Hold function
- Measures Temperature in °C/°

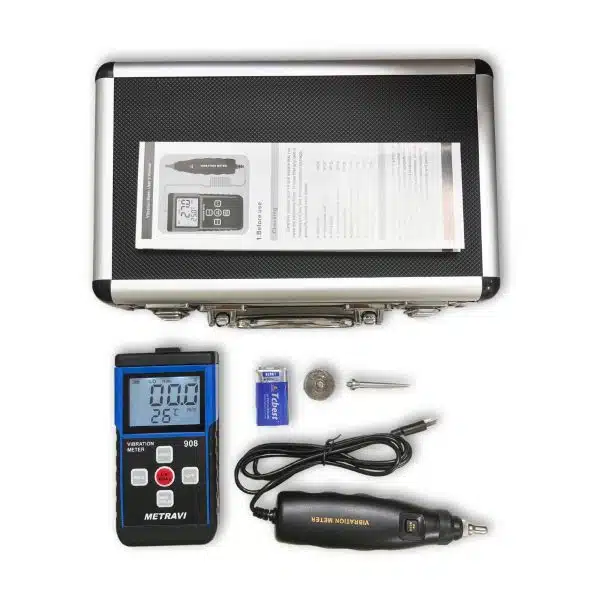

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Vibration pickup | Piezoelectric ceramic accelerometer (shear-type) |
| Acceleration Range | 0.1∼199.9m/s² Peak |
| Velocity | 0.1∼199.9mm/s RMS |
| Displacement | 0.001-1.999mm p-p, Velocity and Displacement range is limited by Acceleration199.9m/s2 |
| Accuracy | ±5% ±2digits |
| Measurement frequency range of Acceleration | 10Hz~1kHz (Lo) 1kHz~15kHz (Hi) |
| Measurement frequency range of Velocity | 10Hz~1kHz (Lo) |
| Measurement frequency range of Displacement | 10Hz~1kHz (Lo) |
| Temperature Measurement Range | -10°C to 80°C |
| Temperature Accuracy | ±2°C |
| Display Update Cycle | 1 sec |
| LCD Display | 3-1/2 Digits |
| Power Supply | 9V battery |
| Stand-by Current | ≤15μΑ |
| Operating Current | ≤25μΑ |
| Battery Life | 20 hours continuous use |
| Auto Power Off | Turns off automatically after 60 seconds |
| LCD Backlit | 7 seconds |
| Operating Temperature Range | 0-40°C |
| Operating Humidity Range | 30~90% RH |
| Low Battery Indication | 6.4V± 0.2V |
| Dimensions | 70 x 30 x 150mm |
| Weight | 137 gms (not including battery) |
