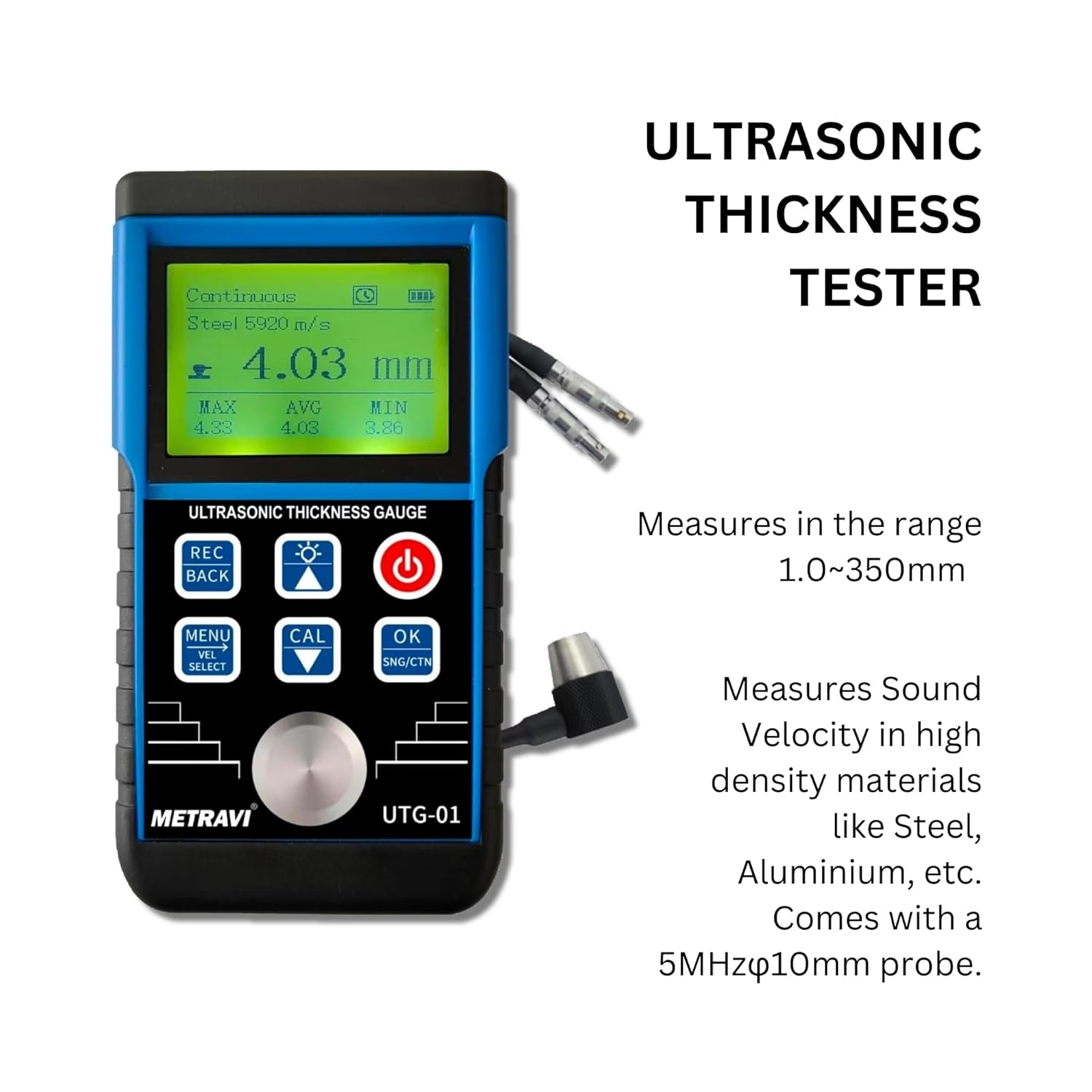

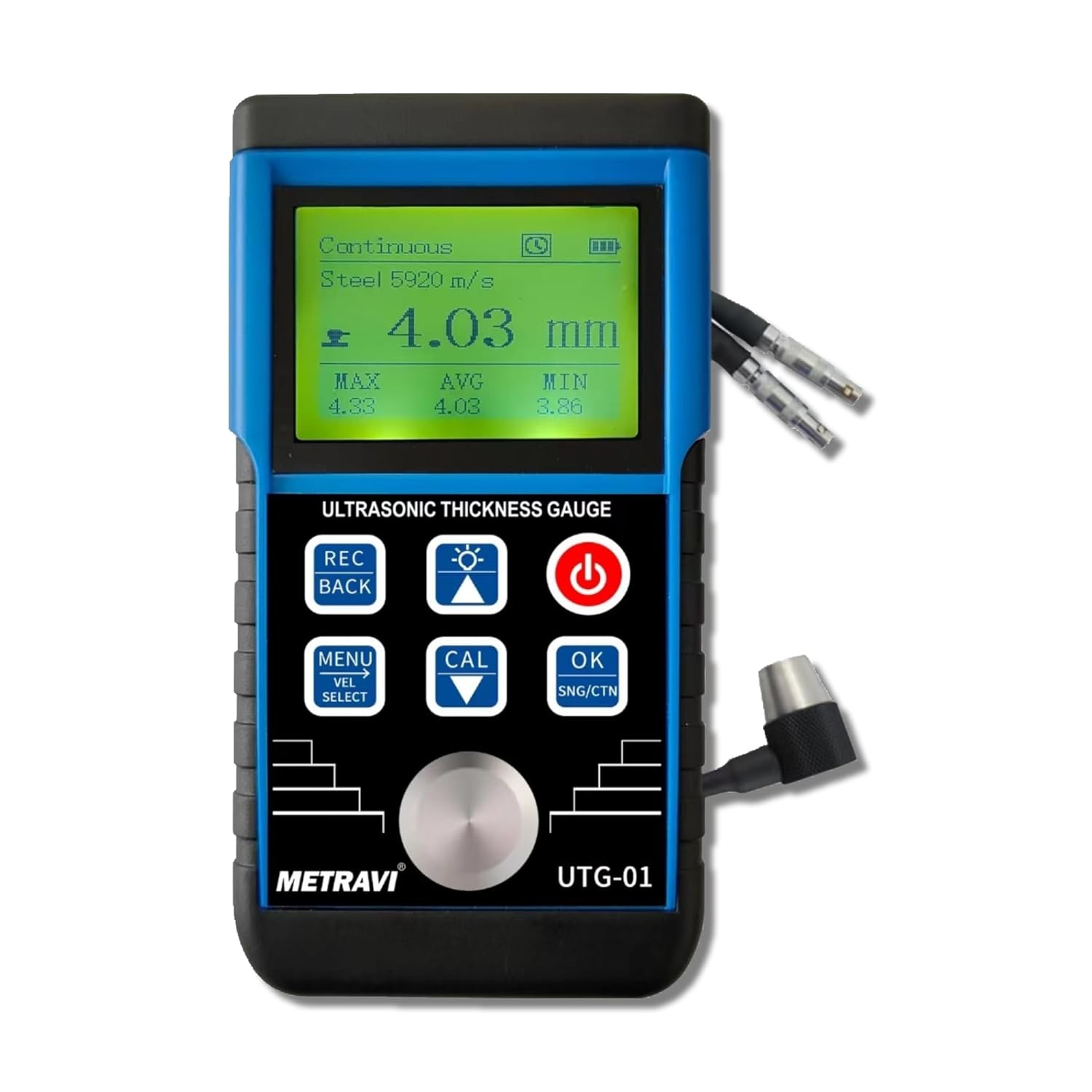

Metravi UTG-01 Ultrasonic Thickness Gauge
Click To Zoom
Metravi UTG-01 Ultrasonic Thickness Gauge
Metravi UTG-01 Ultrasonic Thickness Gauge
Measures thickness 1.0~350mm with high Resolution (0.01mm) and Accuracy for high density materials like Steel & Aluminium. Sound Velocity measurement 1000~9999 m/s, Data Logging 10 units, Auto Calibration, Auto Linear Compensation, Auto Power-off.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 12,560
(GST inclusive price) i-
Base Value: ₹ 10644.1
-
GST: (18) % ₹ 1915.9
-
Total Value ₹ 12560
₹17,955.00
( - 30% OFF )
Description
Key Features
- Using single chip micro processor technology, resolution is up to 0.01mm.
- Stable measurement and fast reaction speed.
- Continuous and single measurement switching function.
- Sound velocity measurement function.
- Preset fixed sound velocity value of common materials, which can be quickly selected and measured according to the material to be measured.
- Probe port automatically identifies the probe transmitting and receiving signals, and the user can directly insert the probe into the host when replacing it.
- 10 units data storage.
- Alarm function, user can customize the upper and lower limit alarm values and buzzer alarm sounds if the measurement result is outside the set limits.

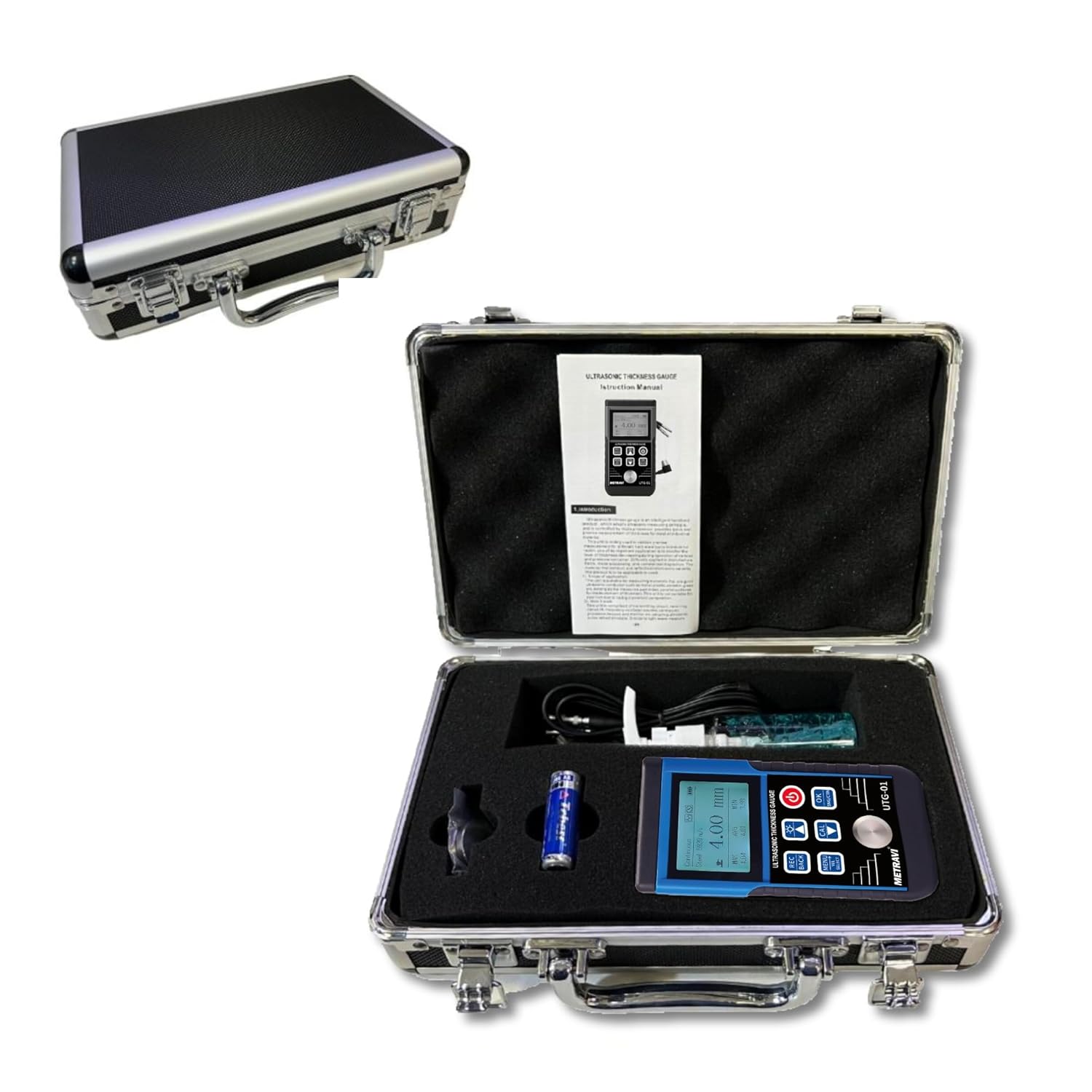

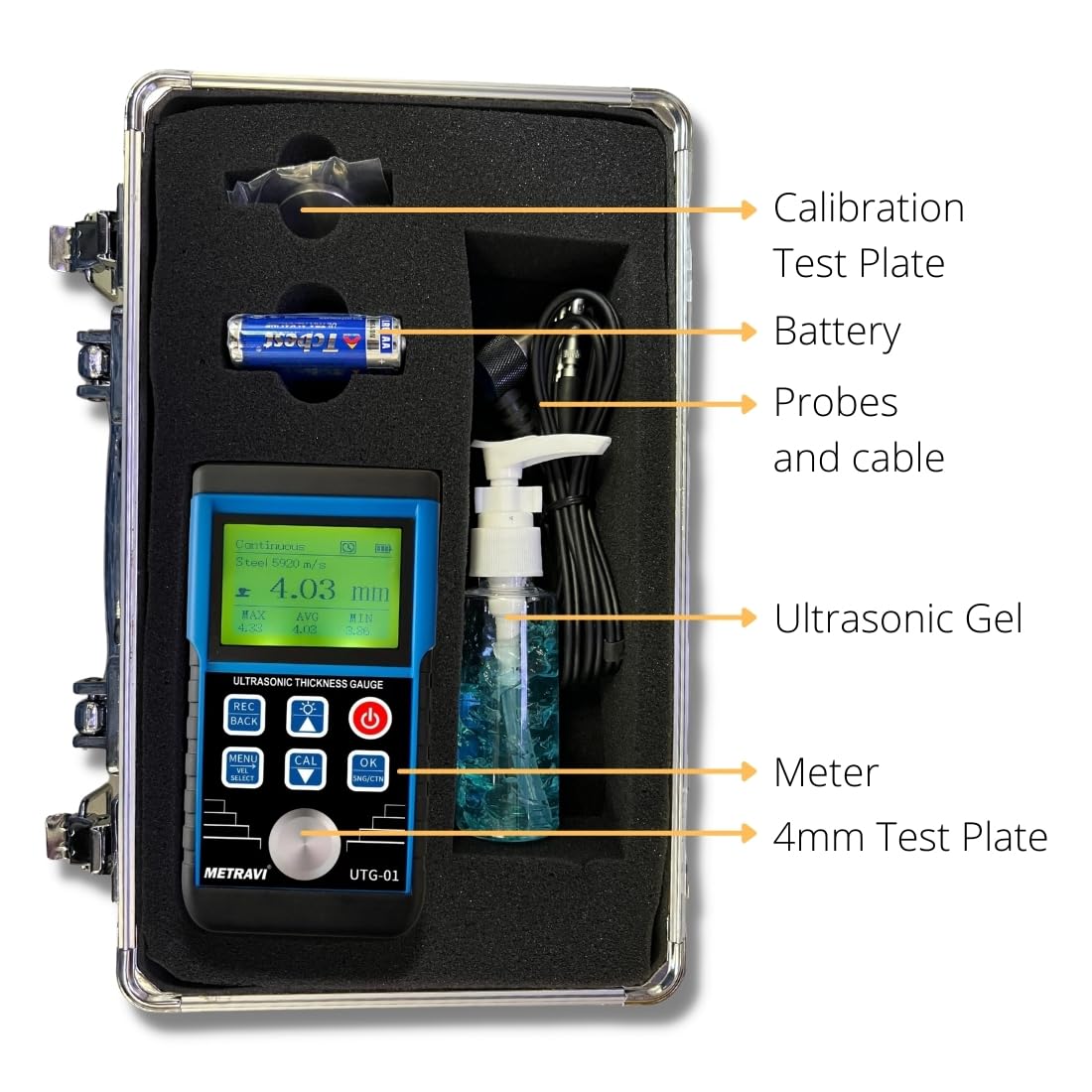

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Measuring Range | 1.0~350mm (45#Steel) |
| Operation Frequency | 5MHz /2.5MHz (2.5MHz using special probe) |
| Minimum Limit for Tube Curvature Measurement | Ø20x3mm (45#Steel) |
| Resolution | 0.01mm (1~99 mm); 0.1mm (100 mm) |
| Accuracy | H<10mm, ±0.05mm 10-99mm: ≤±(0.01+H/200)mm >10 0mm: ≤±(0.1+H/100)mm (H: thickness of material to be measured) |

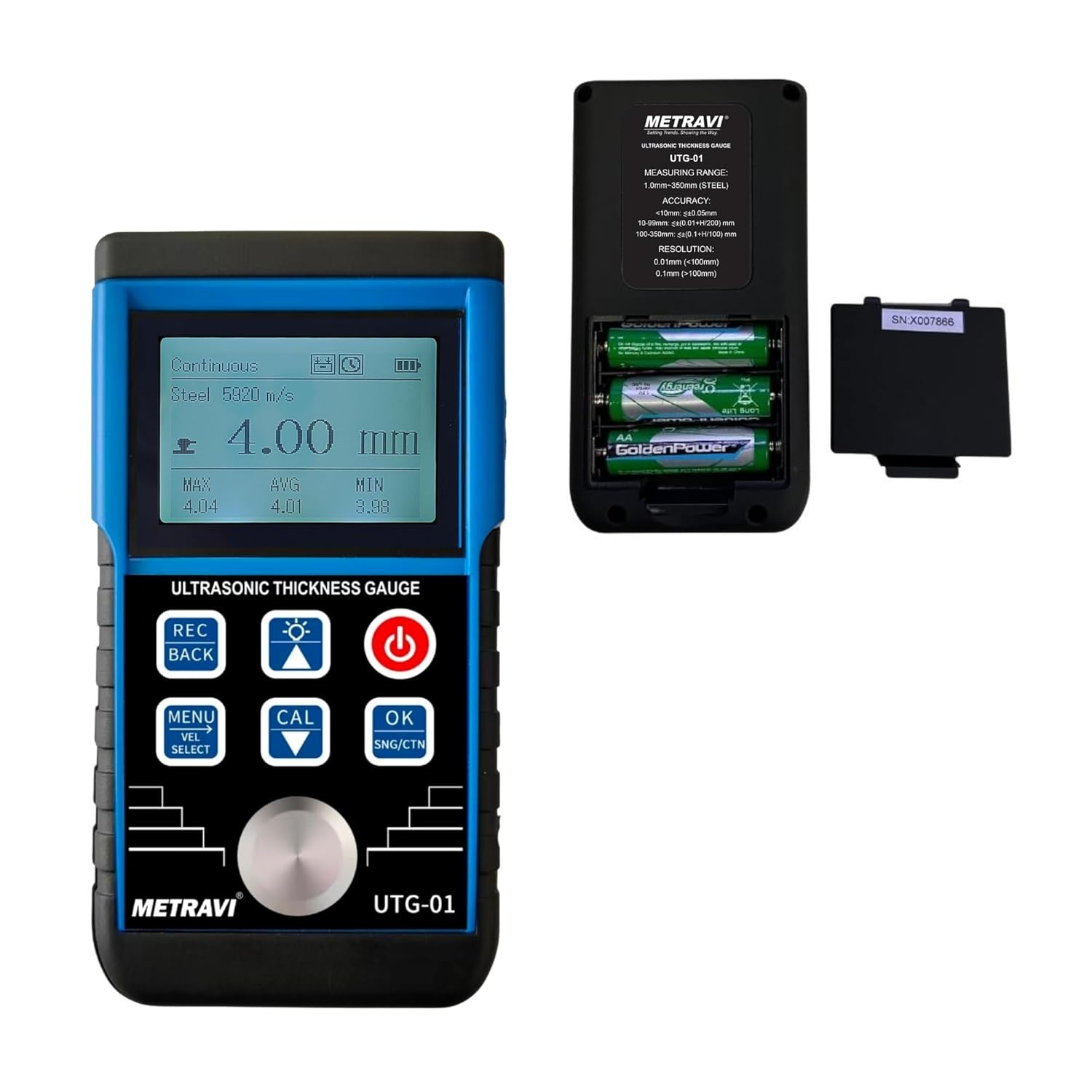

| Power Supply | 3x 1.5V AA alkaline batteries; lasts about 20 hours |
| Sound Velocity Range | 1000~9999 m/s |
| Operating Temperature | 0°C~40°C, Probe 0°C~60°C |
| Weight | 72x135x36 mm |
| Calibration Test Block | Instrument is inlaid with a 4.00mm Calibration Test Block with a tolerance of ±0.05mm |
| Display | 4 digits Backlit LCD |
| Auto Power-off | Available |
| Low Battery indication | Available |
| Auto Linear Compensation | Available |
| Data Logging | 10 measurements |
