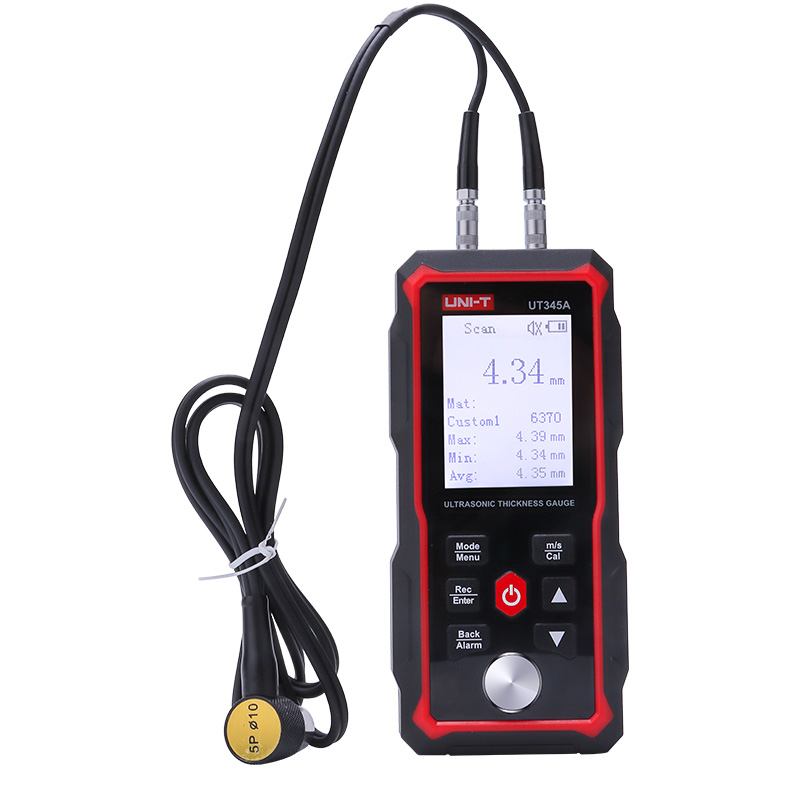

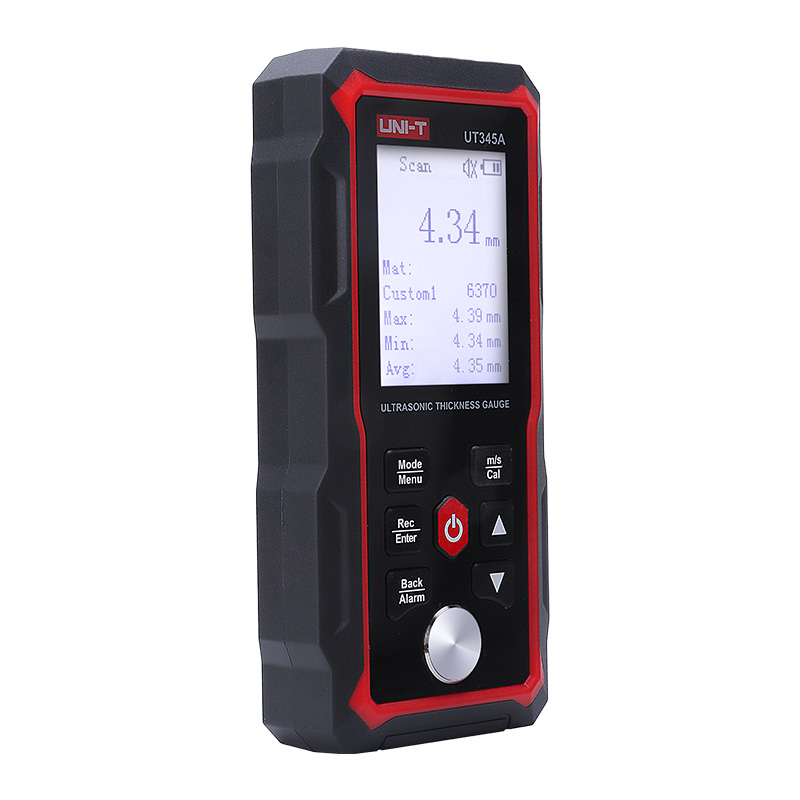

UNI-T UT345A Ultrasonic Thickness Gauge

UNI-T UT345A Ultrasonic Thickness Gauge
UNI-T UT345A Ultrasonic Thickness Gauge
UNI-T UT345A Ultrasonic Thickness Gauge
UNI-T UT345A Ultrasonic Thickness Gauge
UNI-T UT345A Ultrasonic Thickness Gauge
UNI-T UT345A Ultrasonic Thickness Gauge
UNI-T UT345A Ultrasonic Thickness Gauge
UNI-T UT345A Ultrasonic Thickness Gauge

Click To Zoom

UNI-T UT345A Ultrasonic Thickness Gauge

UNI-T UT345A Ultrasonic Thickness Gauge

(Based On 10 Reviews)

UT345A is an intelligent ultrasonic thickness gauge that adopts the latest high-performance and low-power consumption microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness and sound velocity of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts. The gauge can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

6 MONTHS WARRANTY
6 Months Warranty Against Any Manufacturing Defects.

6 MONTHS WARRANTY

₹ 8,430

(GST inclusive price) i
  • Base Value: ₹ 7144.1
  • GST: (18) % ₹ 1285.9
  • Total Value ₹ 8430

₹10,920.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 3.7V 2000mAh lithium battery
  • Auto calibration
  • 300 groups of data storage
  • Measurement range 1.00~300.00mm
  • Sound velocity range (1000～9999) m/s
  • Unit mm/in
  • High-sensitive probe
  • Buzzer alarm
  • Multiple materials selection



What's in the box?

  • UNI-T UT345A Ultrasonic Thickness Gauge
  • Type-C charging cable
  • Probe

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Specifications
Display2.4″ LCD
Measurement range1.00~300.00mm
Sound velocity range(1000～9999) m/s
Unitmm/in
AccuracyH<10mm, ±0.1mm; H≥10mm, ±(1%H+0.1)mm
Lower limit of pipe measurementΦ20×3mm (steel)
Data storage300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group
Main functionsSingle measurement, continuous measurement, alarm, sound velocity measurement, auto calibration
Charging specificationDC 5V 1A, Type-C interface
Operating time (full battery)About 16h
Operating temperature and humidity0℃~40℃ 10%RH~80%RH
Storage temperature and humidity-10℃~50℃ 10%RH~70%RH
General Characteristics
BatteryBuilt-in lithium battery (3.7V 2000mAh)
Product colorRed and grey
Product net weight175g
Product size140×66×28.5mm
Standard individual packingGift box, English manual, Cloth case
Standard quantity per carton5pcs
Gross weight (one carton)3.09kg
